“Goodheng Locks Tubular Cam Lock - Keyed Alike Offset Cam Lock for RV Compartment Storage - Cabinet Lock, Drawer Lock,Mailbox Lock(Chrome,2 Keys)-5/8 Inch 90°
$29.57
- $5.95 shipping from United States View details
-
Arrives
- 【Sturdy and Durable】Zinc alloy die cast housing and cylinder with bright Chrome Plated,sturdy and durable.lock with 7pcs brass pins
- 【Key Aliked】Key Aliked,All locks in the same order are keyed the same. Our keys will NOT match your existing non Goodheng locks
- 【2 Key Pull】This means you can remove the key, whether it is in a locked or unlocked position
- 【Wide Range of Uses】Suitable for chassis cabinet, subway gate machine, coffee maker, paper vending machine,game machine,console, ATM cabinet, wardrobe, elevator operation box, advertising chassis,toolbox,file drawer and cabinet replacement cam lock etc
- 【Easy and Fast Installation】You can simply drill a 3/4" hole,Insert the lock cylinder into, fit and then fasten using the nuts, adjust the position of the lock plate and tighten the nylon nut. The cam can be installed on the lock at 3, 6, 9, or 12 o'clock positions and opens with a 90-degree turn
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- 【Sturdy and Durable】Zinc alloy die cast housing and cylinder with bright Chrome Plated,sturdy and durable.lock with 7pcs brass pins
- 【Key Aliked】Key Aliked,All locks in the same order are keyed the same. Our keys will NOT match your existing non Goodheng locks
- 【2 Key Pull】This means you can remove the key, whether it is in a locked or unlocked position
- 【Wide Range of Uses】Suitable for chassis cabinet, subway gate machine, coffee maker, paper vending machine,game machine,console, ATM cabinet, wardrobe, elevator operation box, advertising chassis,toolbox,file drawer and cabinet replacement cam lock etc
- 【Easy and Fast Installation】You can simply drill a 3/4" hole,Insert the lock cylinder into, fit and then fasten using the nuts, adjust the position of the lock plate and tighten the nylon nut. The cam can be installed on the lock at 3, 6, 9, or 12 o'clock positions and opens with a 90-degree turn
High Security 7 Pins Tubular cam locks
Available keyed alike & different in a variety of cylinder lengths
This ace cam lock has a tubular key-way designed to resist picking and drilling.
Perfect for cabinets, doors, lockers, mailboxes, RVs, boxes, etc. Optional cams are available. Also ideal for replacing your lock on your RV storage compartment doors.
Cam Lock Specification:
1. Type: Tubular Cam Lock
2. Material: Lock: Zinc Alloy Housing and Cylinder,Key: Iron handle and zinc alloy head.M19 nut: Zinc alloy, M7 nylon nut,washer and cam : iron
3. Surface Treatment: Chrome Plated
4. Rotation Angle: 90 degree
5. Mechanism: 7pcs brass pins
6. Key Type: Key aliked. ( all same key)
7. Key Positon: 2 Key Pull(Key can be removed both on locked and unlocked postion)
8. Mounting Hole Dia.: about 3/4 inch (about 18.54mm)
9. For Door Thickness: Less than 0.87 inch (22mm)
10.Max. Latching Distance: 1-1/8 inch (30mm)
11. Installation: You can simply drill a 3/4" hole,Insert the lock cylinder into, fit and then fasten using the nuts, adjust the position of the lock plate and tighten the nylon nut. The cam can be installed on the lock at 3, 6, 9, or 12 o'clock positions and opens with a 90-degree turn.
12. Suitable for cabinets, drawers, RV cabinets, toolboxes, or desk locks, but also for campers, RVs, and more.

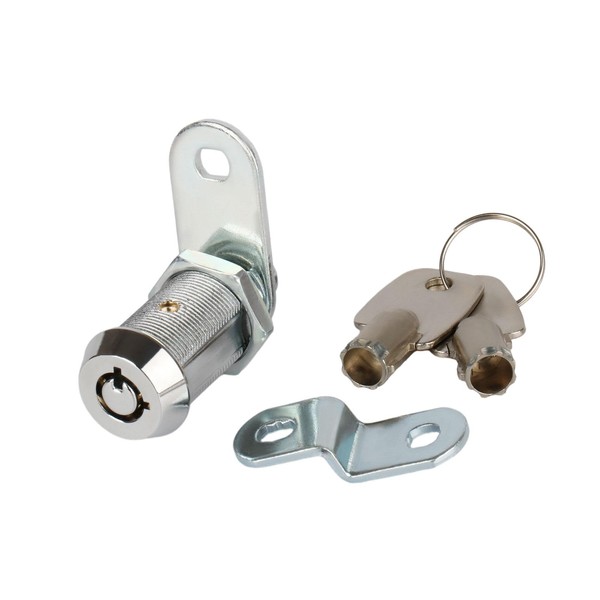

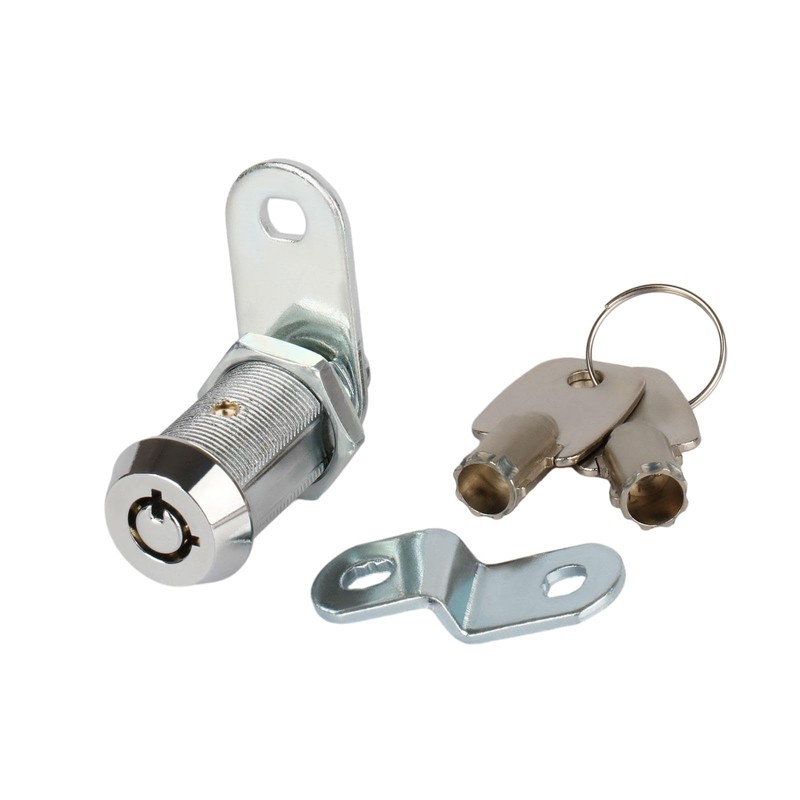

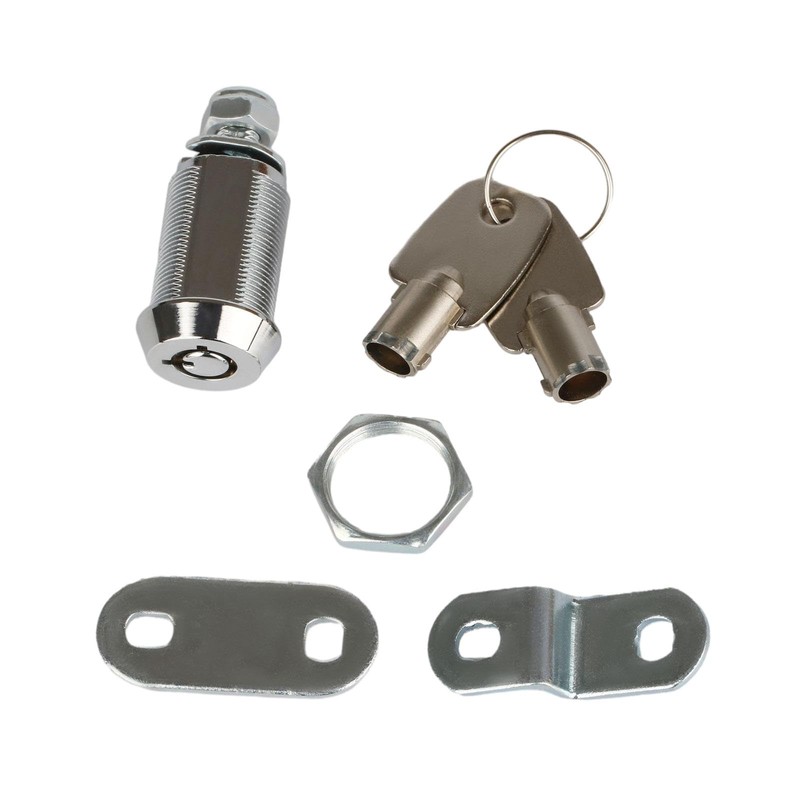

Package includes:
Each Lock come with 2 keys,1pc M19 nut ,1pc M7 nylon nut, 1pc total length 42mm straight cam and 1pc bend 3mm total length 41mm offset cam.
Please check the sizes to order the correct lock before payment.

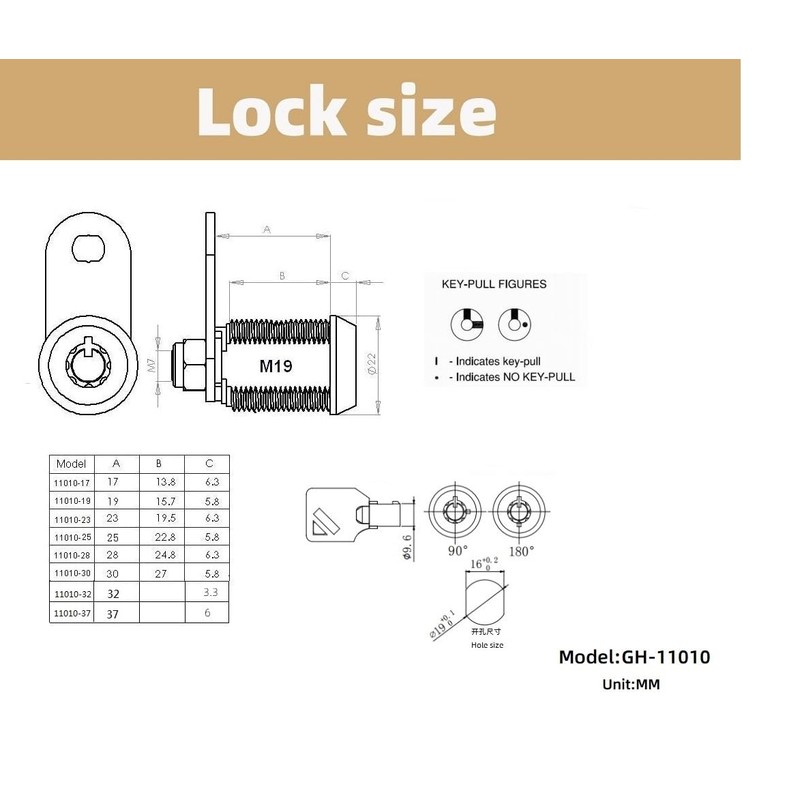

【To Avoid Unnecessary Returns, Read Size Guidance Carefully】

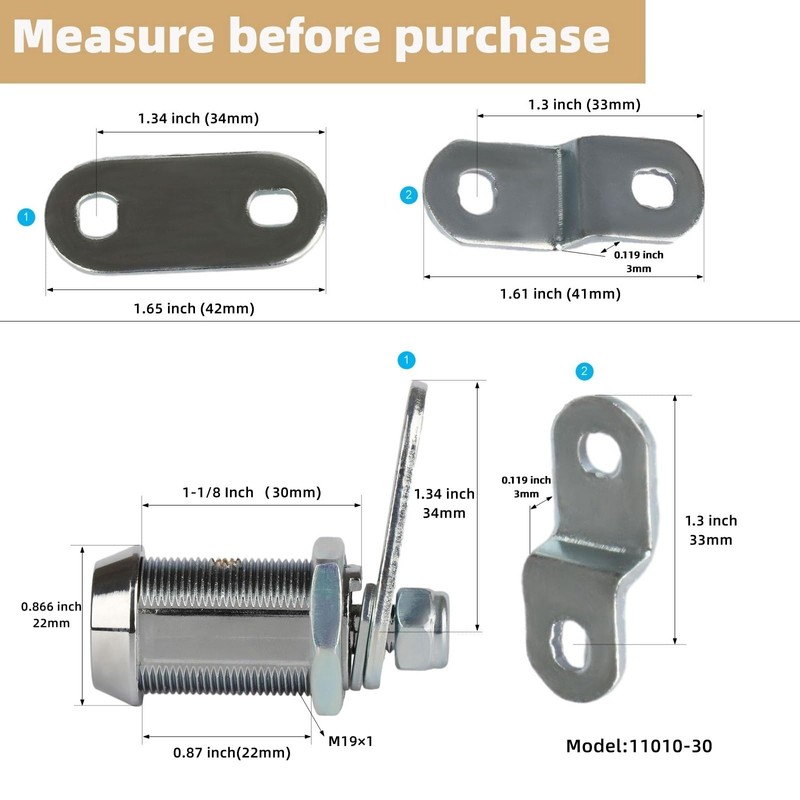

1, Measure the locking distance & your door thickness before purchasing. If you have old lock, choose same length lock size.
2, Normally, suitable cabinet locks size is equal to the LOCKING DISTANCE(measure from the front of the door face to the latch locking-up position), but if your door thickness longer than the locking distance, then select the corresponding size according to the maximum door panel thickness in the Size Guidance.
Note:
1.The tolerance for manual measurement is 1-2mm.
2. Measurements in the diagram is millimeter.
