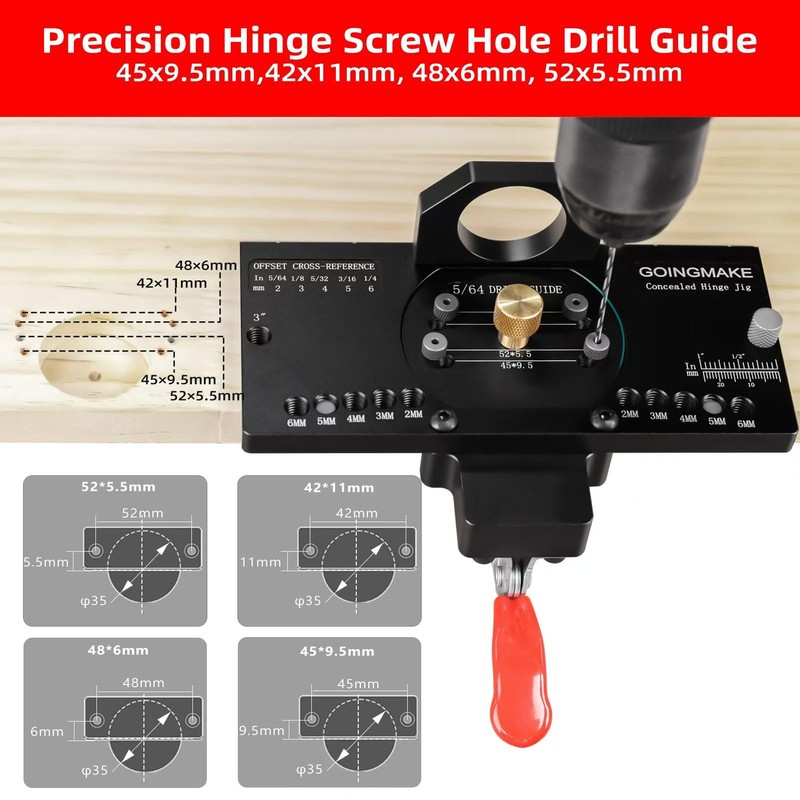

GOINGMAKE Metal Concealed Hinge Jig with Quick Clamp and Dust Vacuum Adapter Concealed Door Hinge Jig 35mm Cabinet Hinge Jig Hinge Hole Drilling Jig for Woodworking Door Cabinet Hinges Mounting Tool

$132.19

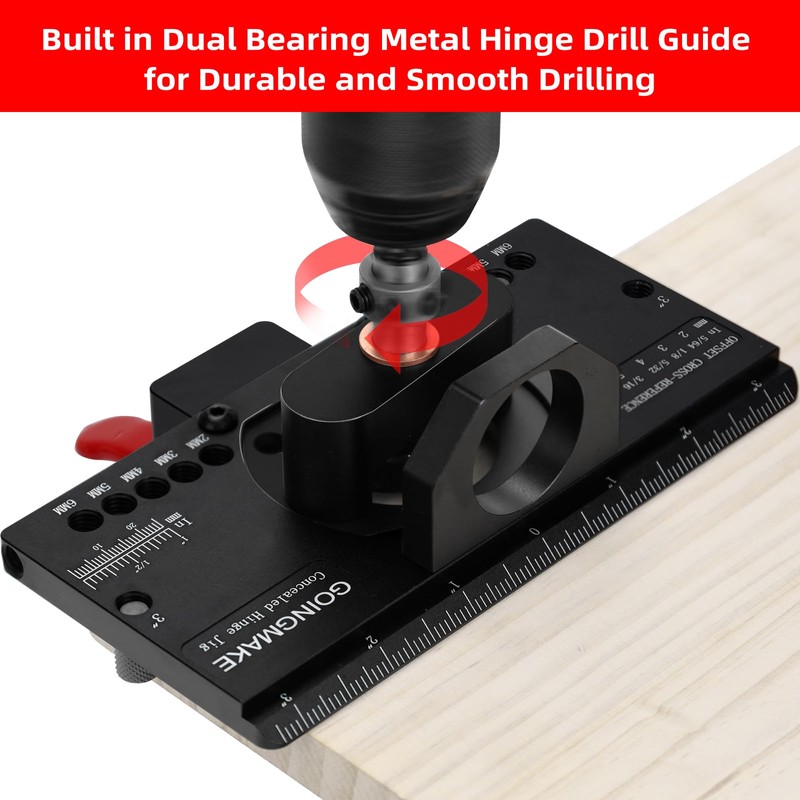

  • 【DURABLE AND ACCURATE】All metal cabinet hinge jig made of high quality aluminum alloy is more durable and accurate than plastic jigs. The all metal concealed hinge jig bulit-in double bearings provides continuous hinge hole drilling and much easier. The 35mm carbide tipped bit is solid and sharp for cabinet door hinges installation. Concealed cabinet hinge jig wood hole puncher locator help you drill accurate and fast as drill press.

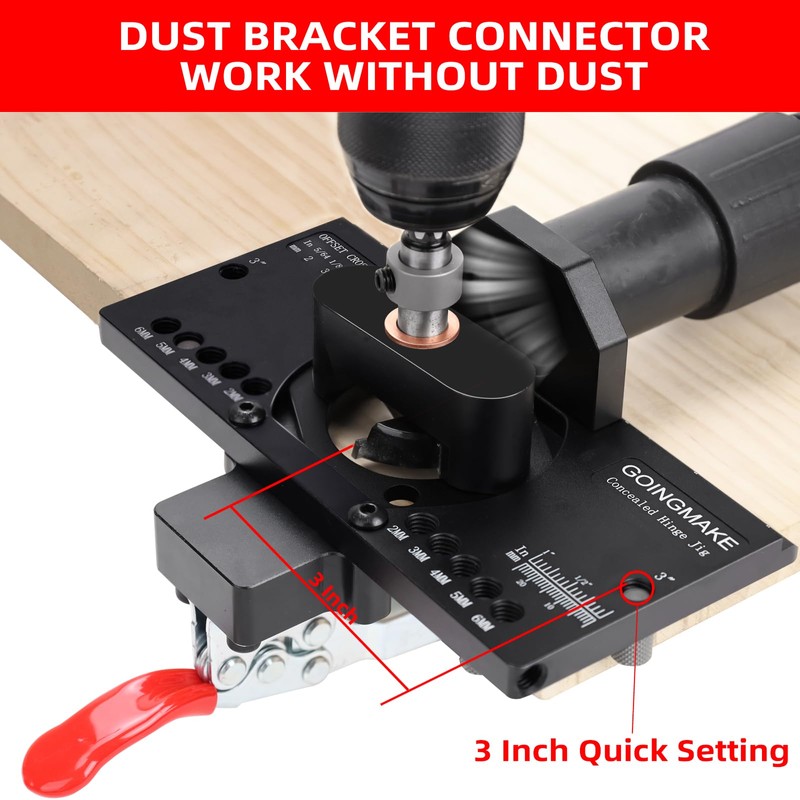

  • 【WORK WITHOUT DUST】The built in metal dust bracket of GOINGMAKE concealed hinge jig is suitable for 1-3/8 inch vaccum hose and easy to connect with your vaccum. The world's latest dust vacuum adapter makes cabinet hinges drilling without any dust for woodworking. Greatly improves the efficiency and accuracy of installing cabinet hinges. The 1-3/8 inch dust adapter is perfect for most vaccum dust collector.

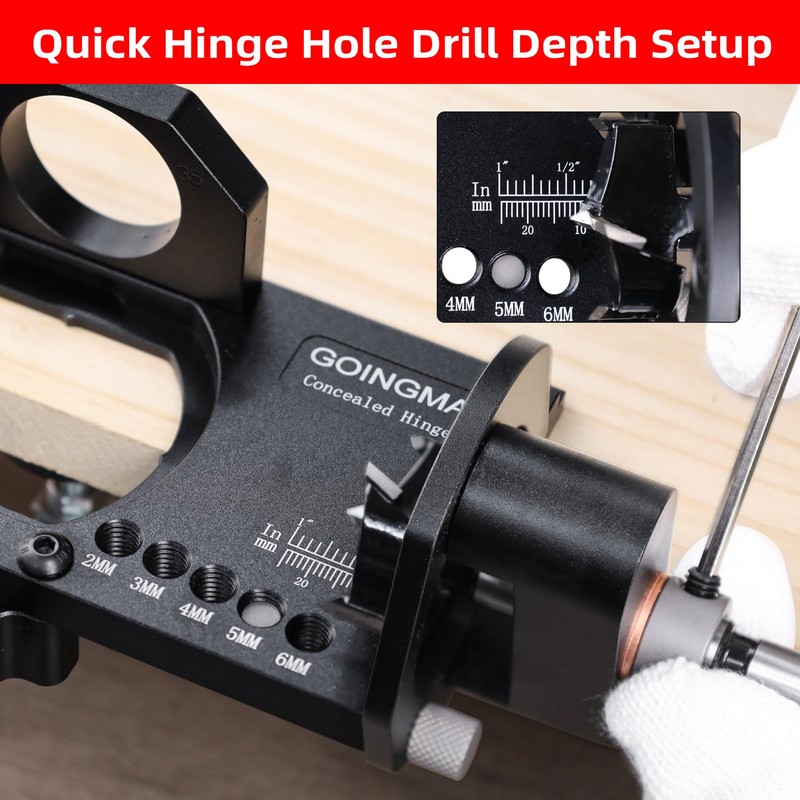

  • 【EASY AND FAST】GOINGMAKE cabinet hardware jig provides quick cabinet hinge hole depth setting without any measuring. The 35mm concealed hinge jig provides drill depth from 0-0.6 inch. Perfect for 1/2 inch overlay hinges or any others.

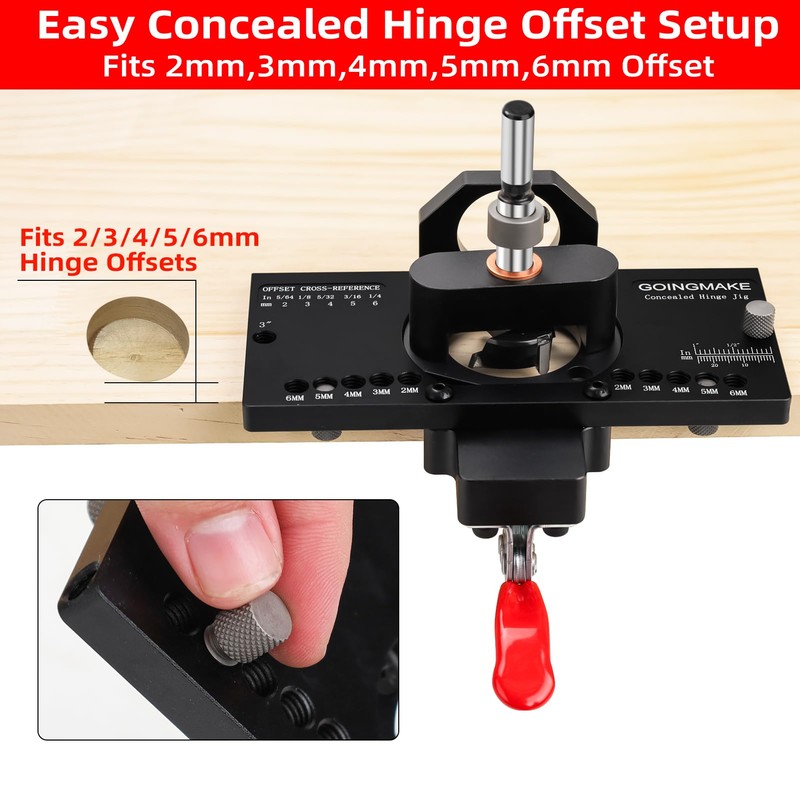

  • 【VERSATILE CABINET HINGE JIG】The concealed door hinge jig can work with 2mm, 3mm, 4mm, 5mm and 6mm hinge offsets for most concealed hinges. Have no difficulty on any concealed hinges installation with 35mm hinge hole drilling jig. Our 5/64 inch drill guides provides 4 kinds of hinge screw holes spacing including 42x11mm, 48x6mm, 52x5.5mm, 45x9.5mm for most hidden cabinet door hinges installation. 5/64 inch drill bits is included.

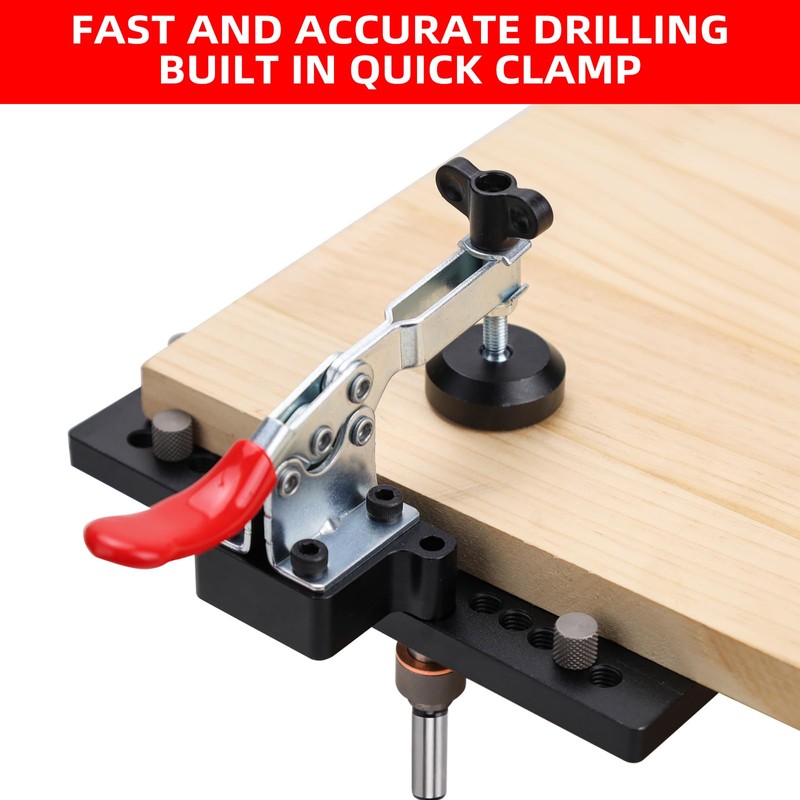

  • 【QUICK CLAMP DESIGN】We provide quick clamp on the GOINGMAKE 35mm hinge hole drilling jig pro max type. You can clamp and fix the concealed hinge jig on the workpiece easier and fast. Save a lot of time and make woodworking easier.

Manufacturer:
GOINGMAKE
Part Number:
CSK878M
Material Type:
Metal
Product Dimensions:
4.88 x 8.19 x 8.66 inches; 2.62 pounds
Isin:
IJWRPE7O6PXJ

$132.19

In Stock

, Fulfilled by IBSPOT • Ships from US

IBSPOT Buyer Protection
  • Free 30-Day Returns
  • Full Refund for Damaged or Incorrect Items
  • Guaranteed Delivery or Money Back
  • Secure Checkout & Fast Support
scroll to top arrow
GOINGMAKE Metal Concealed Hinge Jig with Quick Clamp and Dust Vacuum Adapter Concealed Door Hinge Jig 35mm Cabinet Hinge Jig Hinge Hole Drilling Jig for Woodworking Door Cabinet Hinges Mounting Tool

GOINGMAKE Metal Concealed Hinge Jig with Quick Clamp and Dust Vacuum Adapter ...

$132.19

  • 【DURABLE AND ACCURATE】All metal cabinet hinge jig made of high quality aluminum alloy is more durable and accurate than plastic jigs. The all metal concealed hinge jig bulit-in double bearings provides continuous hinge hole drilling and much easier. The 35mm carbide tipped bit is solid and sharp for cabinet door hinges installation. Concealed cabinet hinge jig wood hole puncher locator help you drill accurate and fast as drill press.
  • 【WORK WITHOUT DUST】The built in metal dust bracket of GOINGMAKE concealed hinge jig is suitable for 1-3/8 inch vaccum hose and easy to connect with your vaccum. The world's latest dust vacuum adapter makes cabinet hinges drilling without any dust for woodworking. Greatly improves the efficiency and accuracy of installing cabinet hinges. The 1-3/8 inch dust adapter is perfect for most vaccum dust collector.
  • 【EASY AND FAST】GOINGMAKE cabinet hardware jig provides quick cabinet hinge hole depth setting without any measuring. The 35mm concealed hinge jig provides drill depth from 0-0.6 inch. Perfect for 1/2 inch overlay hinges or any others.
  • 【VERSATILE CABINET HINGE JIG】The concealed door hinge jig can work with 2mm, 3mm, 4mm, 5mm and 6mm hinge offsets for most concealed hinges. Have no difficulty on any concealed hinges installation with 35mm hinge hole drilling jig. Our 5/64 inch drill guides provides 4 kinds of hinge screw holes spacing including 42x11mm, 48x6mm, 52x5.5mm, 45x9.5mm for most hidden cabinet door hinges installation. 5/64 inch drill bits is included.
  • 【QUICK CLAMP DESIGN】We provide quick clamp on the GOINGMAKE 35mm hinge hole drilling jig pro max type. You can clamp and fix the concealed hinge jig on the workpiece easier and fast. Save a lot of time and make woodworking easier.

Manufacturer:
GOINGMAKE
Part Number:
CSK878M
Material Type:
Metal
Product Dimensions:
4.88 x 8.19 x 8.66 inches; 2.62 pounds
Isin:
IJWRPE7O6PXJ

GOINGMAKE provides high quality tools all the time and create more and more helpful and durable tools for DIYer, home owner and professional wood worker. GOINGMAKE 35mm hinge jig pro max is made of all metal and built-in bearing drill guide is durable to use and easy to drill accurate hinge holes instead of drill press. Including quick clamp on the jig help you clamp on the workpiece fast without any other clamps. The concealed hinge jig with1-3/8 Inch dust collection adapter is suitable for most of dust collector makes workshop and house clean during drilling. Including 2/3/4/5/6mm offset and 42*11, 48*6, 52*5.5, 45*9.5mm hinge screw hole drill guide. The carbide tipped 35mm drill bit provide clean and sharp drilling performance.
