Gimbal Bearing Installer Alignment Tool for Mercruiser Grease Seal Bellow Retainer Ring Installer Tool Kit Hinge Pin for Alpha1 Gen 2, Bravo OMC Cobra

Brand: MBS Mfg

Product Overview

  • MADE IN USA: All tools are professionally made in the United States on the state of the art CNC equipment with 100% quality inspection. THIS IS A SET OF FIVE (5) TOOLS: Engine Alignment Tool; Drive Shaft Bellow Sleeve Installation Tool (PVC Plastic); Gimbal Bearing Installation Tool; Grease Seal Installation Tool; Hinge Pin Tool (OEM 91-78310).
  • ENGINE ALIGNMENT BAR TOOL: Compatible with MerCruiser Sterndrives including Pre Alpha, Alpha 1 Gen 2, MR, R, all MerCruiser Bravo. Compatible with Volvo SX and OMC Cobra Drives. This Tool will correctly align all OMC Cobra and Mercruiser Outdrives with the exception of the Mercruiser TR and TRS Outdrive Models. This Tool is similar to MerCruiser P/N 91-805475A1 which used to be P/N 91-57797A3. Compatible with Volvo SX P/N 3851083 and OMC Cobra P/N 18-4442. The length of the bar is approximately 23-5/8 inch. Tool is made from high quality 1045 steel, and includes an eyebolt which gives you the option of hanging the tool. Alignment Tool Comes Without Black Oxide Coating.
  • GIMBAL BEARING INSTALLER: This tool compatible with OMC Cobras, Bravos, #1 Drives made from 1966 to Current makes, including the Pre Alpha (R), Alpha one Gen 2 and “MR”. This requires a hole drilled in your engine alignment tool. We cannot pre-drill these as different manufacturers make the mount in different places. The gimbal bearing install tool comes with directions on where to drill the hole in the outdrive alignment tool for correct lineup. Made of cold rolled steel, which is sturdy and durable. Tool comes with black oxide finish preventing corrosion to assure many years of service.
  • THE BELLOW RING/ RETAINER SLEEVE INSTALLATION TOOL: Made of PVC Plastic. Drive shaft bellow sleeve installation tool helps install the aluminum ring into the Alpha 1 Generation 2, Bravo, Blackhawk U-Joints Bellows. This tool is an aftermarket OEM part that replaces Mercury Mariner 91-818162. HINGE PIN TOOL (OEM 91-78310) compatible with MerCruiser Sterndrive Alpha One, Alpha One Generation Two, Bravo One, Bravo Two, Bravo Three, R, MP, MC-1.
  • GIMBAL BEARING GREASE SEAL INSTALLATION TOOL: This tool is designed for Mercruiser Bravo, OMC Cobra, Pre Alpha (R), Alpha 1 (MR), Generation 2, All #1 Drives from 1966 to the present. This seal installer will allow you to drive the grease seal in straight for proper installation.
Brand: MBS Mfg
Manufacturer: MBS Manufacturing Inc
Part Number: C4TB8S3
Isin: I7LMHKVQVYPW

$326.72

  • Free shipping in US
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
Gimbal Bearing Installer Alignment Tool for Mercruiser Grease Seal Bellow Retainer Ring Installer Tool Kit Hinge Pin for Alpha1 Gen 2, Bravo OMC Cobra

Gimbal Bearing Installer Alignment Tool for Mercruiser Grease Seal Bellow Ret...

$326.72

Product Overview

  • MADE IN USA: All tools are professionally made in the United States on the state of the art CNC equipment with 100% quality inspection. THIS IS A SET OF FIVE (5) TOOLS: Engine Alignment Tool; Drive Shaft Bellow Sleeve Installation Tool (PVC Plastic); Gimbal Bearing Installation Tool; Grease Seal Installation Tool; Hinge Pin Tool (OEM 91-78310).
  • ENGINE ALIGNMENT BAR TOOL: Compatible with MerCruiser Sterndrives including Pre Alpha, Alpha 1 Gen 2, MR, R, all MerCruiser Bravo. Compatible with Volvo SX and OMC Cobra Drives. This Tool will correctly align all OMC Cobra and Mercruiser Outdrives with the exception of the Mercruiser TR and TRS Outdrive Models. This Tool is similar to MerCruiser P/N 91-805475A1 which used to be P/N 91-57797A3. Compatible with Volvo SX P/N 3851083 and OMC Cobra P/N 18-4442. The length of the bar is approximately 23-5/8 inch. Tool is made from high quality 1045 steel, and includes an eyebolt which gives you the option of hanging the tool. Alignment Tool Comes Without Black Oxide Coating.
  • GIMBAL BEARING INSTALLER: This tool compatible with OMC Cobras, Bravos, #1 Drives made from 1966 to Current makes, including the Pre Alpha (R), Alpha one Gen 2 and “MR”. This requires a hole drilled in your engine alignment tool. We cannot pre-drill these as different manufacturers make the mount in different places. The gimbal bearing install tool comes with directions on where to drill the hole in the outdrive alignment tool for correct lineup. Made of cold rolled steel, which is sturdy and durable. Tool comes with black oxide finish preventing corrosion to assure many years of service.
  • THE BELLOW RING/ RETAINER SLEEVE INSTALLATION TOOL: Made of PVC Plastic. Drive shaft bellow sleeve installation tool helps install the aluminum ring into the Alpha 1 Generation 2, Bravo, Blackhawk U-Joints Bellows. This tool is an aftermarket OEM part that replaces Mercury Mariner 91-818162. HINGE PIN TOOL (OEM 91-78310) compatible with MerCruiser Sterndrive Alpha One, Alpha One Generation Two, Bravo One, Bravo Two, Bravo Three, R, MP, MC-1.
  • GIMBAL BEARING GREASE SEAL INSTALLATION TOOL: This tool is designed for Mercruiser Bravo, OMC Cobra, Pre Alpha (R), Alpha 1 (MR), Generation 2, All #1 Drives from 1966 to the present. This seal installer will allow you to drive the grease seal in straight for proper installation.
Brand: MBS Mfg
Manufacturer: MBS Manufacturing Inc
Part Number: C4TB8S3
Isin: I7LMHKVQVYPW

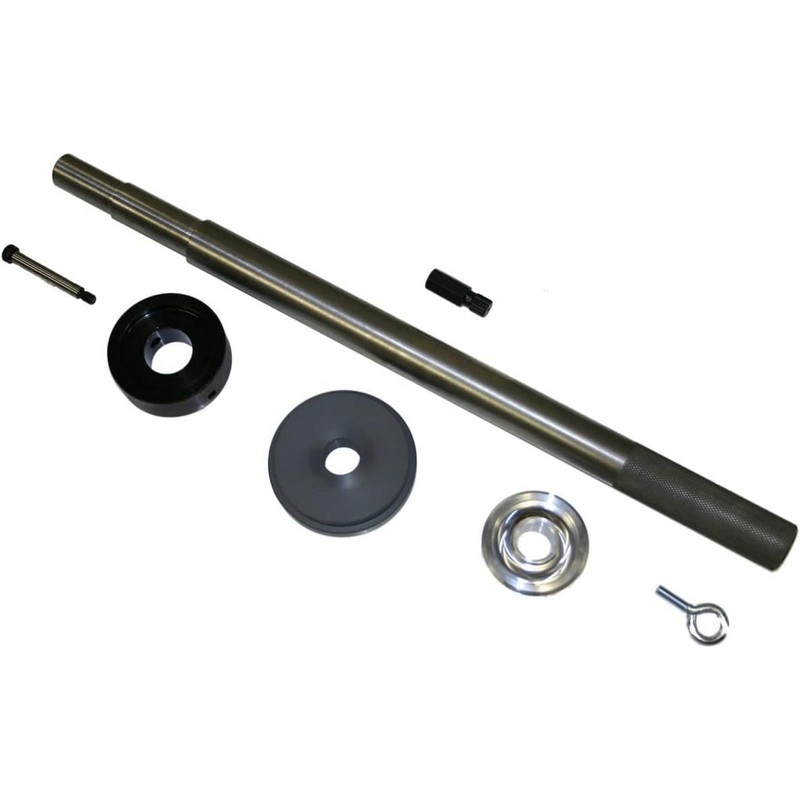

This is a set of FIVE Tools: Engine Alignment Tool; Drive Shaft Bellow Sleeve Installation Tool (PVC Plastic); Gimbal Bearing Installation Tool; Grease Seal Installation Tool; Hinge Pin Tool (91-78310).

Engine Alignment Bar Tool compatible with MerCruiser Sterndrives including Pre Alpha, Alpha 1 Gen 2, MR, R, all MerCruiser Bravo. Compatible with Volvo SX and OMC Cobra Drives. This Tool will correctly align all OMC Cobra and Mercruiser Outdrives with the exception of the Mercruiser TR and TRS Outdrive Models.

Interchange Part Numbers: Compatible with MerCruiser - P/N 91-805475A1 & 91-57797A3; Compatible with Volvo SX - P/N 3851083; Compatible with OMC Cobra - P/N 18-4442.

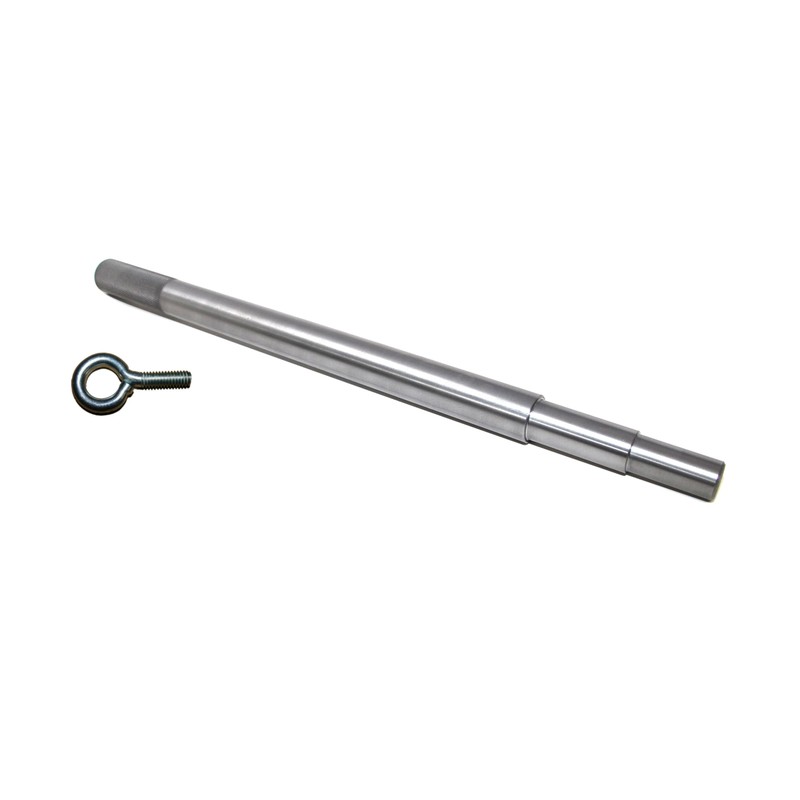

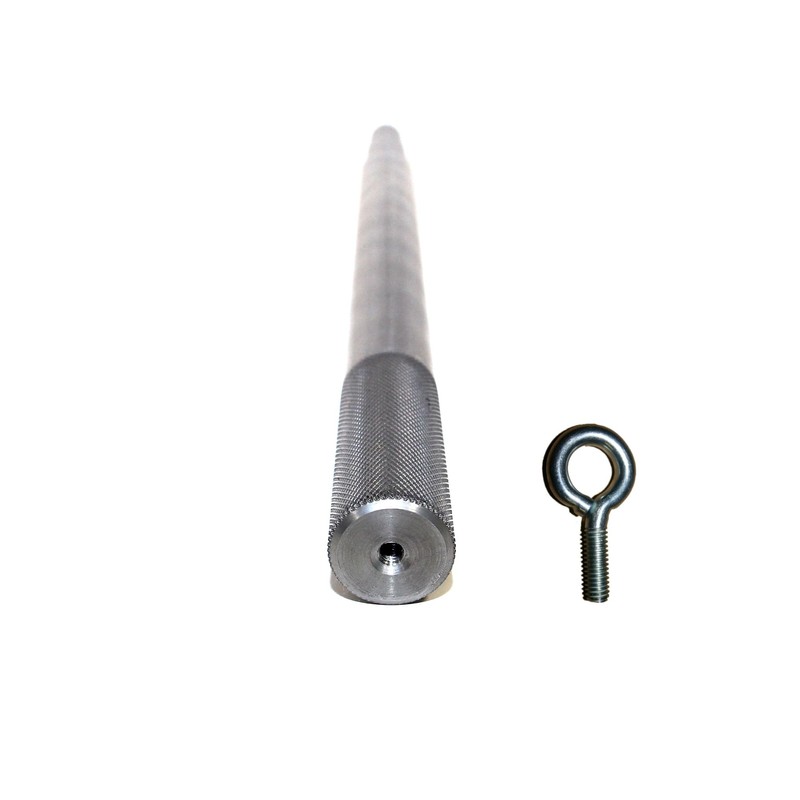

The length of the Alignment bar is 23-5/8 inch. Tool is made from high quality 1045 Steel, and includes an eye bolt which gives you the option of hanging the tool. Alignment Tool Comes Without Black Oxide Coating. According to MerCruiser service bulletin No 92-9, the alignment tool must have the following sizes from front to back: 1.010" diameter, 2.200" long (section that fits into coupler), 1.150" diameter, 2.750" long, and 1.375" diameter rest of the bar (section that fits gimbal bearing inside diameter). We test all of our tools for this fit at the shop, using precision gauges and measuring tools.

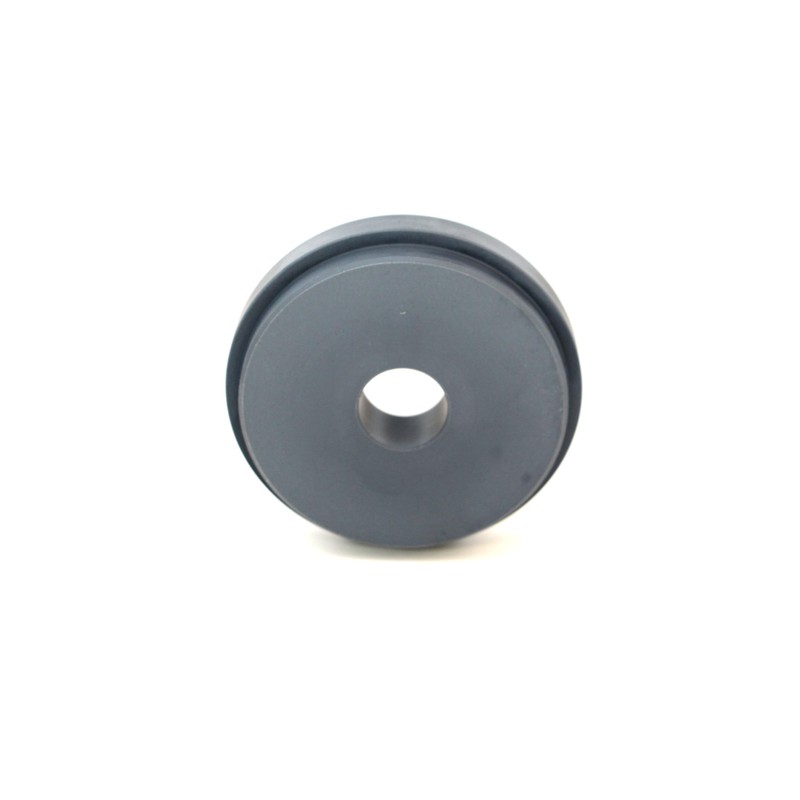

The Bellow Ring/ Retainer Sleeve Installation Tool made of PVC Plastic. Drive shaft bellow sleeve installation tool helps install the aluminum ring into the Alpha 1 Generation 2, Bravo, Blackhawk U-Joints Bellows. Replaces OEM part number #91-818162.

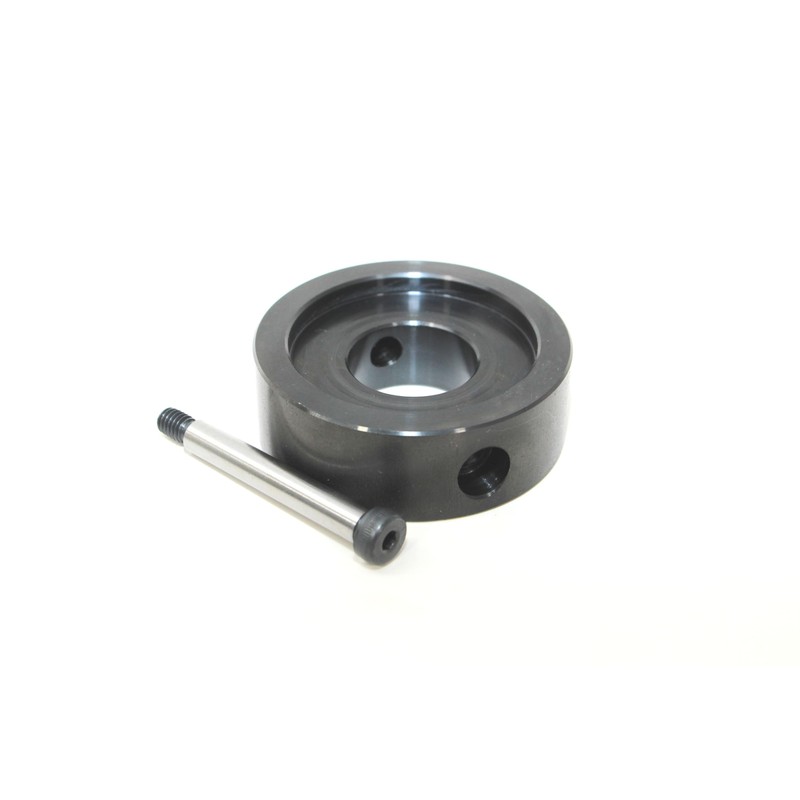

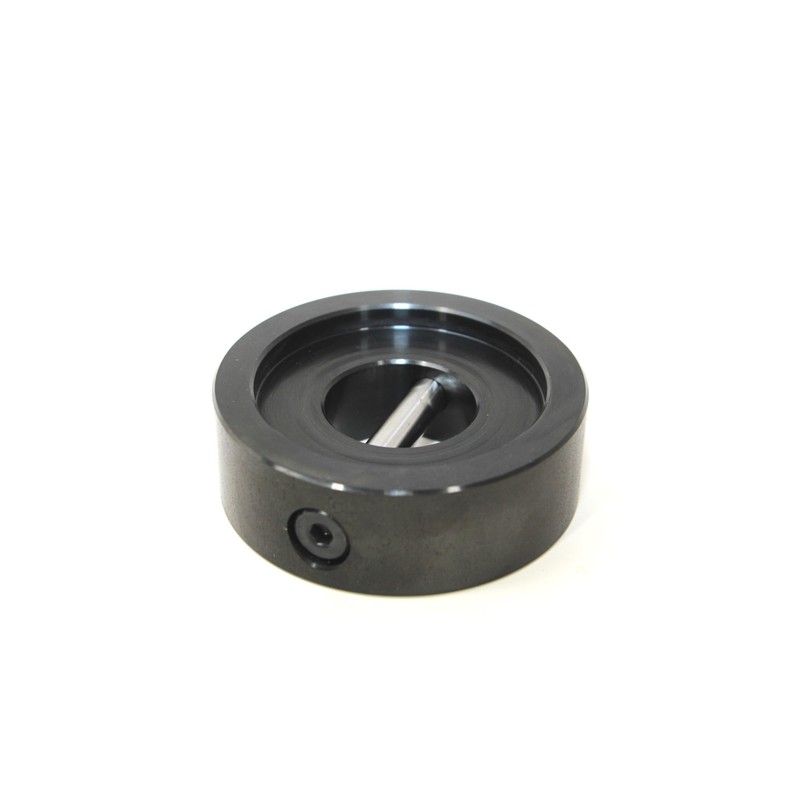

Gimbal Bearing Installation Tool. This tool is compatible with OMC Cobras, Bravos, #1 Drives made from 1966 to current makes, including the Pre Alpha (R), Alpha 1 MR, and Generation 2. You will need the outdrive coupler alignment tool to use this tool. Note: This requires a hole drilled in your alignment tool. We cannot pre-drill these as different manufacturers make the mounts in different places. The tool comes with directions on where to drill the hole in the alignment tool for correct lineup.

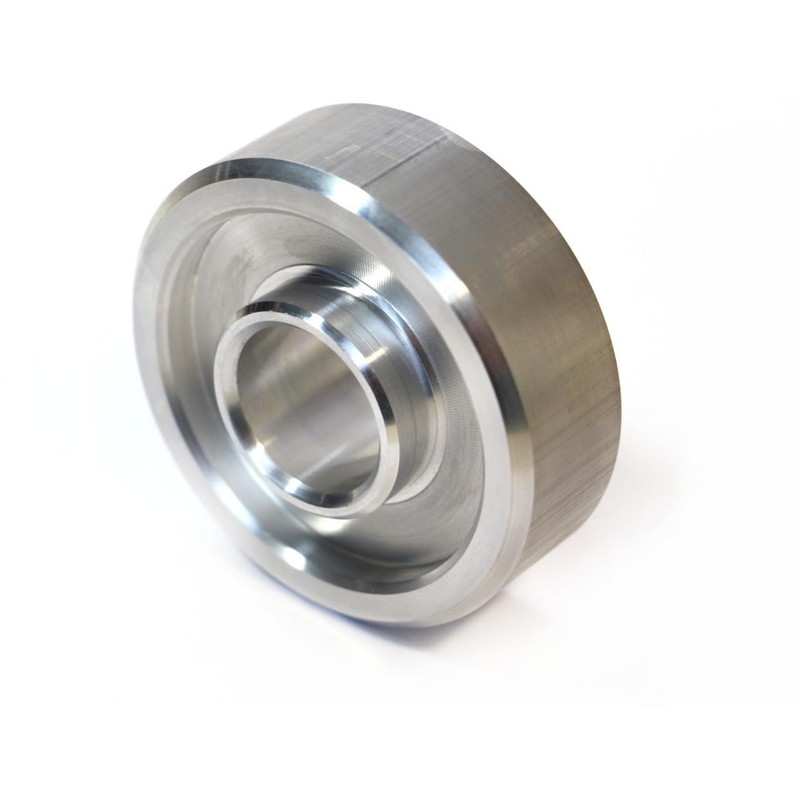

Grease Seal Installation Tool. Used on all Mercruiser #1 Drives, Pre Alpha (R), Alpha One (MR), Generation 2, All Bravos, and OMC Cobra boat. This seal installer will allow you to drive the grease seal in straight for proper installation. You will need the outdrive coupler alignment tool to install the grease seal.

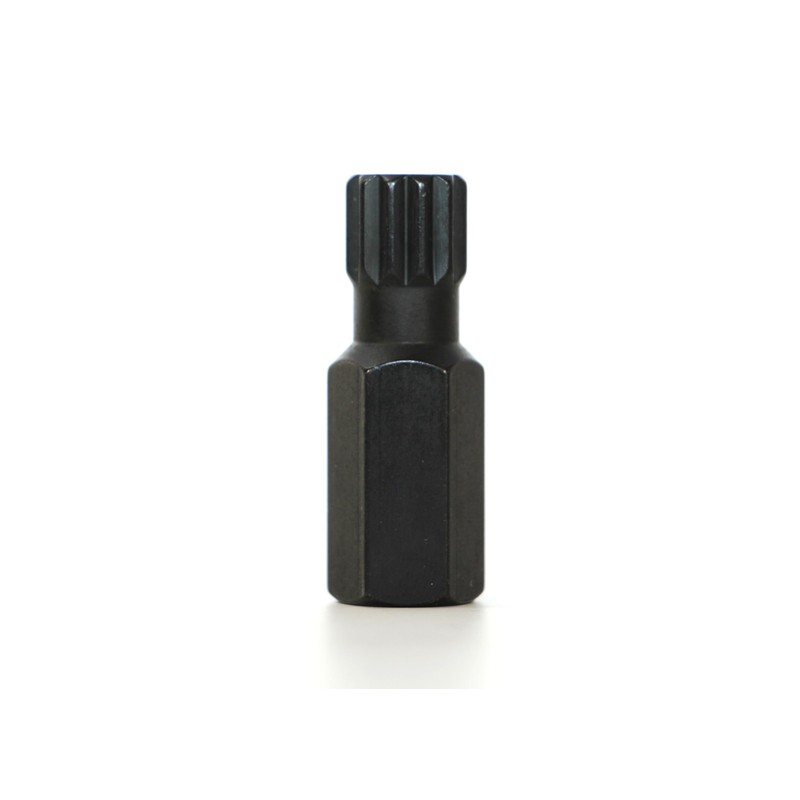

Hinge Pin Tool (91-78310). This tool is used on the hinge pin bolt and separates the housing from the gimbal ring. This tool is compatible with MerCruiser Sterndrives: Alpha One, Alpha One Generation Two, Bravo One, Bravo Two, Bravo Three, R, MP, MC-1. Replaces OEM part number #91-78310.

All our automotive tools are professionally made in the United States on state-of-the-art CNC equipment with 100% quality inspection.
