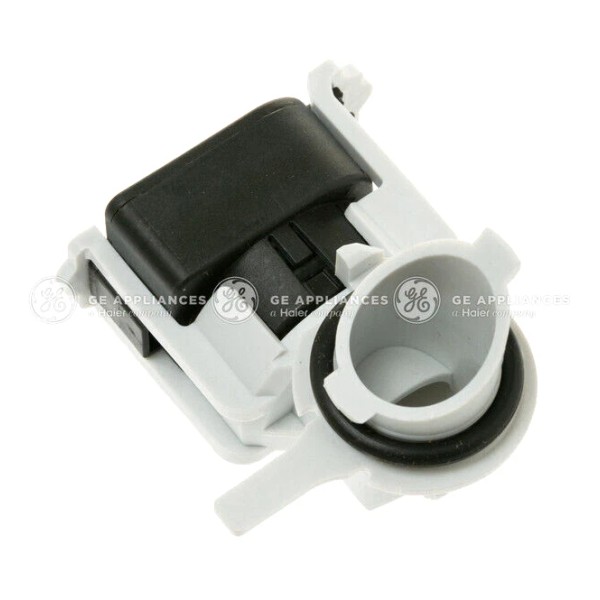

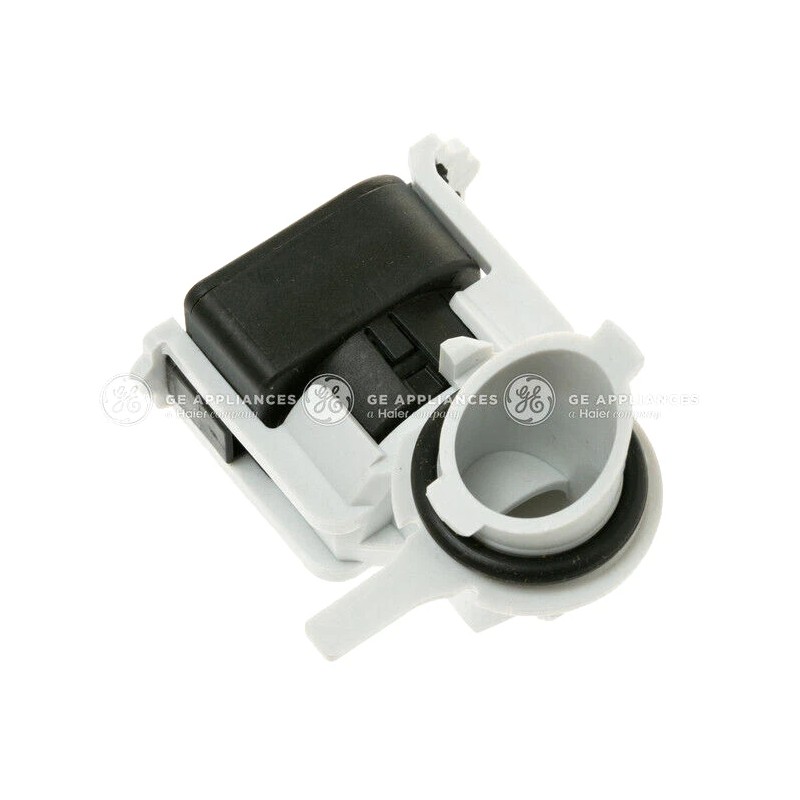

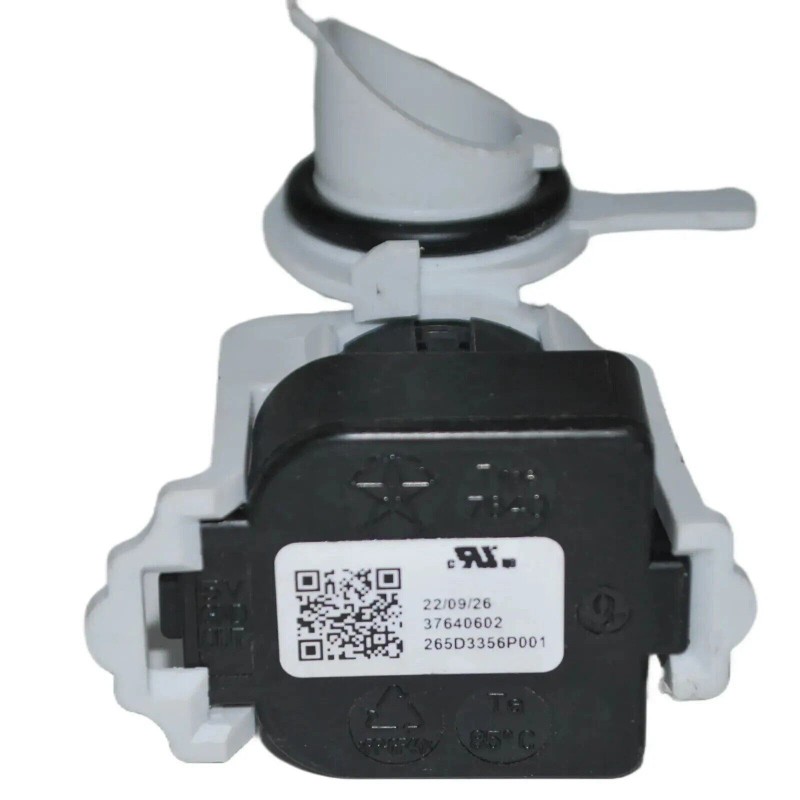

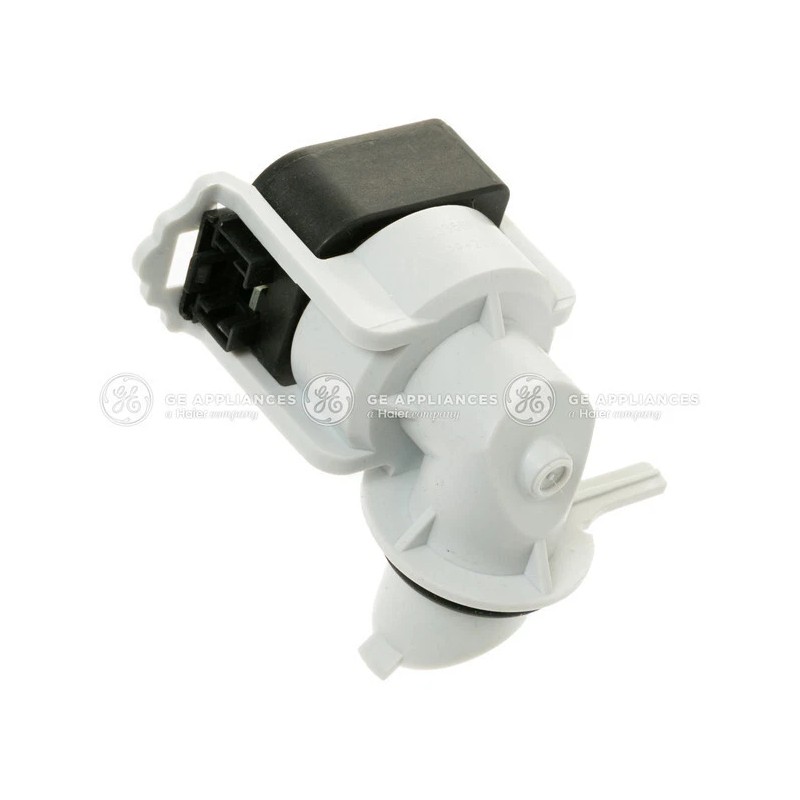

Genuine OEM GE Dishwasher Pressure Sensor WD21X25468
$65.62
- Free US shipping
-
Arrives
Dishwasher Pressure Sensor Switch for Kenmore GE WD21X25468: Specifics, Troubleshooting, and Installation Instructions
The pressure sensor switch (part number WD21X25468) is a critical component in many Kenmore and GE dishwashers. It monitors the water level in the dishwasher tub and ensures the appliance fills and drains correctly. Below are the specifics, troubleshooting tips, and installation instructions for this part.
Specifics of the Pressure Sensor Switch (WD21X25468)
Function: The pressure sensor switch detects water levels in the dishwasher tub by measuring air pressure in the air tube connected to the sump. It signals the control board to stop or start the fill valve or drain pump.
Compatibility: This part is compatible with various Kenmore and GE dishwasher models. Always verify compatibility with your specific model before purchasing.
Location: Typically located behind the kick plate or front access panel of the dishwasher, near the bottom of the unit.
Symptoms of Failure:
Dishwasher not filling with water.
Dishwasher overfilling or underfilling.
Error codes related to water levels (if your model has a display).
Dishwasher not draining properly.
Troubleshooting the Pressure Sensor Switch
If your dishwasher is experiencing water level issues, follow these steps to determine if the pressure sensor switch is faulty:
Check for Error Codes:
Some dishwashers display error codes related to water level sensors. Refer to your owner’s manual for code interpretations.
Inspect the Air Tube:
Locate the air tube connected to the pressure sensor switch and the sump assembly.
Ensure the tube is not kinked, clogged, or disconnected. A blocked or damaged tube can cause incorrect pressure readings.
Test the Pressure Sensor Switch:
Disconnect the dishwasher from power.
Remove the pressure sensor switch and use a multimeter to test for continuity.
Follow the manufacturer’s testing procedure (if available) to verify if the switch is functioning correctly.
Check for Water Leaks:
Inspect the sump area for leaks or standing water, which can affect the pressure sensor’s performance.
Inspect the Float Switch:
Some dishwashers have a float switch in addition to the pressure sensor. Ensure the float moves freely and is not stuck.
Installation Instructions
Tools Needed:
Screwdriver (Phillips or flathead, depending on your model).
Multimeter (for testing).
Pliers (if needed to disconnect the air tube).
Steps to Replace the Pressure Sensor Switch:
Disconnect Power:
Turn off the dishwasher’s power supply at the circuit breaker to ensure safety.
Access the Pressure Sensor Switch:
Remove the dishwasher’s kick plate or front access panel to locate the pressure sensor switch.
Disconnect the Air Tube:
Carefully remove the air tube connected to the pressure sensor switch. Use pliers if necessary, but avoid damaging the tube.
Remove the Old Switch:
Disconnect the wiring harness from the pressure sensor switch.
Unscrew or unclip the old switch from its mounting position.
Install the New Switch:
Position the new pressure sensor switch (WD21X25468) in the same location as the old one.
Secure it with screws or clips.
Reconnect the wiring harness.
Reconnect the Air Tube:
Attach the air tube to the new pressure sensor switch. Ensure it is securely connected and not kinked.
Reassemble the Dishwasher:
Replace the kick plate or front access panel.
Restore Power and Test:
Turn the power back on and run a test cycle to ensure the dishwasher fills and drains correctly.
Additional Notes:
If the problem persists after replacing the pressure sensor switch, check other components such as the fill valve, drain pump, or control board.
Always refer to your dishwasher’s service manual for model-specific instructions and diagrams.
By following these steps, you can troubleshoot, replace, and install the pressure sensor switch (WD21X25468) in your Kenmore or GE dishwasher.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
Dishwasher Pressure Sensor Switch for Kenmore GE WD21X25468: Specifics, Troubleshooting, and Installation Instructions
The pressure sensor switch (part number WD21X25468) is a critical component in many Kenmore and GE dishwashers. It monitors the water level in the dishwasher tub and ensures the appliance fills and drains correctly. Below are the specifics, troubleshooting tips, and installation instructions for this part.
Specifics of the Pressure Sensor Switch (WD21X25468)
Function: The pressure sensor switch detects water levels in the dishwasher tub by measuring air pressure in the air tube connected to the sump. It signals the control board to stop or start the fill valve or drain pump.
Compatibility: This part is compatible with various Kenmore and GE dishwasher models. Always verify compatibility with your specific model before purchasing.
Location: Typically located behind the kick plate or front access panel of the dishwasher, near the bottom of the unit.
Symptoms of Failure:
Dishwasher not filling with water.
Dishwasher overfilling or underfilling.
Error codes related to water levels (if your model has a display).
Dishwasher not draining properly.
Troubleshooting the Pressure Sensor Switch
If your dishwasher is experiencing water level issues, follow these steps to determine if the pressure sensor switch is faulty:
Check for Error Codes:
Some dishwashers display error codes related to water level sensors. Refer to your owner’s manual for code interpretations.
Inspect the Air Tube:
Locate the air tube connected to the pressure sensor switch and the sump assembly.
Ensure the tube is not kinked, clogged, or disconnected. A blocked or damaged tube can cause incorrect pressure readings.
Test the Pressure Sensor Switch:
Disconnect the dishwasher from power.
Remove the pressure sensor switch and use a multimeter to test for continuity.
Follow the manufacturer’s testing procedure (if available) to verify if the switch is functioning correctly.
Check for Water Leaks:
Inspect the sump area for leaks or standing water, which can affect the pressure sensor’s performance.
Inspect the Float Switch:
Some dishwashers have a float switch in addition to the pressure sensor. Ensure the float moves freely and is not stuck.
Installation Instructions
Tools Needed:
Screwdriver (Phillips or flathead, depending on your model).
Multimeter (for testing).
Pliers (if needed to disconnect the air tube).
Steps to Replace the Pressure Sensor Switch:
Disconnect Power:
Turn off the dishwasher’s power supply at the circuit breaker to ensure safety.
Access the Pressure Sensor Switch:
Remove the dishwasher’s kick plate or front access panel to locate the pressure sensor switch.
Disconnect the Air Tube:
Carefully remove the air tube connected to the pressure sensor switch. Use pliers if necessary, but avoid damaging the tube.
Remove the Old Switch:
Disconnect the wiring harness from the pressure sensor switch.
Unscrew or unclip the old switch from its mounting position.
Install the New Switch:
Position the new pressure sensor switch (WD21X25468) in the same location as the old one.
Secure it with screws or clips.
Reconnect the wiring harness.
Reconnect the Air Tube:
Attach the air tube to the new pressure sensor switch. Ensure it is securely connected and not kinked.
Reassemble the Dishwasher:
Replace the kick plate or front access panel.
Restore Power and Test:
Turn the power back on and run a test cycle to ensure the dishwasher fills and drains correctly.
Additional Notes:
If the problem persists after replacing the pressure sensor switch, check other components such as the fill valve, drain pump, or control board.
Always refer to your dishwasher’s service manual for model-specific instructions and diagrams.
By following these steps, you can troubleshoot, replace, and install the pressure sensor switch (WD21X25468) in your Kenmore or GE dishwasher.
Dishwasher Pressure Sensor Switch for Kenmore GE WD21X25468: Specifics, Troubleshooting, and Installation Instructions
The pressure sensor switch (part number WD21X25468) is a critical component in many Kenmore and GE dishwashers. It monitors the water level in the dishwasher tub and ensures the appliance fills and drains correctly. Below are the specifics, troubleshooting tips, and installation instructions for this part.
Specifics of the Pressure Sensor Switch (WD21X25468)
Function: The pressure sensor switch detects water levels in the dishwasher tub by measuring air pressure in the air tube connected to the sump. It signals the control board to stop or start the fill valve or drain pump.
Compatibility: This part is compatible with various Kenmore and GE dishwasher models. Always verify compatibility with your specific model before purchasing.
Location: Typically located behind the kick plate or front access panel of the dishwasher, near the bottom of the unit.
Symptoms of Failure:
Dishwasher not filling with water.
Dishwasher overfilling or underfilling.
Error codes related to water levels (if your model has a display).
Dishwasher not draining properly.
Troubleshooting the Pressure Sensor Switch
If your dishwasher is experiencing water level issues, follow these steps to determine if the pressure sensor switch is faulty:
Check for Error Codes:
Some dishwashers display error codes related to water level sensors. Refer to your owner’s manual for code interpretations.
Inspect the Air Tube:
Locate the air tube connected to the pressure sensor switch and the sump assembly.
Ensure the tube is not kinked, clogged, or disconnected. A blocked or damaged tube can cause incorrect pressure readings.
Test the Pressure Sensor Switch:
Disconnect the dishwasher from power.
Remove the pressure sensor switch and use a multimeter to test for continuity.
Follow the manufacturer’s testing procedure (if available) to verify if the switch is functioning correctly.
Check for Water Leaks:
Inspect the sump area for leaks or standing water, which can affect the pressure sensor’s performance.
Inspect the Float Switch:
Some dishwashers have a float switch in addition to the pressure sensor. Ensure the float moves freely and is not stuck.
Installation Instructions
Tools Needed:
Screwdriver (Phillips or flathead, depending on your model).
Multimeter (for testing).
Pliers (if needed to disconnect the air tube).
Steps to Replace the Pressure Sensor Switch:
Disconnect Power:
Turn off the dishwasher’s power supply at the circuit breaker to ensure safety.
Access the Pressure Sensor Switch:
Remove the dishwasher’s kick plate or front access panel to locate the pressure sensor switch.
Disconnect the Air Tube:
Carefully remove the air tube connected to the pressure sensor switch. Use pliers if necessary, but avoid damaging the tube.
Remove the Old Switch:
Disconnect the wiring harness from the pressure sensor switch.
Unscrew or unclip the old switch from its mounting position.
Install the New Switch:
Position the new pressure sensor switch (WD21X25468) in the same location as the old one.
Secure it with screws or clips.
Reconnect the wiring harness.
Reconnect the Air Tube:
Attach the air tube to the new pressure sensor switch. Ensure it is securely connected and not kinked.
Reassemble the Dishwasher:
Replace the kick plate or front access panel.
Restore Power and Test:
Turn the power back on and run a test cycle to ensure the dishwasher fills and drains correctly.
Additional Notes:
If the problem persists after replacing the pressure sensor switch, check other components such as the fill valve, drain pump, or control board.
Always refer to your dishwasher’s service manual for model-specific instructions and diagrams.
By following these steps, you can troubleshoot, replace, and install the pressure sensor switch (WD21X25468) in your Kenmore or GE dishwasher.
- Brand: GE
- Type: Pressure Sensor
- Suitable For: Dishwasher
- Set Includes: Dishwasher Pressure Sensor
- Color: Multicolor
- Installation: Built-In/Integrated
- Model: WD21X25468
- Power Source: Electric
- Compatible Brand: GE
- Compatible Model: WD21X25468
- MPN: WD21X25468
- Capacity: N/A
- Country/Region of Manufacture: Unknown
