GeneralAire G99-14 Air Gage Remote Mount Pack of 1
$28.69
- Free US shipping
-
Arrives
• Easy to calibrate for new, clean media
• Built-in filter screen removes dust from sampled ambient air to keep gage clean
• Provides a visual indication of the need to replace the air filters in forced air heating and cooling systems.
• May be mounted remotely up to 10 feet from monitoring location using extension kit
• Easy to disassemble/assemble for service
Know when to change your air filter! Qty Per Unit: - 1

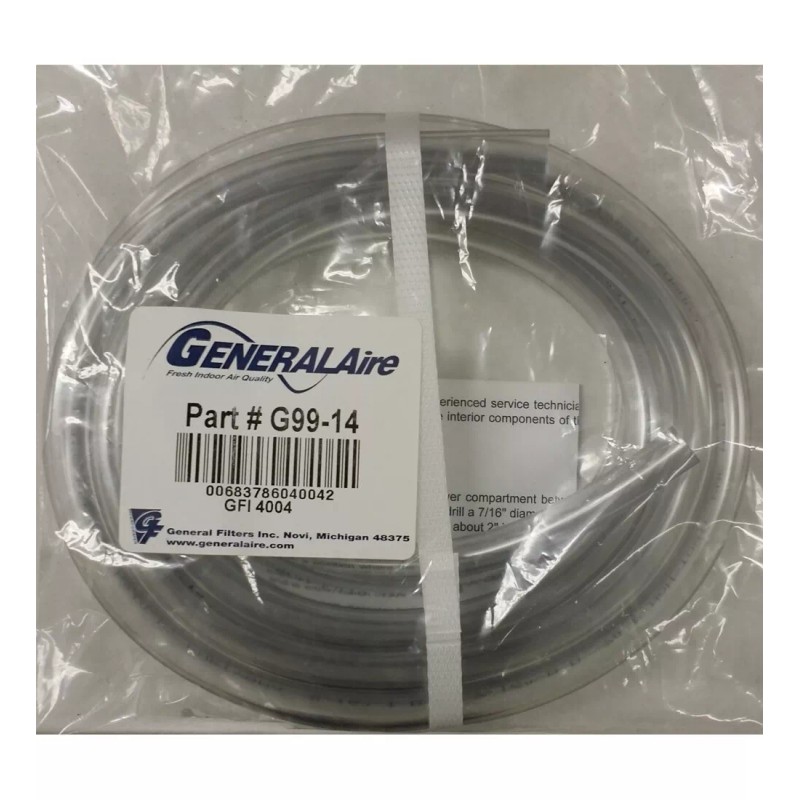

G99-14 Air Gage Remote Mount extends the installation location by 10 feet. No more guessing! An easy-to-use, easy-to-read gage to monitor filter media loading so that filter media may be changed when needed. The gage is installed between the blower and the filter, where a slight vacuum exists due to the air-flow resistance of the air filter. Air flowing into the gage, around the calibration screw, lifts a vane in proportion to the negative pressure in the blower compartment. As the air filter loads, the vacuum increases, raising the vane to indicate a filter change is necessary.
APPLICATION: The G-99 Air Filter Gage provides a visual indication of the need to replace air filters in forced air heating and cooling systems. The gauge is installed between the blower and the filter where a slight vacuum exists due to the airflow resistance of the air filter. Air flowing into the gage, around the calibration screw, lifts a vane in proportion to the negative pressure in the blower compartment. As the air filter loads, the vacuum increases, raising the vane to indicate a filter change is necessary. The gage may be calibrated in a negative pressure range from 0.1 to 0.4-inch w.c. When properly calibrated in this range a vacuum increase of 0.10 to 0.15-inch w.c. will indicate a filter change is necessary.
PRECAUTIONS: The installer should be an experienced service technician. When drilling the hole in the blower compartment extreme care should be taken not to damage components within the heating or cooling system.
INSTALLATIONS: The gage must be located where it can sense pressure conditions in the blower compartment between the filter and the blower. Select a location on a vertical surface enclosing the blower compartment and drill a 3/8" hole. Remove the protective paper from the foam adhesive strip on the back of the gage. Mount the gage in a level position with the pressure sensing tube projecting into the blower compartment.
CALIBRATION: Install a clean filter and run the blower at the highest speed. With a small screwdriver adjust the calibration screw, on the face of the gage, to put the pointer in the clear area in the center of the green "FILTER IS CLEAN" range.
SERVICE: The gage may be disassembled for service although this should rarely be required since it contains a small filter screen to stop dust from entering the area of the vane. Remove gage and, from the back, push white plastic clips out with a blunt tool. Remove the calibration screw, lift off the clear cover, and dust all parts with a clean brush. Reassemble and test that the vane moves freely in the gage. A fresh adhesive strip may be required to reinstall.
FAQ- Frequently Asked Questions Where do you ship to? How much is shipping? We ship to the contiguous United States. Shipping is FREE unless otherwise stated in the item details. We ship using standard ground shipping carriers like FedEx or UPS. We will ship to Alaska or Hawaii for an additional charge. Please email us and include the item(s) you wish to order and the complete shipping address to obtain a quote. How long does it take to receive my products? Your product(s) generally ship within 1 to 2 business days. Time in transit will vary. You will receive an email during the close day process with your tracking number when your package ships. What is your return policy? We want you 100% satisfied. You can return product(s) any time within the first 30 days. You pay return shipping.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
• Easy to calibrate for new, clean media
• Built-in filter screen removes dust from sampled ambient air to keep gage clean
• Provides a visual indication of the need to replace the air filters in forced air heating and cooling systems.
• May be mounted remotely up to 10 feet from monitoring location using extension kit
• Easy to disassemble/assemble for service
Know when to change your air filter! Qty Per Unit: - 1
G99-14 Air Gage Remote Mount extends the installation location by 10 feet. No more guessing! An easy-to-use, easy-to-read gage to monitor filter media loading so that filter media may be changed when needed. The gage is installed between the blower and the filter, where a slight vacuum exists due to the air-flow resistance of the air filter. Air flowing into the gage, around the calibration screw, lifts a vane in proportion to the negative pressure in the blower compartment. As the air filter loads, the vacuum increases, raising the vane to indicate a filter change is necessary.
APPLICATION: The G-99 Air Filter Gage provides a visual indication of the need to replace air filters in forced air heating and cooling systems. The gauge is installed between the blower and the filter where a slight vacuum exists due to the airflow resistance of the air filter. Air flowing into the gage, around the calibration screw, lifts a vane in proportion to the negative pressure in the blower compartment. As the air filter loads, the vacuum increases, raising the vane to indicate a filter change is necessary. The gage may be calibrated in a negative pressure range from 0.1 to 0.4-inch w.c. When properly calibrated in this range a vacuum increase of 0.10 to 0.15-inch w.c. will indicate a filter change is necessary.
PRECAUTIONS: The installer should be an experienced service technician. When drilling the hole in the blower compartment extreme care should be taken not to damage components within the heating or cooling system.
INSTALLATIONS: The gage must be located where it can sense pressure conditions in the blower compartment between the filter and the blower. Select a location on a vertical surface enclosing the blower compartment and drill a 3/8" hole. Remove the protective paper from the foam adhesive strip on the back of the gage. Mount the gage in a level position with the pressure sensing tube projecting into the blower compartment.
CALIBRATION: Install a clean filter and run the blower at the highest speed. With a small screwdriver adjust the calibration screw, on the face of the gage, to put the pointer in the clear area in the center of the green "FILTER IS CLEAN" range.
SERVICE: The gage may be disassembled for service although this should rarely be required since it contains a small filter screen to stop dust from entering the area of the vane. Remove gage and, from the back, push white plastic clips out with a blunt tool. Remove the calibration screw, lift off the clear cover, and dust all parts with a clean brush. Reassemble and test that the vane moves freely in the gage. A fresh adhesive strip may be required to reinstall.
FAQ- Frequently Asked Questions Where do you ship to? How much is shipping? We ship to the contiguous United States. Shipping is FREE unless otherwise stated in the item details. We ship using standard ground shipping carriers like FedEx or UPS. We will ship to Alaska or Hawaii for an additional charge. Please email us and include the item(s) you wish to order and the complete shipping address to obtain a quote. How long does it take to receive my products? Your product(s) generally ship within 1 to 2 business days. Time in transit will vary. You will receive an email during the close day process with your tracking number when your package ships. What is your return policy? We want you 100% satisfied. You can return product(s) any time within the first 30 days. You pay return shipping.
• Easy to calibrate for new, clean media
• Built-in filter screen removes dust from sampled ambient air to keep gage clean
• Provides a visual indication of the need to replace the air filters in forced air heating and cooling systems.
• May be mounted remotely up to 10 feet from monitoring location using extension kit
• Easy to disassemble/assemble for service
Know when to change your air filter! Qty Per Unit: - 1
G99-14 Air Gage Remote Mount extends the installation location by 10 feet. No more guessing! An easy-to-use, easy-to-read gage to monitor filter media loading so that filter media may be changed when needed. The gage is installed between the blower and the filter, where a slight vacuum exists due to the air-flow resistance of the air filter. Air flowing into the gage, around the calibration screw, lifts a vane in proportion to the negative pressure in the blower compartment. As the air filter loads, the vacuum increases, raising the vane to indicate a filter change is necessary.
APPLICATION: The G-99 Air Filter Gage provides a visual indication of the need to replace air filters in forced air heating and cooling systems. The gauge is installed between the blower and the filter where a slight vacuum exists due to the airflow resistance of the air filter. Air flowing into the gage, around the calibration screw, lifts a vane in proportion to the negative pressure in the blower compartment. As the air filter loads, the vacuum increases, raising the vane to indicate a filter change is necessary. The gage may be calibrated in a negative pressure range from 0.1 to 0.4-inch w.c. When properly calibrated in this range a vacuum increase of 0.10 to 0.15-inch w.c. will indicate a filter change is necessary.
PRECAUTIONS: The installer should be an experienced service technician. When drilling the hole in the blower compartment extreme care should be taken not to damage components within the heating or cooling system.
INSTALLATIONS: The gage must be located where it can sense pressure conditions in the blower compartment between the filter and the blower. Select a location on a vertical surface enclosing the blower compartment and drill a 3/8" hole. Remove the protective paper from the foam adhesive strip on the back of the gage. Mount the gage in a level position with the pressure sensing tube projecting into the blower compartment.
CALIBRATION: Install a clean filter and run the blower at the highest speed. With a small screwdriver adjust the calibration screw, on the face of the gage, to put the pointer in the clear area in the center of the green "FILTER IS CLEAN" range.
SERVICE: The gage may be disassembled for service although this should rarely be required since it contains a small filter screen to stop dust from entering the area of the vane. Remove gage and, from the back, push white plastic clips out with a blunt tool. Remove the calibration screw, lift off the clear cover, and dust all parts with a clean brush. Reassemble and test that the vane moves freely in the gage. A fresh adhesive strip may be required to reinstall.
FAQ- Frequently Asked Questions Where do you ship to? How much is shipping? We ship to the contiguous United States. Shipping is FREE unless otherwise stated in the item details. We ship using standard ground shipping carriers like FedEx or UPS. We will ship to Alaska or Hawaii for an additional charge. Please email us and include the item(s) you wish to order and the complete shipping address to obtain a quote. How long does it take to receive my products? Your product(s) generally ship within 1 to 2 business days. Time in transit will vary. You will receive an email during the close day process with your tracking number when your package ships. What is your return policy? We want you 100% satisfied. You can return product(s) any time within the first 30 days. You pay return shipping.
- Brand: GeneralAire
- Country of Manufacturer: United States
- MPN: G99-14
- Number Per Box: 1
- UPC: 683786040042
