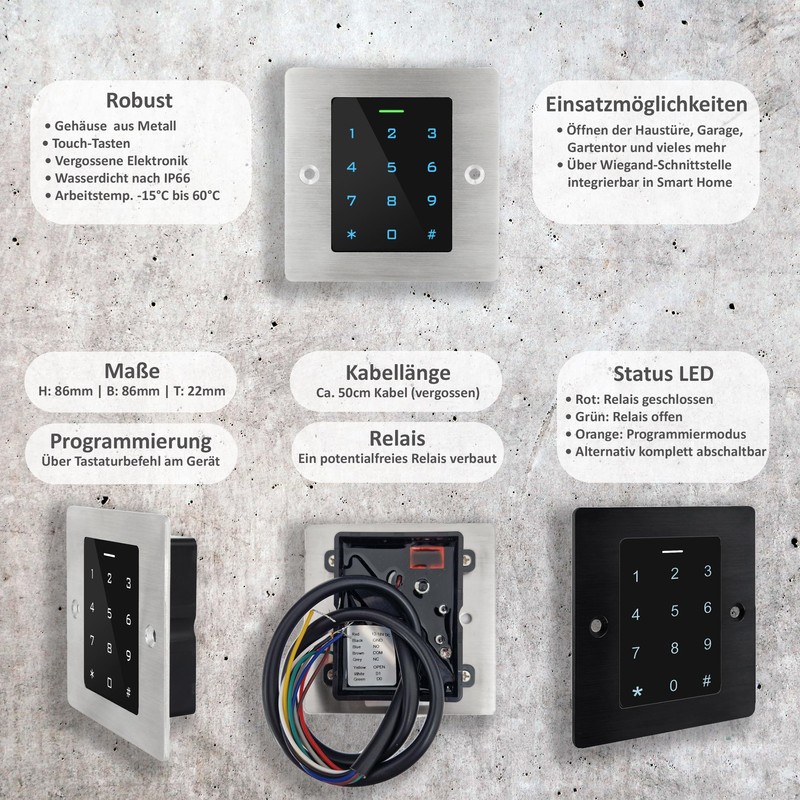

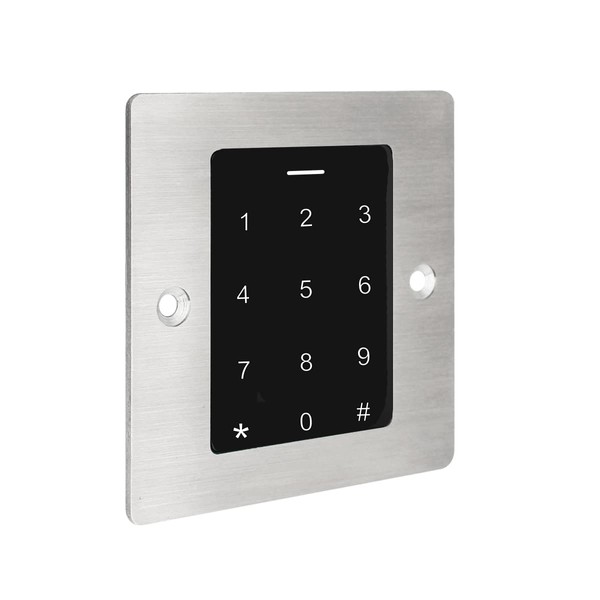

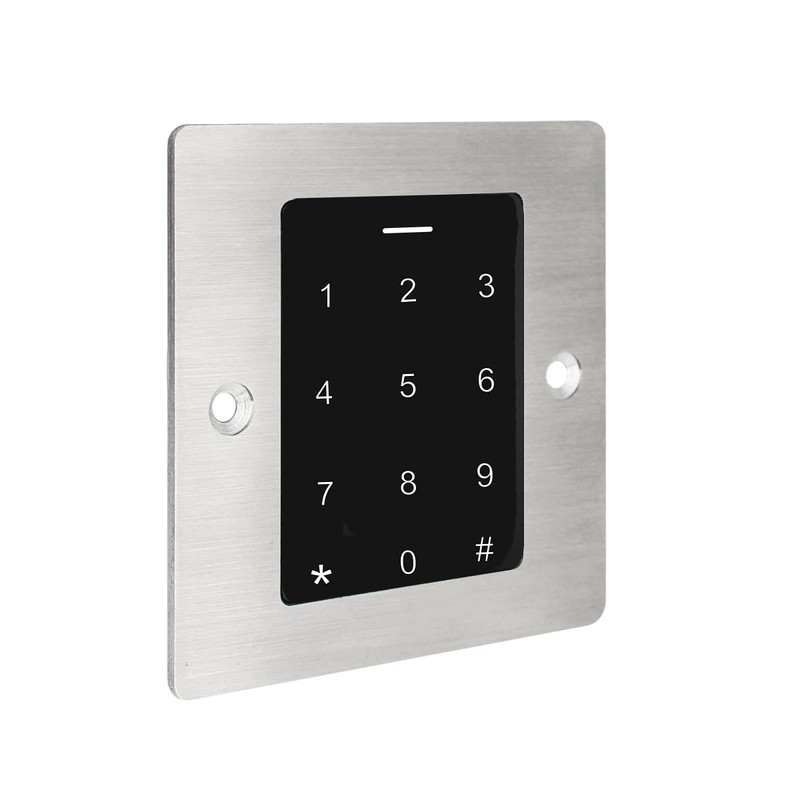

Gelikom BP3 RFID & PIN Flush-Mounted Door Lock (1 Relay + Wiegand) (Code Lock)

Brand: Gelikom

Product Overview

  • RFID EM (125KHz) transponder reader and PIN code lock
  • Large memory for user data, no data loss in case of power failure
  • Easy programming without PC
  • Suitable for indoor and outdoor use - protection class IP 66

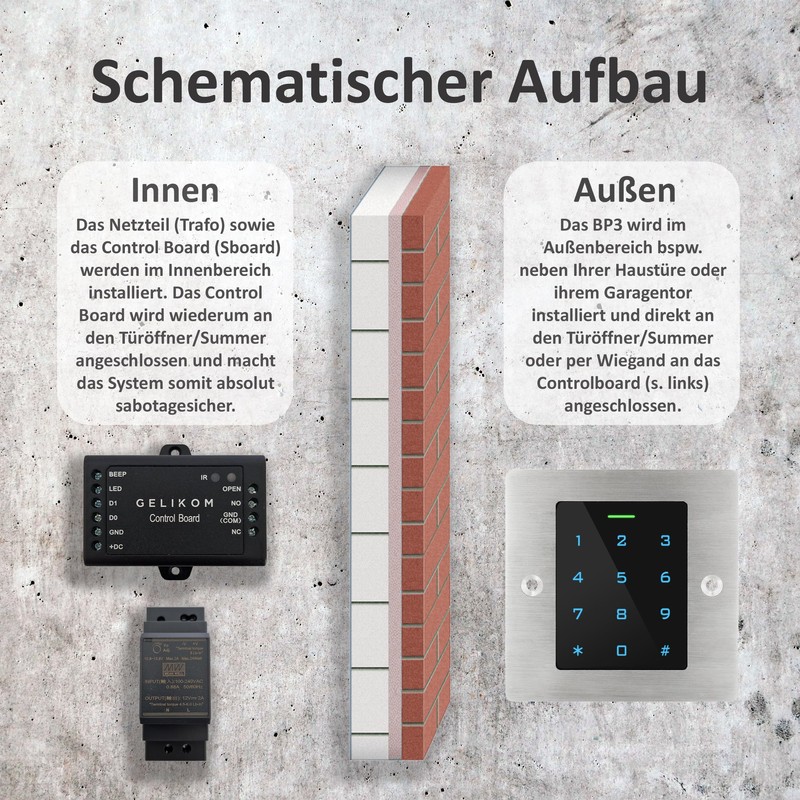

  • Standalone operation (connection to electric door opener) or even safer with ext. Wiegand Relay (Gelikom Control Board)
  • German operating instructions and free German telephone support
Brand: Gelikom
Color: Silver Black
Manufacturer: Gelikom
Part Number: T6SZ3ZV
Material Type: Stainless Steel
Isin: IAFGCIFU25W8

$190.34

  • Free shipping in US
  • Arrives:

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

More seller options

Starting from

Compare all sellers
scroll to top arrow
Gelikom BP3 RFID & PIN Flush-Mounted Door Lock (1 Relay + Wiegand) (Code Lock)

Gelikom BP3 RFID & PIN Flush-Mounted Door Lock (1 Relay + Wiegand) (Code Lock)

$190.34

Product Overview

  • RFID EM (125KHz) transponder reader and PIN code lock
  • Large memory for user data, no data loss in case of power failure
  • Easy programming without PC
  • Suitable for indoor and outdoor use - protection class IP 66
  • Standalone operation (connection to electric door opener) or even safer with ext. Wiegand Relay (Gelikom Control Board)
  • German operating instructions and free German telephone support
Brand: Gelikom
Color: Silver Black
Manufacturer: Gelikom
Part Number: T6SZ3ZV
Material Type: Stainless Steel
Isin: IAFGCIFU25W8

Gelikom BP3 RFID & PIN Flush-Mounted Door Lock (1 Relay + Wiegand)

Possible uses and functionality.

The Gelikom RFID access system is the ideal solution for anyone who opens doors and gates with RFID cards/fobs or PIN
. This saves you the hassle of fumbling around the keyhole. At the same time, the vandal-resistant
Metal housing, which sounds alarm in case of mechanical intervention, protects against unwanted access.

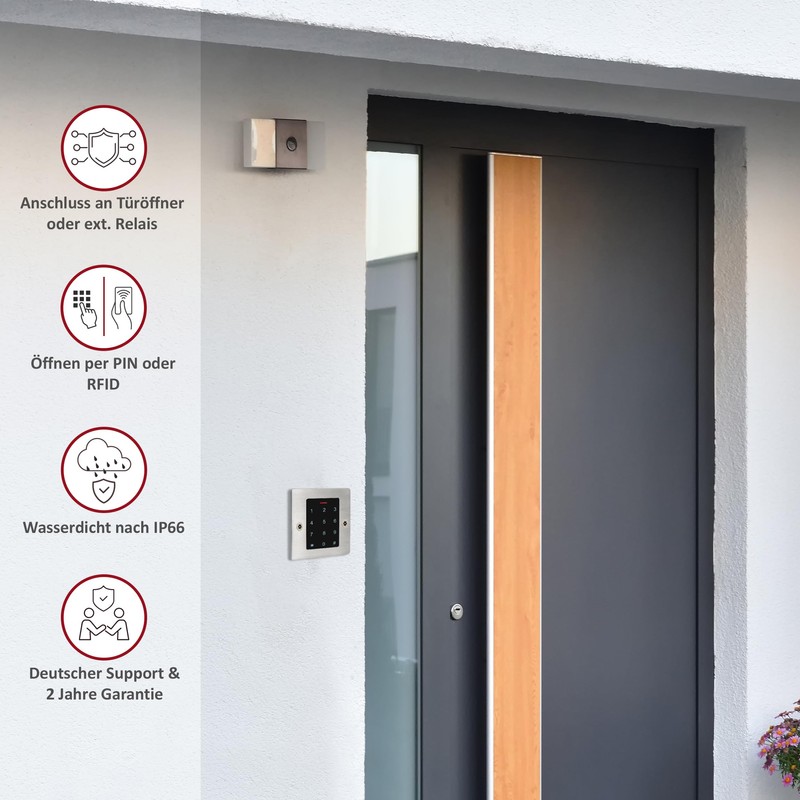

The device can be installed inside and outside in a flush-mounted box (IP66) and offers thanks to the auto-ON function
the possibility of quick identification. Furthermore, it is suitable for standalone operation or can optionally be used via
the Wiegand output can be operated with controller.

The setup of the RFID transponder/PINs is controlled via the keyboard, so no PC/software is
necessary.



Technical details:
Input voltage: 12-18V DC.
Number of users: up to 1000 users.
Model: BP3 RFID & PIN flush-mounted door lock.
Tones & lighting can be switched on/off
Working current: 120 mA.
Standby current: 50 mA.

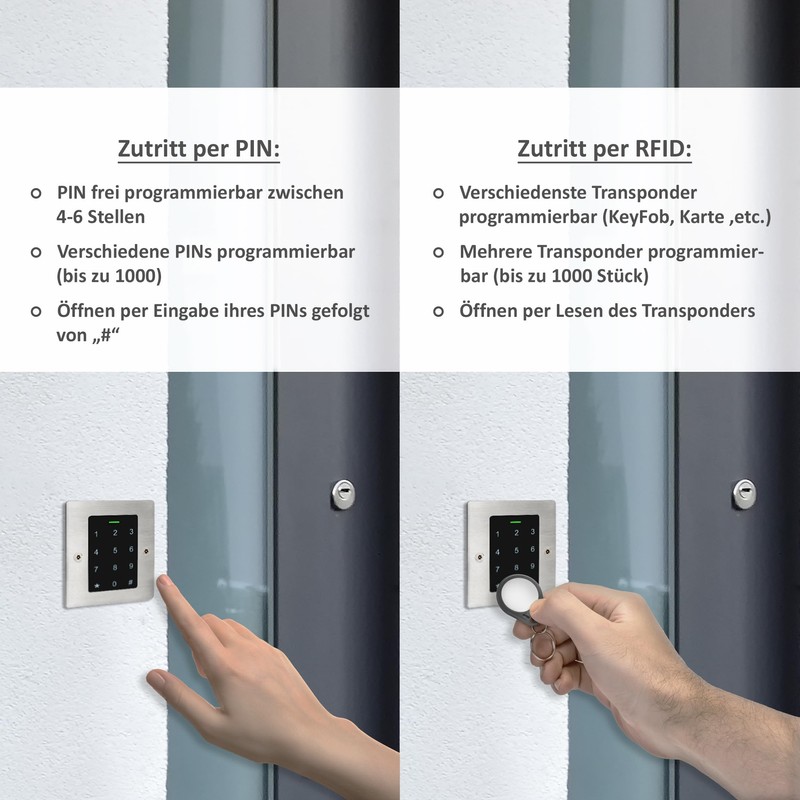

Access options: RFID, PIN
RFID type: 125 kHz.
Reading distance: 3-6 cm.
Load capacity door relay: 2A maximum.
Door relay: adjustable 1-99s.
Operating temperature: -40°C to +60°C.
Humidity: 0%-98%.
Protection class: IP66.
Wiegand interface: 26 bit input and output
Dimensions: 86 mm (H) x 86 mm (W) x 22 mm (D).
Weight: approx. 205 g.


Box contents:
Gelikom BP3
Gelikom Sboard ext. Relay (optional).
MeanWell HDR-30-12 Power Supply (optional)
Pack of 5 KeyFob09 EM4200 (optional).
Flush-mounted box (optional).
German instruction manual included and as a download
