Gecko 3660 1800KV Motor +40A ESC Integrated Motor & ESC with Program Card
$226.49
- $5.99 shipping from United States View details
-
Arrives
- All-in-One FOC Integrated Power System Combines an FOC ESC and a 3660 sensored brushless motor. The built-in magnetic encoder delivers strong low-speed torque and linear power. Its compact 36×56mm size helps keep wiring neat in the chassis of 1/10 RC crawlers.
- 3-Speed Adjustable BEC with LED Status Light Switchable 6.0V/7.4V/8.4V BEC output (4A continuous, 8A peak). The LED power switch displays real-time motor status and fault codes for quick troubleshooting.
- Supports 20 adjustable ESC settings via a separate LED programming card. Three operating modes are optimized for rock crawling, trail driving, and scale off-road scenarios.
- Multi-Protection & IP67 Waterproof and Dustproof Five safety protections: over-temperature, overload, overcurrent, low voltage, and signal loss. The IP67 rating ensures reliable performance on muddy and wet terrain, thanks to heat-resistant internal wiring.
- Wide Compatibility for 1/10 Crawlers 40A continuous current, compatible with 2-3S LiPo and 4-9-cell NiMH batteries. Standard 3.175mm shaft, lightweight at 177.8g, and plug-and-play for most 1/10 RC crawler rigs.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- All-in-One FOC Integrated Power System Combines an FOC ESC and a 3660 sensored brushless motor. The built-in magnetic encoder delivers strong low-speed torque and linear power. Its compact 36×56mm size helps keep wiring neat in the chassis of 1/10 RC crawlers.
- 3-Speed Adjustable BEC with LED Status Light Switchable 6.0V/7.4V/8.4V BEC output (4A continuous, 8A peak). The LED power switch displays real-time motor status and fault codes for quick troubleshooting.
- Supports 20 adjustable ESC settings via a separate LED programming card. Three operating modes are optimized for rock crawling, trail driving, and scale off-road scenarios.
- Multi-Protection & IP67 Waterproof and Dustproof Five safety protections: over-temperature, overload, overcurrent, low voltage, and signal loss. The IP67 rating ensures reliable performance on muddy and wet terrain, thanks to heat-resistant internal wiring.
- Wide Compatibility for 1/10 Crawlers 40A continuous current, compatible with 2-3S LiPo and 4-9-cell NiMH batteries. Standard 3.175mm shaft, lightweight at 177.8g, and plug-and-play for most 1/10 RC crawler rigs.

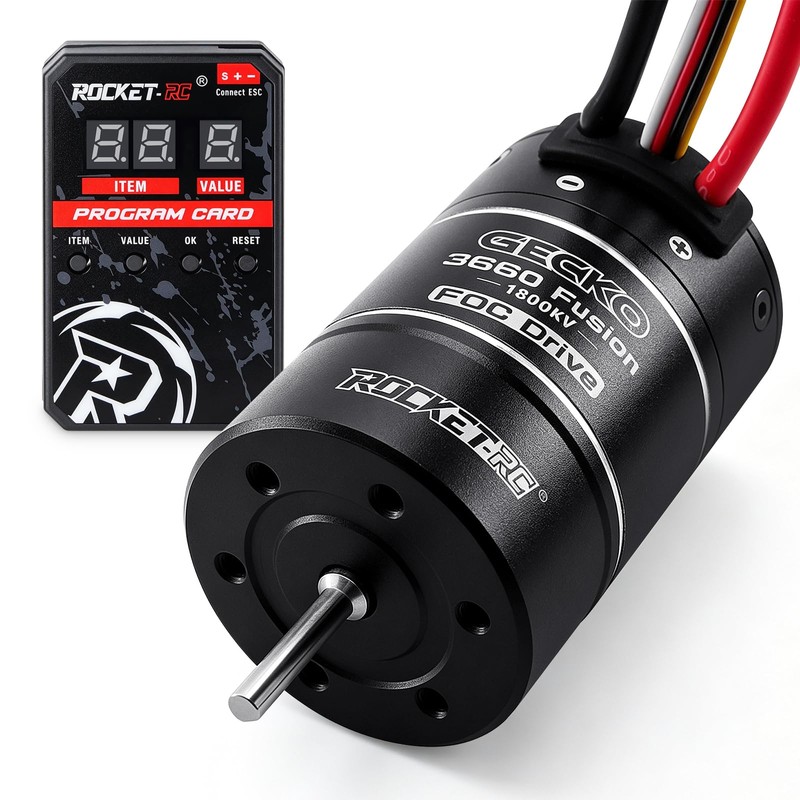

designed for 1/10 scale RC crawler trucks, combining FOC ESC and 3660 brushless motor into one
compact unit to upgrade your off-road performance completely.

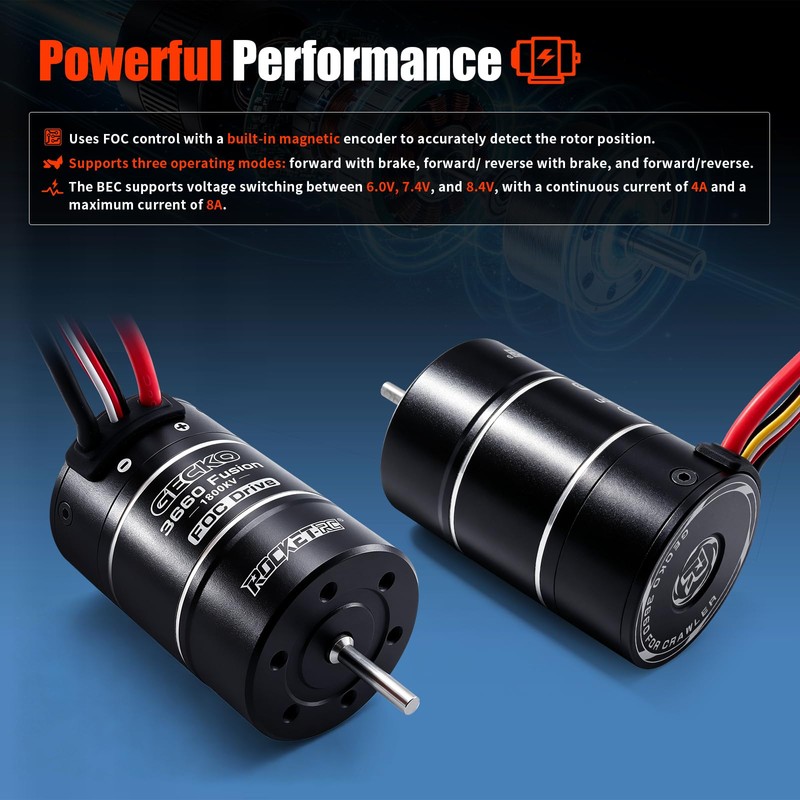

Adopting advanced FOC vector drive technology with built-in magnetic encoder, this integrated power
set delivers strong low-speed torque, ultra-smooth linear throttle response and precise speed

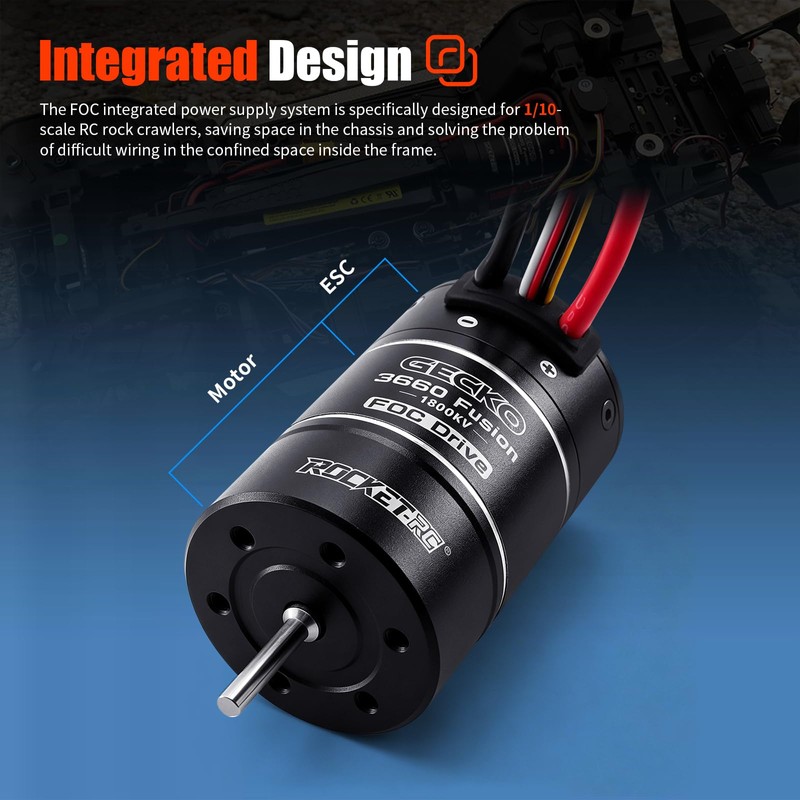

closed-loop control, which is the core demand for rock crawling. The 36*56mm integrated structure
greatly simplifies internal wiring inside the chassis, saving more installation space and eliminating
messy cable layout troubles on your RC rig.
Equipped with a multi-speed adjustable BEC system, it provides switchable 6.0V/7.4V/8.4V voltage output
with 4A continuous & 8A peak current, fully supporting your servo and auxiliary electronic
devices. The matched electronic power switch features an intelligent LED indicator, which displays
real-time motor running data and fault codes for quick maintenance and troubleshooting.

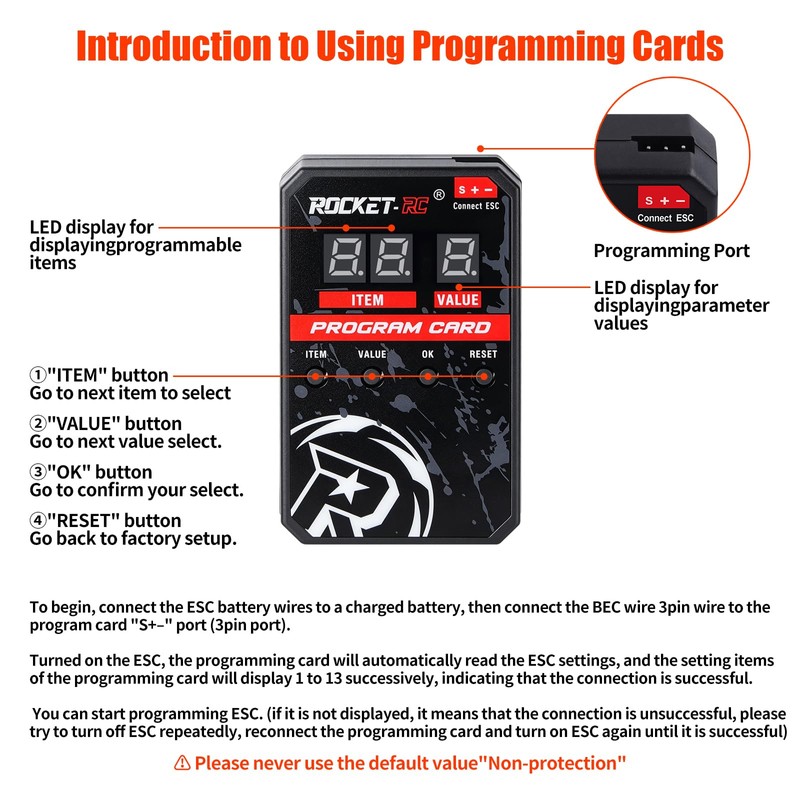

This sensored brushless ESC motor combo supports up to 20 customizable programmable parameters
when paired with a ROCKET-RC LED programming card (sold separately). Three built-in drive modes
(Forward with Brake / Forward-Reverse with Brake / Forward-Reverse) satisfy all terrain driving
needs from slow rock crawling to fast trail running.

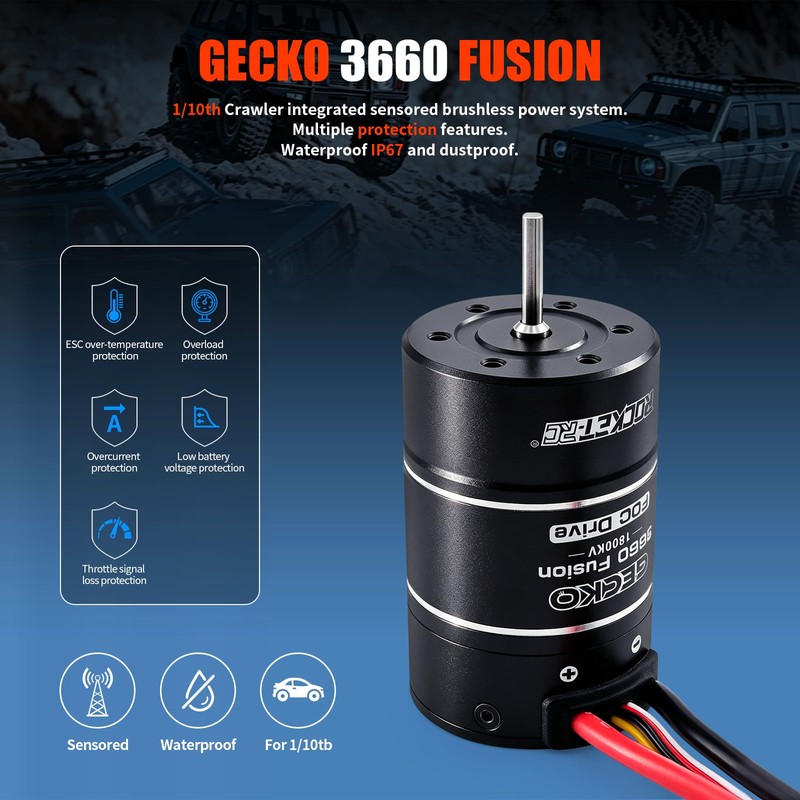

To guarantee safe and stable outdoor driving, multiple intelligent protection functions are preset: over-
temperature, overload, over-current, low battery cut-off and throttle signal loss protection. Boasting
IP67 waterproof & dustproof rating, it can handle muddy, wet, sandy and rainy off-road environments without damage. Internal components adopt 220°C high-temperature resistant enameled

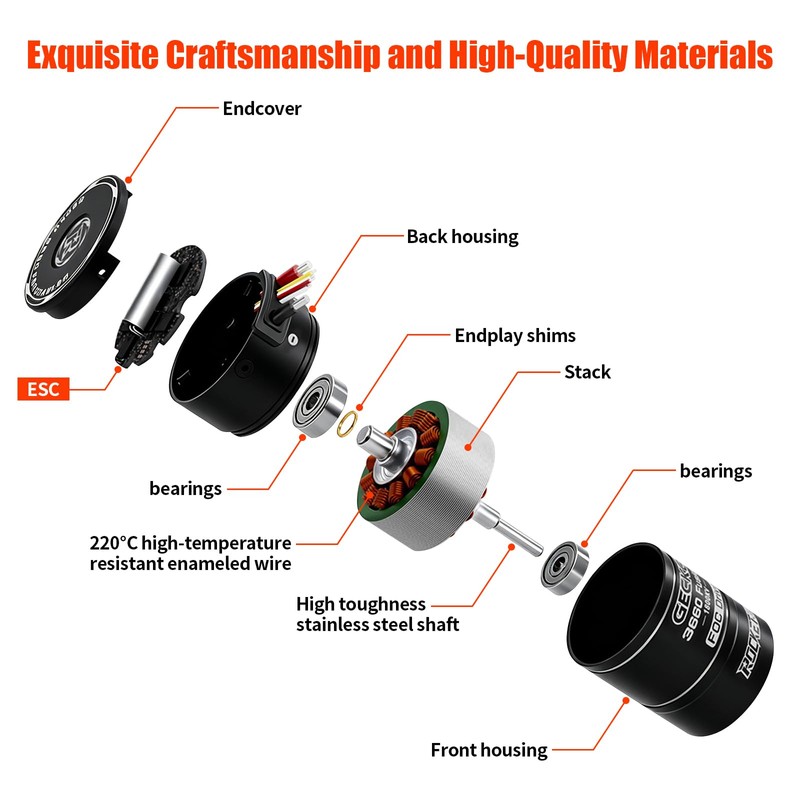

wire, double bearings and high-toughness stainless steel shaft, extending the service life
drastically.
Universal compatibility makes this power system fit 2~3S LiPo or 4~9 NiMH battery packs for most 1/10
RC crawlers. With 40A constant current, 3.175mm standard shaft and 177.8g lightweight body,
it is a premium factory upgrade replacement stock power system for RC hobbyists who pursue
stable torque, linear throttle and all-weather off-road capability.

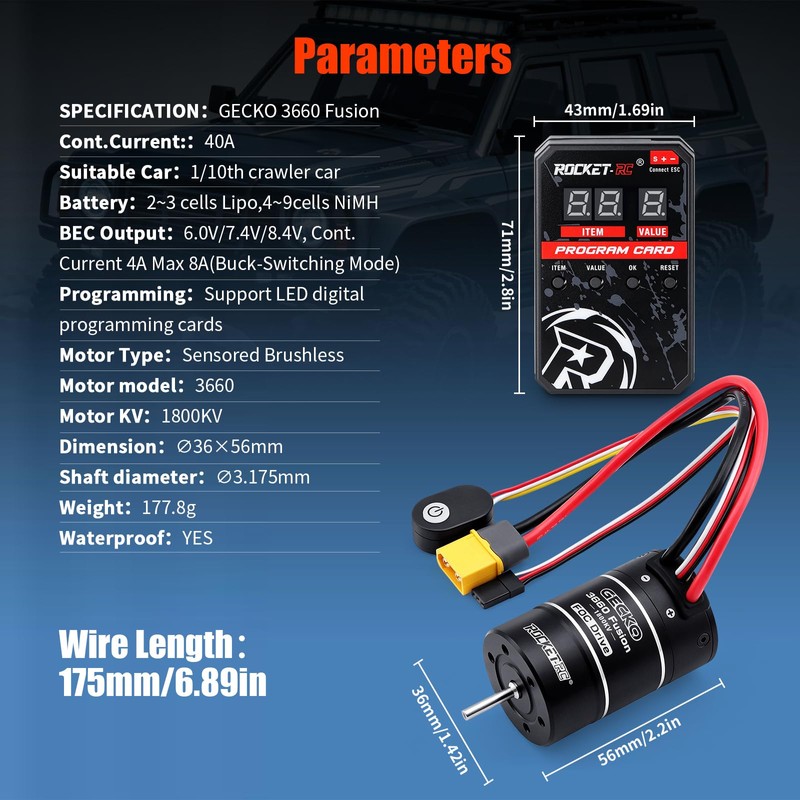

Key Specifications
Model: GECKO 3660 Fusion
Type: Integrated Sensored Brushless Motor & FOC ESC
KV: 1800KV
Constant Current: 40A
Applicable Car: 1/10 RC Crawler
Battery: 2-3S Lipo / 4-9S NiMH
BEC Output: 6.0V/7.4V/8.4V, 4A Cont., Max 8A
Dimension: Φ36×56mm, Shaft: 3.175mm
Weight: 177.8g
Waterproof Level: IP67
Operating Modes: 3 adjustable drive modes
Protection: Over-temp / Overload / Overcurrent / Low Voltage / Signal Loss Protection
