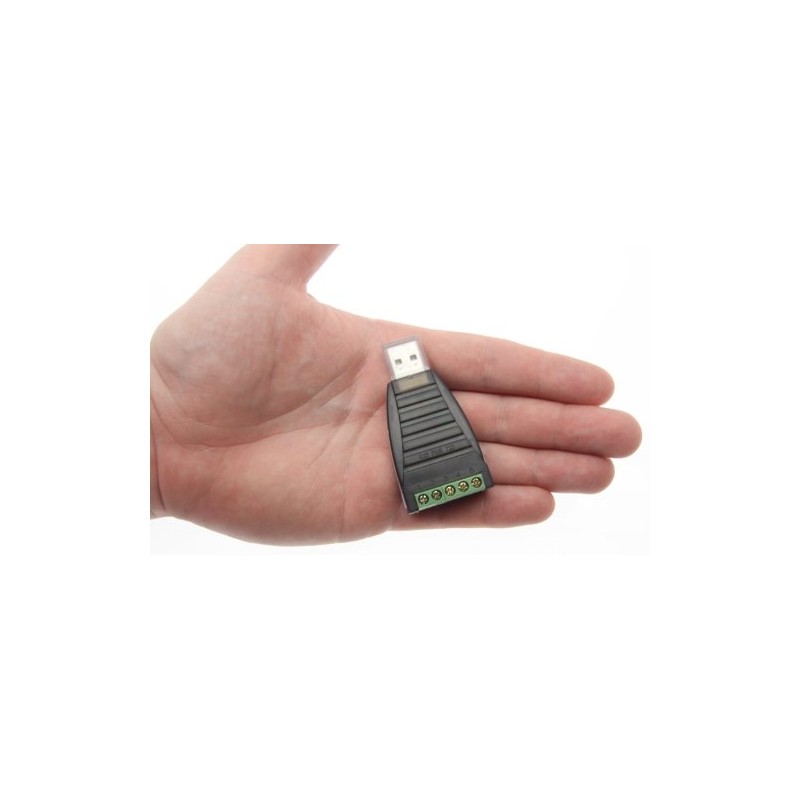

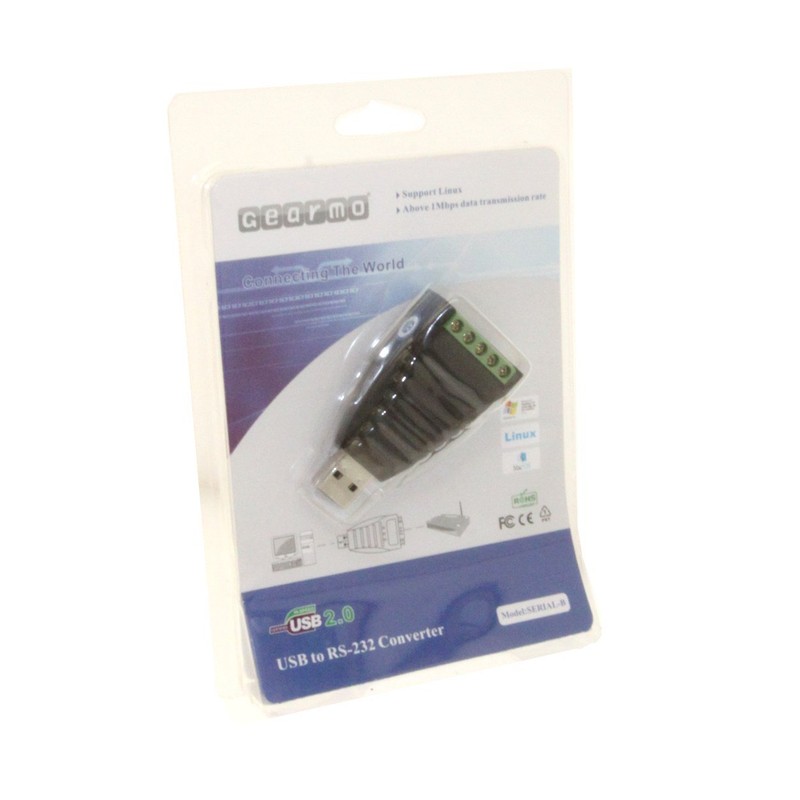

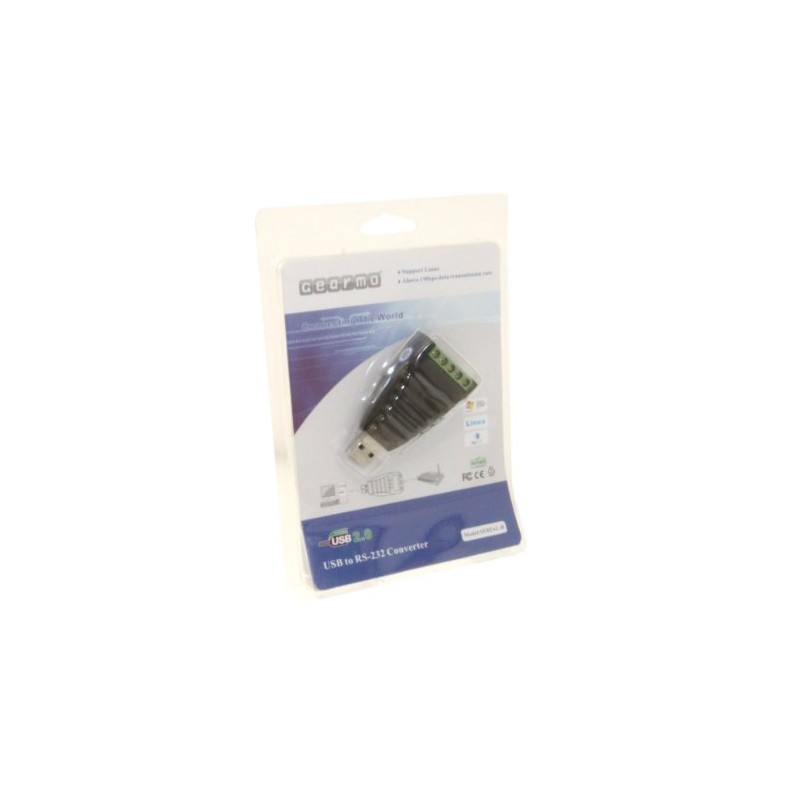

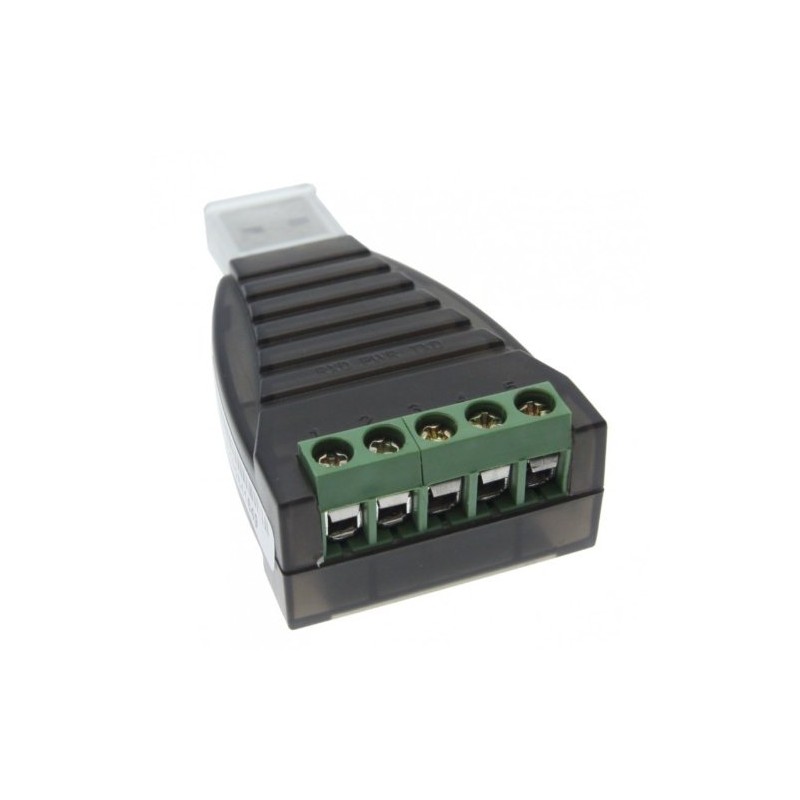

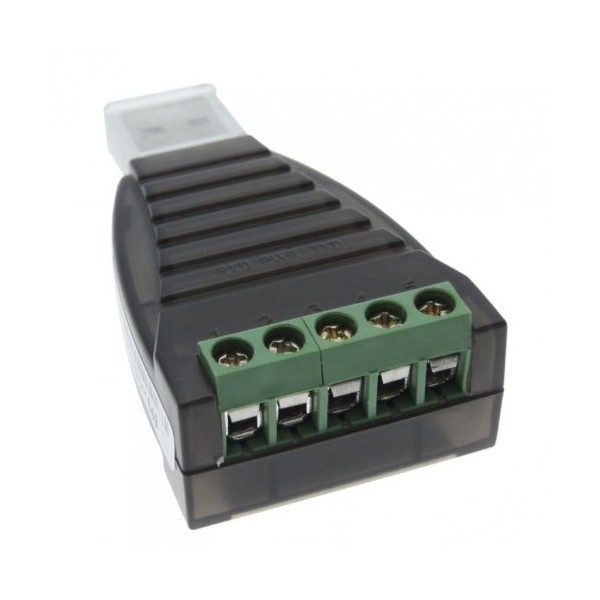

GearMo® USB to RS485/422 Terminal Block FTDI FT232RL with Windows 10 Support
$85.56
- $5.95 shipping from United States View details
-
Arrives
- OS Supported: Windows 10, 7, XP/Vista/7/64bit, Linux, OSX
- Chipset: FTDI FT232RL
- Transmission Rates: 300 to 921,600bps, automatic detection of signaling rate

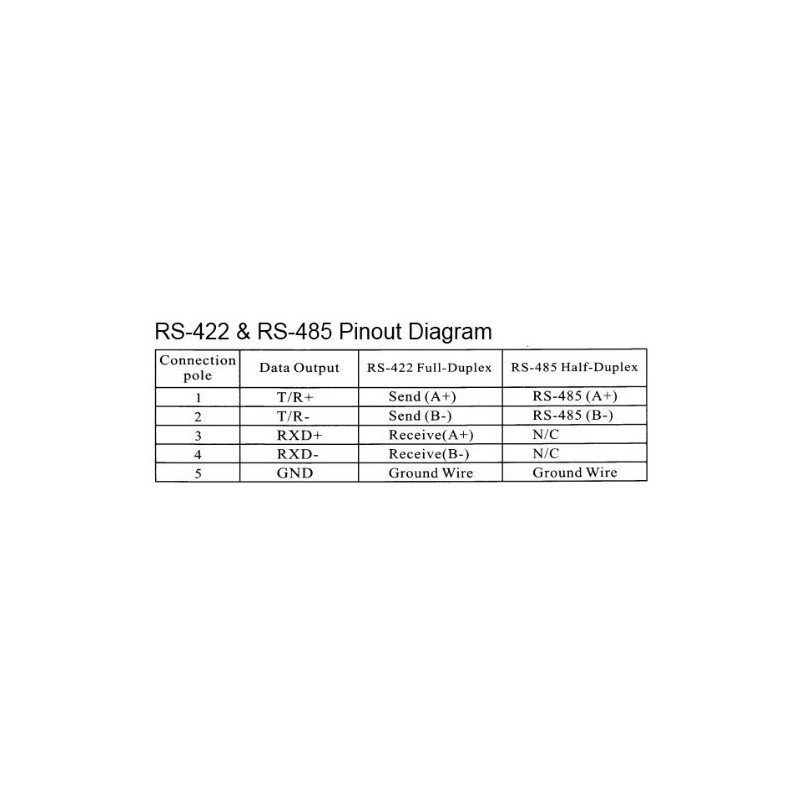

- RS-422 Signals: TX+, TX-, RX+, RX-, GND
- RS-485 Signals: T/R+, T/R-, GND
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- OS Supported: Windows 10, 7, XP/Vista/7/64bit, Linux, OSX
- Chipset: FTDI FT232RL
- Transmission Rates: 300 to 921,600bps, automatic detection of signaling rate
- RS-422 Signals: TX+, TX-, RX+, RX-, GND
- RS-485 Signals: T/R+, T/R-, GND

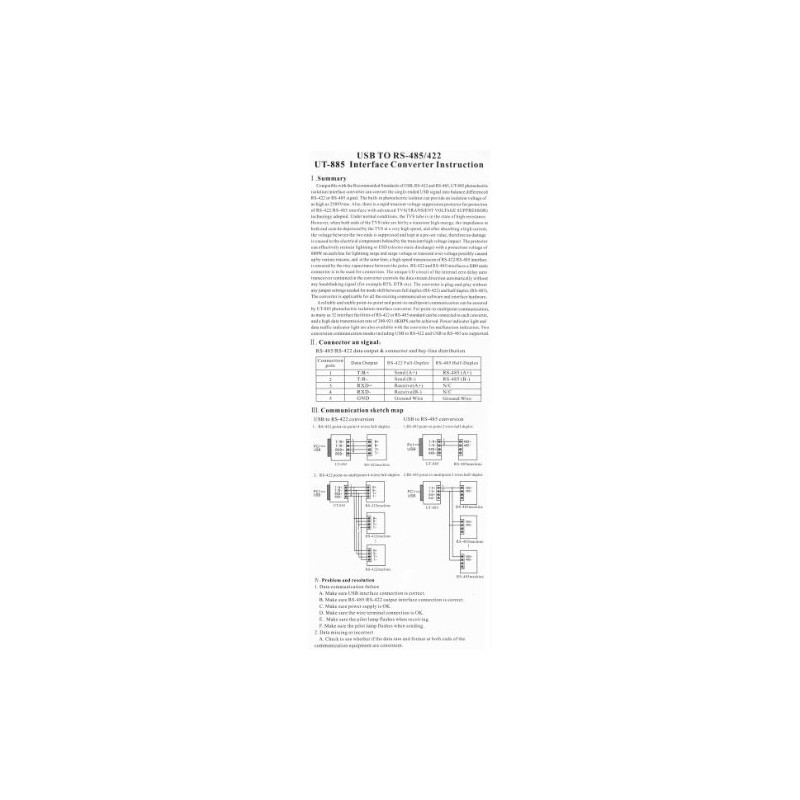

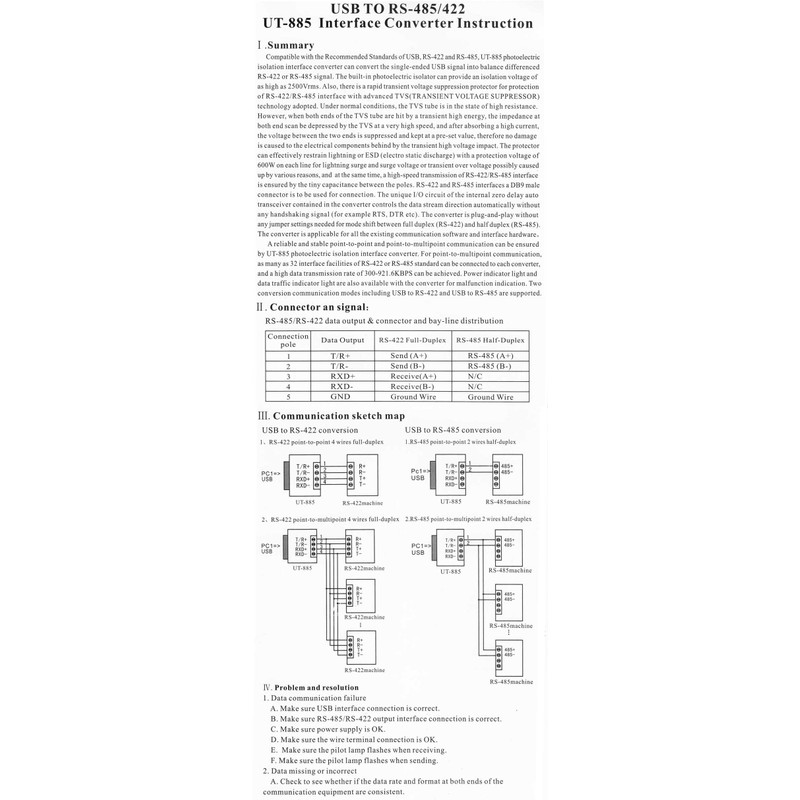

Serial standards 422 and 485, the UT-885 photoelectric isolation interface conveyer can convert the single ended USB signal into balance difference RS-422 or RS-485 signal. The built-ion photoelectric isolator can provide an isolation voltage as high as 2500 Vrms. Also, there is a rapid transient voltage suppression protector for protection of RS-422/RS-485 interface with advanced TVS technology.
Product Details:
Under normal condition the TVS tube is in a state oh high resistance. However, when both ends of the TVS tube are hit by transient high energy, the impedance at the both ends can be depressed by the TVS at very high speed, and after absorbing a high current, the voltage between the two ends is depressed and kept at a pre-set value, therefore no damage is caused to the electrical components behind by the transient high voltage impact. The protector can effectively restrain lighting or ESD (Electro-Static Discharge) with a protection voltage of 600w on each line for lightning surge and transient voltage events, while transmission of RS-422/RS-485 is maintained by capacitors between the poles. The unique I/O circuit of the internal zero delay auto transceiver contained in the converter controls the data stream direction automatically without any handshaking signals (Such as RTS, DTR, etc).
Additional Features:
Plug-and-play
shift between full duplex (RS-422) and half duplex (RS-485)
Applicable for all existing communication software and interface hardware
Point-to-multipoint communication
Up to 32 interface facilities of RS-422 or RS-485 can be connected to each converter
High data rate of 300bps to 321.6Kbps can be achieved
Power indicator light and dual data traffic indicator lights are also available with the converter for malfunction detection.
