G 1080P USB Fisheye Camera Module Wide Angle High Speed PC Camera for Computer Lightburn Camera Fast Frame 120fps 60fps Laser Engraver Camera Industrial Video CCTV USB Security Webcam Board

Product Overview

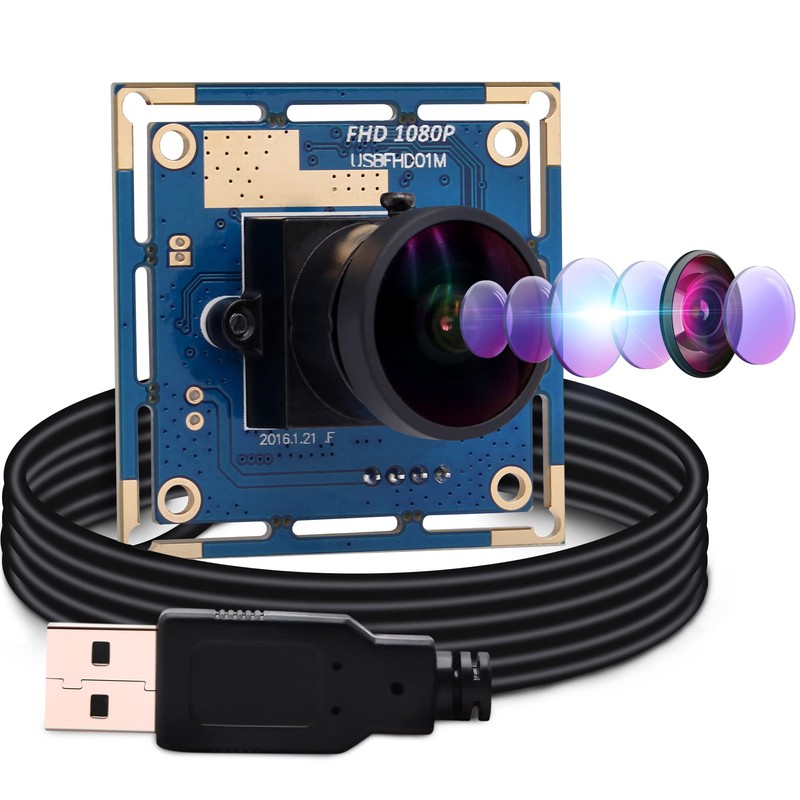

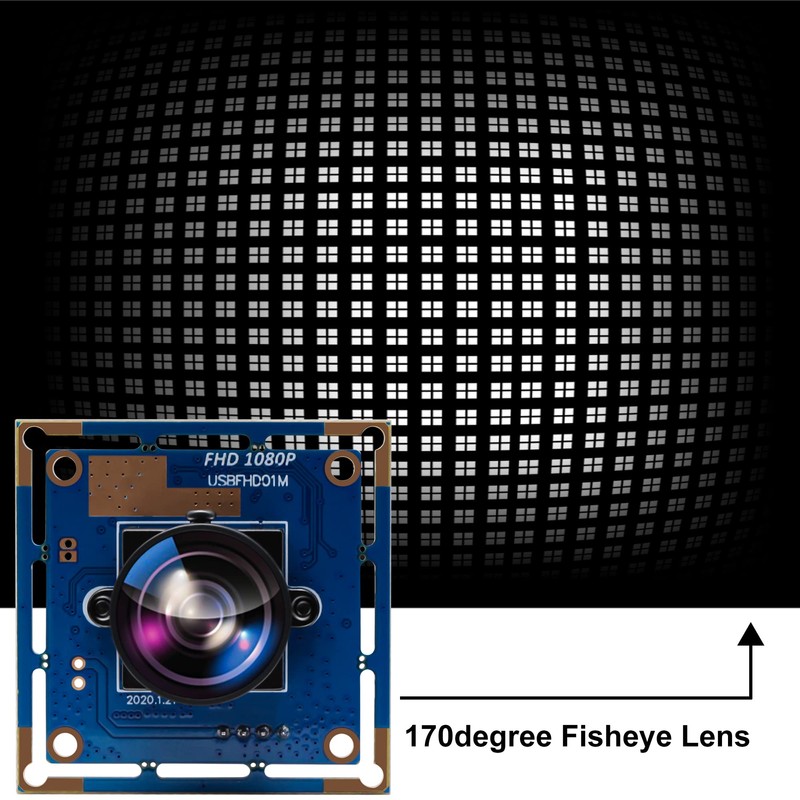

  • Model:ELP-USBFHD01M-L170 G 170 degree fisheye Lens Wide Angle Usb Camera Module:Webcamera_usb Usb camera module with 170 degree fisheye wide angle lens,2MP Full HD 1080p usb cameras can meet most capturing and video requirements,High resolution 2K Camera module usb with cmos ov2710 image sensor,Equipped with 1 meter usb cable, Support otg.Full HD 1080P, 5 element glass lens captures extremely sharp and clear images,High quality Fixed Lens &Full HD light correction function USB Camera
  • FULL HD 2K 1080P Fisheye USB WEBCAM Module:The streaming camera module provides incredibly sharp 2K to capture crystal clear images and records 1080@30fps/480p@100fps video.Small outlets,can embedded in most os,used for all kinds of machine as below: machinery equipment,all-in-one machine,POS equipment,STB,smart box TV BOX,advisement player,LED display,automatic vending machine,safety box,notebook,video door phone,MID,Tablet external,evaluator,Medical Equipment,on-the-spot law enforcement,etc.

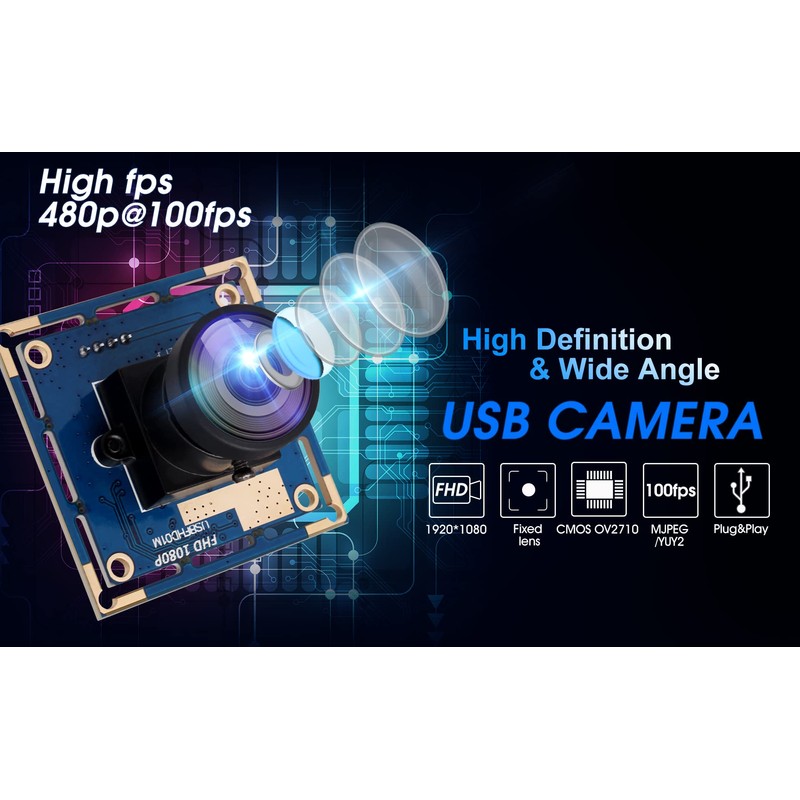

  • G High Frame Rate 480P@100fps Fisheye USB Camera Module Mini Webcam Module:High quality cmos ov2710 image Sensor for high quality image,2.0 Megapixel,Max resolution:1920*1080P,High frame rate 480P@100fps,Compression format :MJPEG / YUV2(YUYV),White balance Function:Excellent indoor and outdoor effects,vivid colors. Wide angle 2.1mm lens USB camera module that widely used in security monitoring, industrial equipment, driving recorders, POS machines, advertising machines,inquiry machines, etc
  • G MJPEG/YUY2 Compression Format Web Cam Module: Webcamera_usb USB camera module with MJPEG/YUY2 compression format help to save more storage space,streaming with less demand on your computer provides faster and smoother video uploading.1080P FHD high resolution 2 megapixel usb camera module,wide application for most project.The mini camera module board shooting effect is good, the use of wide-angle lens bring a wider range.
  • G Plug and Play&UVC Compliant Usb Camera Module:Usb camera mini webcam module with UVC compliant for use in most OS: Windows,Linux,Android,Mac,etc,Operation System Request:Win8 or above,Linux with UVC(above linux-2.6.26),MAC-OS X 10.4.8 or later,Android 4.0 or above with UVC.Model: ELP-USBFHD01M-L170, The Highest Resolution: 1920*1080. OV2710 camera module with small size and easy to install,High pixel technology, clear images and accurate color reproduction.
Size:
170degree fisheye lens
Color:
Blue
Manufacturer:
ELP
Part Number:
6ZGYHVV
Isin:
IGL6VFYU1CNJ

$165.12

  • Free shipping in US
  • $14.50 shipping • Ships from United Kingdom
  • Arrives

In Stock

Fulfilled by IBSPOT • Secure checkout
Seller:

IBSPOT Buyer Protection
  • Free 30-Day Returns
  • Full Refund for Damaged or Incorrect Items
  • Guaranteed Delivery or Money Back
  • Secure Checkout & Fast Support
supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay
scroll to top arrow
G 1080P USB Fisheye Camera Module Wide Angle High Speed PC Camera for Computer Lightburn Camera Fast Frame 120fps 60fps Laser Engraver Camera Industrial Video CCTV USB Security Webcam Board

G 1080P USB Fisheye Camera Module Wide Angle High Speed PC Camera for Compute...

$165.12

Product Overview

  • Model:ELP-USBFHD01M-L170 G 170 degree fisheye Lens Wide Angle Usb Camera Module:Webcamera_usb Usb camera module with 170 degree fisheye wide angle lens,2MP Full HD 1080p usb cameras can meet most capturing and video requirements,High resolution 2K Camera module usb with cmos ov2710 image sensor,Equipped with 1 meter usb cable, Support otg.Full HD 1080P, 5 element glass lens captures extremely sharp and clear images,High quality Fixed Lens &Full HD light correction function USB Camera
  • FULL HD 2K 1080P Fisheye USB WEBCAM Module:The streaming camera module provides incredibly sharp 2K to capture crystal clear images and records 1080@30fps/480p@100fps video.Small outlets,can embedded in most os,used for all kinds of machine as below: machinery equipment,all-in-one machine,POS equipment,STB,smart box TV BOX,advisement player,LED display,automatic vending machine,safety box,notebook,video door phone,MID,Tablet external,evaluator,Medical Equipment,on-the-spot law enforcement,etc.
  • G High Frame Rate 480P@100fps Fisheye USB Camera Module Mini Webcam Module:High quality cmos ov2710 image Sensor for high quality image,2.0 Megapixel,Max resolution:1920*1080P,High frame rate 480P@100fps,Compression format :MJPEG / YUV2(YUYV),White balance Function:Excellent indoor and outdoor effects,vivid colors. Wide angle 2.1mm lens USB camera module that widely used in security monitoring, industrial equipment, driving recorders, POS machines, advertising machines,inquiry machines, etc
  • G MJPEG/YUY2 Compression Format Web Cam Module: Webcamera_usb USB camera module with MJPEG/YUY2 compression format help to save more storage space,streaming with less demand on your computer provides faster and smoother video uploading.1080P FHD high resolution 2 megapixel usb camera module,wide application for most project.The mini camera module board shooting effect is good, the use of wide-angle lens bring a wider range.
  • G Plug and Play&UVC Compliant Usb Camera Module:Usb camera mini webcam module with UVC compliant for use in most OS: Windows,Linux,Android,Mac,etc,Operation System Request:Win8 or above,Linux with UVC(above linux-2.6.26),MAC-OS X 10.4.8 or later,Android 4.0 or above with UVC.Model: ELP-USBFHD01M-L170, The Highest Resolution: 1920*1080. OV2710 camera module with small size and easy to install,High pixel technology, clear images and accurate color reproduction.
Size:
170degree fisheye lens
Color:
Blue
Manufacturer:
ELP
Part Number:
6ZGYHVV
Isin:
IGL6VFYU1CNJ


SPECIFICATION:
2.0Megapixel 1080P Resolution
Sensor 1/2.7" CMOS OV2710
1920(H)x1080(V)pixels/Max. Resolution 1920X1080
Picture format MJPEG or YUY2 optional/USB Protocal USB2.0 HS/FS
Auto exposure AEC Support/Auto white blance AEB Support

Effective Pixels:
1920 (H) x 1080 (V) pixels/1280 (H) x 1024 (V) pixels/1280 (H) x 720 (V) pixels/1024 (H) x 768 (V) pixels/800 (H) x 600 (V) pixels/640 (H) x 480 (V) pixels/352(H) x 288 (V) pixels/320 (H) x 240 (V) pixels

Performance:
1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps
1280 (H) x 1024 (V) pixels MJPEG 30fps YUY2 6fps
1280 (H) x 720 (V) pixels MJPEG 60fps YUY2 9fps
1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 9fps
800 (H) x 600 (V) pixels MJPEG 60fps YUY2 21fps
640 (H) x 480 (V) pixels MJPEG 120fps YUY2 30fps

Adjustable Parameters:
Brightness/Contrast/Color saturation /Definition/Gamma/WB

Night Vision Optional:
Support IR Cut and IR board for night vision

Voltage:
DC 5V/current 150mA

Working temperature:
DEGREES(-20~70)

Size:

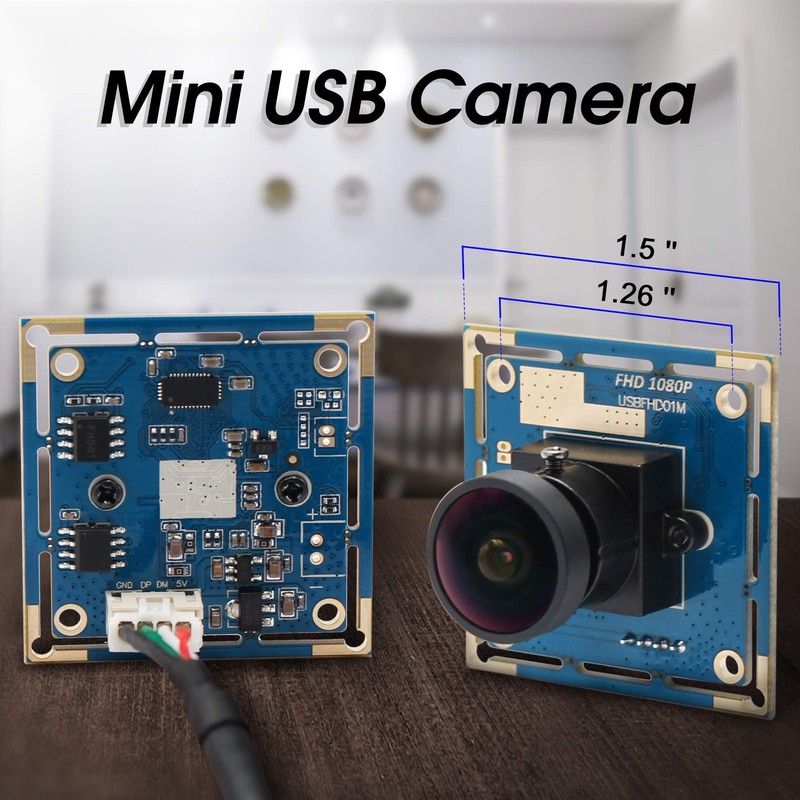

32x32mm/38*38mm

Support System:
OS "WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above".
