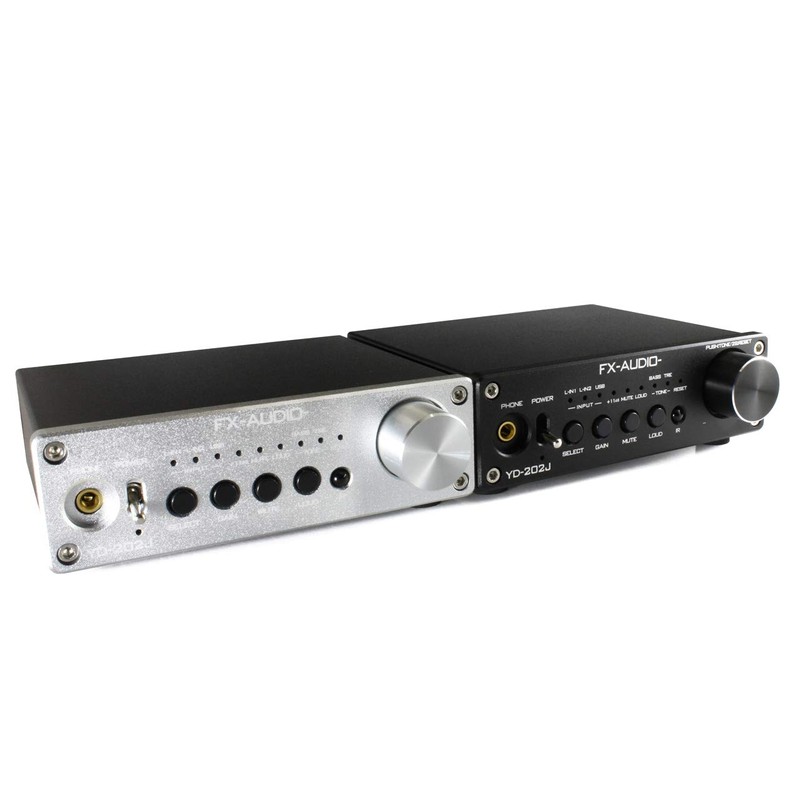

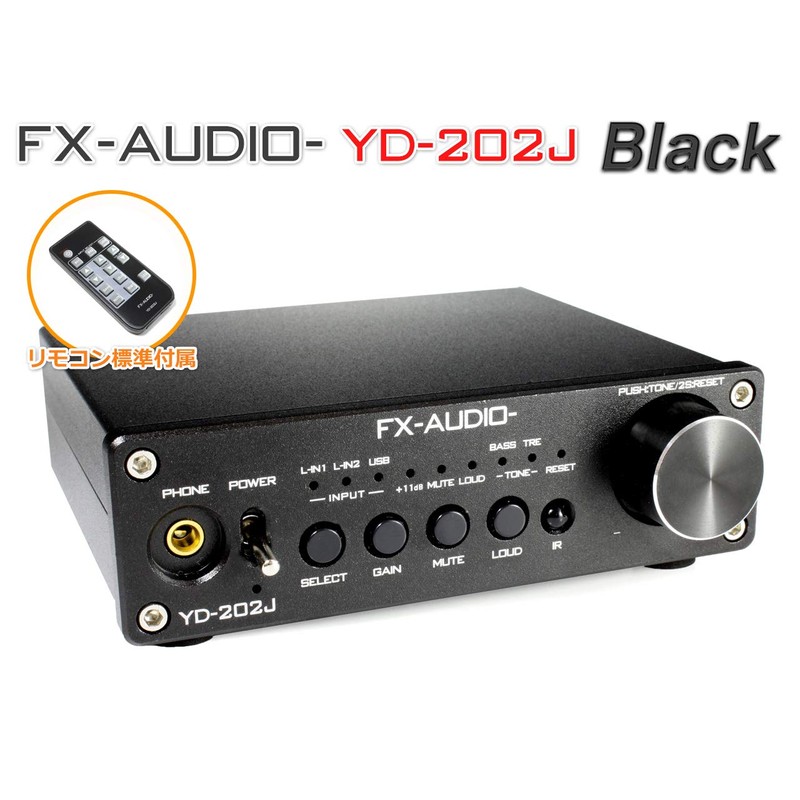

FX-AUDIO- YD-202J YDA138 Digital Amplifier IC with Dual Mono Drive Digital Premain Amplifier USB Input DAC Built-in Amplifier (Black)
$117.74
- $14.50 shipping from Japan View details
-
Arrives
- Equipped with tone control, loudness control, gain boost mute
- 3-Way (RCA/3.5mm/USB) Input Switch, Electronic Volume, USB-DAC, Built-in Headphone Amplifier
- YAMAHA YDA138 Digital Amplifier ICx2 Dual Mono Drive Digital Amplifier

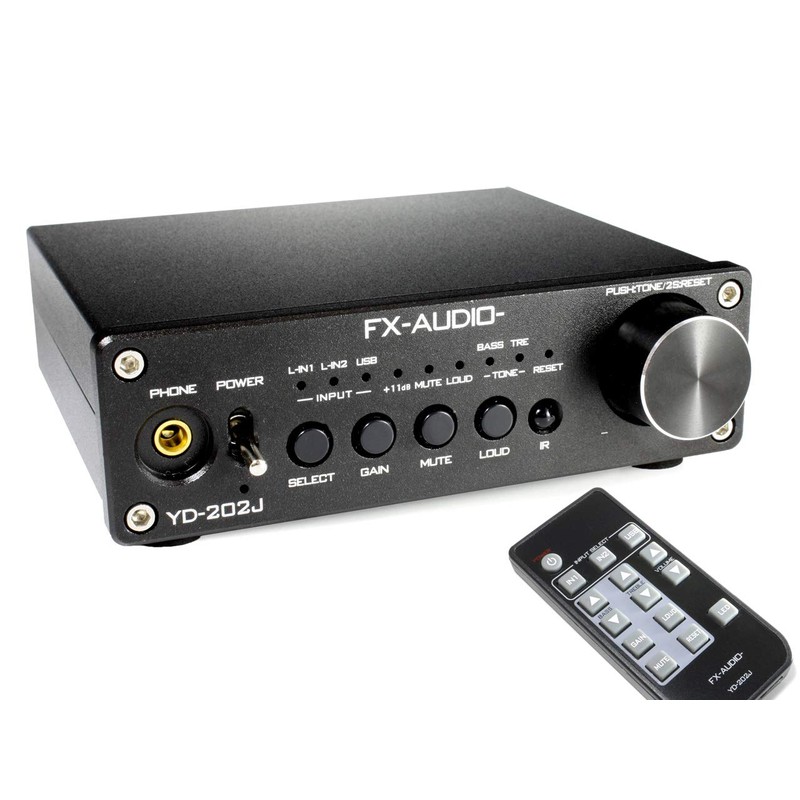

- Includes a standard remote control
- AC adapter required (sold separately) DC 12V/2A DC jack 0.2 x 0.08 inches (5.5 x 2.1 mm) (center plus)
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Equipped with tone control, loudness control, gain boost mute
- 3-Way (RCA/3.5mm/USB) Input Switch, Electronic Volume, USB-DAC, Built-in Headphone Amplifier
- YAMAHA YDA138 Digital Amplifier ICx2 Dual Mono Drive Digital Amplifier
- Includes a standard remote control
- AC adapter required (sold separately) DC 12V/2A DC jack 0.2 x 0.08 inches (5.5 x 2.1 mm) (center plus)
USB-DAC function, 3 input switching, electronic volume, tone control function, headphone amplifier.
This is a multi-functional model with loudness control and gain boost features, and is a playable amplifier.
This product was designed entirely by our company as a successor to the Lepai LP-2020A+ functionality and sound quality trends.
was developed as a result of comprehensive opinions received from the prototype lot sale, which is why the dual mono configuration
We have changed the concept of pure lines that utilize the characteristics and further improve the sound quality and usability.
It will be the 6th lot from sold on May 7, 2021.
Changes from 5th lot to 6th lot.
Output level: Change capacitor of LPF circuit.
More information here>http://nfj2019.livedoor.blog/archives/9594193.html
Product Features - Functional Surfaces
■ 3 input switching (USB-DAC/3.5mm STEREO/RCA)
■ Built-in USB-DAC (Supported formats: Up to 16 bit 44.1 kHz/48 kHz)
■ Loudness function (ON / OFF)
■Gain Boost function (ON: +11.25dB / OFF: 0dB)
- Mute [Noise Cancellation] function (ON / OFF)
■Tone control function (TREBLE:±14dB[±7Step] / BASS: ±14dB[±7Step])
Product Features - Sound Quality Surface:

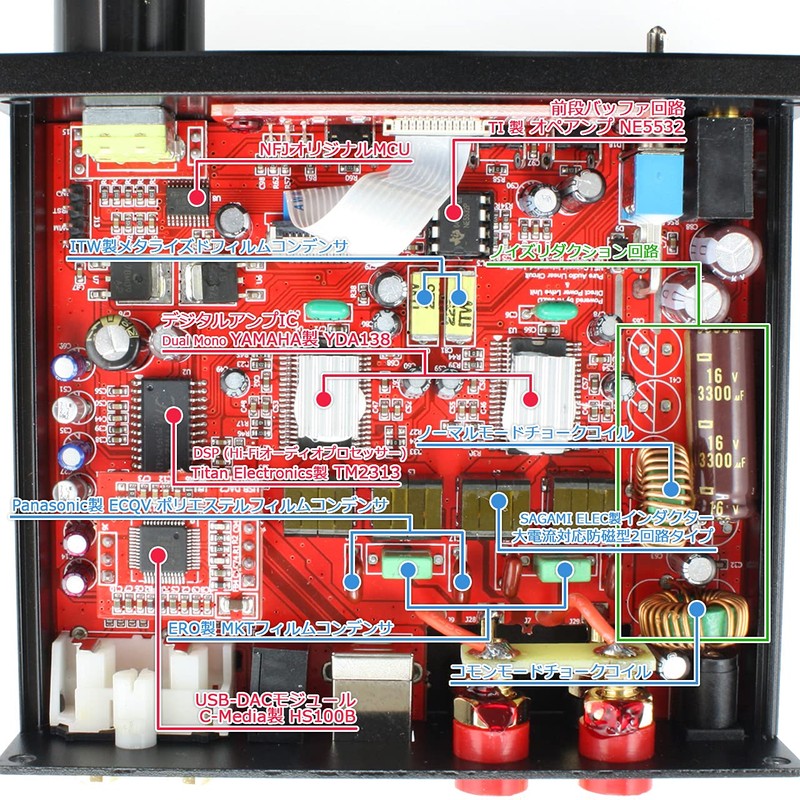

■Dual mono configuration digital amplifier
■Dual mono configuration headphone amplifier
■ Electronic volume and electronic tone control by DSP
■ Opamp Buffer Circuit
■ Power supply noise reduction circuit
[Precautions]
This product is sold separately. Please purchase the AC adapter separately.
Recommended AC Adapter: https://www.amazon.co.jp/dp/B01M4JK604
The 3.5 mm stereo mini jack input terminal is not covered by a 4-prong plug (TRRS).
The headphone output terminal is 4 prong plug (TRRS) not covered under any warranty.
Product Specifications:
Color: Black.
Product warranty period: 6 months from date of purchase
Digital Amplifier IC: YAMAHA YDA138 Digital Amp ICx 2 Dual Mono Configuration
DSP IC: TM2313 Hi-Fi Audio Processor by Titan Electronics
USB-DAC IC: C-Media HS100B

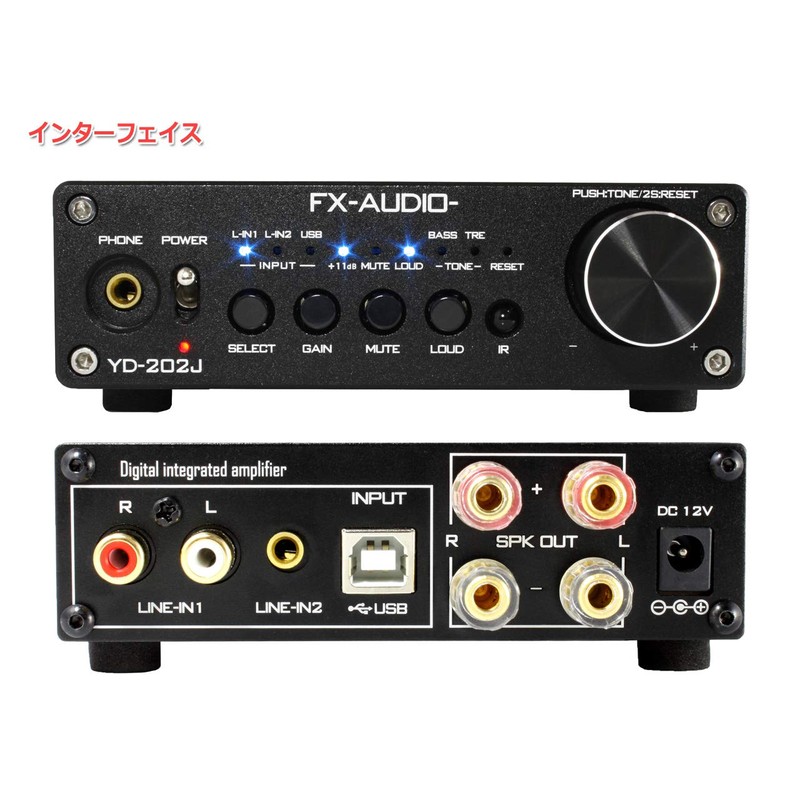

Input terminal: [LINE-IN1] Stereo RCA terminal / [LINE-IN2] 3.5mm stereo mini jack / [USB] USB Type-B terminal
Input switch: 3-way (RCA/3.5mm/USB)
Output terminal: 2 channel stereo speaker output (gold plated terminals for banana plugs) / Front headphone jack (3.5mm stereo mini jack)
Headphone output: Maximum output 50mW x 2ch (@32Ω)
Main Amplifier Maximum Output: Max 20 W x 2 CH (with power input 12 V, 4 Ohms)
Supported Speakers: 4Ω - 16Ω
Compatible operating systems: Windows 11/ 10/ 8(8.1) 7/ Vista / XP / 2000/ MacOS X / 9.1 and above.
Power Supply: DC 12 V; Recommended power capacity of 2 A or more (AC adapter sold separately)
Power connector: outer diameter 0.2 inch (5.5 mm), inner diameter 0.08 inch (2.1 mm) (Center Plus specification)
Functions: Gain Boost function, 3-line input switch, MUTE independent control, loudness function, tone control function (control settings reset).
Protection circuits: bop noise reduction function (enhanced version), overcurrent protection (output short circuit protection), overheat protection.

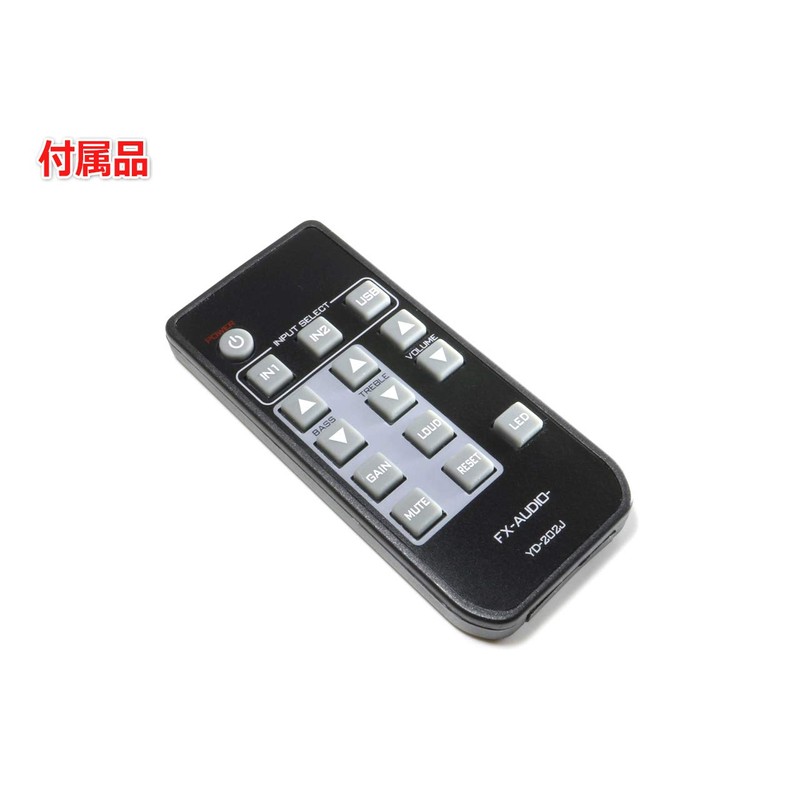

Accessories: Remote control, simple instruction manual (English language not guaranteed).
Size: Height 1.4 inches (35 mm) x Width 4.6 inches (117 mm) x Depth 3.9 inches (100 mm) (excluding
Weight: Approx. 12.2 oz (360
Specifications and design may change without prior notice due to improvements.
