FX-AUDIO - FX202A/FX-36A PRO "Silver" TDA7492PE Digital Amplifier IC Equipped with Stereo Power Amplifier
FX-AUDIO - FX202A/FX-36A PRO "Silver" TDA7492PE Digital Amplifier IC Equipped with Stereo Power Amplifier
Product Overview
- TDA7492PE Dual-BTL Class-D Digital Amplifier IC
- The input coupling part uses a custom made condenser
- Uses a magnetic (closed magnetic road) type SMD inductor for large current
- The filter capacitor at the output stage uses ITW (PAKTRON) RA series capacitors (MIL standards)
- Equipped with a high capacity capacitor with a low impedance grade capacitor, made in Japan, high ripple compatible
- Equipped with a dip switch that switches between base gain settings
- Designed to match other devices in high resolution with affordable price
- AC adapter required (sold separately), DC 12V/Current capacity 2A or above, DC jack 0.2 x 0.08 inches (5.5 x 2.1 mm) (center plus)
| Brand: | FX-AUDIO- |
|---|---|
| Color: | Silver |
| Manufacturer: | North Flat Japan |
| Part Number: | 2Z7RN74 |
| Isin: | IY6R2VT6SQUC |
Guaranteed as described or your money back.
- 30-Day Money-Back Guarantee
- Secure Checkout
- Reliable Shipping & Tracking
- Responsive Customer Support
Product Overview
- TDA7492PE Dual-BTL Class-D Digital Amplifier IC
- The input coupling part uses a custom made condenser
- Uses a magnetic (closed magnetic road) type SMD inductor for large current
- The filter capacitor at the output stage uses ITW (PAKTRON) RA series capacitors (MIL standards)
- Equipped with a high capacity capacitor with a low impedance grade capacitor, made in Japan, high ripple compatible
- Equipped with a dip switch that switches between base gain settings
- Designed to match other devices in high resolution with affordable price
- AC adapter required (sold separately), DC 12V/Current capacity 2A or above, DC jack 0.2 x 0.08 inches (5.5 x 2.1 mm) (center plus)
| Brand: | FX-AUDIO- |
|---|---|
| Color: | Silver |
| Manufacturer: | North Flat Japan |
| Part Number: | 2Z7RN74 |
| Isin: | IY6R2VT6SQUC |
Equipped with ST Microelectronics' "TDA7492PE" digital amplifier IC, which allows up to 48W x 2ch stereo output, and is designed to be used as a simple power amplifier. This model is designed to be used as a simple power amplifier.

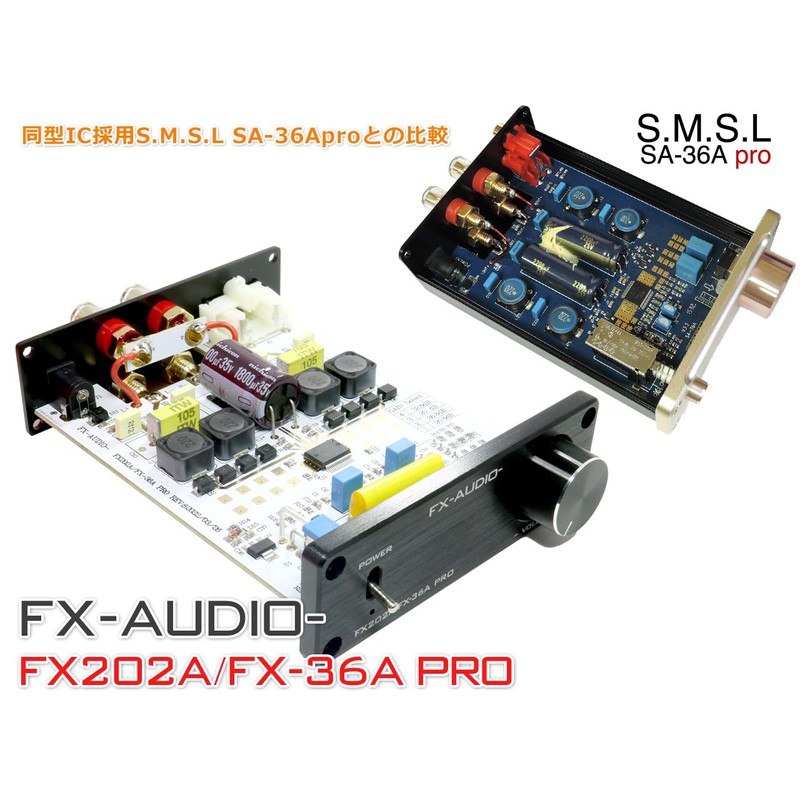

Based on a reference circuit, it is efficiently placed circuits that can improve sound quality at a low cost without abbreviation of circuits that affect sound quality.
In addition, we adopt high quality components such as custom audio parts for special audio in areas where sound quality is expected, so it achieves high resolution and flat sound quality.
Product Features:
Made by Swiss ST Microelectronics, TDA7492PE Dual-BTL Class-D Digital Amplifier IC.
Maximum Output: 48W + 48W @ 24V
This is a digital amplifier IC that can produce high output with high efficiency and low power consumption.
The TDA7492PE is characterized by high resolution sound with low fogging while inheriting analog-like hearing.
This small housing provides amazing power and high output while still allowing you to drive larger speakers.
The input coupling part uses a custom-built condenser that has a reputation for sound quality.
The input coupling capacitor that affects the sound quality and uses a special audio polyester film capacitor made specifically for FX-AUDIO limited production.
This custom made capacitor has been adopted in limited edition models such as TUBE-00J LIMITED. After that, it has received a very popular and reverberation to the TUBE-00J UNLIMITED mass production model.
Uses a magnetic (closed magnetic road) type SMD inductor that supports large current.
Designed to reduce the inductor line impedance and support high current, thus reducing sound distortion caused by impedance.
In addition, since it is an anti-magnetic type inductor, there is no magnetic field binding, the original filter performance is guaranteed, and the frequency characteristics of the design is stable.
Uses ITW (PAKTRON) RA series capacitors (MIL standard) for the filter capacitor at the output level.
In order to meet the MIL standards, it has been made with special processes such as manufacturing in decompression spaces, and it does not contain moisture or air and contributes to high resolution and good sound quality.
This is a proven capacitor that has been actively adopted for sound quality, and has been highly appreciated for high resolution and clear sound quality. It is also compatible with the input coupling capacitor, and it has been designed to improve the sound quality by adding a high resolution and clear sound quality.
Equipped with a high capacity capacitor with a low impedance grade capacitor, made in Japan, high ripple compatible.
Provides a clean and stable power supply that contributes to overall sound quality.

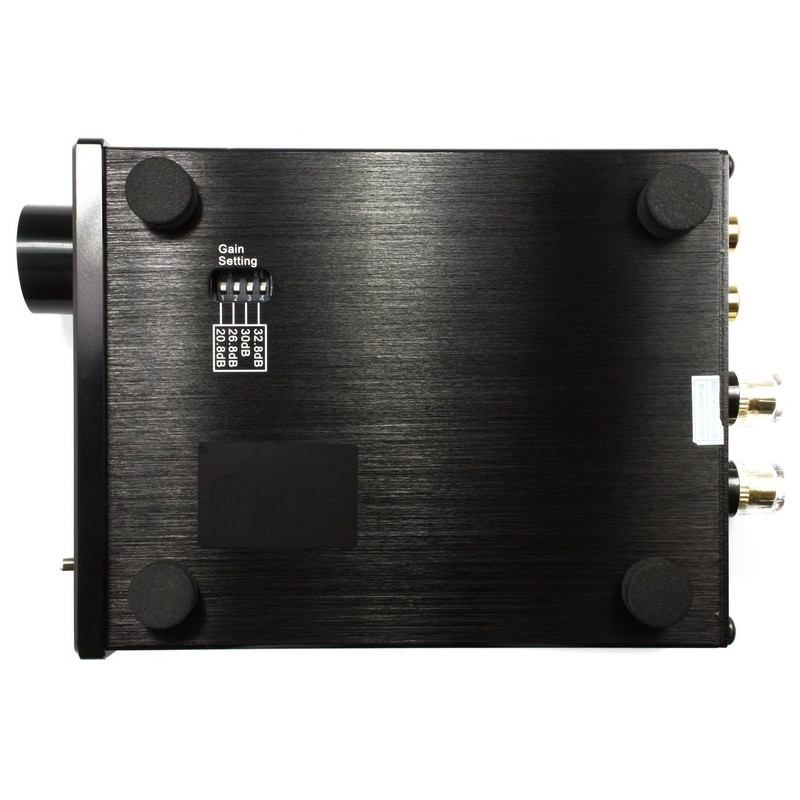

Equipped with a DIP switch that switches between base gain settings.
DIP switch with 4 patterns of base gain of 20.8dB/26.8dB/30db/32.8dB on the back of the main unit for easy switching.
Can be adjusted and combined according to the preside type, ability and gain.
Default state (ALLOFF) 20.8 dB
Please switch between the gain setting switch with the power off.
The back light of the volume knob is reproduced.

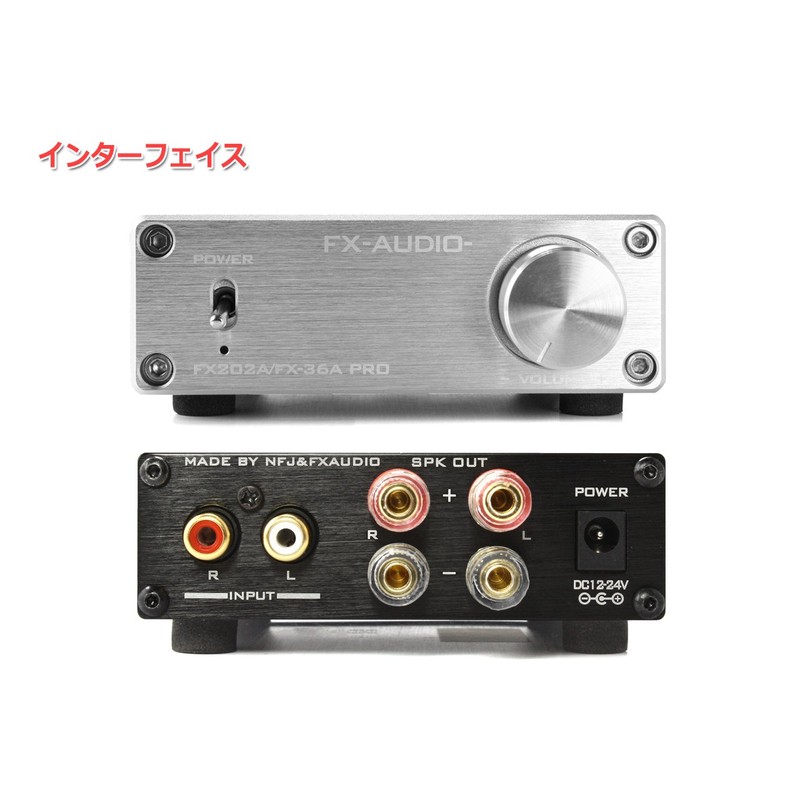

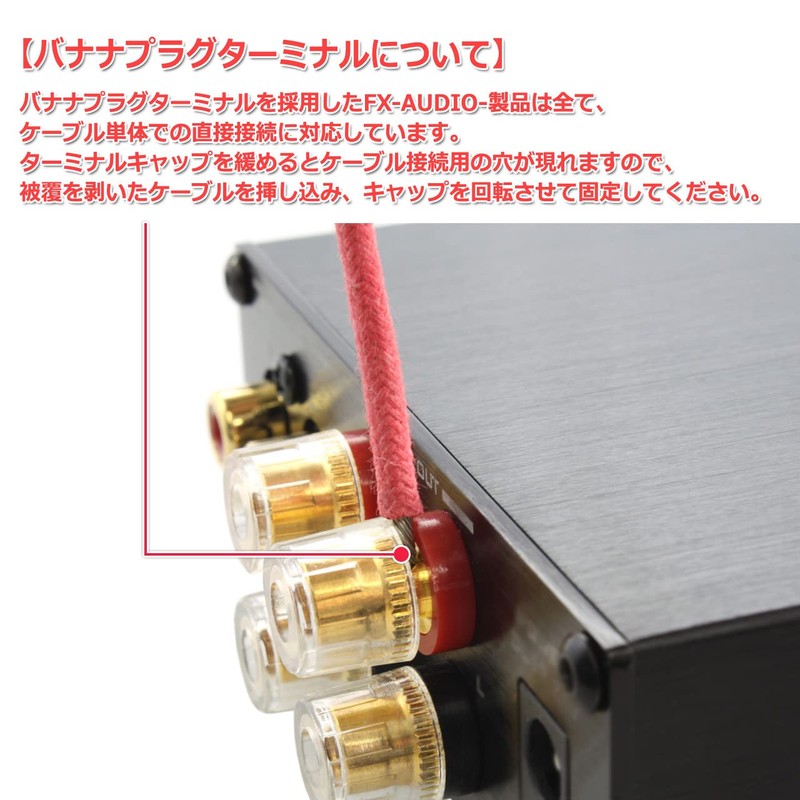

RCA input connection: Gold plated specifications, speaker output terminals are gold-plated, compatible with both straight and banana plugs.

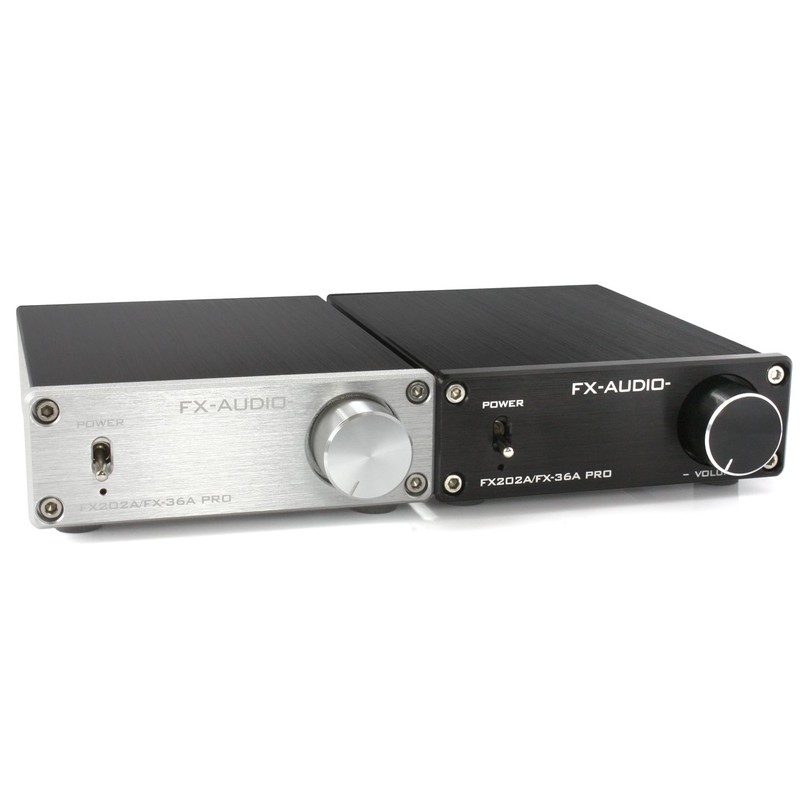

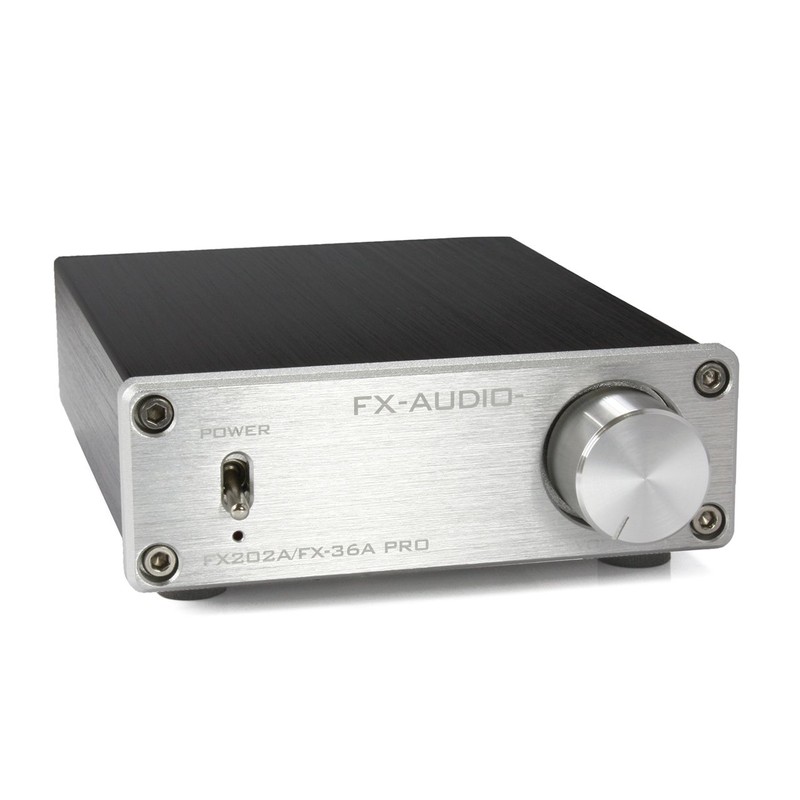

The aluminum alloy housing is lightweight and highly rigidity, and the hairline surface treatment creates a high quality feel.
The body is designed to be more scratch resistant than anodized hardening treatment.
The holes on the front panel are CNC machined and tapered for a beautiful design.
[Precautions]
Product warranty period is 6 months from date of purchase.
Please make sure to set the gain with the power off of the main unit.
This product is sold separately. Please purchase the AC adapter separately.
Product Specifications:
Color: Silver
Product warranty period: 6 months from date of purchase
Digital Amplifier IC: TDA7492PE Dual-BTL Class-D Digital Amplifier IC by ST Microelectronics.

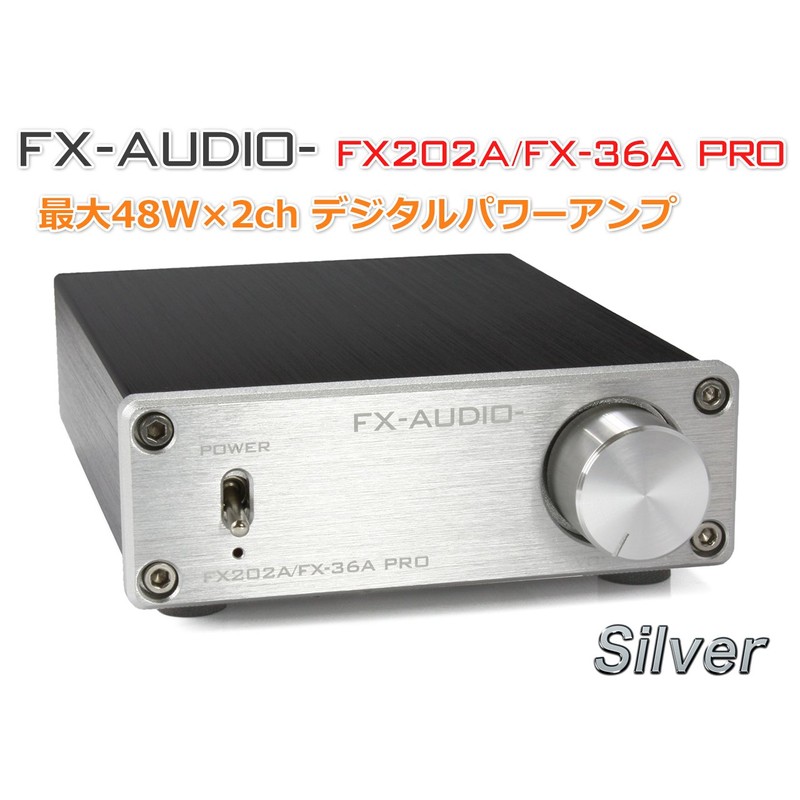

Maximum Output: Max 48 W x 2 ch (when power input 24 V, 4 ohms)
Supported Speakers: 4Ω-16Ω
Input terminal: Stereo RCA terminal (gold plated)
Output terminal: 2 channel stereo speaker output (gold plated terminals compatible with banana plugs)
Power Specifications: DC12V-24V Recommended Power Supply Capacity 2A or More (AC Adapter Sold Separately)
Power Connector: DC jack (outer diameter 0.2 inch (5.5 mm), inner diameter 0.08 inch (2.1 mm) center plus)
Accessories: Instruction manual
Size: Height 1.3 inches (33 mm) x Width 3.9 inches (98 mm) x Depth 4.8 inches (123 mm) (exclud
Weight: 11.8 oz (325
Specifications and design may change without prior notice due to improvements.
