Fuba DEK 584 Unicable LNB 12 Subscribers - Single Cable LNB/SCR LNB with LTE Filter for 8 Unicable Subscribers + Four Standard Satellite Outputs (Test: Very Good*) - HDTV and UHD (4K/8K) Compatible
$181.60
-
Arrives
- UNICABLE LNB: LNB for up to eight unicable subscribers (supports Unicable-1 and Unicable-2 standard) with four additional standard connections for satellite receivers or TVs with integrated DVB-S tuner
- Can be extended almost as desired: with Fuba multi-switch FMG 508 and extension module FME 508 can be extended to almost any number of subscriber connections
- EXCELLENT RECEPTION QUALITY: The latest technology ensures an exceptional viewing experience - HDTV, HD (4K/8K), 3D compatible
- Optimised mobile radio shielding: improved housing sealing, optimised shielding of the conductor tracks and new circuit board layout ensure optimal protection against interference radiation (e.g. LTE, UMTS and GSM, DECT interference)
- *Test result: very good – LNB in individual test in SATVISION issue 07 from July 2021
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- UNICABLE LNB: LNB for up to eight unicable subscribers (supports Unicable-1 and Unicable-2 standard) with four additional standard connections for satellite receivers or TVs with integrated DVB-S tuner
- Can be extended almost as desired: with Fuba multi-switch FMG 508 and extension module FME 508 can be extended to almost any number of subscriber connections
- EXCELLENT RECEPTION QUALITY: The latest technology ensures an exceptional viewing experience - HDTV, HD (4K/8K), 3D compatible
- Optimised mobile radio shielding: improved housing sealing, optimised shielding of the conductor tracks and new circuit board layout ensure optimal protection against interference radiation (e.g. LTE, UMTS and GSM, DECT interference)
- *Test result: very good – LNB in individual test in SATVISION issue 07 from July 2021
The Fuba Unicable LNB DEK 584 offers you a variety of possibilities. You can connect up to eight Unicable/SCR compatible receivers or TVs. The LNB then sends the TV signals to the receivers via eight different output frequencies via a coaxial line.
The DEK 584 meets the requirements of EN50494 and EN50607 and supports Unicable-1 and Unicable-2 standards.

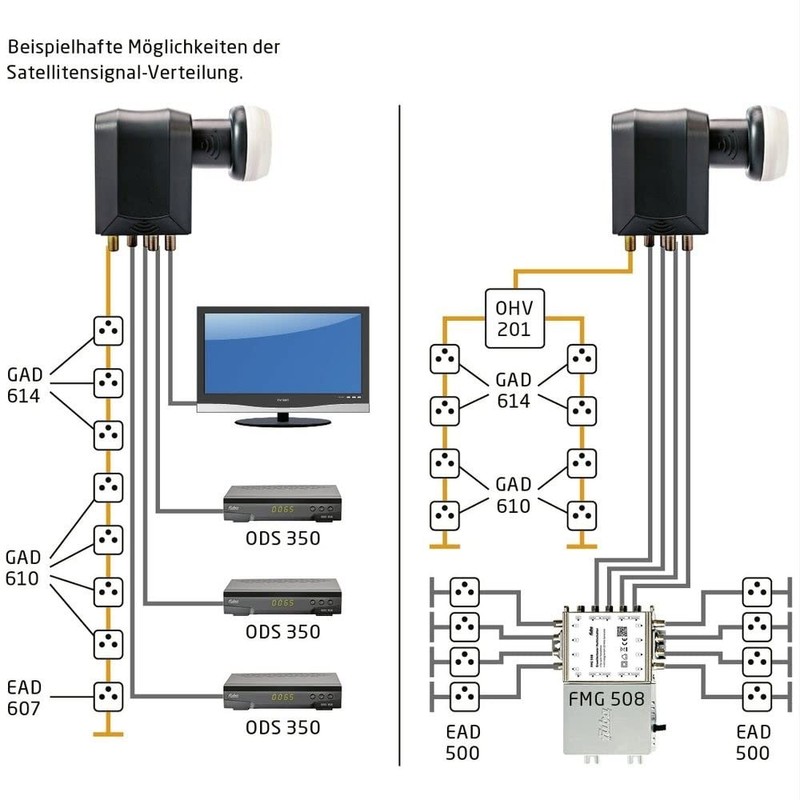

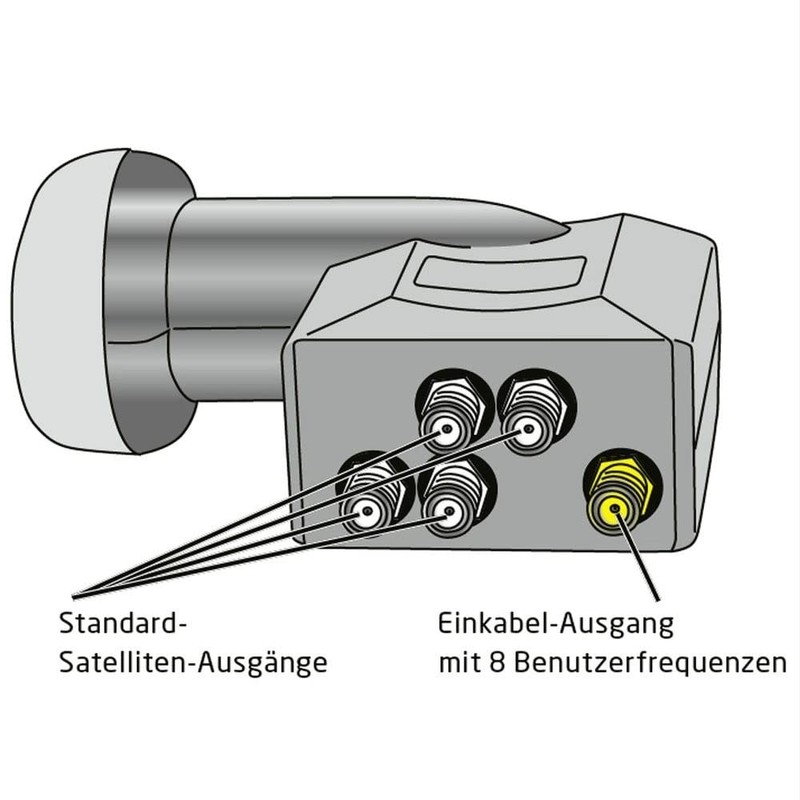

On the other hand, four standard satellite outputs are also available, to which four additional subscribers can be connected such as a quad LNB or multiswitch.
The DEK 584 can be extended to almost any number of subscriber connections in conjunction with the Fuba FMG 508 multiswitch and the extension module FME 508.
Economical and weatherproof.With low power consumption (type. 180 mA), the LNB is a real power saver. The weather protection housing protects the F-connectors from rain and splashes of water.
Technical data:Subscriber connections: 5, 1x SCR + 4x Standard/Legacy
Number of user bands: 8.
Feedhorn: 40 mm.
Impedance: 75 ohms.
Input frequency range: 10.7 to 12.75 GHz
Lower band output frequency range: 950 to 1950 MHz
Upper band output frequency range: 1100 to 2150 MHz
Cross polarization decoupling: 22 dB.
Noise figure: 0.6 dB.
Conversion Gain: 55dB
Output level standard Sat: 85 dBµV.
Single cable output level: 90 dBµV.
Control: DiSEqC, EN50494 & EN50607.
Output frequencies 1 to 8, each EN50494 / EN50607: 975 MHz, 1025 MHz, 1075 MHz, 1125 MHz, 1175 MHz, 1225 MHz, 1275 MHz, 1325 MHz
Power supply: 11.5V to 19V
Power consumption: type. 180 mA.
Operating temperature: -30 to +70 °C
