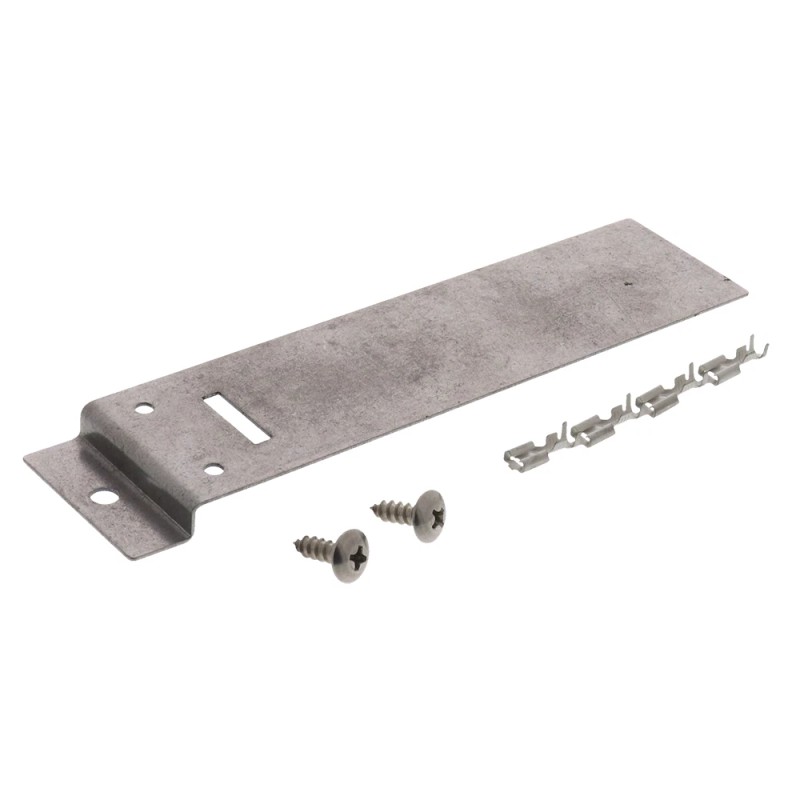

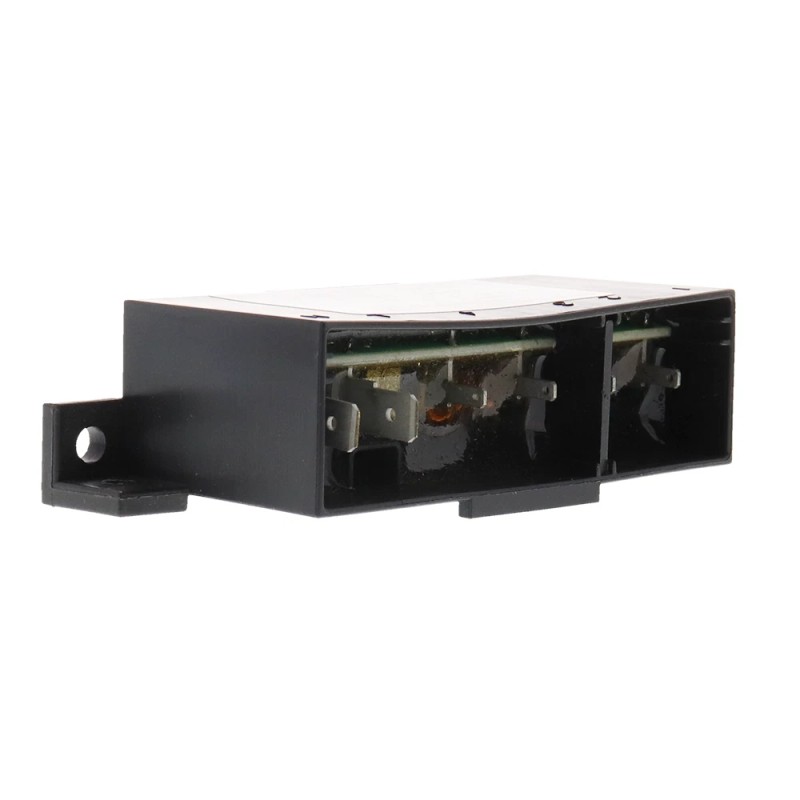

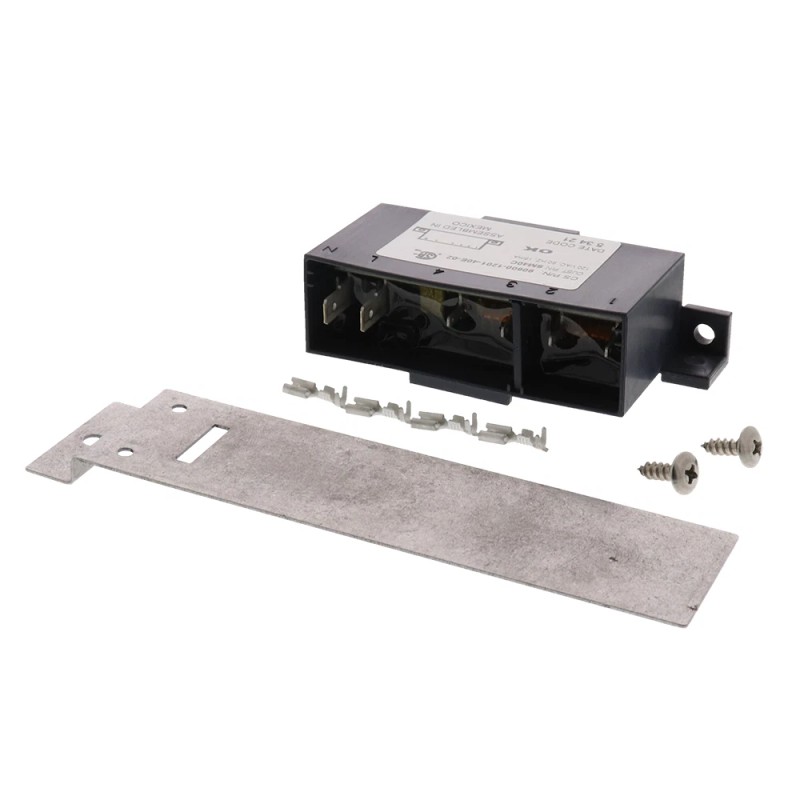

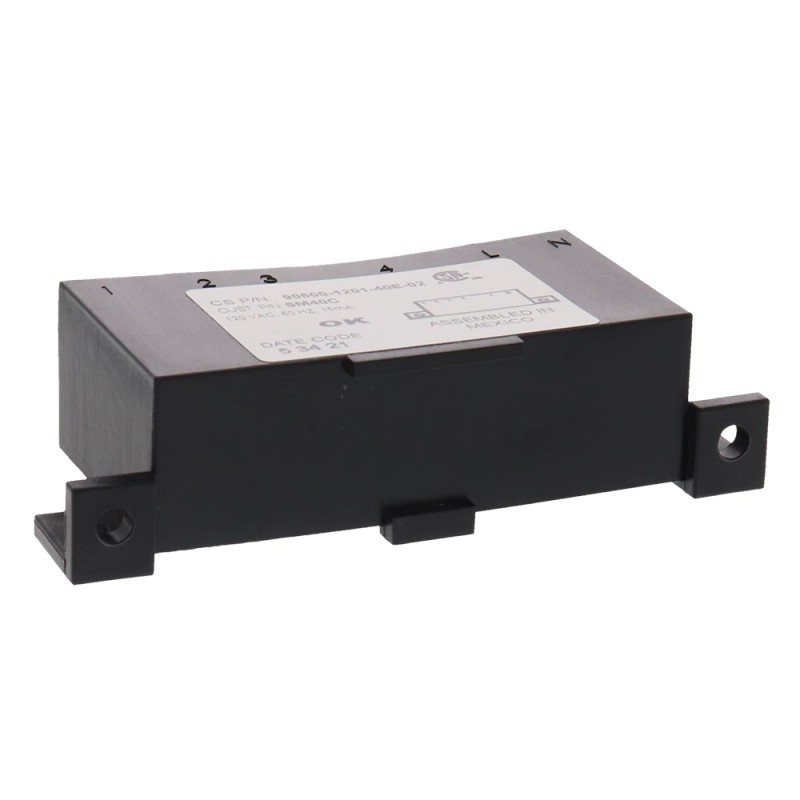

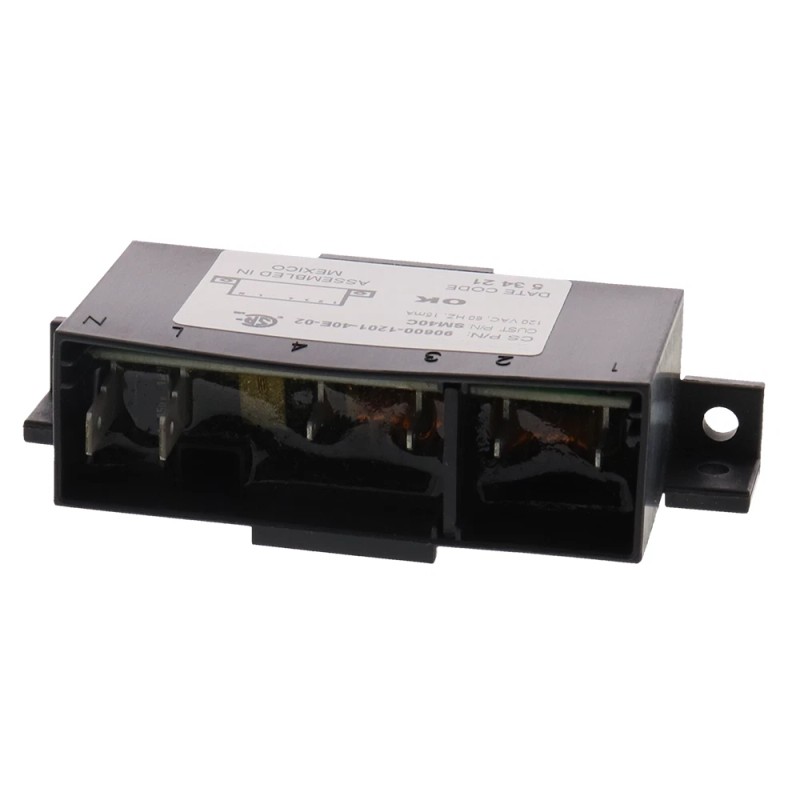

For Whirlpool Gas Range Oven Spark Ignition Module for Whirlpool 12001596 74004283 7431P03660
$68.88
- Free US shipping
-
Arrives
The Gas Range Oven Spark Ignition Module for Whirlpool (part numbers 12001596, 74004283, and 7431P03660) is a critical component in gas ranges that controls the ignition system for the oven burner. Below are specifics, troubleshooting tips, and installation instructions for this module.
Specifications
Function: Controls the spark ignition for the oven burner in gas ranges.
Compatibility: Designed for specific Whirlpool, KitchenAid, Maytag, and other compatible gas range models.
Electrical Ratings: Typically operates on 120V AC.
Replaces Older Part Numbers: This module is often used to replace older or discontinued ignition modules in Whirlpool gas ranges.
Symptoms of a Faulty Spark Ignition Module
If the oven burner fails to ignite, the spark ignition module may be faulty. Common symptoms include:
No Spark: The oven burner does not ignite, and no clicking sound is heard.
Intermittent Ignition: The burner ignites inconsistently or only after multiple attempts.
Continuous Clicking: The module produces a continuous clicking sound even after the burner ignites.
Burner Fails to Stay Lit: The burner ignites but does not stay lit, indicating a potential issue with the module or flame sensor.
Troubleshooting Steps
Before replacing the module, perform these checks:
Power Supply: Ensure the range is receiving power. Check the circuit breaker and power cord.
Wiring Connections: Inspect the wiring harness connected to the ignition module for loose or damaged wires.
Ignition Electrode: Check the electrode for proper alignment, cleanliness, and damage. Clean any debris or carbon buildup.
Flame Sensor: Ensure the flame sensor is clean and properly positioned.
Gas Supply: Verify that the gas supply valve is open and gas is flowing to the oven burner.
If these checks do not resolve the issue, the spark ignition module may need replacement.
Installation Instructions
Tools Needed: Phillips screwdriver, needle-nose pliers, and a multimeter (optional).
Disconnect Power: Unplug the range or turn off the circuit breaker to ensure safety.
Access the Module:
Remove the oven bottom panel or back panel (depending on the range model) to access the ignition module.
Refer to your range's service manual for specific instructions on panel removal.
Disconnect Wiring:
Take a photo or label the wires connected to the module for reference.
Disconnect the wiring harness from the module.
Remove the Old Module:
Unscrew or unclip the old module from its mounting location.
Install the New Module:
Position the new module in the same location as the old one.
Secure it with screws or clips.
Reconnect Wiring:
Reconnect the wiring harness to the new module, ensuring all connections are secure.
Reassemble the Range:
Replace the oven bottom or back panel.
Test the Ignition:
Restore power to the range and test the oven burner to ensure proper ignition.
Additional Notes
Always refer to the specific service manual for your gas range model for detailed instructions.
If you are unsure about performing the replacement, consult a qualified technician.
Ensure the replacement module matches the part numbers listed above to guarantee compatibility.
By following these steps, you can troubleshoot and replace the spark ignition module in your Whirlpool gas range.
