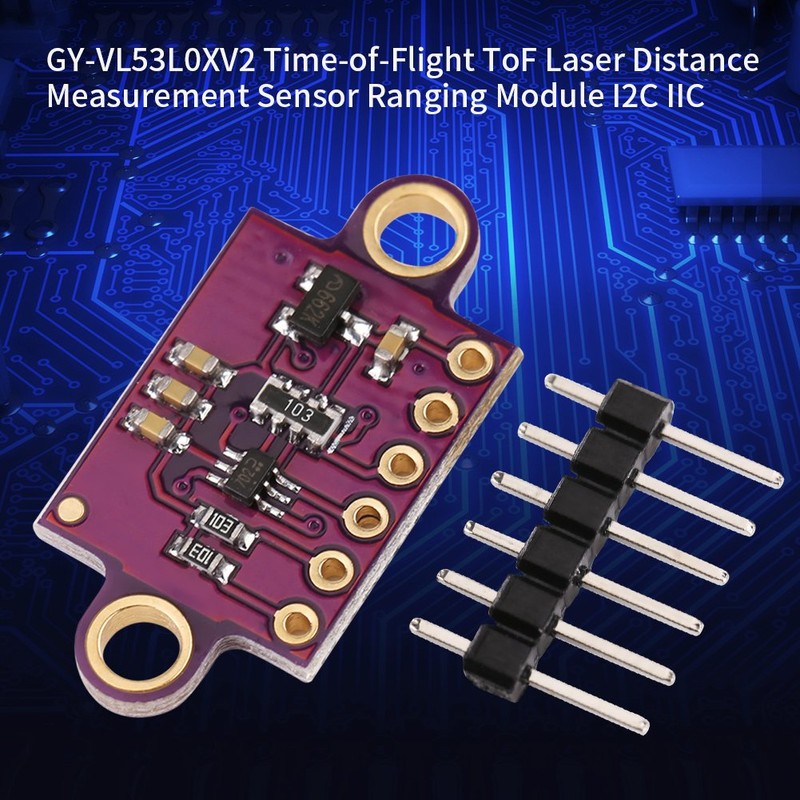

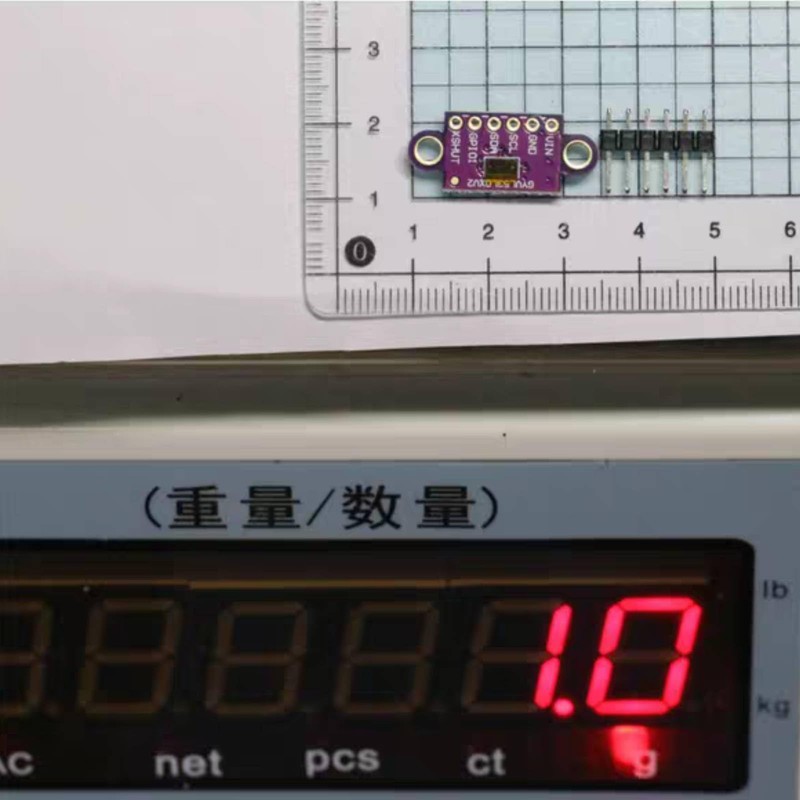

Flight Time Distance Sensor, GY-VL53L0XV2 Flight Time ToF Laser Rangefinder Distance Sensor Distance Module I2C IIC
$24.80
- $9.99 shipping from Germany View details
-
Arrives
- The VL53L0X is a flight time removal system that is integrated into a compact module. This card is a carrier for the VL53L0X. Therefore, we recommend reading the data sheet of the VL53L0X carefully before using this product
- The VL53L0 uses flight sense technology to measure exactly how long it takes for emitted infrared laser pulses to reach the next object and are reflected back to a detector. Therefore, it can be considered a tiny, self-contained lidar system

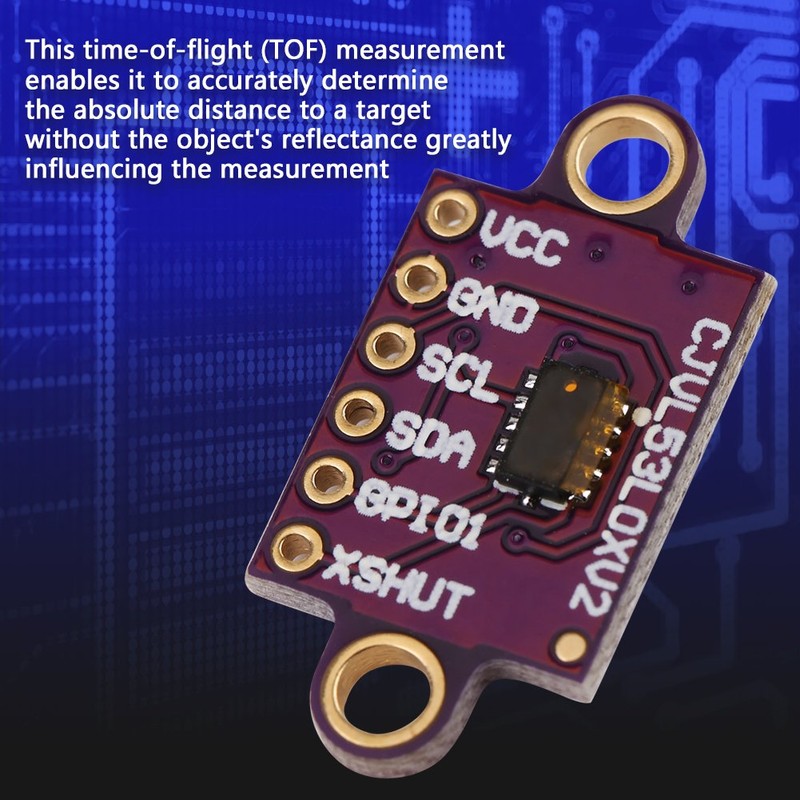

- This flight time measurement (TOF) allows you to accurately determine the absolute distance to a target without the reflectivity of the object greatly affecting the measurement
- The sensor can report distances of up to 2 m (6.6 ft) with a resolution of 1 mm. However, effective range and accuracy (noise) depended heavily on environmental conditions and target features such as reflectivity and size, as well as sensor configuration.
- Range measurements are available via the sensor's I2C (TWI) interface, which also configures sensor settings. The sensor has two additional pins: a shut-off input and an interrupt output
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- The VL53L0X is a flight time removal system that is integrated into a compact module. This card is a carrier for the VL53L0X. Therefore, we recommend reading the data sheet of the VL53L0X carefully before using this product
- The VL53L0 uses flight sense technology to measure exactly how long it takes for emitted infrared laser pulses to reach the next object and are reflected back to a detector. Therefore, it can be considered a tiny, self-contained lidar system
- This flight time measurement (TOF) allows you to accurately determine the absolute distance to a target without the reflectivity of the object greatly affecting the measurement
- The sensor can report distances of up to 2 m (6.6 ft) with a resolution of 1 mm. However, effective range and accuracy (noise) depended heavily on environmental conditions and target features such as reflectivity and size, as well as sensor configuration.
- Range measurements are available via the sensor's I2C (TWI) interface, which also configures sensor settings. The sensor has two additional pins: a shut-off input and an interrupt output

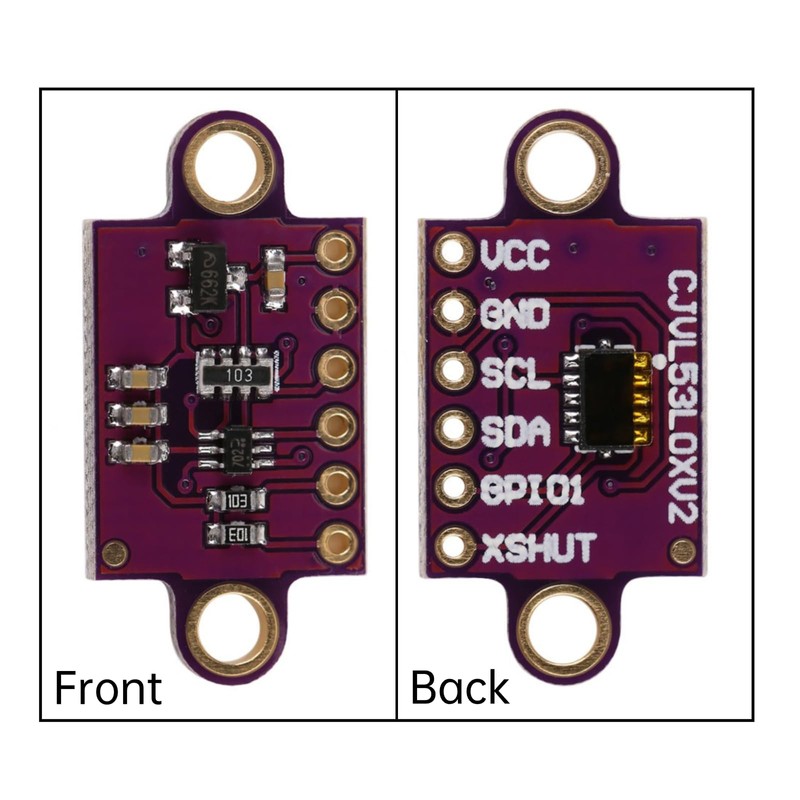

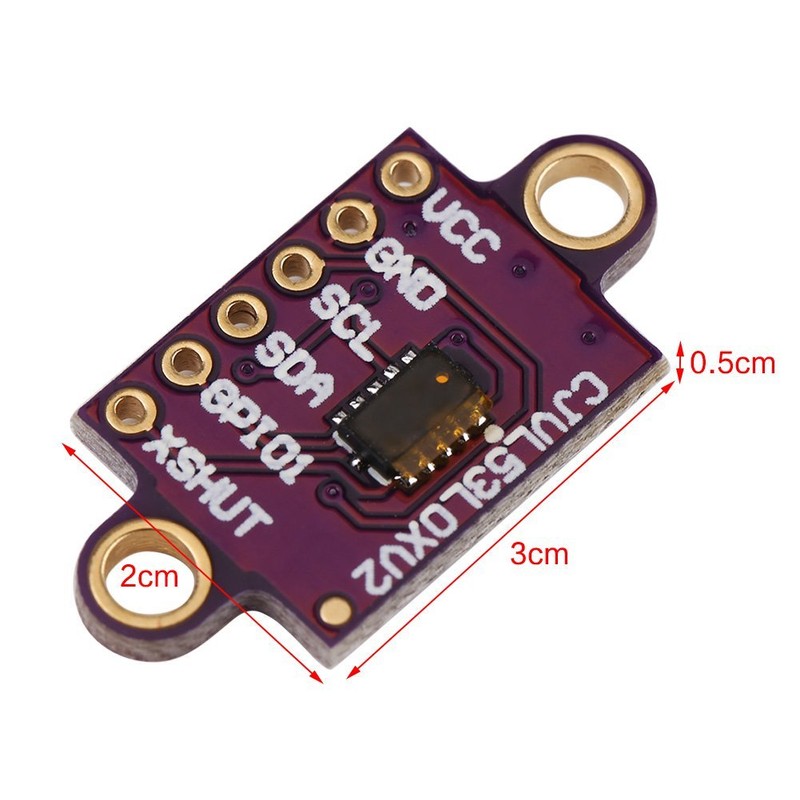

Pin description:
VDD regulated 2.8V output Almost 150 mA are available for the external power supply. (If you want to bypass the internal regulator, you can use it instead. This pin as a 2.8V input with VIN number not connected.)
VIN This is the main power supply connection from 2.6 V to 5.5 V. The SCL and SDA level converters pull the I2C lines up to this level.
GND The ground connection (0 V) for your power supply. Your I2C control source must also have a common base with this board.
SDA level shifted I2C data line: high is VIN, low is 0V.
SCL level shifted I2C clock line: high is VIN, low is 0V.
XSHUT This pin is an active low shutdown input. The board pulls it up to VDD to activate the sensor by default. When you press this pin down, the sensor will turn on hardware standby. This input is not level shifted.
Package includes:

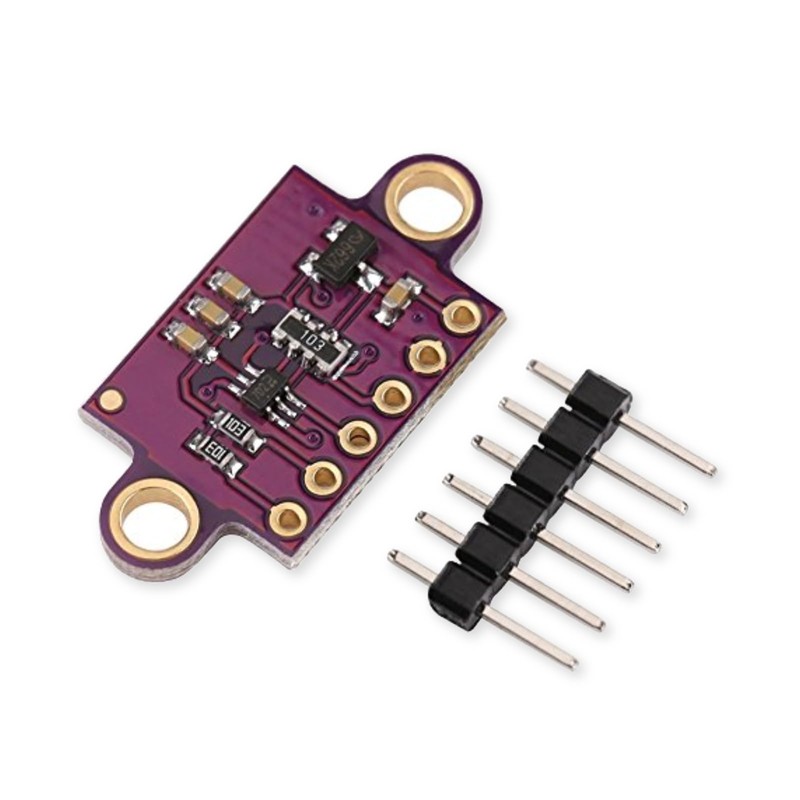

1 x GY-VL53L0XV2V L53L0X flight time distance sensor.
