Flange Nut with Locking Toothing According to DIN 6923 / Stainless Steel A2, V2A / Hex Nut with Flange and Locking Toothing, Collar Nut (Pack of 25, M10)

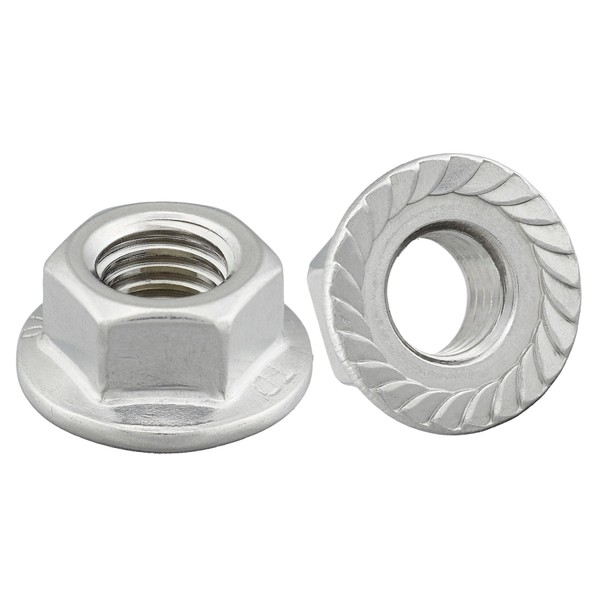

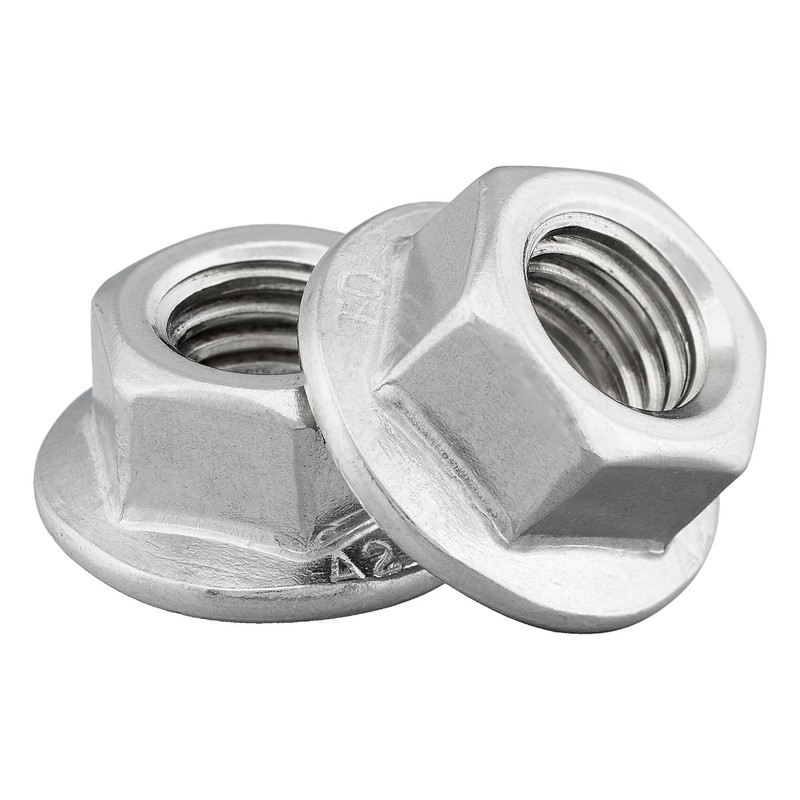

  • Hexagonal nut with flange and locking teeth according to DIN 6923 standard

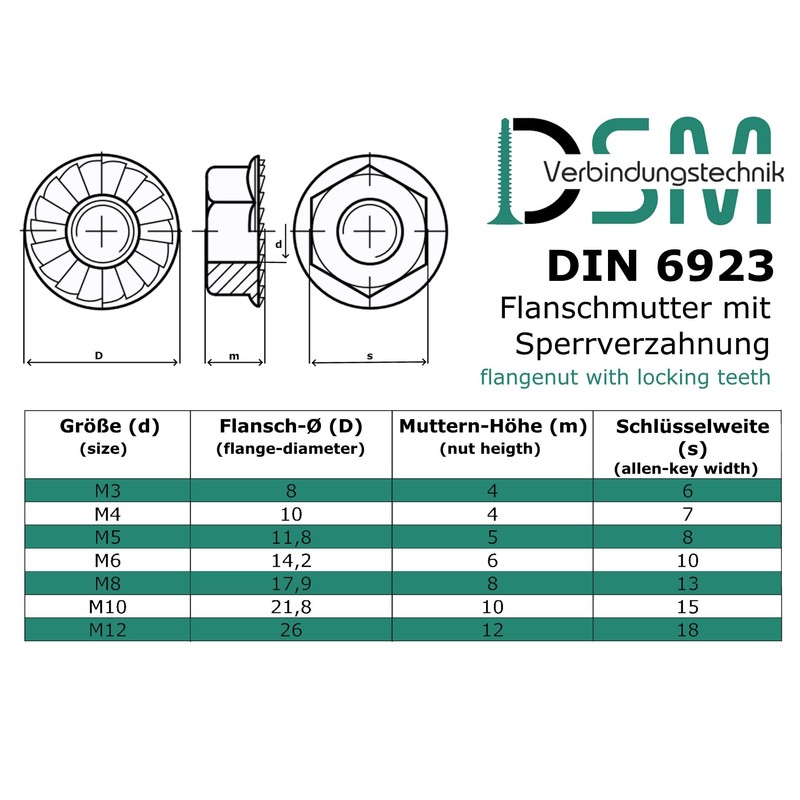

  • Size M10, nut height = 10 mm, flange diameter = 21.8 mm, thread pitch 1.50 mm
  • Material properties: stainless steel 2A / V2A, stainless steel
  • Screw or socket wrench required, wrench size 15 mm
  • Applications: mechanical engineering, bicycle technology, furniture construction, steel and wood construction, etc.
Brand: DSM-Verbindungstechnik
Size: M10
Color: Pack of 25
Manufacturer: Die Schrauben-Manufaktur
Part Number: RSQ361T
Material Type: Alloy Steel Aluminium Stainless Steel
Isin: IRQACJLWNIHH

$33.63

  • Free shipping in US
  • Shipping: $14.5 Extended Delivery (Ships from overseas warehouse, 10-15 Business Days)
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
Flange Nut with Locking Toothing According to DIN 6923 / Stainless Steel A2, V2A / Hex Nut with Flange and Locking Toothing, Collar Nut (Pack of 25, M10)

Flange Nut with Locking Toothing According to DIN 6923 / Stainless Steel A2, ...

$33.63

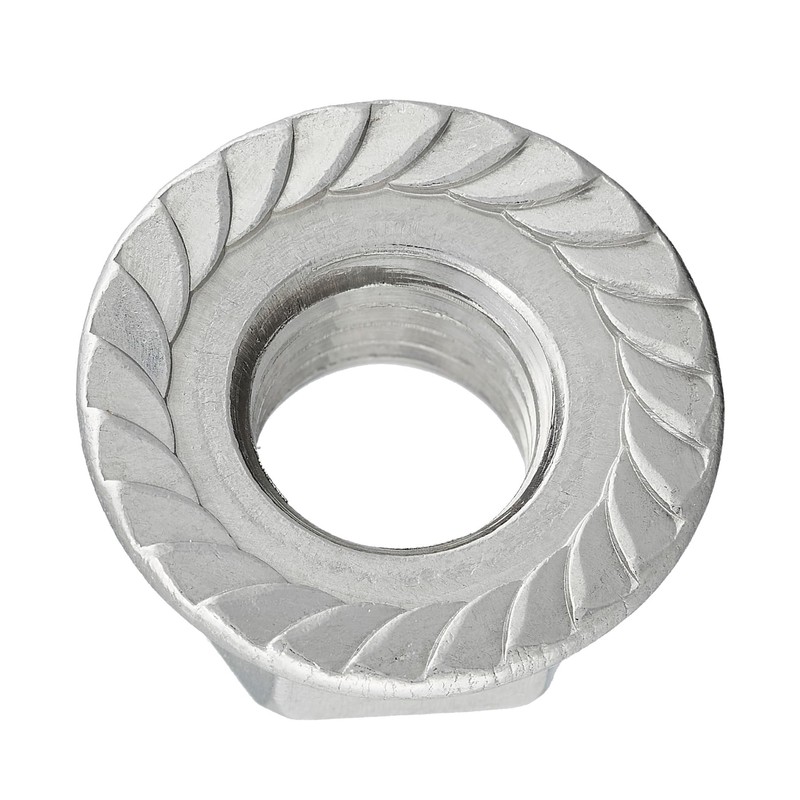

The hexagonal nut with flange and locking toothing or locking tooth nut is the modified shape of the classic hex nut and belongs to the common standard mounting material. These flange nuts with ribs are also equipped with a metric internal thread. The toothing of the locking ribs on the material surface creates a simple screw locking, which makes it difficult to loosen the nut.

Due to the large contact surface, these collar nuts are often used for attaching adapter sheets. They are also suitable for carrying dynamic loads such as vibrations and shocks. Unlike the classic locking nuts, however, these nuts are reusable and allow you to fine and re-adjust screw connections at any time.

Please note that soft materials such as aluminium and other light metals could be damaged by the hard locking teeth.

Thanks to the use of high-quality stainless steel, the hex nut can be used not only in dry, but also in damp rooms and outdoors.

These universal helpers can be used in the following areas:
- Mechanical engineering.
- Bicycle technology.
- Electrical installation.
- Furniture construction.
- Steel and wood construction.
- Sanitary area.
- etc.

Product features:

- Metric internal thread.
- According to standard: DIN 6923.
- High-quality stainless steel A2 / V2A.
- Strength class M3-M4 = A2-50 for stainless steel screws with 500 Nm/mm² tensile strength.
- Strength class M5-M12 = A2-70 for stainless steel screws with 700 Nm/mm² tensile strength
