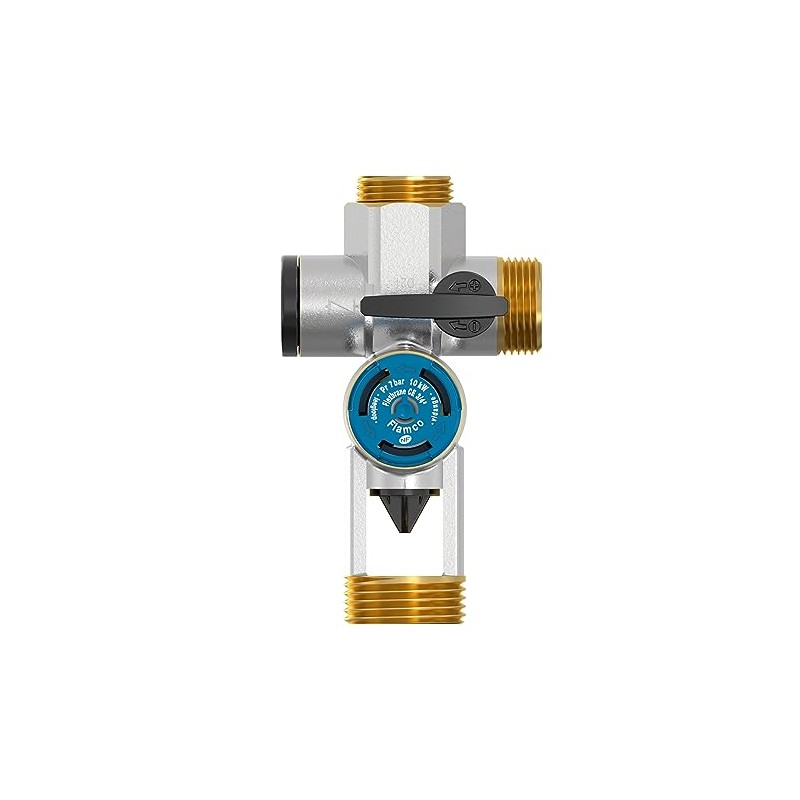

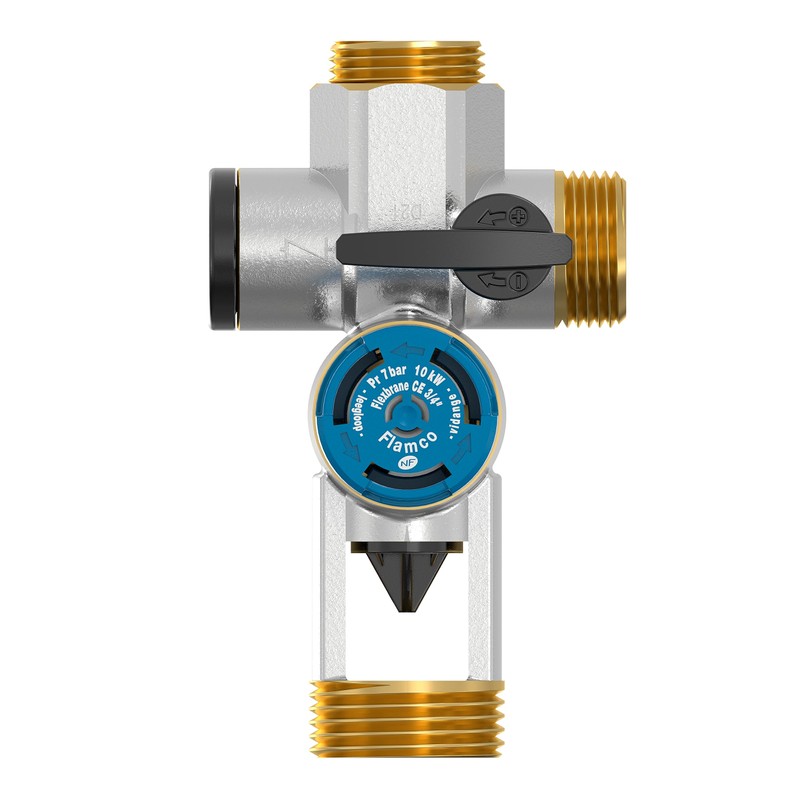

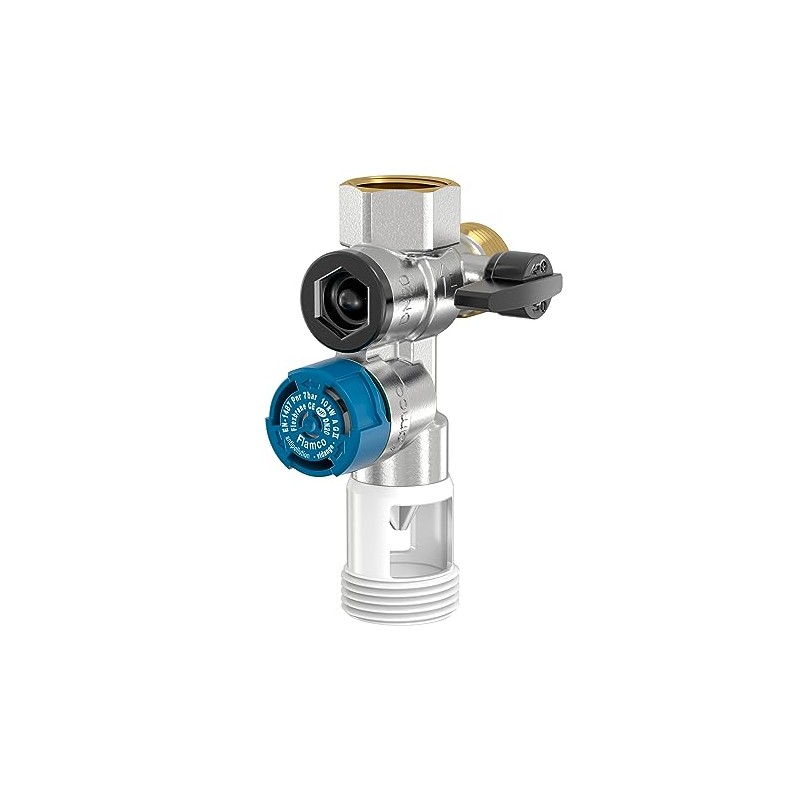

Flamco Flexbrane Safety Group IC NF G3/4" FxG3/4"MxG1"M - 28360

$74.03

  • The heating of the operating water in the cylinder increases the pressure (water expansion). Once the pressure of 7 bar is reached, the Flexbrane releases the required amount of water into the channel so as not to exceed this pressure. This protects the tank from hot sanitary water.
  • It is normal for water to drain through the safety group (approx. 3% of the capacity of the water heater). To avoid hot water and energy waste in the event of risk of valve clogging and constant leakage, it is recommended to connect a Flamco Airfix A forced circulation expansion tank between the safety group and the water heater.
  • The Flamco Flexbrane safety group meets EN1487 standards, is NF certified and ACS compliant.
  • Flamco Flexbrane is a professional quality assurance group

Manufacturer:
Flamco
Part Number:
3UUSVES
Material Type:
Brass
Product Dimensions:
3.15 x 4.33 x 6.69 inches; 12.64 ounces
Isin:
IHJ3GXUB7EQJ

$74.03

In Stock

Sold by , Fulfilled by IBSPOT • Ships from US

IBSPOT Buyer Protection
  • Free 30-Day Returns
  • Full Refund for Damaged or Incorrect Items
  • Guaranteed Delivery or Money Back
  • Secure Checkout & Fast Support
scroll to top arrow
Flamco Flexbrane Safety Group IC NF G3/4" FxG3/4"MxG1"M - 28360

Flamco Flexbrane Safety Group IC NF G3/4" FxG3/4"MxG1"M - 28360

$74.03

  • The heating of the operating water in the cylinder increases the pressure (water expansion). Once the pressure of 7 bar is reached, the Flexbrane releases the required amount of water into the channel so as not to exceed this pressure. This protects the tank from hot sanitary water.
  • It is normal for water to drain through the safety group (approx. 3% of the capacity of the water heater). To avoid hot water and energy waste in the event of risk of valve clogging and constant leakage, it is recommended to connect a Flamco Airfix A forced circulation expansion tank between the safety group and the water heater.
  • The Flamco Flexbrane safety group meets EN1487 standards, is NF certified and ACS compliant.
  • Flamco Flexbrane is a professional quality assurance group

Manufacturer:
Flamco
Part Number:
3UUSVES
Material Type:
Brass
Product Dimensions:
3.15 x 4.33 x 6.69 inches; 12.64 ounces
Isin:
IHJ3GXUB7EQJ

This kit includes a Flamco Flexbrane safety group, an optional reducer and instructions. The Flamco Flexbrane safety group can be mounted to all types of hot water supply equipment in accordance with EN 1487. For the maximum permissible power in kW, see button assignment. The flex membrane is used to prevent overpressure in the hot water supply device. Installation and technical data: Flamco Flexbrane (A) must be mounted on the cold water supply line of the boiler, optionally with the interconnection of a dielectric coupling (D) *, with the interruption device vertically downwards. The water supply line can be connected to the supply connection according to the arrow. The drain pipe: ½ ": minimum diameter 20 mm ¾ ″: minimum diameter 25 mm 1 inch: minimum diameter 25 mm can be connected directly to the flexbrane: - thanks to the built-in interrupt device - or to a trap connected directly to the safety group. * Dielectric couplings prevent acceleration corrosion in the piping system due to galvanic corrosion and corrosion caused by stray current. Use sealing tape on the flexbrane and (if applicable) on the reducer. The reducer is only supplied in the ½ inch version. It is normal that water is supplied via the safety group every time the boiler is heated (approx. 3% of the water content of the boiler). To do this, waste of hot water/energy with the associated risk of contaminating the valve. To avoid permanent leaks, it is recommended that the safety group and boiler connect a flowed expansion vessel Airfi x A or Airfi x D (G).
