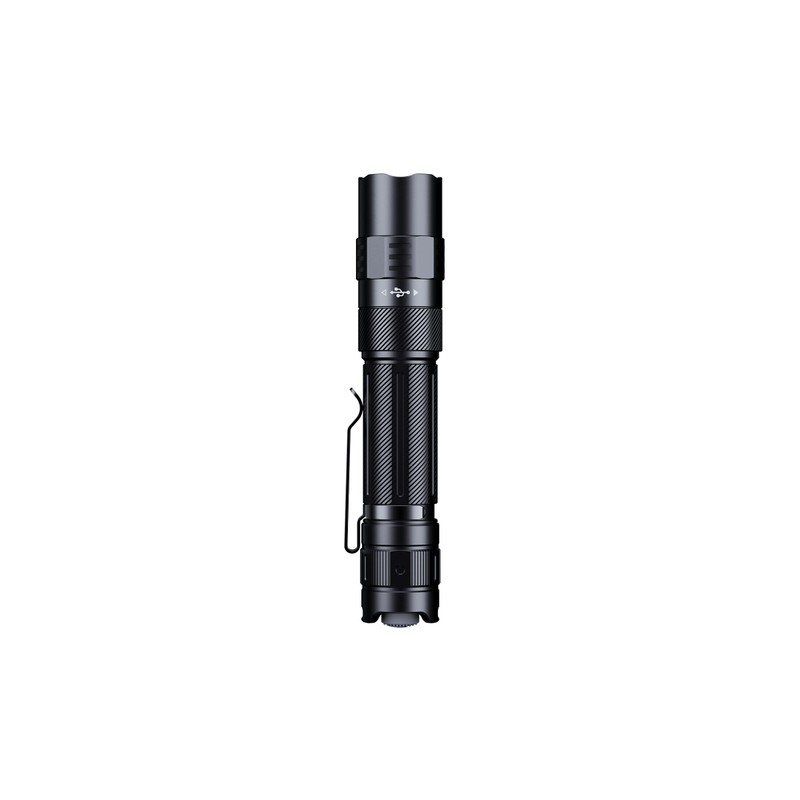

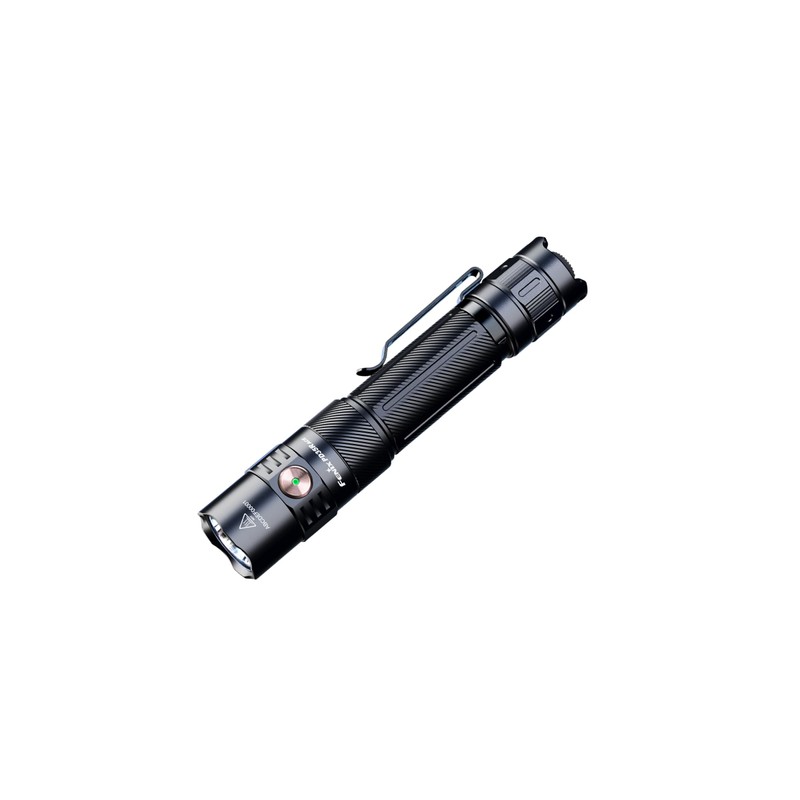

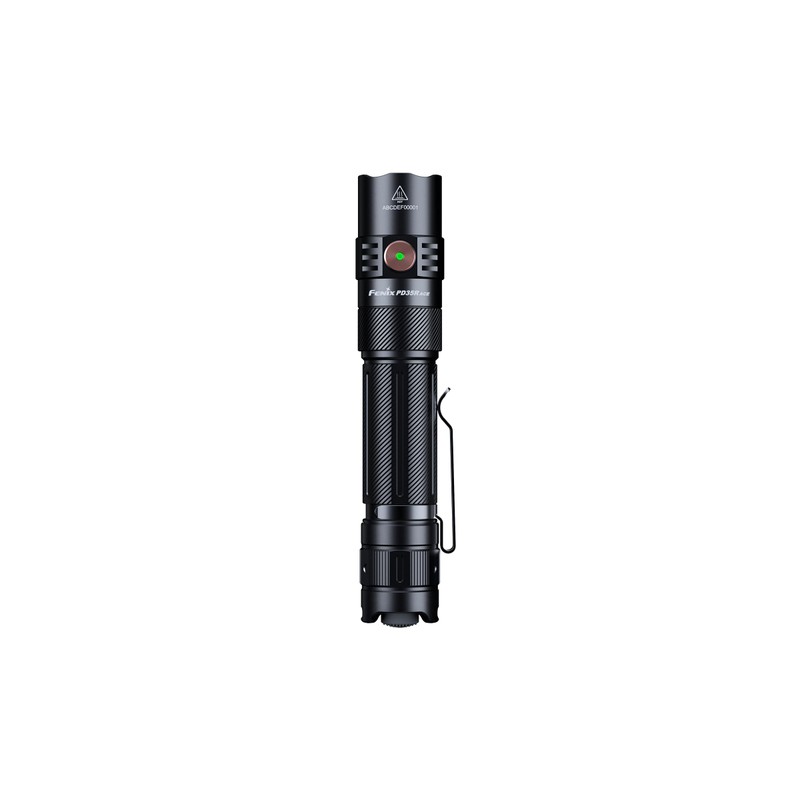

Fenix PD35R ACE Flashlight Flashlight
Fenix PD35R ACE Flashlight Flashlight
Fenix PD35R ACE Flashlight Flashlight
Product Overview
- Innovative set mode and customizable strobe function allow you to use it according to the scene
- Maximum Output: 2,000 lumens, irradiation distance 380 m
- Hidden USB Type-C port for easy charging Compatible with Fenix ARB-L18-4000 battery (also works with CR123A x 2)
- Anti-roll non-slip body design Versatile body clip
- Accessories: Battery, USB Type-C cable, holster, lanyard, o-ring x 2
| Brand: | Fenix |
|---|---|
| Color: | Black |
| Manufacturer: | FENIX |
| Part Number: | BX8M942 |
| Isin: | ISPULHDNUU1G |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
Product Overview
- Innovative set mode and customizable strobe function allow you to use it according to the scene
- Maximum Output: 2,000 lumens, irradiation distance 380 m
- Hidden USB Type-C port for easy charging Compatible with Fenix ARB-L18-4000 battery (also works with CR123A x 2)
- Anti-roll non-slip body design Versatile body clip
- Accessories: Battery, USB Type-C cable, holster, lanyard, o-ring x 2
| Brand: | Fenix |
|---|---|
| Color: | Black |
| Manufacturer: | FENIX |
| Part Number: | BX8M942 |
| Isin: | ISPULHDNUU1G |
The Fenix PD35R ACE is a next-generation flashlight designed for users seeking the best maneuverability in any environment. As part of the Advanced Command Edition, it has been improved to provide more intuitive and faster operation.
Up to 2000 lumens, 380 meters illumination distance, not only bright in the dark, but also light up to a ripple.
Set mode is a switch hidden under the neck of the light to allow the user to set the working mode. 3 preset options to choose from, you can lock your favorite movement pattern. Once set up, you can focus on the operation and eliminate the unnecessary modes. You can also disable strobe mode.
The USB Type-C port comes with protective cover, IP68 compliant, dustproof and water resistant, and 1.5m shockproof performance. PD35R ACE is ideal for law enforcement, outdoor activities and daily precision work.
■Specifications
Maximum luminous flux: 2000 lumens
Maximum Irradiation Distance: 380 meters
Maximum continuous lighting time: 720 hours
Lighting modes: 7 modes (5 brightness levels + strobe + SOS)
LED: Luminus SFT40 (50,000 hours life)
Lens Material: Glass
Color Temperature: Approx. 6500K
Size: Length 5.1 inches (130.5 mm), Head Diameter 1.0 inches (26.5 mm), Body Diameter 0.9 inches (23.6 mm).
Weight: 5.0 oz (145 g) (battery included)
Battery: 4000mAh Li-ion rechargeable battery (included) or 2 CR123A lithium batteries
Accessories: Battery, USB Type-C cable, holster, lanyard, 2 O-rings
Warranty: Fenix Lighting USA Limited Lifetime Warranty
■Main Features (Ace)
ACE stands for Advanced Command Edition.
The main features of the PD35R ACE are:
Innovative set mode and customizable strobe function allow you to use it according to the scene.
Maximum output 2,000 lumens, irradiation distance 380 m
Hidden USB Type-C port for easy charging
Compatible with Fenix ARB-L18-4000 batteries (can also be used with CR123A x 2).
Anti-rolling, non-slip body design.
Includes a versatile body clip
■About the LED used
The LEDs used are Luminus SFT40 (50,000 hours lifespan).
Fenix does not offer LED replacement service at this time, and it is not recommended to replace by the user.
This may cause poor performance or malfunction.
■Color temperature
Approx. 6500K
■Operating Voltage
2.8V - 6.0V
■Charging compatible / Charging time
Can be charged with USB Type-C port (hidden).
Red when charging, green indicator indicates when fully charged.
Charging time with included battery is about 3 hours (from zero to full charge).
■ Why the lighting mode will be lowered independently.
The mode automatically drops while it is on for two reasons:
1. Overheating Protection: When using high power power, the output will automatically decrease when the body temperature is over 60 degrees Celsius and reduce temperature.
2. Low Voltage Warning: When the voltage is less than a certain voltage, the brightness will automatically decrease and eventually enter the lowest output mode.
■Flashing and flickering causes
This may cause the following reasons:
Low battery capacity → Charge or replace
Dirt at battery or light contacts → Clean with cotton swab and alcohol
If the above does not resolve it, please contact the seller.
■ Compatible accessories (sold separately)
AER-02 V2.0 remote switch.
ALG-00 Flashlight Ring
ALG-15 / ALG-16 Rail Mount
AOT-S+ traffic wand.
AOF-S+ V2.0 Filter Adapter
AOD-S V2.0 diffusion chip
■ How to operate the set mode
Set mode is available in 3 patterns to choose from depending on the scenes and preferences:
- Loose the neck of the light to expose the hidden set switch
- When the light is on, press the SET switch once to switch it to the following order:
Option 1 (1 level) → Option 2 (3 levels) → Option 3 (5 levels)
Option 3 is set by default when first started.
- Green indicator will light up for 3 seconds when setting selected, indicates complete setting
The numbers indicate the number of available output stages
Up to 2000 lumens, 380 meters illumination distance, not only bright in the dark, but also light up to a ripple.
Set mode is a switch hidden under the neck of the light to allow the user to set the working mode. 3 preset options to choose from, you can lock your favorite movement pattern. Once set up, you can focus on the operation and eliminate the unnecessary modes. You can also disable strobe mode.
The USB Type-C port comes with protective cover, IP68 compliant, dustproof and water resistant, and 1.5m shockproof performance. PD35R ACE is ideal for law enforcement, outdoor activities and daily precision work.
■Specifications
Maximum luminous flux: 2000 lumens
Maximum Irradiation Distance: 380 meters
Maximum continuous lighting time: 720 hours
Lighting modes: 7 modes (5 brightness levels + strobe + SOS)
LED: Luminus SFT40 (50,000 hours life)
Lens Material: Glass
Color Temperature: Approx. 6500K
Size: Length 5.1 inches (130.5 mm), Head Diameter 1.0 inches (26.5 mm), Body Diameter 0.9 inches (23.6 mm).
Weight: 5.0 oz (145 g) (battery included)
Battery: 4000mAh Li-ion rechargeable battery (included) or 2 CR123A lithium batteries
Accessories: Battery, USB Type-C cable, holster, lanyard, 2 O-rings
Warranty: Fenix Lighting USA Limited Lifetime Warranty
■Main Features (Ace)
ACE stands for Advanced Command Edition.
The main features of the PD35R ACE are:
Innovative set mode and customizable strobe function allow you to use it according to the scene.
Maximum output 2,000 lumens, irradiation distance 380 m
Hidden USB Type-C port for easy charging
Compatible with Fenix ARB-L18-4000 batteries (can also be used with CR123A x 2).
Anti-rolling, non-slip body design.
Includes a versatile body clip
■About the LED used
The LEDs used are Luminus SFT40 (50,000 hours lifespan).
Fenix does not offer LED replacement service at this time, and it is not recommended to replace by the user.
This may cause poor performance or malfunction.
■Color temperature
Approx. 6500K
■Operating Voltage
2.8V - 6.0V
■Charging compatible / Charging time
Can be charged with USB Type-C port (hidden).
Red when charging, green indicator indicates when fully charged.
Charging time with included battery is about 3 hours (from zero to full charge).
■ Why the lighting mode will be lowered independently.
The mode automatically drops while it is on for two reasons:
1. Overheating Protection: When using high power power, the output will automatically decrease when the body temperature is over 60 degrees Celsius and reduce temperature.
2. Low Voltage Warning: When the voltage is less than a certain voltage, the brightness will automatically decrease and eventually enter the lowest output mode.
■Flashing and flickering causes
This may cause the following reasons:
Low battery capacity → Charge or replace
Dirt at battery or light contacts → Clean with cotton swab and alcohol
If the above does not resolve it, please contact the seller.
■ Compatible accessories (sold separately)
AER-02 V2.0 remote switch.
ALG-00 Flashlight Ring
ALG-15 / ALG-16 Rail Mount
AOT-S+ traffic wand.
AOF-S+ V2.0 Filter Adapter
AOD-S V2.0 diffusion chip
■ How to operate the set mode
Set mode is available in 3 patterns to choose from depending on the scenes and preferences:
- Loose the neck of the light to expose the hidden set switch
- When the light is on, press the SET switch once to switch it to the following order:
Option 1 (1 level) → Option 2 (3 levels) → Option 3 (5 levels)
Option 3 is set by default when first started.
- Green indicator will light up for 3 seconds when setting selected, indicates complete setting
The numbers indicate the number of available output stages
