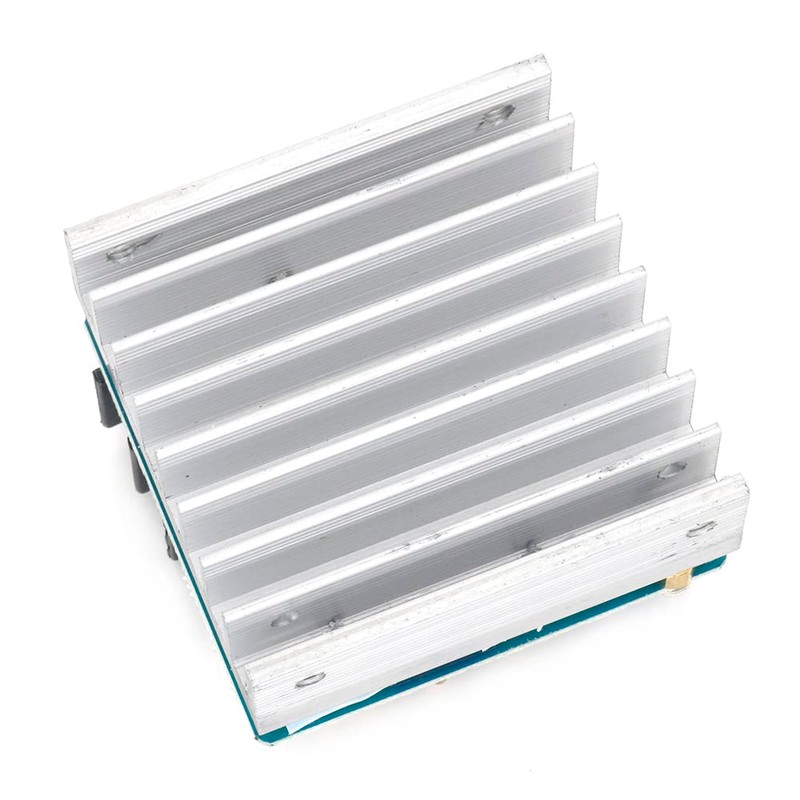

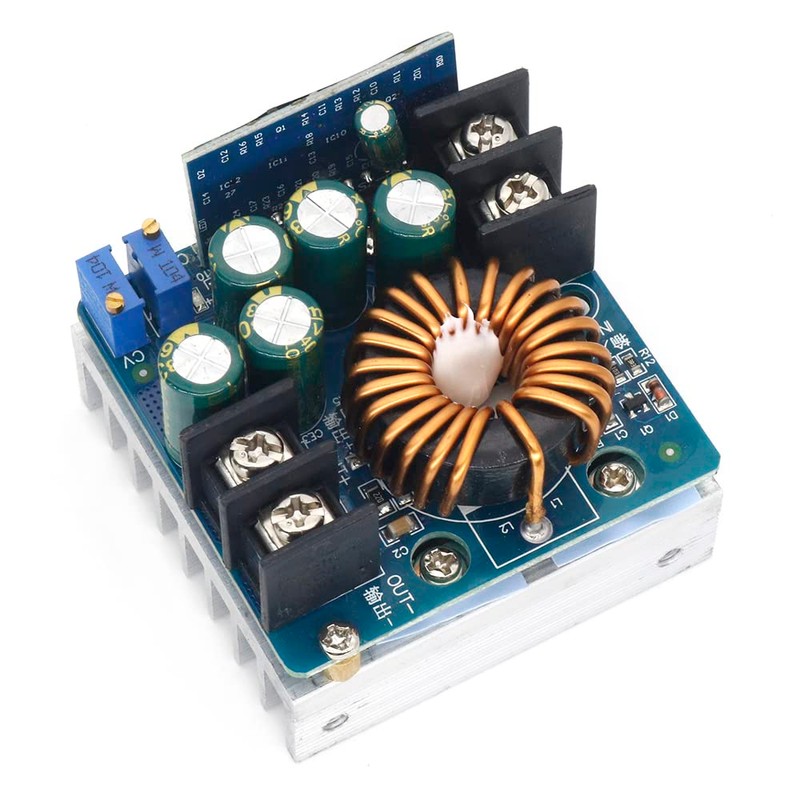

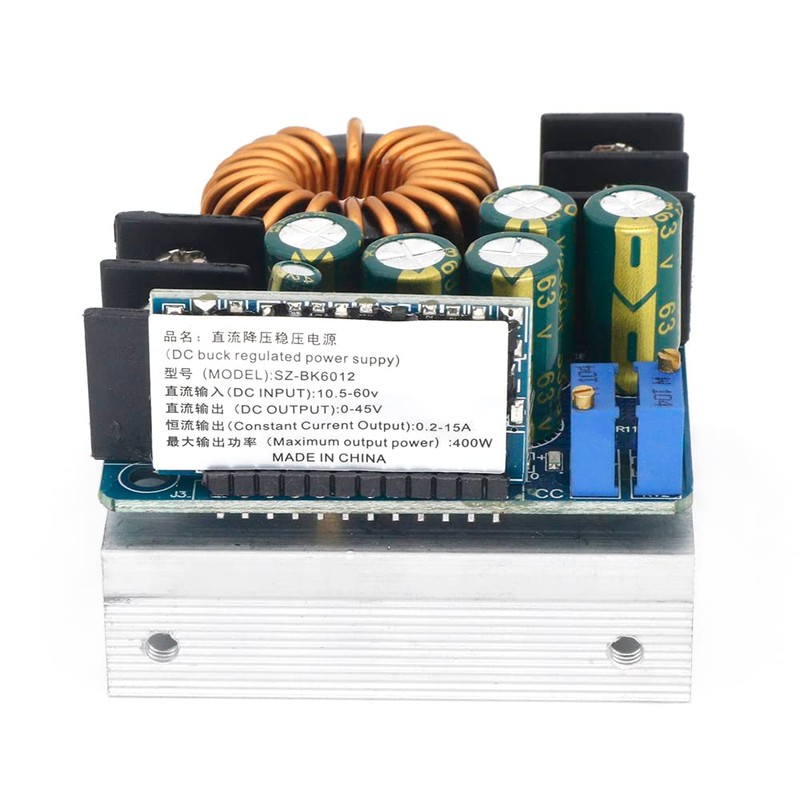

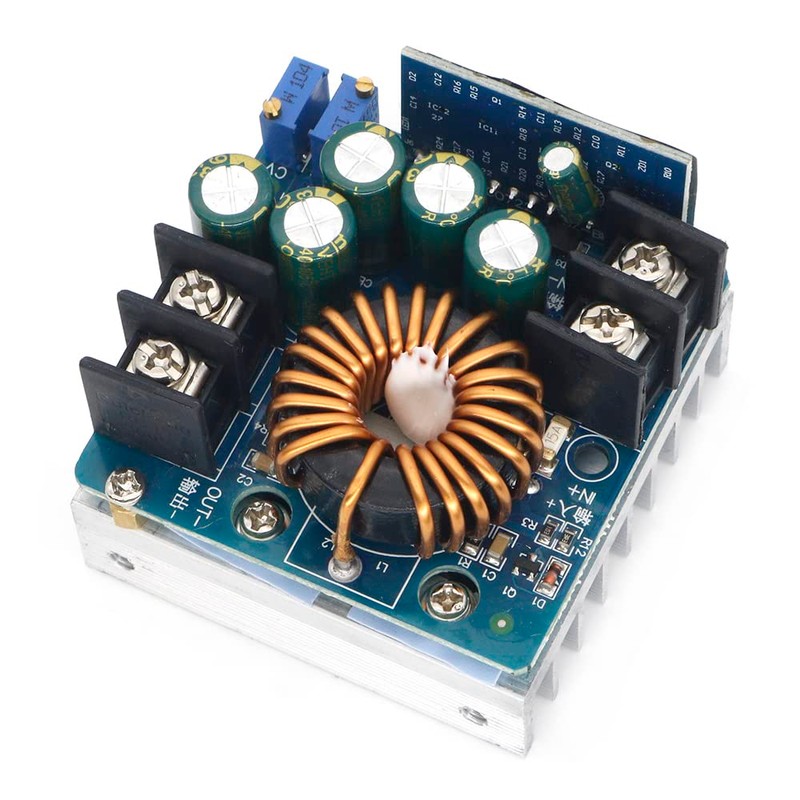

Fasizi DC-DC 400W High-power Step Down Buck Converter DC 10V-60V Constant Voltage Constant Current Adjustable Power Supply Module
Fasizi DC-DC 400W High-power Step Down Buck Converter DC 10V-60V Constant Voltage Constant Current Adjustable Power Supply Module
Fasizi DC-DC 400W High-power Step Down Buck Converter DC 10V-60V Constant Voltage Constant Current Adjustable Power Supply Module
Product Overview
- 10-60V wide input voltage, suitable for most power supplies on the market as input source.
- Output constant voltage and current, voltage and current continuously adjustable. It can meet most electric equipment.
- High output power, good ventilation and natural heat dissipation can reach 280W/12A (pay attention to the limitation of output power and output current).
- The module adopts step rectification scheme, with high efficiency. The output voltage is more than 10V, and the efficiency is more than 92%-96%.
- The input has a 15A fuse, and the input positive and negative poles are connected reversely, which will not damage the power supply (the fuse will burn, and the fuse needs to be replaced).
| Brand: | Fasizi |
|---|---|
| Manufacturer: | Fasizi |
| Part Number: | BTJGHZS |
| Isin: | IKEE3GA5CS8B |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
Product Overview
- 10-60V wide input voltage, suitable for most power supplies on the market as input source.
- Output constant voltage and current, voltage and current continuously adjustable. It can meet most electric equipment.
- High output power, good ventilation and natural heat dissipation can reach 280W/12A (pay attention to the limitation of output power and output current).
- The module adopts step rectification scheme, with high efficiency. The output voltage is more than 10V, and the efficiency is more than 92%-96%.
- The input has a 15A fuse, and the input positive and negative poles are connected reversely, which will not damage the power supply (the fuse will burn, and the fuse needs to be replaced).
| Brand: | Fasizi |
|---|---|
| Manufacturer: | Fasizi |
| Part Number: | BTJGHZS |
| Isin: | IKEE3GA5CS8B |
Module name: 400W step-down constant voltage constant current
Module nature: non isolated buck module
Input voltage: 10.5-60V
Output voltage range: 0-45V (must meet the step-down conditions, in input multiplied by 0.8)
Minimum output voltage: 0V (+ 1V)
Maximum output voltage: about equal input*0.8 (for example, the input is 40V, 40V*0.8 = 32V, the maximum output voltage is 32V, which will actually be higher to about 34V.35)
Output constant current: 0.2-15A (continuously adjustable, heat dissipation shall be strengthened if it exceeds 12A)
Maximum output power: 400W (it is necessary to add a fan to forcibly heat the heat sink and magnetic ring)
Continuous maximum working power: 280W (in ventilated environment)
Continuous maximum working current: 12A (in ventilated environment)
Input undervoltage protection: Yes, (the input is lower than 10.5V, the output is closed, and there is an error of about 0.5V)
Input overvoltage protection: none (overpressure prohibited)
Working temperature: -10 ~ + 85℃ (heat dissipation shall be strengthened when it exceeds 65℃)
Operating frequency: 100kHz
Conversion efficiency: up to 97% (efficiency is related to input and output voltage, current and voltage difference)
Short circuit protection: Yes (constant current protection)
Input reverse connection protection: Yes (in case of short circuit, input reverse connection shall be cautious, which will burn the input fuse)
Output anti backflow: none (when charging the battery, the output is connected to inductive load, for example, the anti backflow diode must be added to the motor)
Work indicator light: Yes (blue LED light)
Constant current indicator: Yes

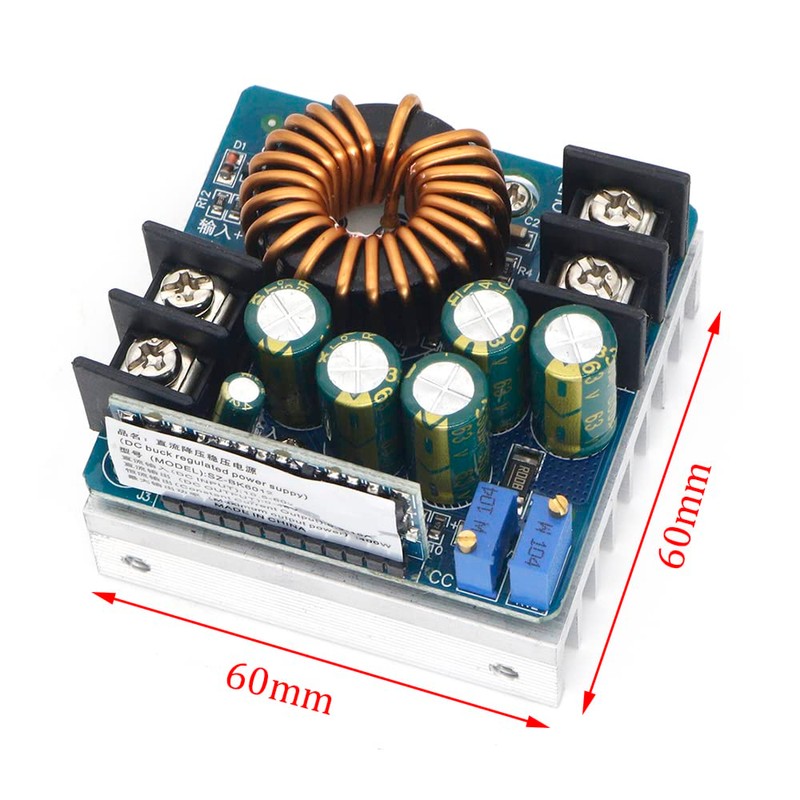

Module size: length 60, width 60 mm, height 45 mm
Package include
1 x 400W step-down constant voltage constant current
