Product Overview
Features:
Compatible to use with LED Lights, Incandescent , Halogen bulbs and LED Strip Lights under DC 12V or 24V power supply
Full range of brightness control: Hold - Dim to Bright; Touch - On & Off.

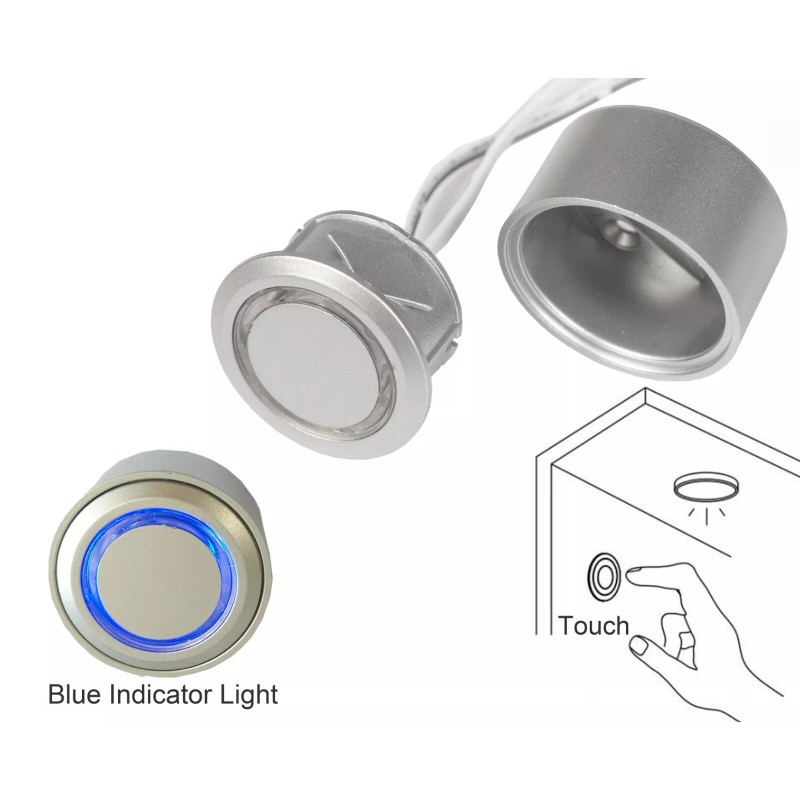

With Blue Light Indicator, you can find it easily in the dark.
Rate up to 36 Watts(12V) or 72 Watts(24V), 3A to Use with Single or Multi-lights
Replace your existing on&off switch with this NEW wall recessed mounting touch dimmer switch to create low-light ambiance
Please note - Many RV light switches only interrupt the 12V positive wire. This dimmer requires you to connect the negative wires also (positive in, positive out, negative in, negative out, as labeled on the wires). If you can’t locate the negative wire going to your lights, this dimmer won’t work
Touch Dimmer Switch with Blue Indicator Light
- Voltage: 12V / 24V DC
- Dia: 1 1/5'' x H 5/8''
- Finish: Chrome

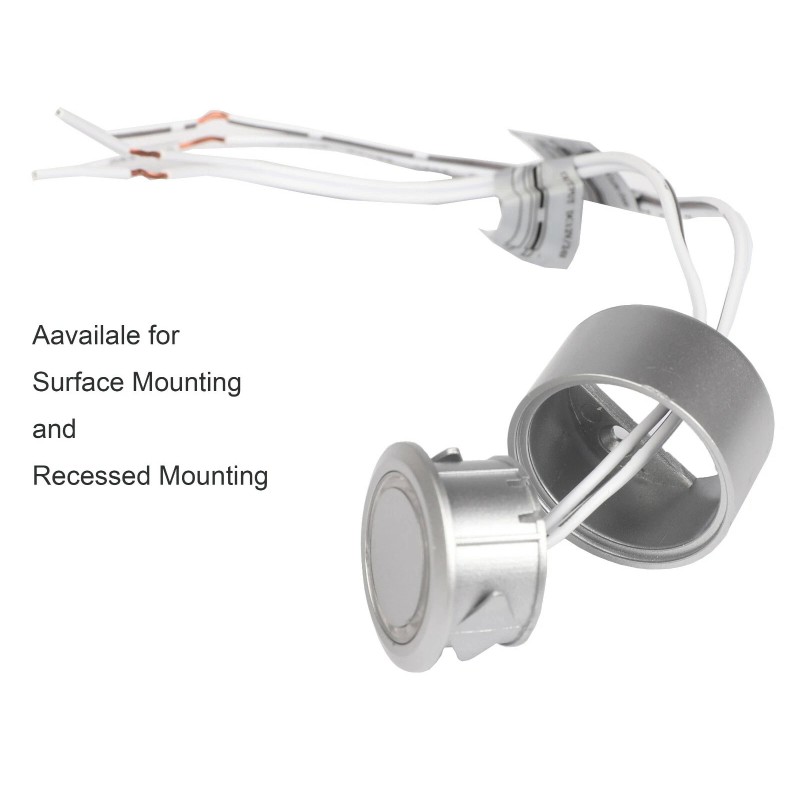

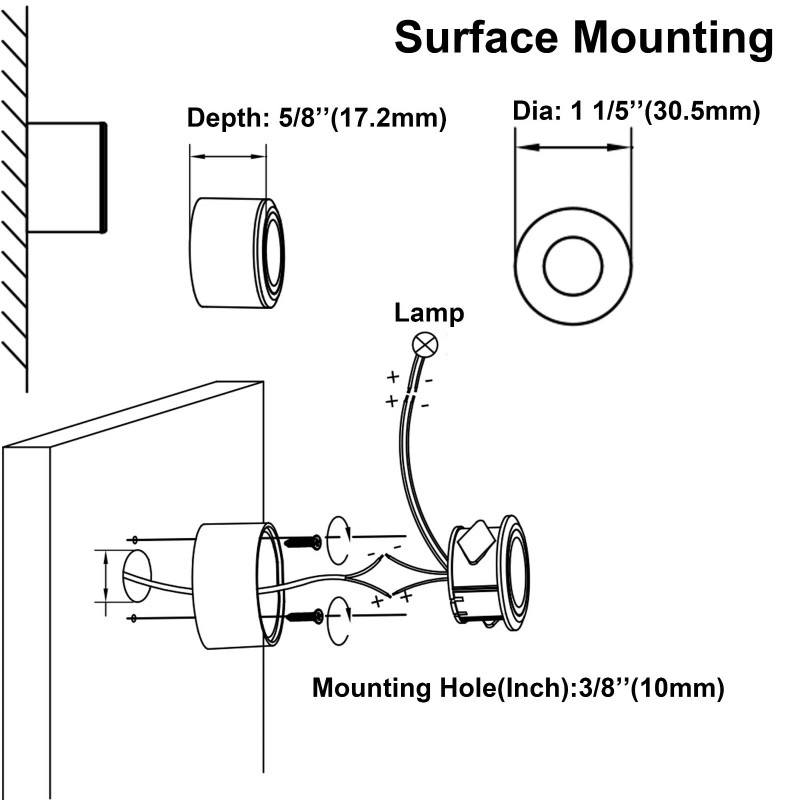

- Install: Available for Flushed Mounting and Recessed Mounting
- Comment Use with LED Lights, Incandescent and Halogen bulbs
- Up to 36 Watts / 72 Watts to Used with Single or Multi-lights
- Touch - On/Off
- Hold - Dim/ Bright
- Comes with Blue Indicator Light

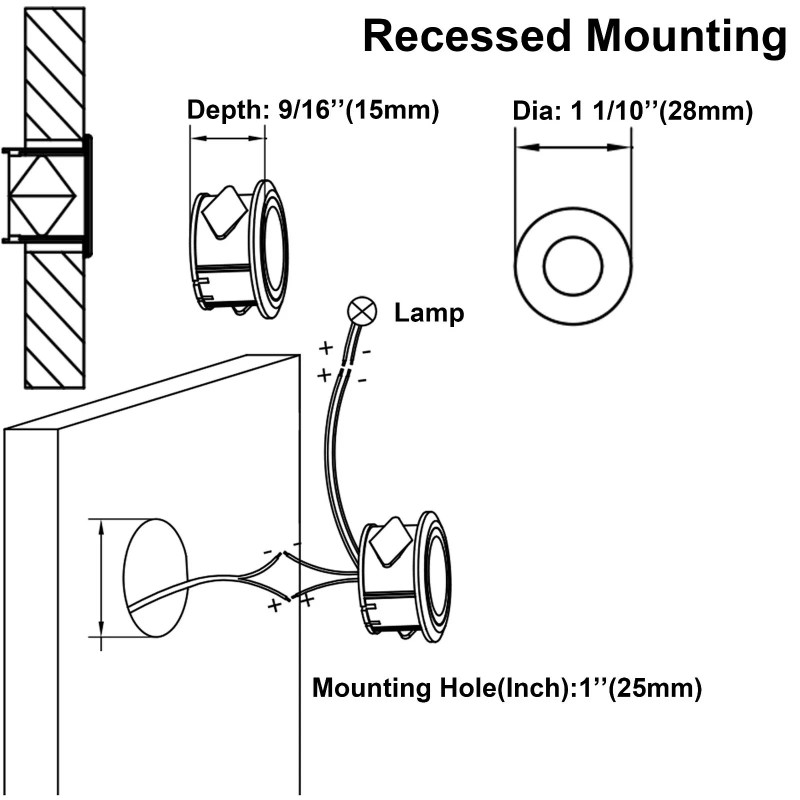

Recesssed Mount Touch Dimmer Switch
- Voltage: 12V / 24V DC
- Dia: 7/8'' x H 5/8''
- Finish: Chrome
- Install: Recessed Mounting
- Comment Use with LED Lights, Incandescent and Halogen bulbs
- Up to 36 Watts / 72 Watts to Used with Single or Multi-lights
- Touch - On/Off
- Hold - Dim/ Bright

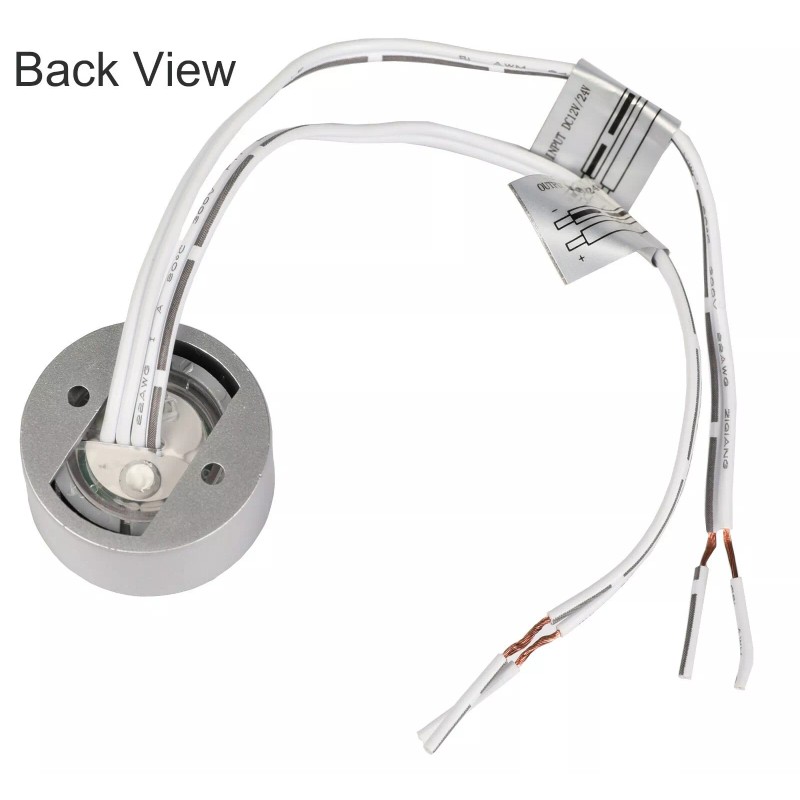

ELECTRICAL CONNECTIONS
First connect the dimmer to power supply
- Connect black dashed line wire(s) with “INPUT -” mark from the dimmer to the neutral wire of the supply circuit.
- Connect White wire(s) with “INPUT +” mark from the dimmer to the live wire of the supply circuit
Then connect the dimmer to your lights
- Connect black dashed line wire(s) with “OUTPUT -” mark from the dimmer to the white wire(s) of LED lamps.
- Connect white wire(s) with “OUTPUT +” mark from the dimmer to the black wire(s) of LED lamps
Easy Installation
- Stick the touch dimmer inside or beneath the wood board(or other insulation material like marble) with the 3M adhesive sticker (Included)
- Fixed the touching area with a Touch Signed sticker (Included) on the surface of the wood board against to the dimmer switch area.
- Control the light by touch on the surface of wood board

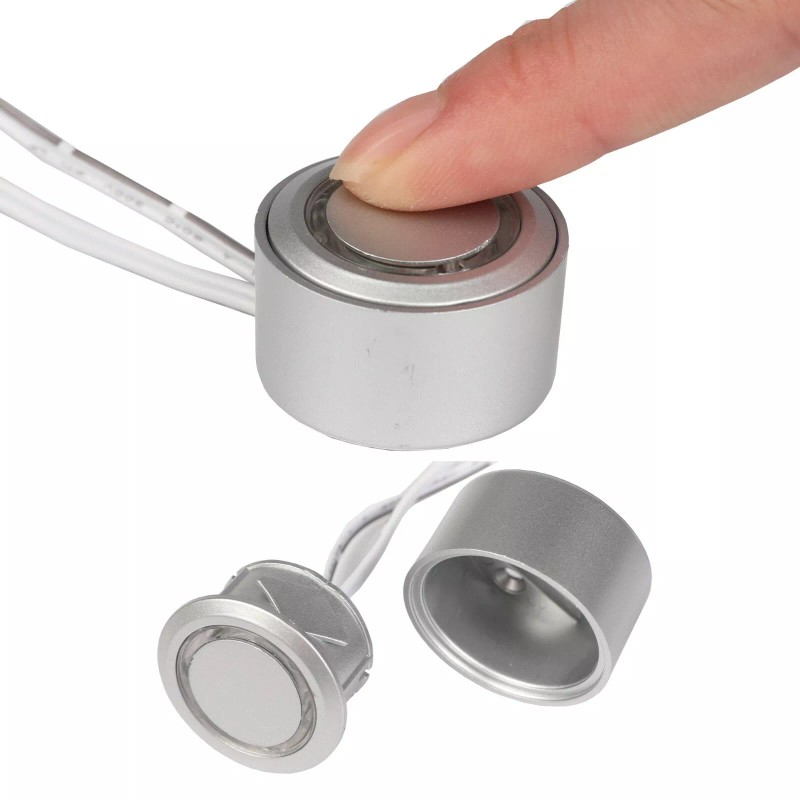

TOUCH INSTRUCTION
- A.When the dimmer is connected, it will be at OFF status.
- B. For turning on the light, land a short click on the touch area. For turning off, do it again.
- C. To Dimming after turning on, keep the finger on touch pad, dim the brightness from low to high
- Or vice versa, and after reaches the highest or lowest brightness, it will start dim again
- To turning off after dimming, leave the finger from touch pad for more than 1 second and touch again
- D. At the OFF status, keep the finger on touch pad, the lights will be dimming from low to high
- The dimmer has a memory function
- When the light turns on, the brightness will be at the status of the last time when it was turns off
How to replace a old dimmer with 2 wires only
Normally, a dimmer switch have 4 wires: 2 wires connect to power and 2 wires connect to lights.
But some dimmer switch only have 2 wires, because the positive wire from the power and the lights was connected together.
Please refer to this wiring instructions, if your old dimmer comes with 2 wires only.
If your RV only have 1 wire, and it is positive wire.
Please connect the white wire(negative(-) wire) to the metal frame on your RV / Camper / Trailer.
