ESP32 Programming Module Test Board Burning Fixture System Development Board + ESP32-S3-WROOM-1 XH-S3E N16R8 Wi-Fi BLE Module

Brand: DIYmall
  • ESP32 programming test board burning fixture can be used for burning: ESP32-WROOM-32D, ESP32-WROOM-32E, ESP-S2-WROOM, ESP-S3-WROOM, ESP-32S, XH-S3E
  • XH-S3E N16R8: ESP32-S3R8 SoCs embedded, dual-core 32-bit LX7 microprocessor, support RTC frequency up to 240MHz
  • XH-S3E N16R8 Memory: 384 KB ROM, 512 KB SRAM, 16 KB SRAM in RTC, SPI Flash: 16 MB, PSRAM: 8 MB
  • Wi-Fi: 802.11 b/g/n; Low power BLE: BLE 5, BLE mesh
  • Peripherals: PWM/ I2C/ UART/SPI/SDIO / IrDA
  • What you will get: 1 x ESP32 Programming Module Test Board Burning Fixture + 1 x XH-S3E N16R8 Wi-Fi BLE Module
Brand: DIYmall
Manufacturer: DIYmall
Part Number: WD3DFP8
Isin: IB4ZAKUMCGVF

$57.89

  • Free shipping in US
  • Shipping: $6.5 Standard Shipping (5-10 Business Days)
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow

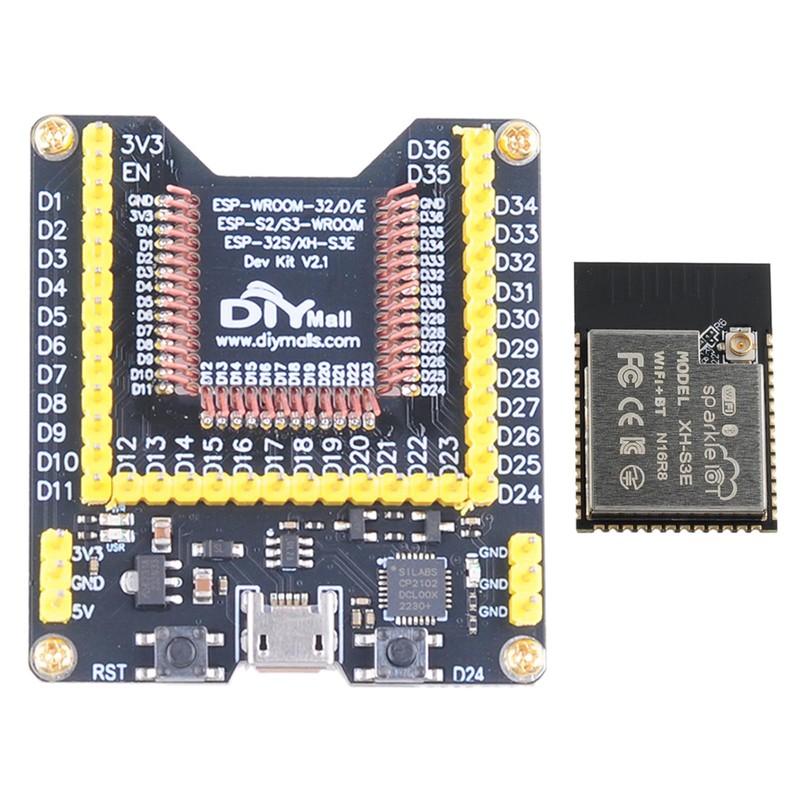

ESP32 Programming Module Test Board Burning Fixture System Development Board + ESP32-S3-WROOM-1 XH-S3E N16R8 Wi-Fi BLE Module

ESP32 Programming Module Test Board Burning Fixture System Development Board ...

$57.89

ESP32 Programming Module Test Board Burning Fixture System Development Board

Used for burning:
ESP32-WROOM-32D
ESP32-WROOM-32E
ESP-S2-WROOM
ESP-S3-WROOM
ESP-32S
XH-S3E

XH-S3E N16R8

Feature:
CPU and On-Chip Memory
ESP32-S3R8 SoCs embedded, dual-core 32-bit LX7 microprocessor, support RTC frequency up to 240MHz
Operating voltage: 3.0V ~ 3.6V
384 KB ROM
512 KB SRAM
16 KB SRAM in RTC
SPI Flash: 16 MB
PSRAM: 8 MB
Peripherals: PWM/ I2C/ UART/SPI/SDIO / IrDA

Wi-Fi
802.11 b/g/n
Bit rate: 802.11n up to 150 Mbps
Support A-MPDU and A-MSDU aggregation
Support max 18dBm output power in 802.11b mode
Support STA/APO/STA+AP working mode
Center frequency range of operating channel: 2412 MHz ~ 2484 MHz

BT
Low power BLE: BLE 5, BLE mesh
Speed: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps
Advertising extensions
Multiple advertisement sets
Channel selection algorithm #2

Peripherals
GPIO, SPI, LCD interface, Camera interface, UART, I2C, I2S, remote control, pulse counter, LED PWM, USB 1.1 OTG, USB Serial/JTAG controller, MCPWM, SDIO host, GDMA, ADC, touch sensor, temperature sensor, timers and watchdogs

Operating temeprature: -40°C ~ 105°C
Module size: 18x25.5x3mm

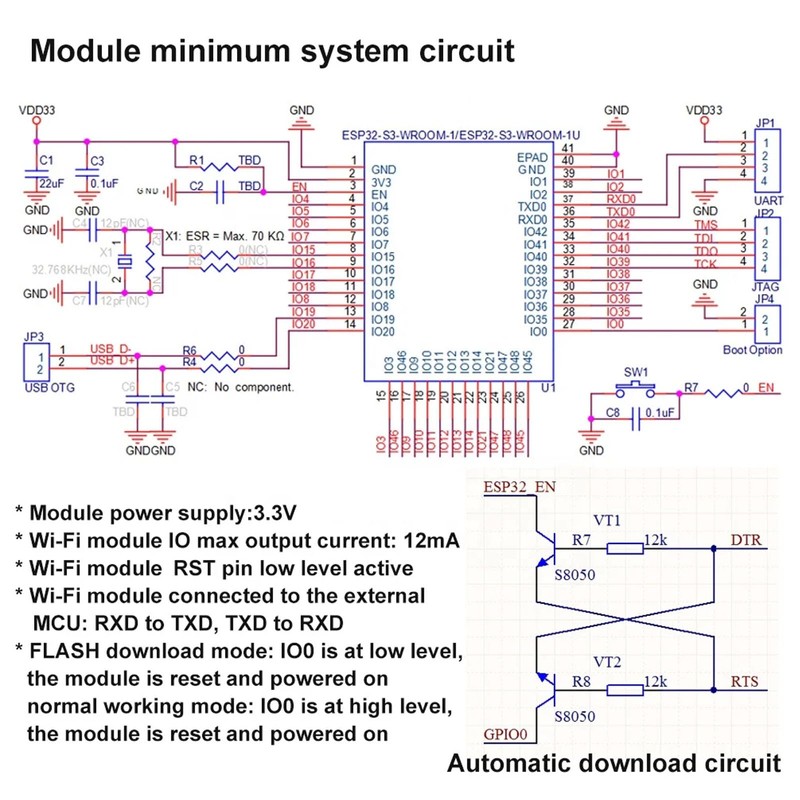

Module power supply:3.3V
Wi-Fi module IO max output current: 12mA
Wi-Fi module RST pin low level active
Wi-Fi module connected to the external MCU: RXD to TXD, TXD to RXD
FLASH download mode: IO0 is at low level, the module is reset and powered on; normal working mode: IO0 is at high level, the module is reset and powered on

Application:
Smart Home
Smart Building
Webcams
Wearable Electronics
Wireless Location System Beacons
Industrial Wireless Control
Generic Low-power IoT Sensor Hub
Smart Agriculture
Smart Bus
Wi-Fi-enabled Toys
