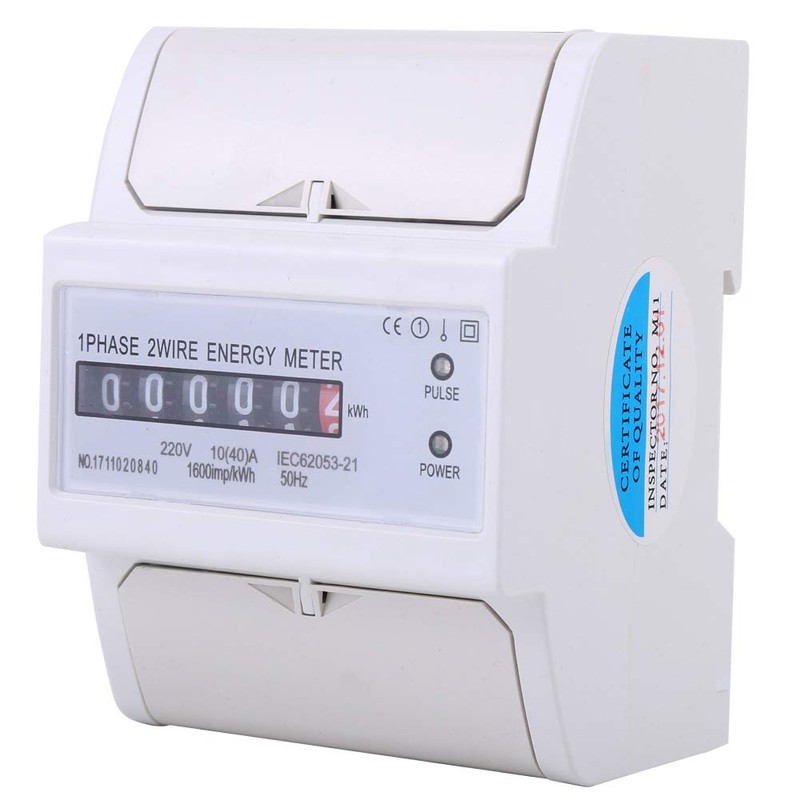

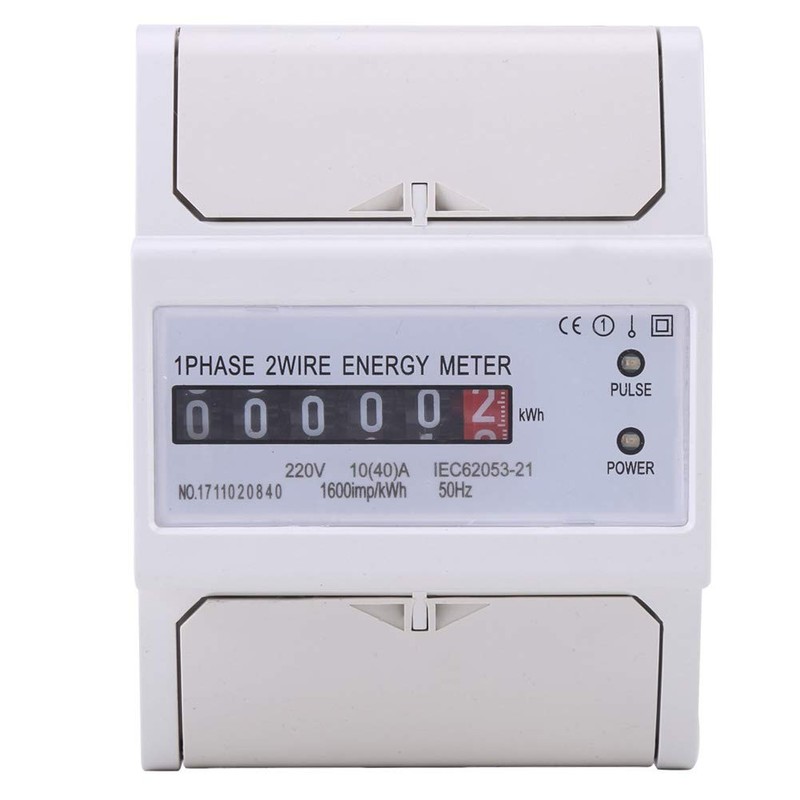

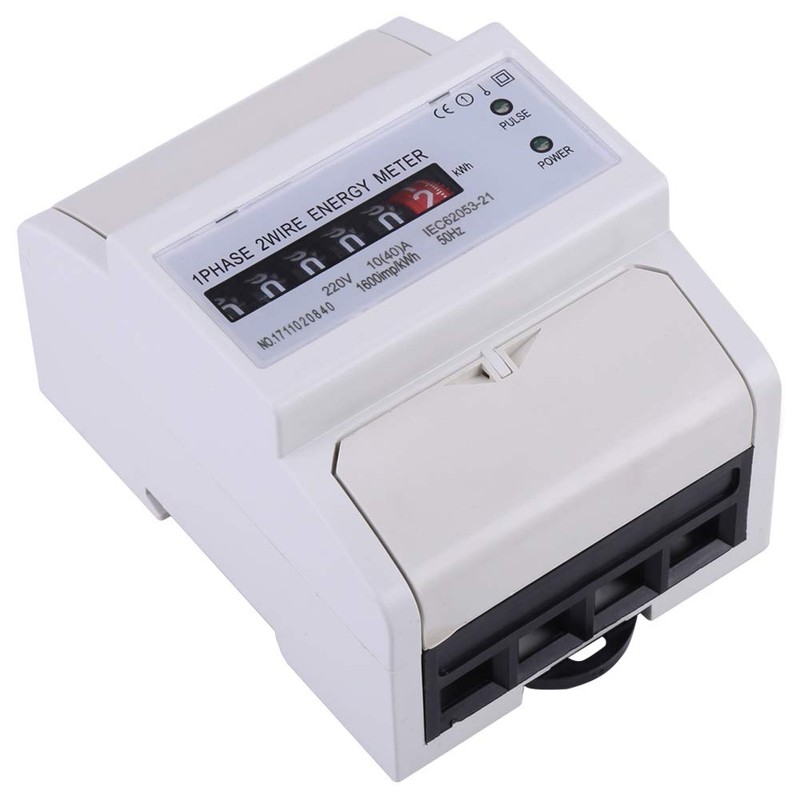

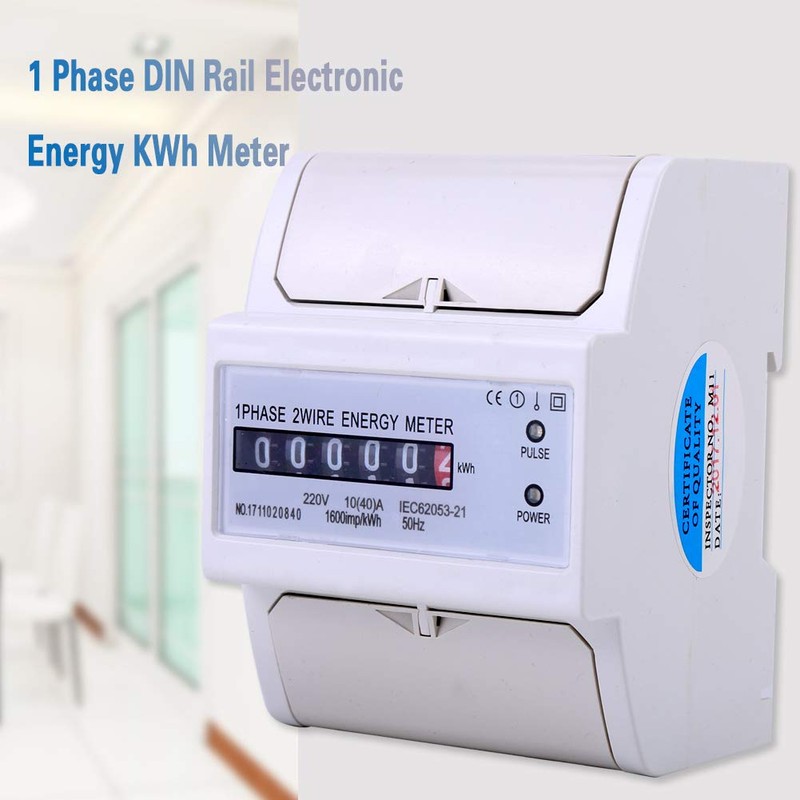

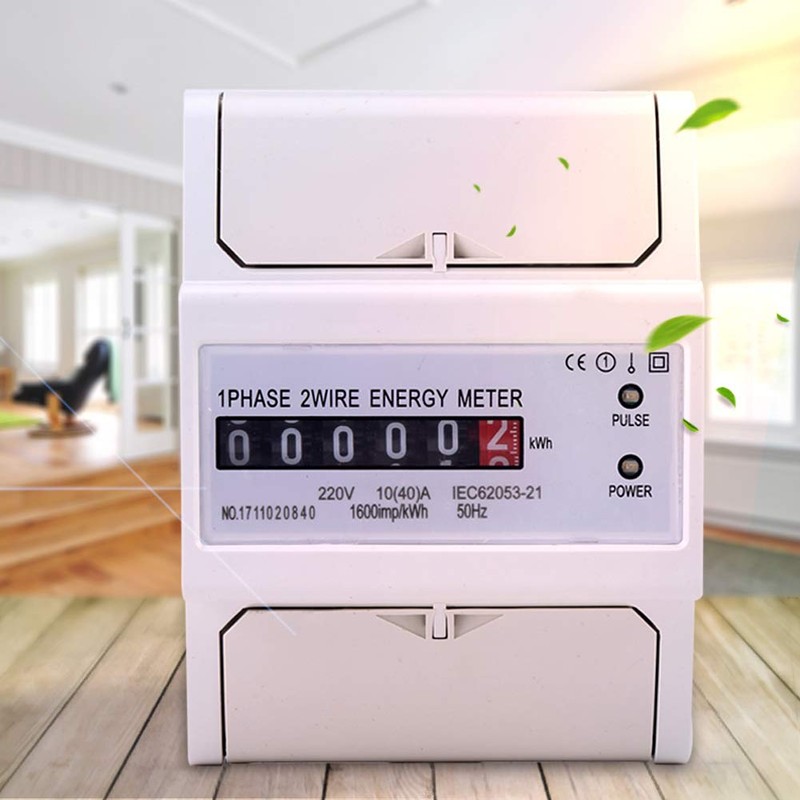

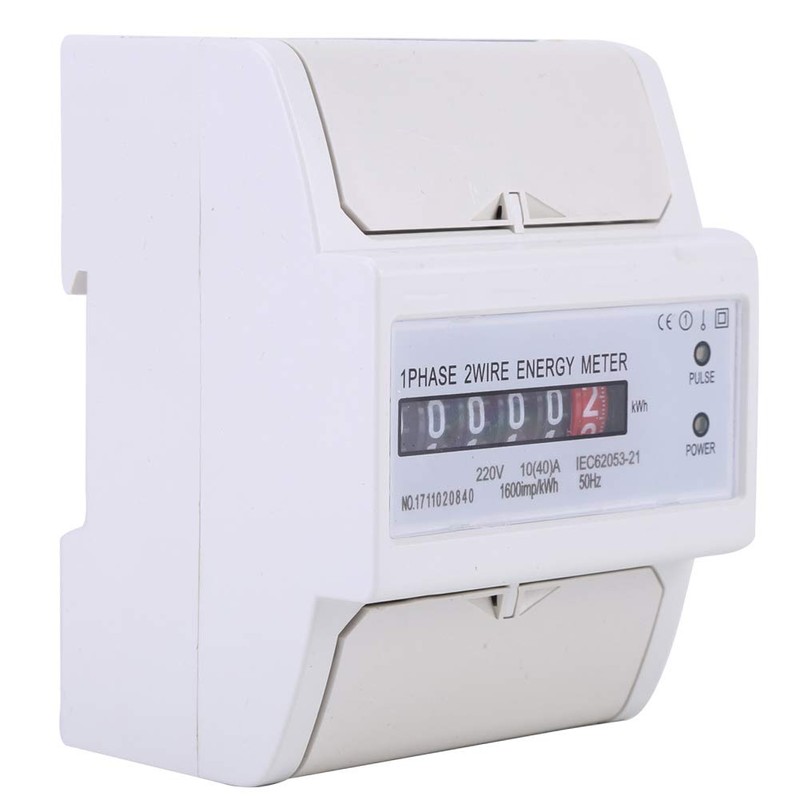

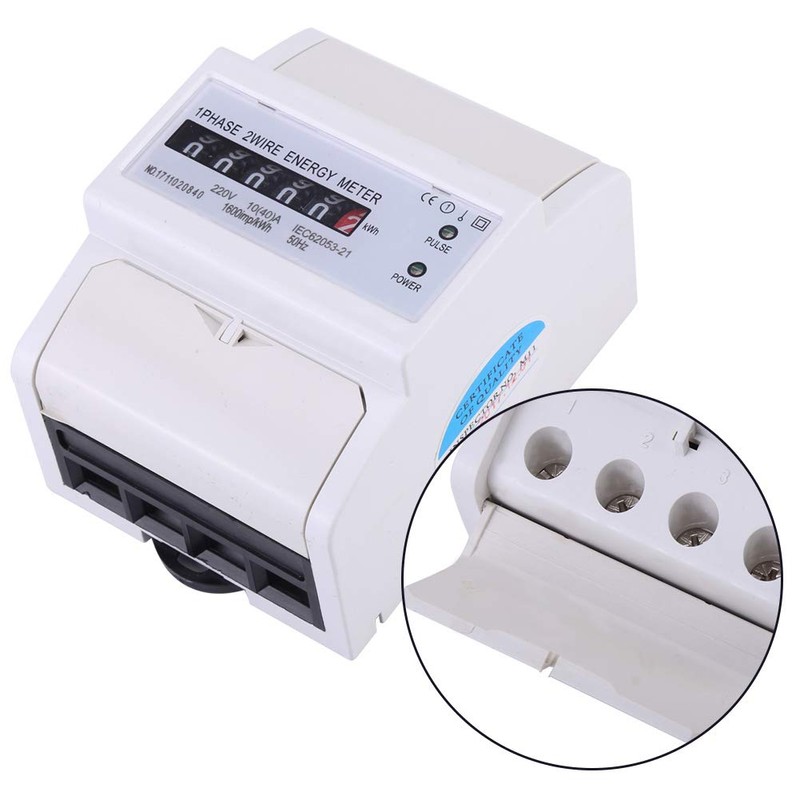

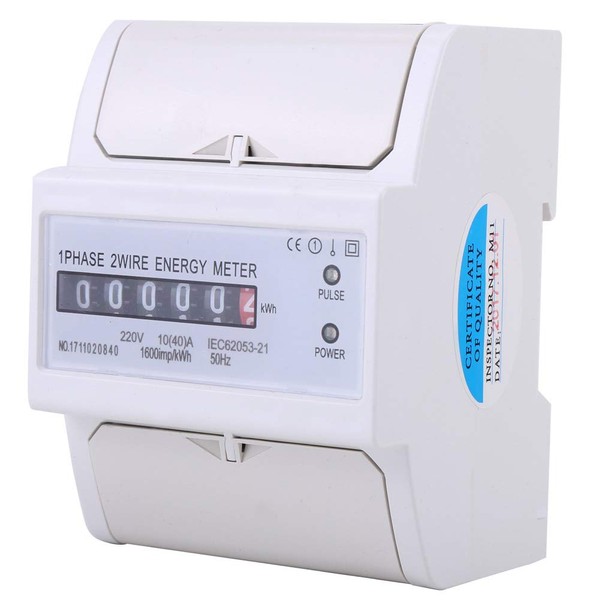

Energy Meter 1 Phase 2 Wire DIN Rail Electronic Energy KWh Meter 10(40)A for Fixed Installation Indoors
$37.15
- $5.95 shipping from United States View details
-
Arrives
- 1. High Accuracy: Our Energy Meter 1 Phase 2 Wire DIN Rail Electronic Energy KWh Meter utilizes advanced technology to provide precise measurement of energy consumption, ensuring accurate billing and monitoring of your electricity usage.
- 2. Easy Installation: Designed for fixed installation indoors, our Energy Meter is easy to install with the help of an experienced electrician. Simply follow the provided manual and wiring diagram for a hassle- setup.
- 3. and Reliable: Constructed with quality materials and built to last, our Energy Meter is resistant to potential damages and operates reliably even in harsh conditions. Its sturdy design ensures long-term performance and durability.
- 4. User-Friendly Interface: Equipped with a 6-digit display, our Energy Meter allows for easy reading and monitoring of energy consumption. The clear interface provides real-time data, empowering you to make informed decisions about your energy usage.
- 5. Wide Range of Applications: Suitable for residential and commercial use, our Energy Meter is compatible with standard voltage (220V) and current (10/40A). With its versatile functionality, it can be applied in various settings, providing accurate energy measurement and control.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- 1. High Accuracy: Our Energy Meter 1 Phase 2 Wire DIN Rail Electronic Energy KWh Meter utilizes advanced technology to provide precise measurement of energy consumption, ensuring accurate billing and monitoring of your electricity usage.
- 2. Easy Installation: Designed for fixed installation indoors, our Energy Meter is easy to install with the help of an experienced electrician. Simply follow the provided manual and wiring diagram for a hassle- setup.
- 3. and Reliable: Constructed with quality materials and built to last, our Energy Meter is resistant to potential damages and operates reliably even in harsh conditions. Its sturdy design ensures long-term performance and durability.
- 4. User-Friendly Interface: Equipped with a 6-digit display, our Energy Meter allows for easy reading and monitoring of energy consumption. The clear interface provides real-time data, empowering you to make informed decisions about your energy usage.
- 5. Wide Range of Applications: Suitable for residential and commercial use, our Energy Meter is compatible with standard voltage (220V) and current (10/40A). With its versatile functionality, it can be applied in various settings, providing accurate energy measurement and control.
Standard: IEC62053-21
Display:6-digit
Color: White
Voltage: 220V
Current: 10(40A)
Frequency: 50Hz
Impulse constant: 1600imp/kWh
Operating Humidity: 95%
Operating Temperature: -25 ~ + 55

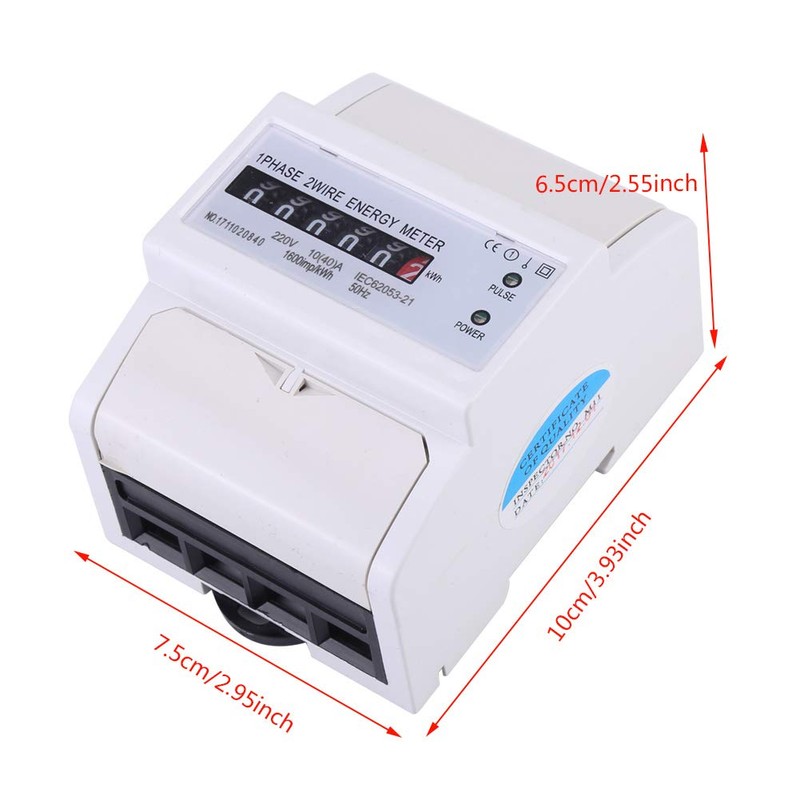

Size:10 x 7.5 x 6.5cm/3.93 x 2.95 x 2.55inch
Weight: 276g
Installation and use:
1. Installation of energy meter required experienced electrician or professional, and determined to read the manual.

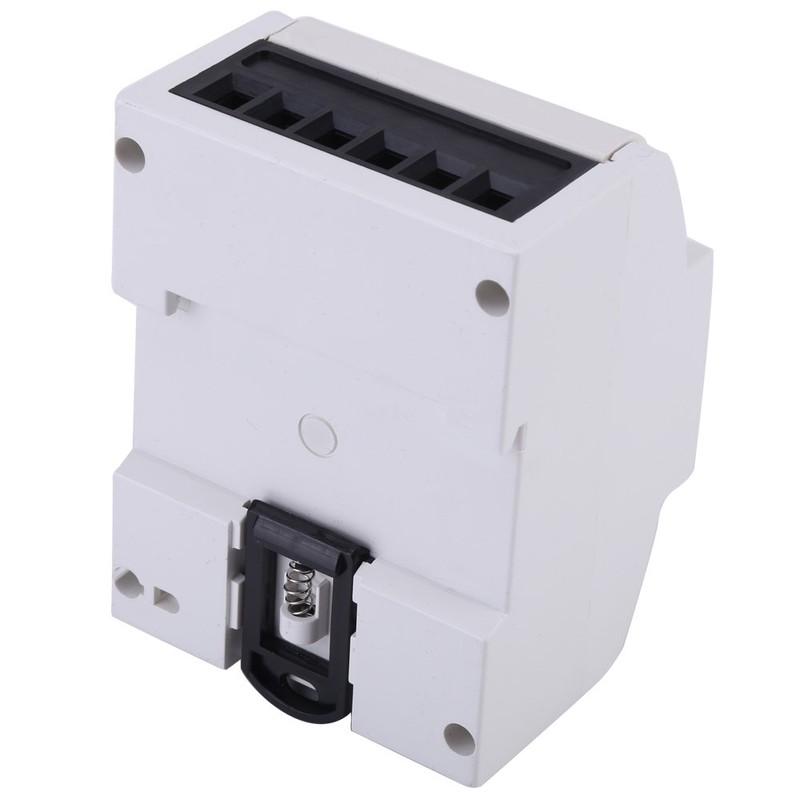

2. energy meter should be installed in the indoor ventilated and dry place, adopt 35mmDIN standard guide type installation, the bottom plate of the electricity meter should be fixed in the wall that is strong refractory, and not easy to vibrate.
3. Electricity meters should be installed in protective cabinets in places where there are filth and potential damages.
4. Install according to the wiring diagram ,it is best to use a multi-strand copper wire to avoid the failure of the electrical energy meter working or burning down.
5. When the electricity meter is correctly connected to the power grid, the power indicator of the meter is light.
6. Electric energy meter should take the lightning protection measures when it is used in the area with more lightning, so as to avoid damaging the electric energy meter by lightning.
7. The load capacity of the energy meter is in the range of 0.05Ib ~ Imax (direct access) or 0.02Ib ~ Imax (through the access type of the transformer),More than the transformer ratio,is the actual power consumption
8. Data display: the meter display
9. Power indication: the green light indicates that the power meter has normal working power
10. Pulse indication: when a red light indicates that the power pulse is detected
11. When there is a sampling , the pulse light is about 80ms
Package Included:
1 x Energy Meter
