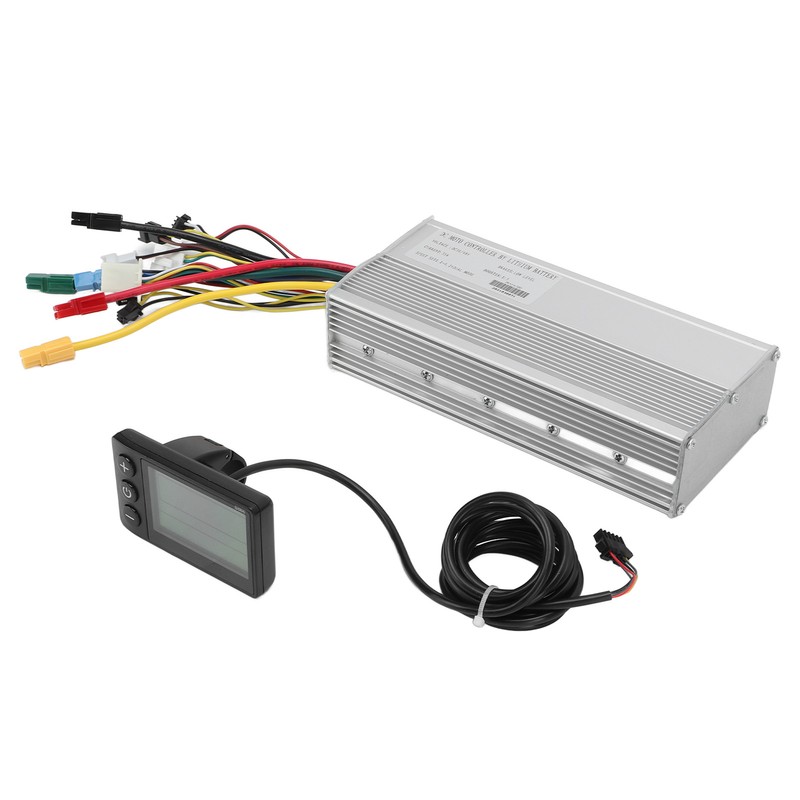

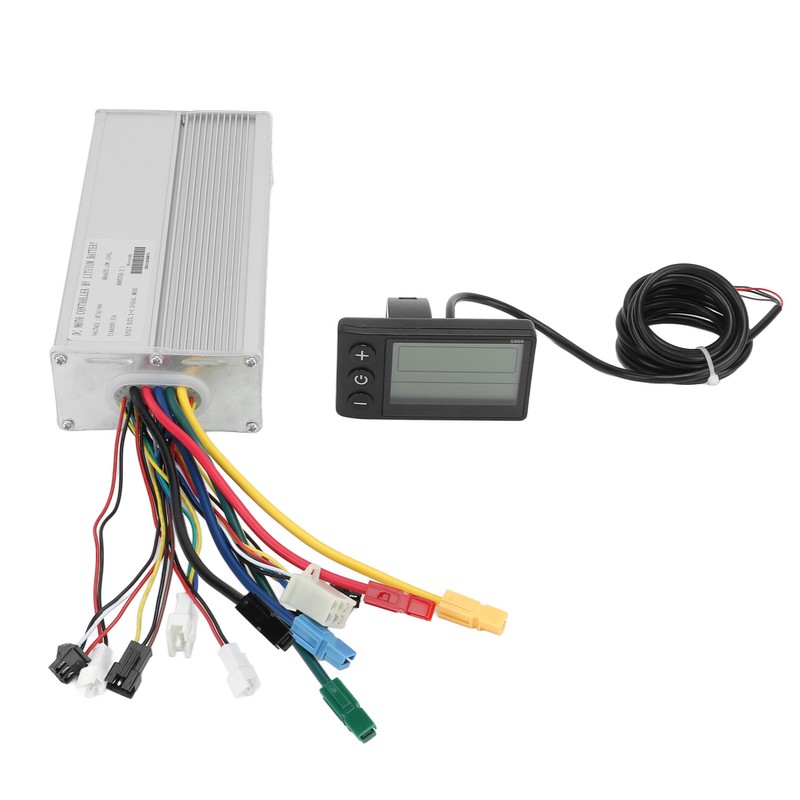

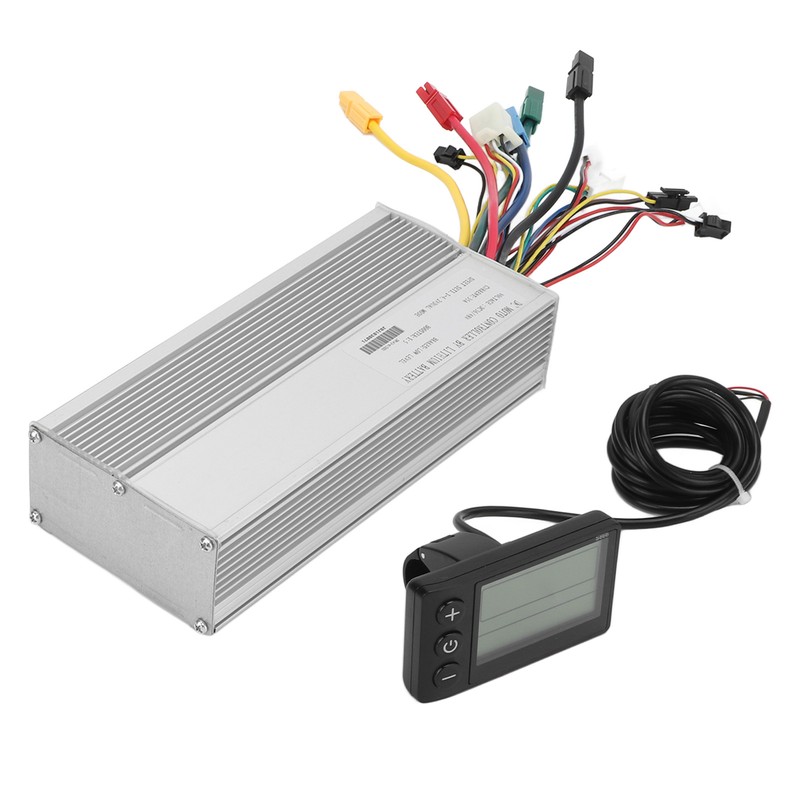

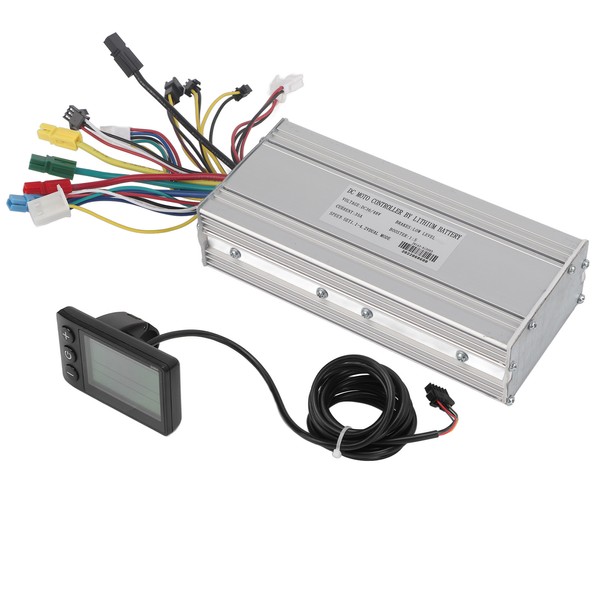

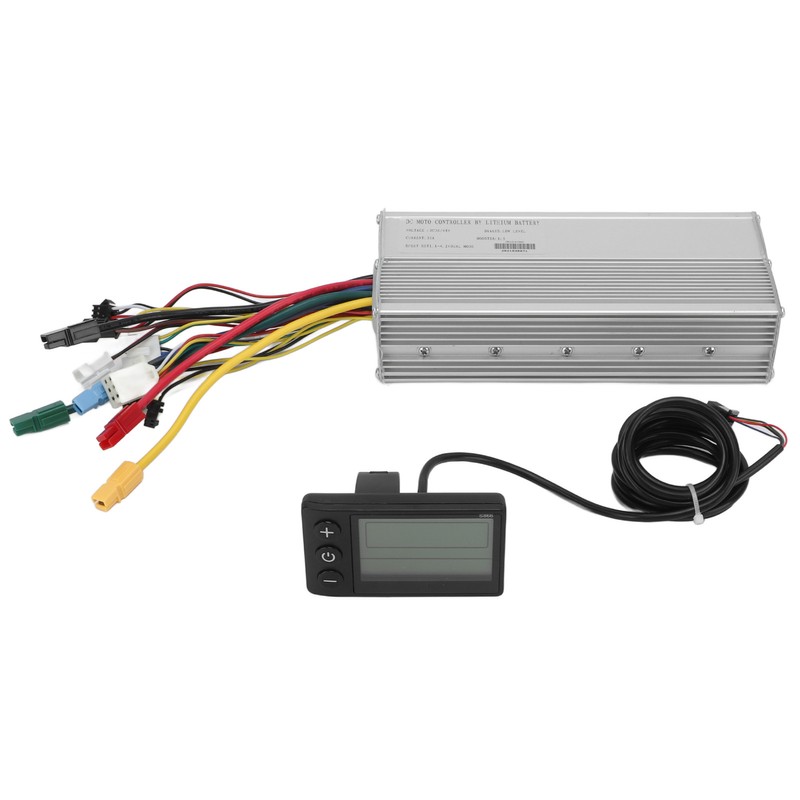

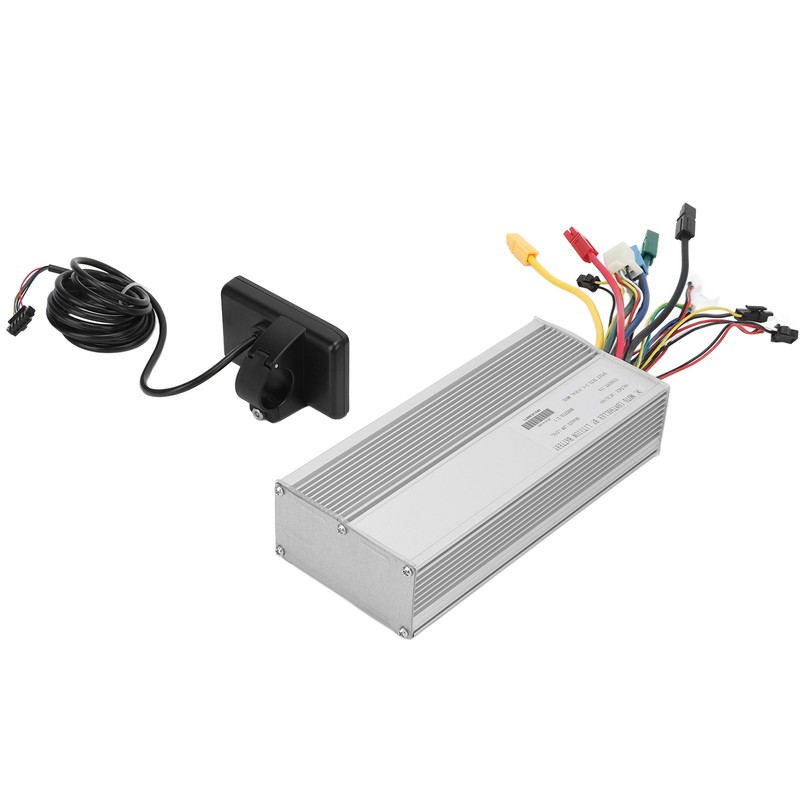

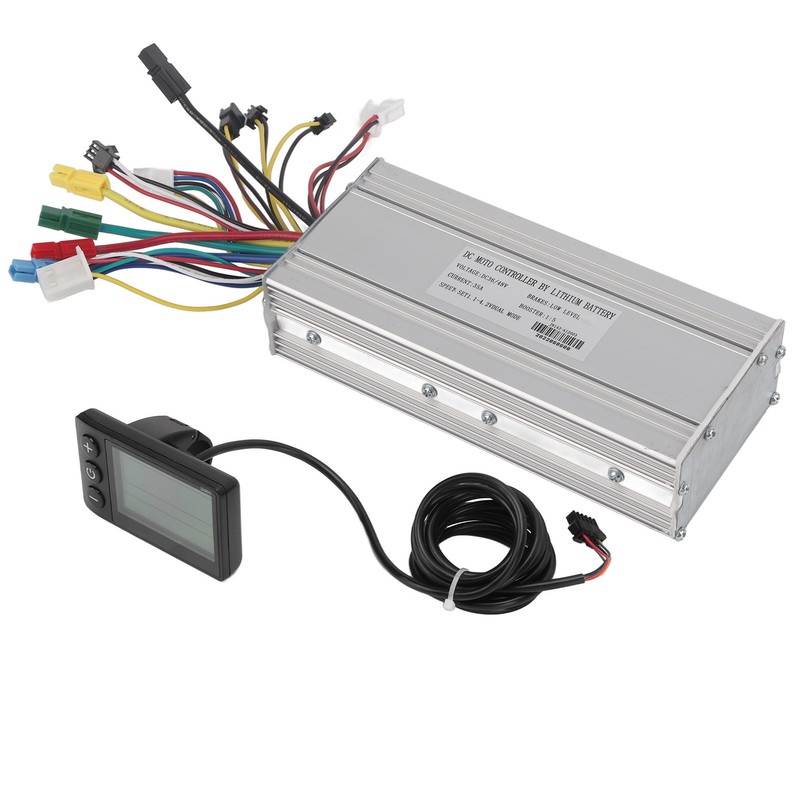

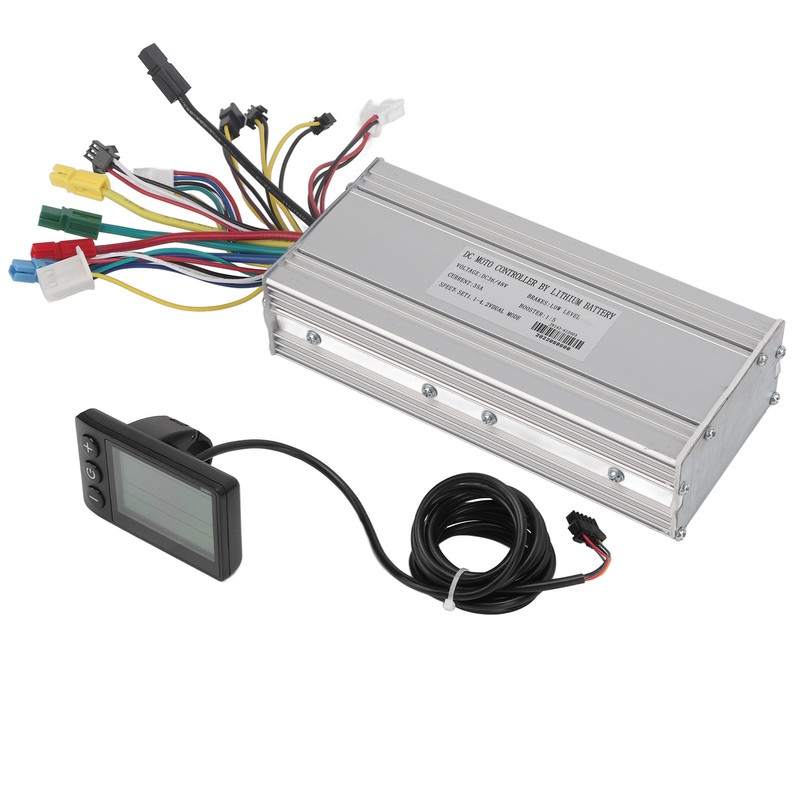

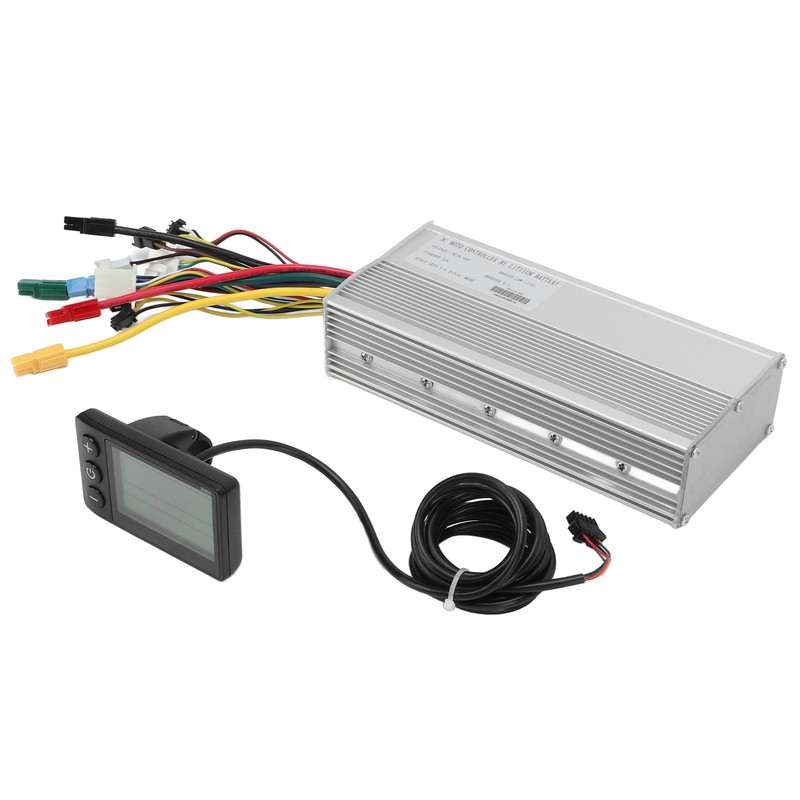

Electric Bike Conversion Kit 35A Controller S866 LCD Display Panel Set for Mountain Bike Scooter 1500W Motor
$80.30
- $9.99 shipping from United States View details
-
Arrives
1、LCD Display: LCD display panel adopts high quality ABS material, which is light, rain proof, durable. LCD backlight display can clearly display status and data. 2、Controller Housing: Controller outer housing is metal material with grooves design, can protect the internal circuitry with good heat dissipation effect. 3、Good Helper: Electric bicycle motor controller can provide steady speed and sensitive control of braking and direction changes, able to meet most of your needs. 4、Suitable Model: Can be used for bicycle and scooter refitting lithium to electric riding, usually suitable for 1500W motor, providing a satisfying using experience. 5、Rich Content: There is a control, a panel and instructions included in the package, large quantity will be enough to meet your needs to upgrade your bike.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
1、LCD Display: LCD display panel adopts high quality ABS material, which is light, rain proof, durable. LCD backlight display can clearly display status and data. 2、Controller Housing: Controller outer housing is metal material with grooves design, can protect the internal circuitry with good heat dissipation effect. 3、Good Helper: Electric bicycle motor controller can provide steady speed and sensitive control of braking and direction changes, able to meet most of your needs. 4、Suitable Model: Can be used for bicycle and scooter refitting lithium to electric riding, usually suitable for 1500W motor, providing a satisfying using experience. 5、Rich Content: There is a control, a panel and instructions included in the package, large quantity will be enough to meet your needs to upgrade your bike.
1、LCD Display: LCD display panel adopts high quality ABS material, which is light, rain proof, durable. LCD backlight display can clearly display status and data. 2、Controller Housing: Controller outer housing is metal material with grooves design, can protect the internal circuitry with good heat dissipation effect. 3、Good Helper: Electric bicycle motor controller can provide steady speed and sensitive control of braking and direction changes, able to meet most of your needs. 4、Suitable Model: Can be used for bicycle and scooter refitting lithium to electric riding, usually suitable for 1500W motor, providing a satisfying using experience. 5、Rich Content: There is a control, a panel and instructions included in the package, large quantity will be enough to meet your needs to upgrade your bike.
More Information
Item Type: Bike Conversion Kit
Material: Aluminum Alloy + ABS Plastic
Color: As Picture Shown
Application: for Conversion, Upgrade
Gross Weight: Approx.800g/28.2oz

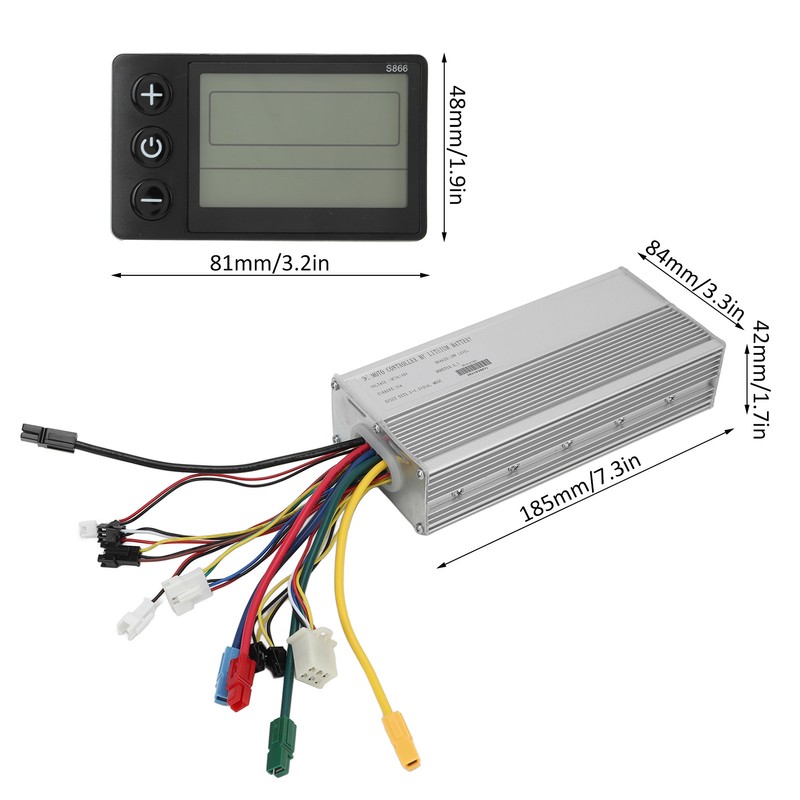

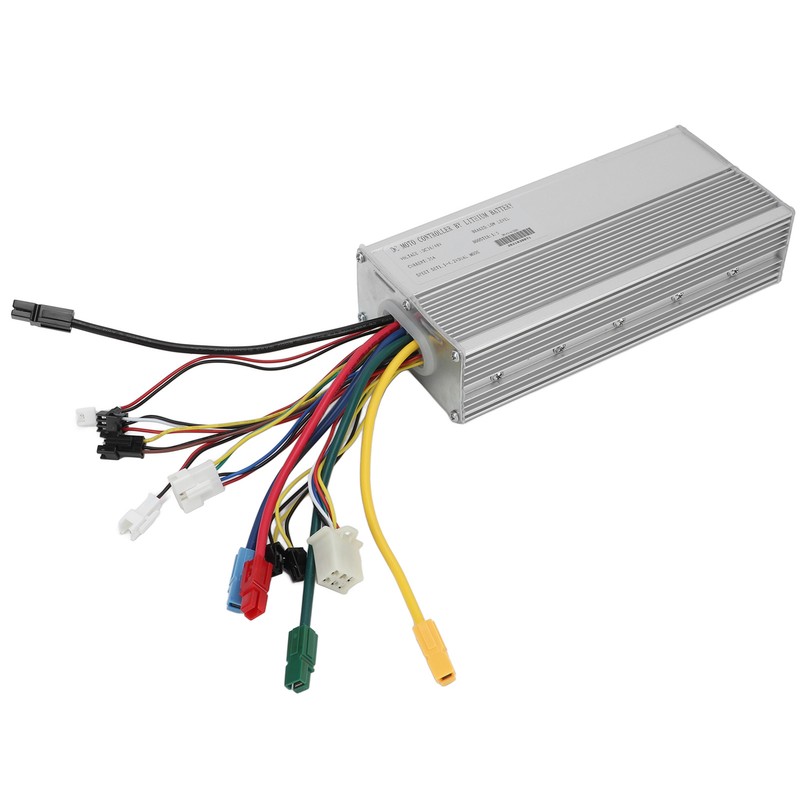

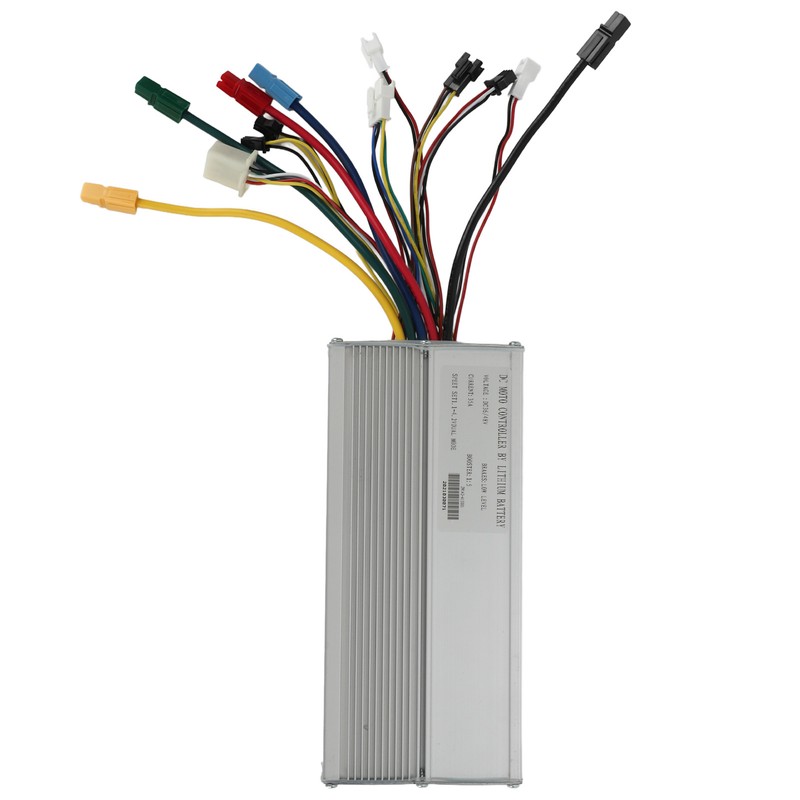

Product Size: Controller Box: Approx.185x84x42mm/7.3x3.3x1.7in
Instrument: Approx. 81x48mm/3.2x1.9in
Controller Rated Voltage: DC36V/48V
Controller Maximum Current: 35A
Controller Speed Setting: 1-4.2V
Controller Brake Input: Low Level
BOOSTER: 1:5
Applicable Motor Power: 1500W
Instrument operating voltage: DC 24V, 36V, 48V, 60V compatible (Panel selects Settings).

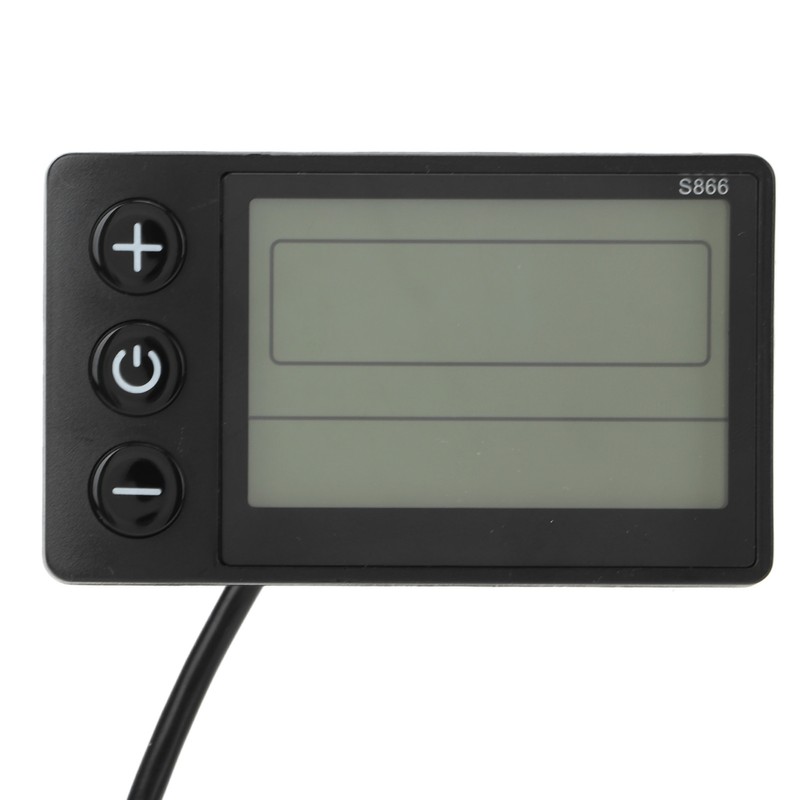

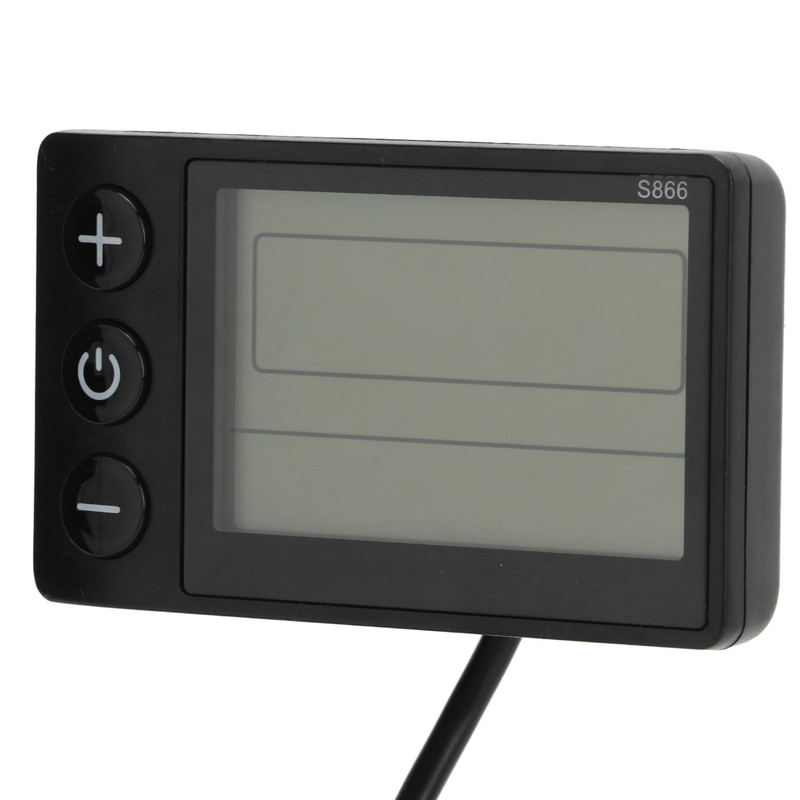

LCD instrument function description:
1. Display function: speed display, power indicator, fault indicator, total mileage, single mileage
2. Control setting functions: power switch control, wheel diameter setting, idle auto sleep time setting, backlight brightness setting, start mode setting, drive mode setting, voltage level setting, controller limit value setting
3. Communication protocol: UART
Display all contents of the screen (display all contents for 1s after startup)
3.1 Display of battery quantity and BMS remaining quantity
3.2 Multi function display area: total mileage ODO, single mileage TRIP (unit: mile, km), single startup TIME TIME, battery voltage VOL, DST: battery life
3.3 Speed display area
AVG: average SPEED, MAX: maximum SPEED, SPEED: current speed, unit: Mp/h km/h
The speed signal is taken from the Hall signal in the motor and sent to the instrument by the controller. (Time of a single Hall cycle, unit: 1MS) The instrument will calculate the true speed based on the wheel diameter and signal data (the amount of magnetic steel required by the motor hall)
3.4 Vehicle power gear adjustment, 0-9 digital display and stop bar display;
Instrument environment setting instructions:
P01: Backlight brightness level 1 darkest level 3 brightest;
P02: mileage unit, 0: KM: 1: MILE;
P03: Voltage level: 24V 36V 48V 60V 64V (default 36V)
P04: Sleep time: 0. Other numbers are the sleep time, ranging from 1 to 60 (unit: minute).
P05: Help gear: 0, 3 gear mode, 1, 5 gear mode;
P06: Wheel diameter: unit. Inches; Accuracy: 0.1; The parameter is related to the display speed of the instrument and needs to be input correctly.
P07: Magnetic steel no. : range: 1-100;
The parameter is related to the display speed of the instrument and needs to be input correctly. If it is common hub motor, direct input magnetic steel; If it is a high-speed motor, it is also necessary to calculate the reduction ratio, the input data = the number of magnetic steel x reduction ratio;
For example, if the number of magnets is 20 and the deceleration ratio is 4.3, the input data is: 86 = 20 X 4.3
P08: Speed limit: range 0-100km/H, 100 means unlimited speed,
The data input here represents the maximum running speed of the vehicle: for example, input 25 means the maximum running speed of the vehicle will not exceed 25km/h; Driving speed keep the set value, error: 1km/h; (Power and steering speed limit)
Note: The values here are in kilometers. When the unit setting is converted from km to miles, the speed value on the display interface is automatically converted to the correct mile value, but the speed limit value set in the menu under the mile interface is not converted. Miles out of line with the actual speed limit;
Note: P09-P15 menus are only valid in communication state
P09: zero startup Non-zero startup setting, 0: zero startup. 1. Non zero start.
P10: Drive mode is set to 0: power drive (the output power is determined by the power gear, the switch is invalid).
1: Electric drive (driven by turning the handle, when the power gear is invalid).
2. Electric power drive and electric drive coexist.
P11: Help sensitivity setting range: 1-24;
P12: Help start intensity setting range: 0-5;
P13: Power magnetic steel plate type set 5, 8, 12 magnetic steel type;
P14: The controller limit value is set to 12A by default. The range is 1-20A.
P15: controller undervoltage;
P16: ODO zero length button 5 seconds ODO zero;
P17: 0: disable cruise. 1: enable cruise. Automatic cruise optional (for protocol 2 only);
P18: Display speed ratio adjustment, range: 50%~150%;
P19: 0 power bit, 0:0, 1: excluding 0;
P20: 0:2 Protocol 1:5s Protocol 2: standby 3: standby.
