ECO-Schulte The ECO Newton TS-41 Closing Force 1-4 According to EN is a High-Quality Door Closer without Slide Rails in Elegant RAL 9006 Eco Silver Colour 24.3 x 4.1 x 5.6 cm
$189.56
- $12.99 shipping from Germany View details
-
Arrives
- ECOphysis: door closer in aluminium and stainless steel
- ECOclic: stainless steel cover surrounds the aluminium body with the force of the spring steel and thus conceals all adjustment parameters safely against unauthorised access
- ECOmount: mounting plate according to EN 1154 is completely covered by the door closer
- ECOvalve: Simple, high-precision and permanently secure adjustment of all parameters of the closing process with a standard Allen key
- ECOgreen: Intelligent construction and conscious use of materials contribute significantly to the conservation of resources.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- ECOphysis: door closer in aluminium and stainless steel
- ECOclic: stainless steel cover surrounds the aluminium body with the force of the spring steel and thus conceals all adjustment parameters safely against unauthorised access
- ECOmount: mounting plate according to EN 1154 is completely covered by the door closer
- ECOvalve: Simple, high-precision and permanently secure adjustment of all parameters of the closing process with a standard Allen key
- ECOgreen: Intelligent construction and conscious use of materials contribute significantly to the conservation of resources.
Closing force size 1-4, tested according to EN 1154 (for door widths up to 1,100 mm), infinitely adjustable. End strike and
Closing speed infinitely adjustable on the side. Opening damping constant. Same design for DIN-L/R.

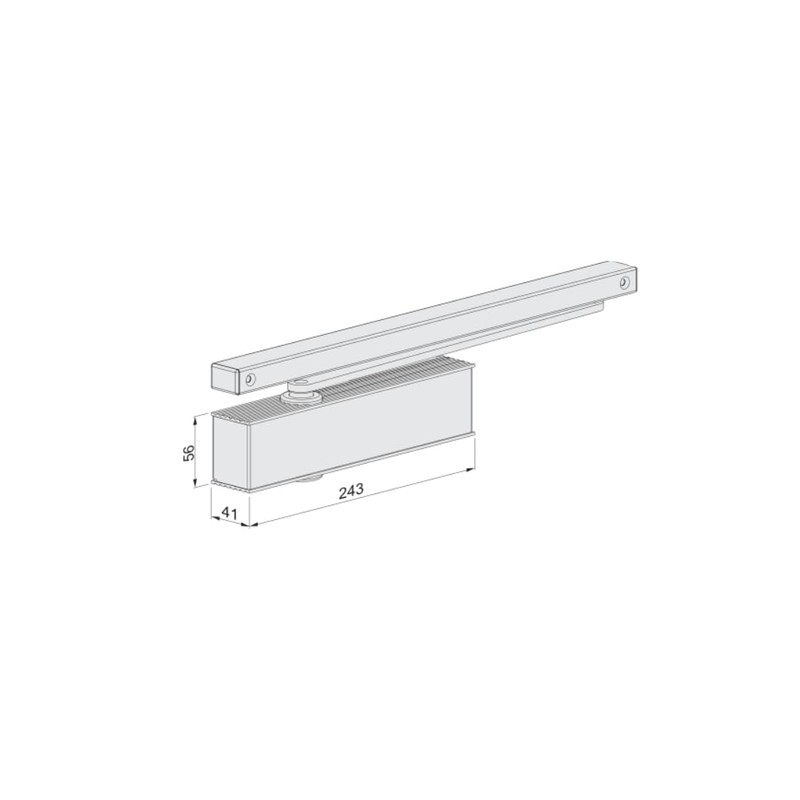

Depth only 41 mm. Weight: 1380 g. Max. Door opening angle: 180°.
The ECO Newton TS-41 is designed for light to medium functional doors (EN 1154 size 4) and is used wherever elegant design, functionality, easy opening comfort and cost-conscious construction are to be combined.
Closing speed and end stroke can be infinitely adjusted, the opening damping (from 70° door opening) is already pre-installed in each closer.
Thanks to its new gear design, the ECO Newton TS-41 achieves a high degree of efficiency and thus an optimal ratio of opening and closing behaviour.
The forces that occur when opening the door are reduced to a minimum level without compromising the closing safety.
This creates a noticeably lighter opening moment for the user compared to comparable other door closers.
This makes the ECO Newton TS-41 the perfect problem solver on standard and functional doors, especially for clinics, nursing homes, daycare centres and schools.
The ECO Newton TS-41 meets the requirements of DIN 18040 (barrier-free construction with requirements for smooth-running doors with high efficiency).
The maximum opening moment with closing force EN 4 is only about 37 N m (the standard DIN 18040 requires max. 47 Nm).
