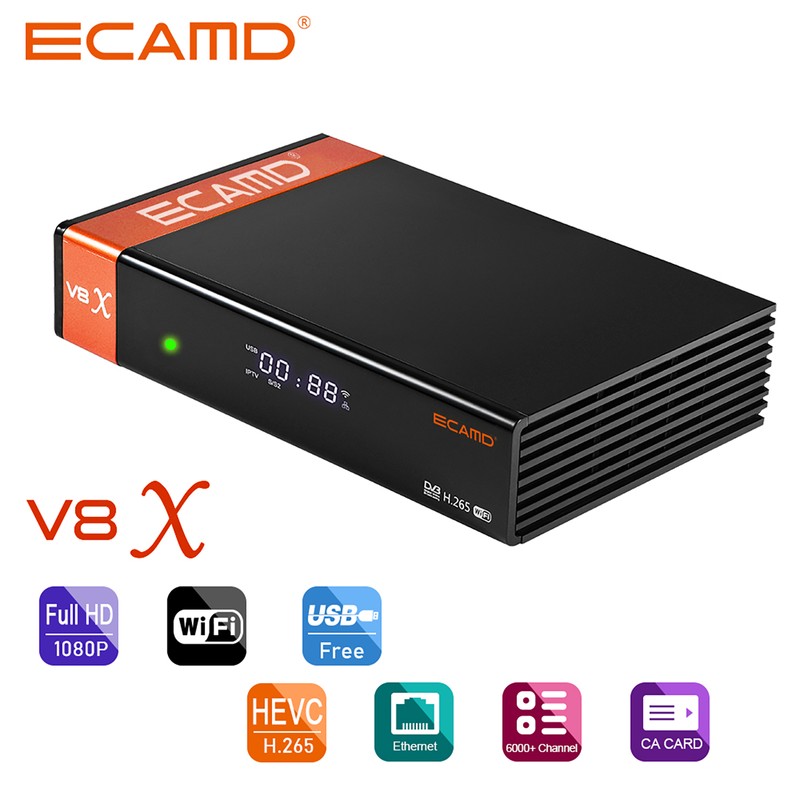

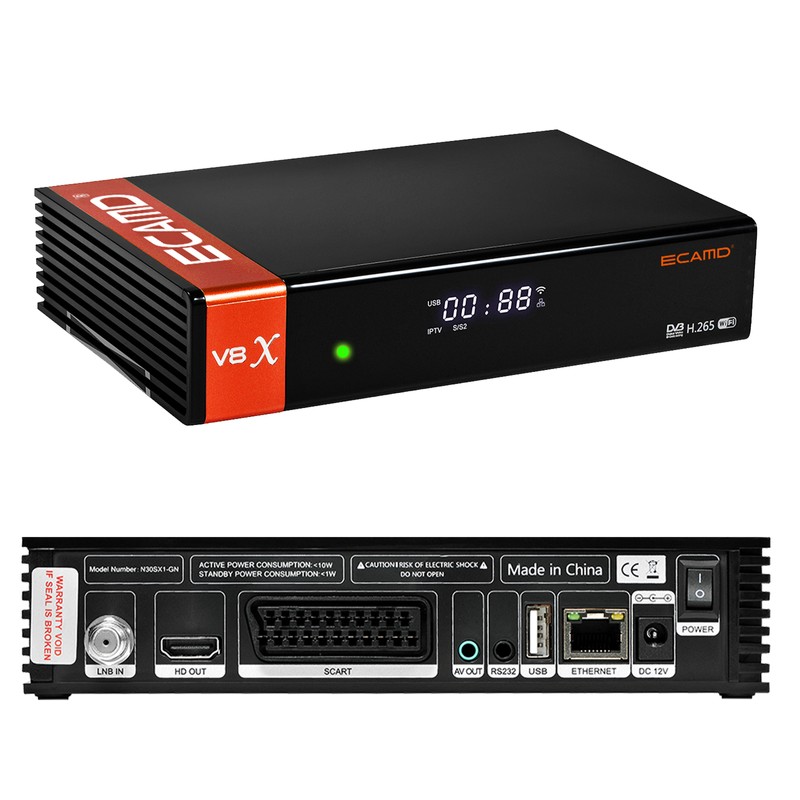

ECAMD V8X DVB-S2 Signal Receiver Set Top Box Receiver VCM/ACM/Multi-stream Digital TV Signal Receptor
$56.20
- $14.50 shipping from United States View details
-
Arrives
1、Support DVB-S/S2/S2X, VCM/ACM/multi-stream, HEVC main 10 profile, AVS+. 2、Support BISS auto roll, Full PowerVu, DRE \u0026Biss key; 3、Support Unicable, DiSEqC1.0/1.1/1.2/USALS Motor fully support; 4、Support SAT streamed to Gtplayer, DLNA;
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
1、Support DVB-S/S2/S2X, VCM/ACM/multi-stream, HEVC main 10 profile, AVS+. 2、Support BISS auto roll, Full PowerVu, DRE \u0026Biss key; 3、Support Unicable, DiSEqC1.0/1.1/1.2/USALS Motor fully support; 4、Support SAT streamed to Gtplayer, DLNA;
1、Support DVB-S/S2/S2X, VCM/ACM/multi-stream, HEVC main 10 profile, AVS+. 2、Support BISS auto roll, Full PowerVu, DRE \u0026Biss key; 3、Support Unicable, DiSEqC1.0/1.1/1.2/USALS Motor fully support; 4、Support SAT streamed to Gtplayer, DLNA;
More Information
Support DVB-S/S2/S2X, VCM/ACM/multi-stream, HEVC main 10 profile, AVS+.
Support BISS auto roll, Full PowerVu, DRE &Biss key;
Support Unicable, DiSEqC1.0/1.1/1.2/USALS Motor fully support;
Support SAT streamed to Gtplayer, DLNA;

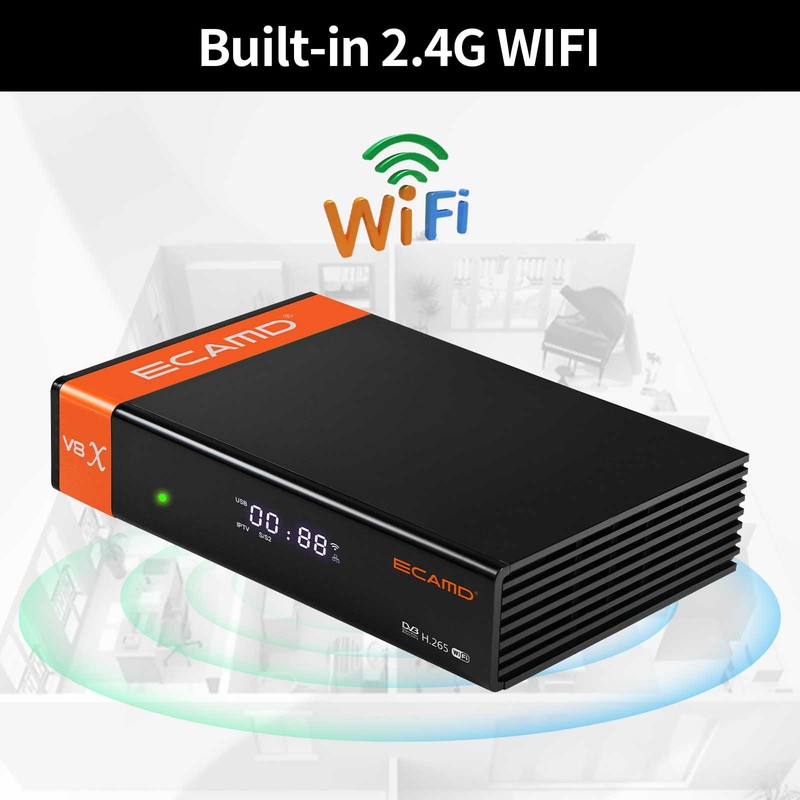

Support Built-in 2.4G WIFI module, Ethernet, and support 3G usb dongle;

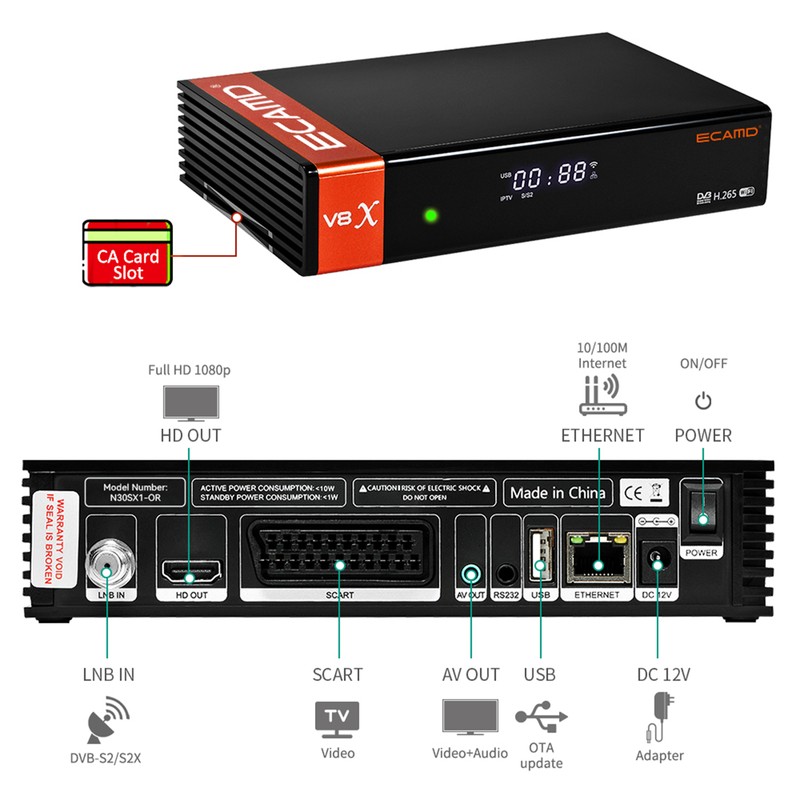

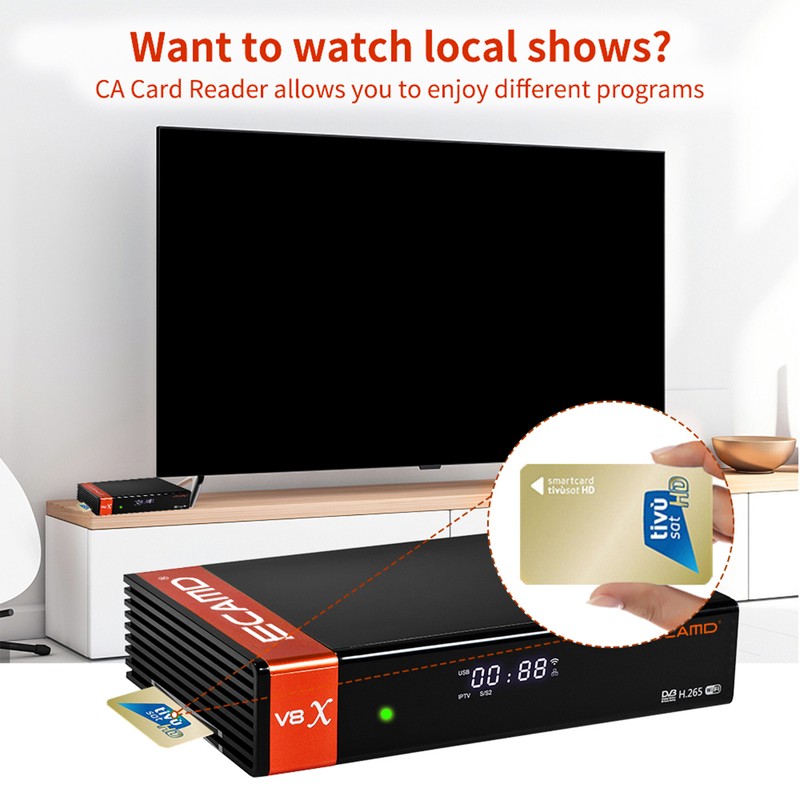

Support CA card slot.
Specifications:
Power Supply: AC 100V ～250V, 50/60Hz
Power Consumption:10W in operation; ≦1 W Standby Power Mode
Temperature:Operation 0～+45℃; Storage -10~+60℃
Humidity:20~90%, non-condensed
Main Chip Sets
CPU: 770MHz Dual Core
Flash Memory: 64MB SPI Flash
DDR2 Memory: 1G RAM
TS Demux
Demultiplexer: ISO/IEC 13818-1
Input Bit Rate: Max 100Mbit/s
Video Decode
Video Decode:
HEVC main profile@level 4.1 and main10 profile@L4.1,High tier
MPEG-2 MP@ML
H.264 BP,MP&HP@L3/L4.1/L4.2
AVS Jizhun profile and broadcast profile
MPEG-4 SP profile, advanced simple profile@L5
VC1 SP@ML, MP@HL, AP@L0-3
H263 baseline profile
JPEG decoder
TV System: Automatic PAL/NTSC conversion
Aspect Mode: Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box
Video effects: Standard, Default, Vivid.
Video Resolution: 1080P, 1080I, 720P, 576P, 480P, 576I, 480I
HDMI Color Space: RGB, YCbCr 4:4:4 YCbCr 4:2:2, Auto
Audio Decode
Audio Decode: MPEG-1/2 Layer 1/2/3, MPEG-2/4 LC-AAC, MPEG-4 HE-AAC,Dolby AC3/AC3+, DRA CH/5.1CH
Sound Mode:LEFT/RIGHT/STEREO/MONO
Sampling Frequency:32KHz,44.1KHz,48KHz
Audio Out: LPCM Out, BS Out
Hardware Specifications

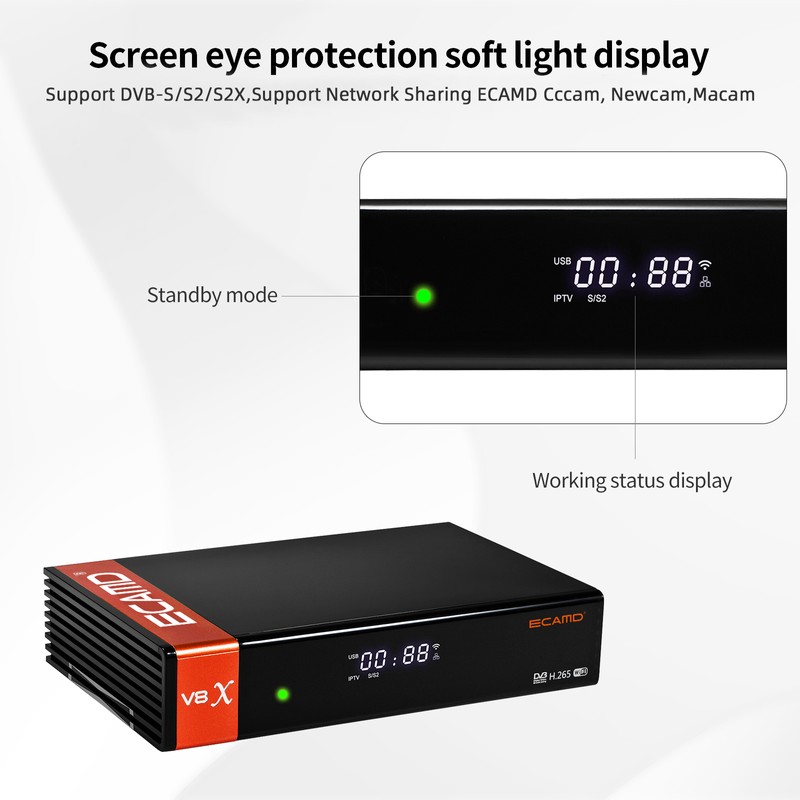

Panel display: 4-digit white LED display (Support function display)
LED Indicator:Power ON :Green; Standby :Red
Button:NOT
Wifi:Built in 2.4G WiFi Support IEEE 802.1.1b/g/n
IR:Exit IR for 38KHz,Infra Remote control
DVB-S/S2 Specifications
System standard: ETS 302 307
Frequency Range: 950~2150MHz for DVB-S/S2/S2X baseband demodulator
LNB Power and Polarization: DiSEqC1.0/1.1/1.2/USALS Motor fully support, Support Unicable, 13/18V DC @ 400mA MAX, 22KHz±0.4KHz(0.6V±0.2V)tone,Overload conservation"
Input Level Range: -80dBm ~ -20dBm (average power)
Symbol Rates: DVB-S QPSK,DVB-S2 QPSK/8PSK/16APSK/32APSK,
DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK
Forward error correction rate : 1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10
Carrier frequency acquisition range: ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates
Symbol Rates: 2 ~ 90MSPS(Code Rate 1/2)
Roll-off factors: Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35
Code Rates: 1/2,2/3,3/4,5/6,7/8 for DVB-S, 1/4,1/3,2/5,1/2,3/5,2/3,3/4,5/6
,8/9,9/10 for DVB-S2,
DVB-S2X Normal Frame and Short Frame FEC code rates
ANT. Connector: Connector:IEC TYPE F
Input Impedance:75 Ω
Sortware Features
Standard: Fully comply with DVB-S/S2/S2X (SCPC and MCPC receivable from C/Ku band satellite), MPEG-2/4 and H.265 Standard
Channel Search: Support automatic network search for new added transponders
Channels Number: 6000+ channels TV and Radio programmable
Channel: Recording one channel, can view another channel under the same TP,Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort)
Favorites: 31 different favorite groups selection
OSD Language: English,French,German,Italian,Spanish,Portuguese,Russian,Turkish,Polish,Arabic,Persian,Thai,Vietnam,Czech,Armenian,Georgian,Ukrainian,Albanian,Hungary,Malay,Indonesisch,Dansk,Greek,Serbian.
OSD Color: 32-bits OSD with anti-flickering
OSD Setting: Support OSD Timeout and Transparency, Subtitle Display, Channel list displays pages 1-3.
Other Setting: Sets up multiple habitual operation Settings
Parental Ctrl: Parental control for channels
Easy Menu: Plug and Play installation, with an easy to use Menu System
EPG: Fully support to 7 days Electronic Program Guide(EPG)
Subtitle: support DVB EN300743 and EBU
Teletext: support DVB ETS300472 by VBI
SoftUpgrade: Software upgrades through USB port, or FTP upgrade.
Time Set: Time set by GMT offset automatic and manual,Summer Time support
Timer: 5 event timers,off/Once/Daily/Weekly Mode
USB Decode
USB 2.0: Support FAT/FAT32/NTFS big capacity hard disk
PVR Option : USB 2.0 for PVR,TIMESHIFT,media files playback
Media Codec : TS,mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp files
Audio Codec: WMA,MP3
Photo Codec: JPG, BMP, PNG, GIF

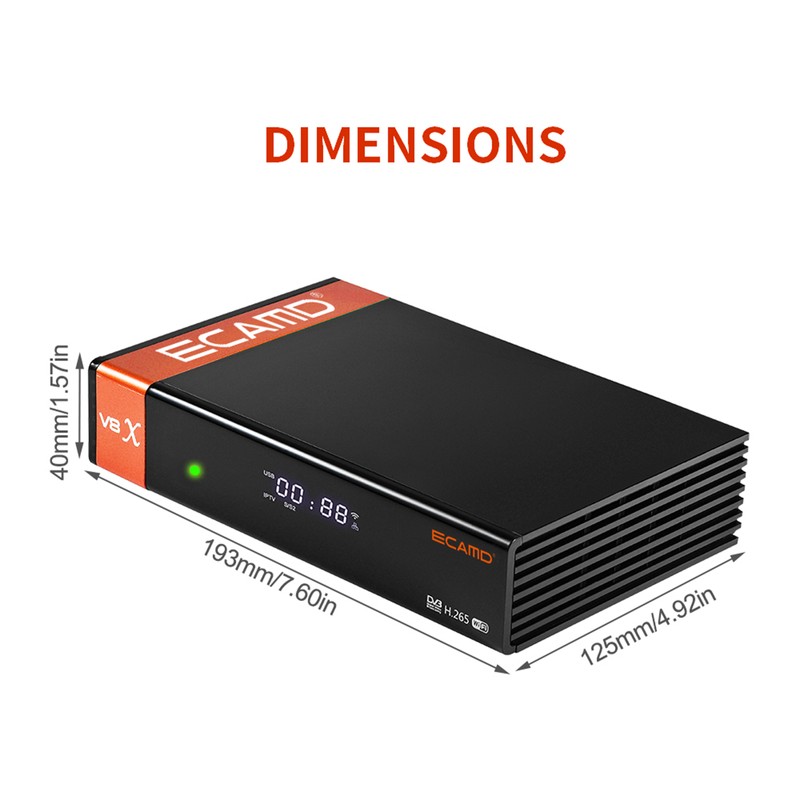

Item Size: 193*125*40MM（L*W*H）
Package Size: 264*170*55MM
Package Weight: 680g

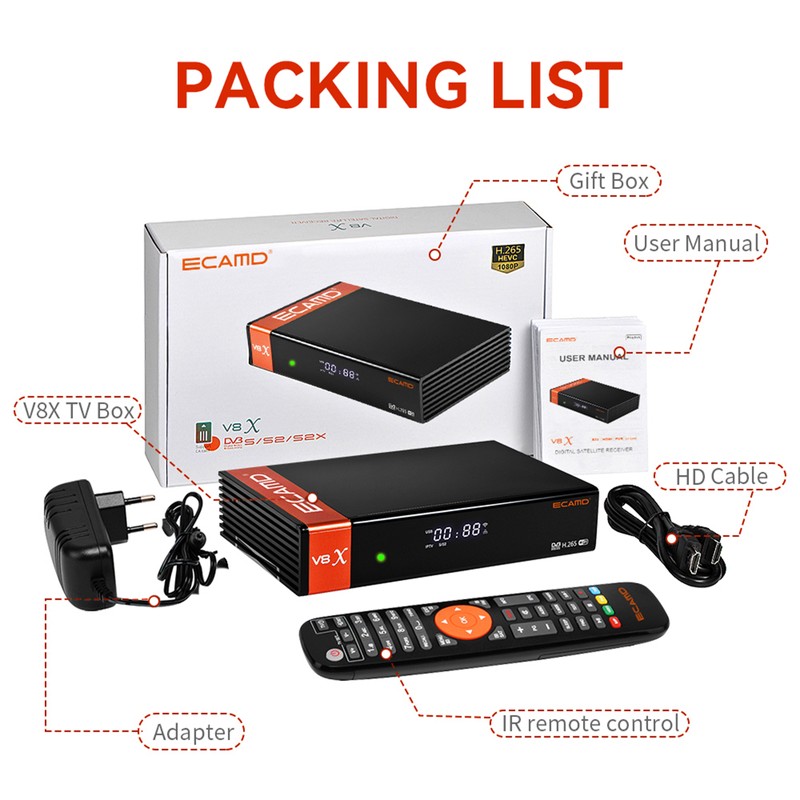

Package List:
1 * Set-top Box
1* Adapter

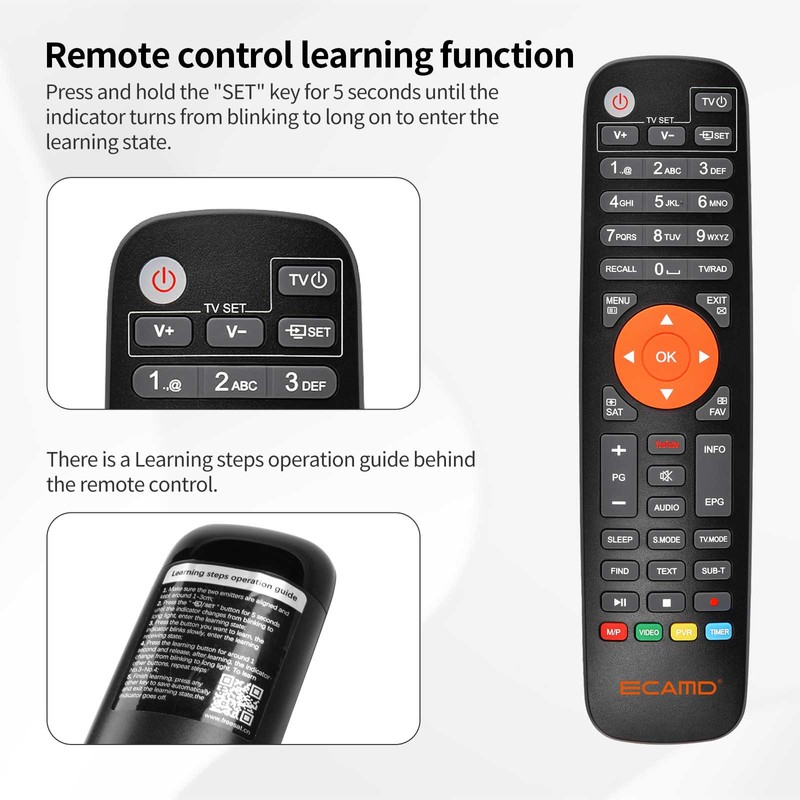

1* IR remote control
1* HD Cable
1* User Manual
1*Warranty card
