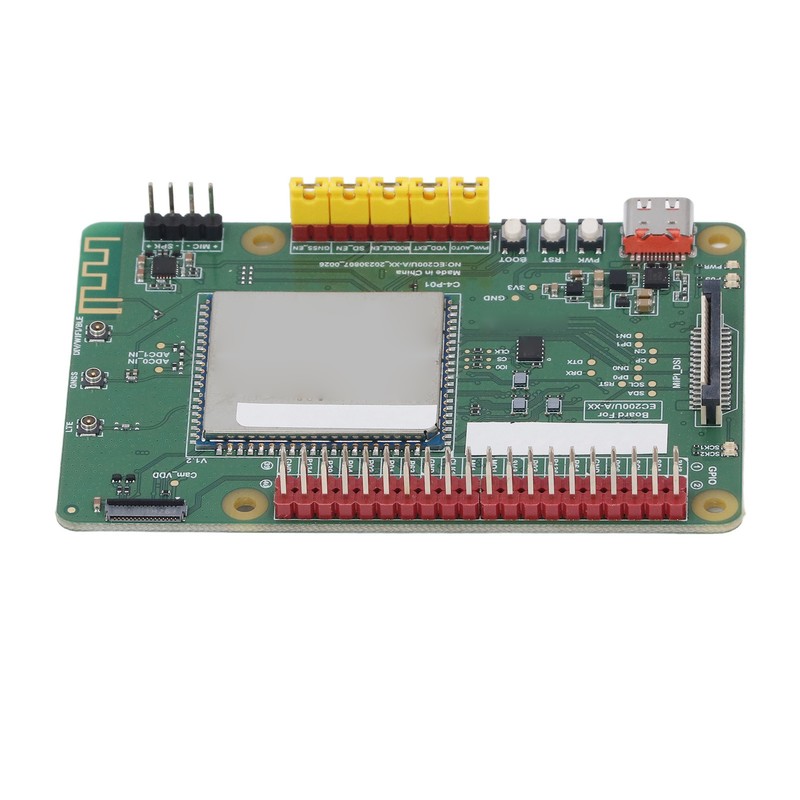

EC200U C4 P01 Development Board Pocket LTE Cat 1 Bluetooth Telecommunication GNSS Positioning 40PIN GPIO Interface Mainboard for Computer EC200U AU C4 P01

1、Professional Design: EC200U LTE Cat 1 wireless telecommunication module, multi mode and multi band; onboard 40PIN GPIO interface, compatible with most of the for RPi HAT expansion boards. 2、Protocol Support: Development board supports TCP, UDP, PPP, NITZ, FILE, MQTT, NTP, HTTP, HTTPS, SSL, FTP, FTPS, CMUX, MMS and other protocols. 3、GNSS Positioning, LED Indicator: GNSS positioning (for GPS, for GLONASS, for BDS, for Galileo, for QZSS); 5 LEDs on board for easy checking of module running status. 4、Onboard: Development board with onboard Nano SIM and eSIM slots, dual card single mode; onboard MIPI interface, support MIPI screen, compatible with for RPi peripherals. 5、Camera Interface: Support customized SPI camera, support 0.3MP; provide plug in tools such as for QPYcom, for Thonny IDE, for VSCode, etc., which is convenient for learning and development.

Isin: IM4CFCIDYHMJ

$63.39

  • Free shipping in US
  • Shipping: $14.5 Extended Delivery (Ships from overseas warehouse, 15-20 Business Days)
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
EC200U C4 P01 Development Board Pocket LTE Cat 1 Bluetooth Telecommunication GNSS Positioning 40PIN GPIO Interface Mainboard for Computer EC200U AU C4 P01

EC200U C4 P01 Development Board Pocket LTE Cat 1 Bluetooth Telecommunication ...

$63.39

1、Professional Design: EC200U LTE Cat 1 wireless telecommunication module, multi mode and multi band; onboard 40PIN GPIO interface, compatible with most of the for RPi HAT expansion boards. 2、Protocol Support: Development board supports TCP, UDP, PPP, NITZ, FILE, MQTT, NTP, HTTP, HTTPS, SSL, FTP, FTPS, CMUX, MMS and other protocols. 3、GNSS Positioning, LED Indicator: GNSS positioning (for GPS, for GLONASS, for BDS, for Galileo, for QZSS); 5 LEDs on board for easy checking of module running status. 4、Onboard: Development board with onboard Nano SIM and eSIM slots, dual card single mode; onboard MIPI interface, support MIPI screen, compatible with for RPi peripherals. 5、Camera Interface: Support customized SPI camera, support 0.3MP; provide plug in tools such as for QPYcom, for Thonny IDE, for VSCode, etc., which is convenient for learning and development.

More Information

Item Type: EC200U C4 P01 Development Board
Material: PCB
LTE TDD: B38 B40 B41
GSM: B2 B3 B5 B8
GNSS: for GPS, for GLONASS, for BDS, for Galileo, for QZSS
Bluetooth: 4.2 (BR EDR)
Wireless Fidelity Scan: 2.4 GHz 11b (Rx)
LTE FDD: 10 Mbps downlink; 5 Mbps uplink
LTE TDD: 8.96 Mbps downlink; 3.1 Mbps uplink
NB IoT: Not Supported
Cat M: Not Supported
GSM: downlink 85.6 Kbps; uplink 85.6 Kbps
Telecommunication Protocols: TCP, UDP, PPP, NITZ, FILE, MQTT, NTP, HTTP, HTTPS, SSL, FTP, FTPS, CMUX, MMS

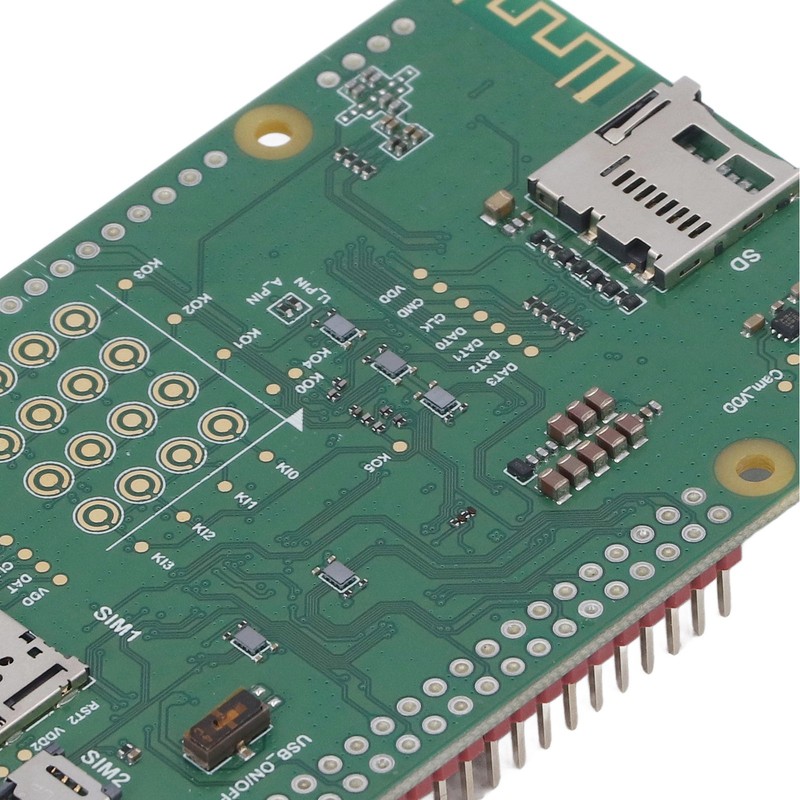

SIM Card: Nano SIM and eSIM Dual SIM Single Mode (Not Included)
Indicator Light:
P01: Module Pin 1, Default is EC200A XX PWM0
P05: Module Pin 5, for NET_MODE Indicator
SCK1: SIM1 Detection Indicator, on when SIM1 Card Is Inserted
SCK2: SIM2 Detection Indicator, on when SIM2 Card Is Inserted
PWR: Power Indicator
Key Switch:
PWK: Power On Off Button
RST: Reboot Button
BOOT: Force Download Button
USB ON OFF: USB Detection Switch
Antennae Interface: LTE Main Antennae, Diversity Antennae, Wireless Fidelity Antennae (Scanning Only), Bluetooth Antennae, GNSS Antennae

Notice

Consult with the operator to verify if the device supports the frequency bands.
