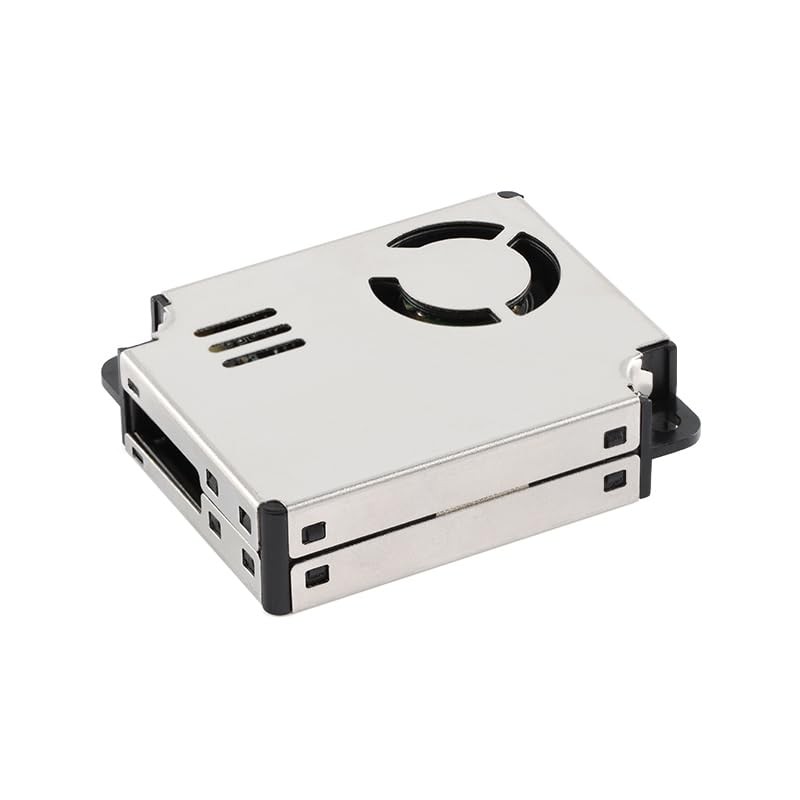

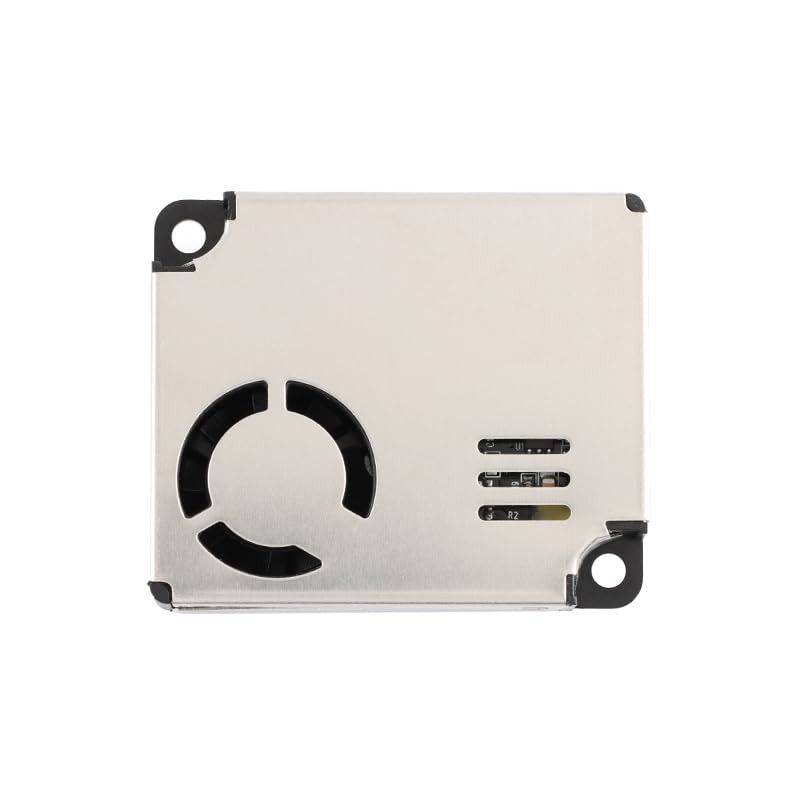

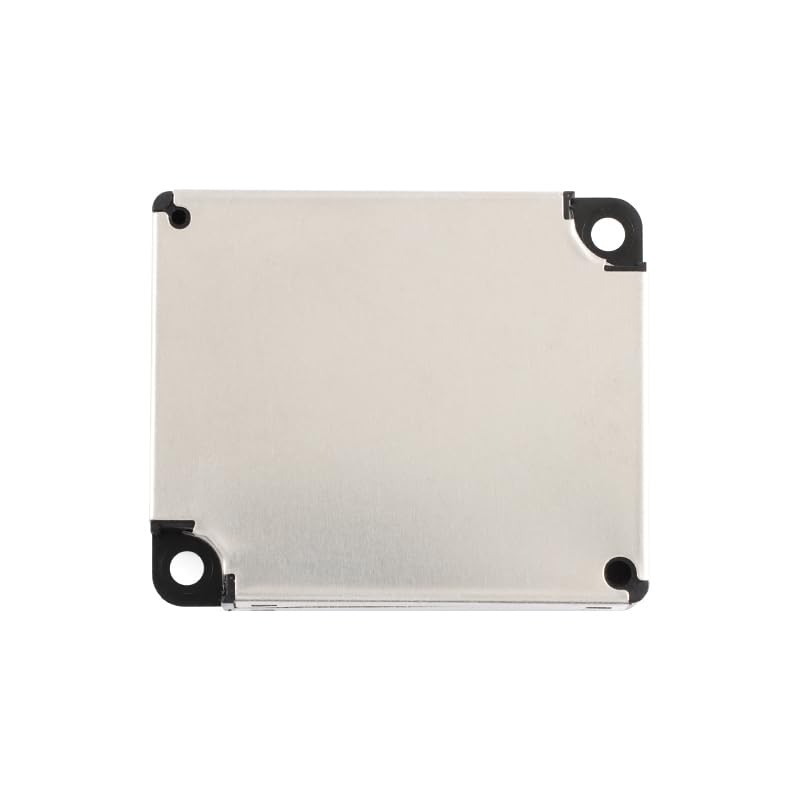

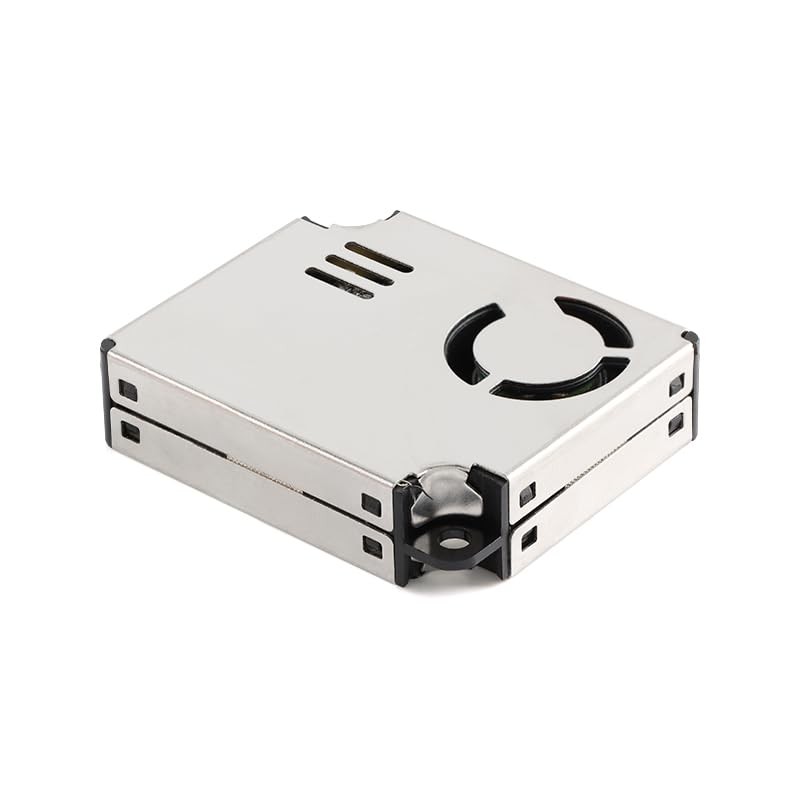

EC Buying D9 PM2.5 Laser Sensor Module Air Quality Detection Module Digital Laser Dust Particle Sensor Dust Sensor Air Conditioning Monitor Module
$32.38
- $5.95 shipping from United States
-
Arrives
- Utilizing laser scattering technology, the D9 laser particle sensor ensures precise measurement of PM2.5 particles for indoor air quality monitoring
- Experience zero error alerts with real-time response and continuous data collection, making it an ideal choice for an indoor air quality tester
- With a minimum resolution of 0.3μM, the D9 sensor provides accurate particle concentration distribution, perfect for air quality monitors
- The patented design with six-sided shielding enhances interference resistance, ensuring reliable performance for your air quality monitor
- At just 12mm thin, the D9 sensor module is ultra-slim and portable, suitable for embedding in various air quality improvement devices
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Utilizing laser scattering technology, the D9 laser particle sensor ensures precise measurement of PM2.5 particles for indoor air quality monitoring
- Experience zero error alerts with real-time response and continuous data collection, making it an ideal choice for an indoor air quality tester
- With a minimum resolution of 0.3μM, the D9 sensor provides accurate particle concentration distribution, perfect for air quality monitors
- The patented design with six-sided shielding enhances interference resistance, ensuring reliable performance for your air quality monitor
- At just 12mm thin, the D9 sensor module is ultra-slim and portable, suitable for embedding in various air quality improvement devices
Main characteristics
Laser scattering principle achieves precise measurement
Zero error alarm rate
Real time response and support for continuous acquisition
MIN resolution particle size 0.3 μ M
New patented structure, six sided all-round shielding, stronger anti-interference performance
Ultra thin design, only 12 millimeters, suitable for portable devices
PIN1 VCC power supply 5V
PIN2 GND power supply ground
PIN3 NC NC
PIN4 RXD serial port receiving pin (3 3V level)
PIN5 TXD serial port sending pin (3 3V level)
PIN6 RESET is suspended during use. Connecting low will cause the module to malfunction.
PIN7 NC NC
PIN8 PWM PWM pulse width signal output pin (3 3V level)
Measurement range: 0.3-10 μ m micrometers
Effective range of particulate matter mass concentration: 700 μ g/m3 microgram/cubic meter
Particle concentration in MAX range: ≥ 1000 μ g/m3 micrograms/cubic meter
Resolution of particulate matter mass concentration: 1 μ g/m3 microgram/cubic meter
Accurate volume: 0.1 L liters
Particle quantity range: 0-65535/0 IL
DC power supply voltage: 4.90-5.10 V volts
Interface voltage level: 2.7-3.6 V volts
MAX working current: 70 mA milliampere
Response time: 1 second
Working temperature: -10-60 ° C Celsius
Storage temperature: -30-80 ° C Celsius
Working humidity (non condensing): 40% -80% RH
Storage humidity (non condensing): 0% -95% RH
Consistency of particulate matter mass concentration: ± 10% μ g/m3 microgram/cubic meter (≥ 100 ug/m3)
Product lifespan: ≥ 3 years

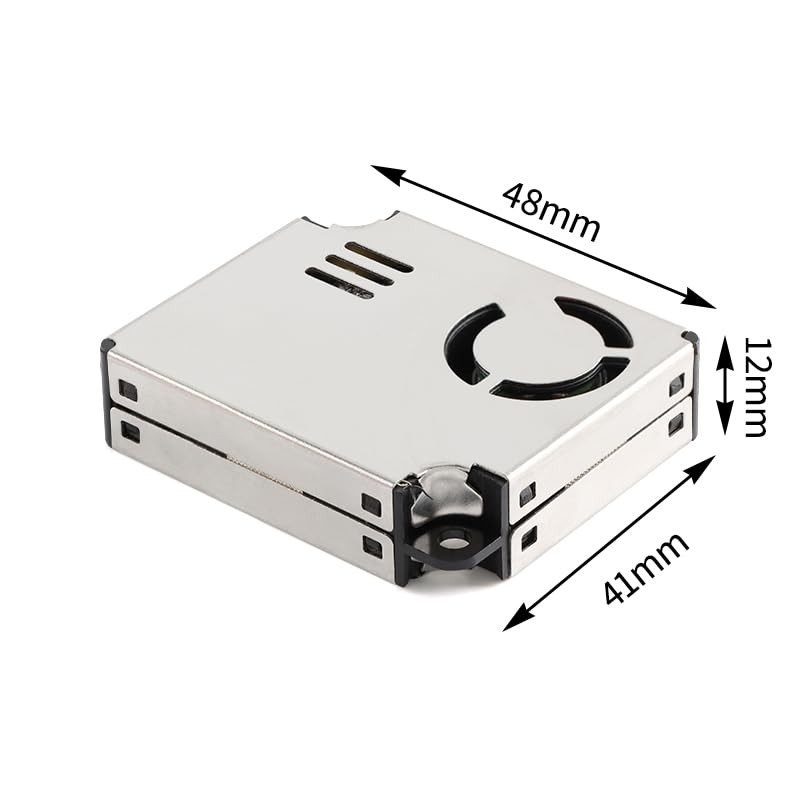

MAX size: 48X40X12 millimeters (mm)
