Dujelixa 3-in-12-out Lever Terminal Block Kit, Triple Input to Twelve Output Splicing Connectors, DIN Rail/Screw Mount, for 28-12AWG Conductors, Includes 8 Kits
Dujelixa 3-in-12-out Lever Terminal Block Kit, Triple Input to Twelve Output Splicing Connectors, DIN Rail/Screw Mount, for 28-12AWG Conductors, Includes 8 Kits
Dujelixa 3-in-12-out Lever Terminal Block Kit, Triple Input to Twelve Output Splicing Connectors, DIN Rail/Screw Mount, for 28-12AWG Conductors, Includes 8 Kits

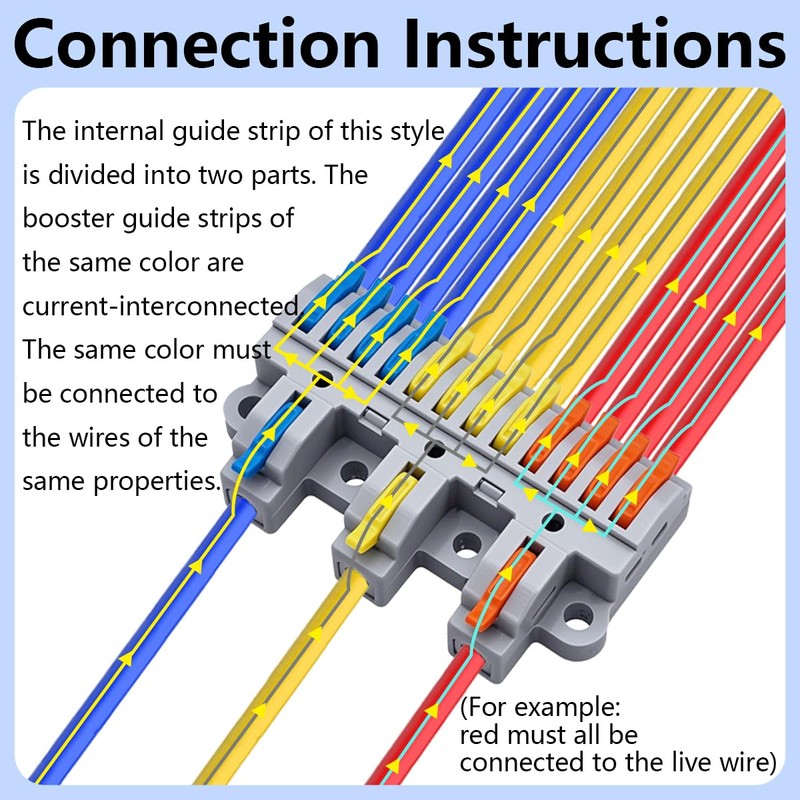

- ✔️Advanced Three In Twelve Out Wiring: Manage multiple circuits with these 3-in-12-out lever terminal blocks. Capable of connecting three input lines to twelve output lines, this block is perfect for complex distribution tasks, all with a simple, tool-free lever operation for secure connections.
- ✔️Dual Mounting System: The kits provide flexible installation methods. Use the included DIN rail brackets for standard panel assembly or the provided screws for secure direct surface mounting. The compact footprint (Dimensions after DIN rail bracket installation: 40x66x33mm; Dimensions after screw installation: 38.5x66x15mm) ensures a tidy fit in various enclosures.

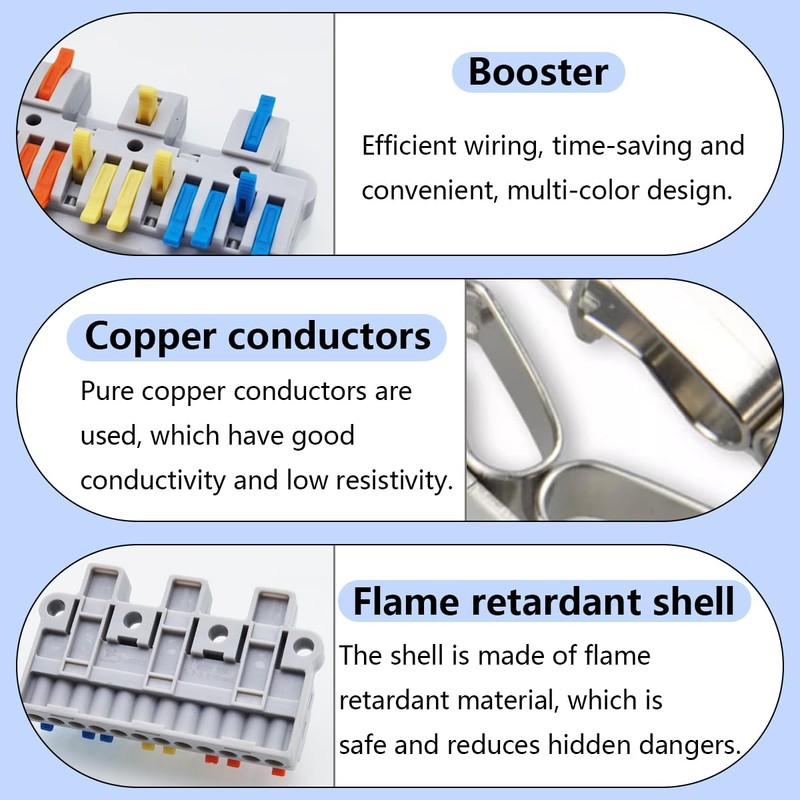

- ✔️Quality Construction for Reliability: Crafted with a safety-focused flame-retardant PA66 enclosure, dependable stainless steel springs for lasting tension, and superior purple copper contact points for minimal resistance. Designed to handle 32A and 600V for trustworthy performance.

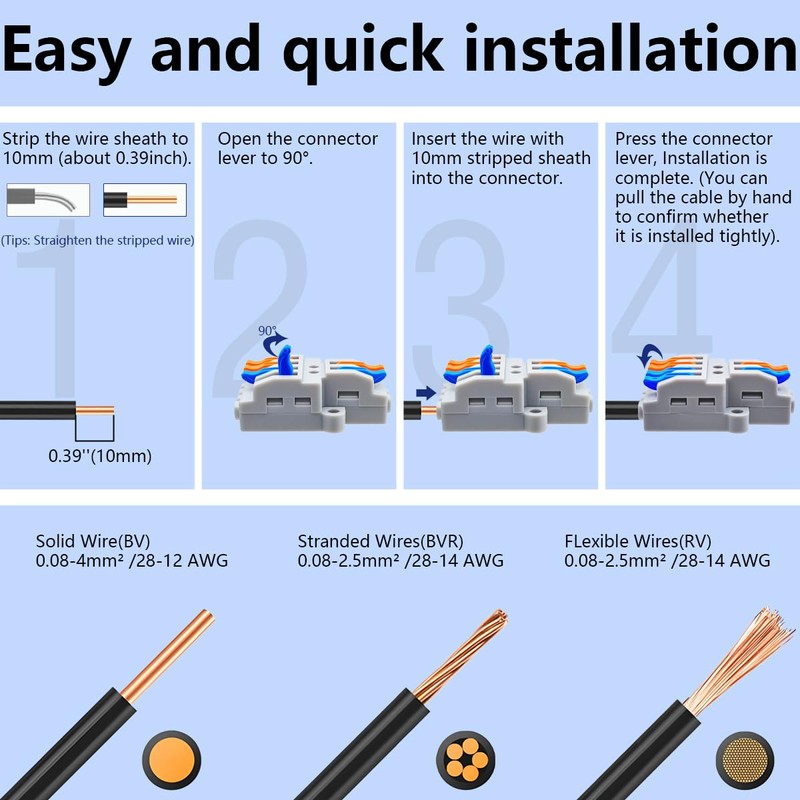

- ✔️Wide-Ranging Wire Acceptance: Suitable for a variety of wires, including solid conductors 0.08-4mm²/28-12 AWG and flexible/stranded conductors 0.08-2.5mm²/28-14AWG, The required wire stripping length is 10mm. A versatile choice for DIY projects and professional use.

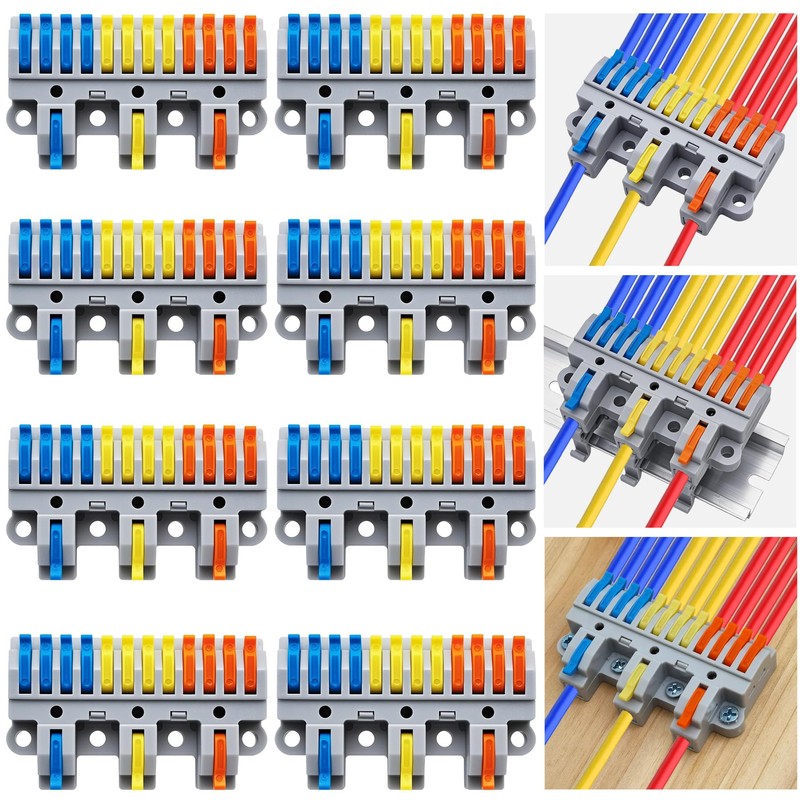

- ✔️Complete Pack & Usage Info: Comes with 8pcs 3-in-12-out terminal block, 16pcs brackets required for DIN rail mounting and a pack of mounting screws. (Please note: These connectors are designed for dry indoor environments only and are not water or moisture resistant.)
| Brand: | Dujelixa |
|---|---|
| Manufacturer: | Dujelixa |
| Part Number: | D6RPTJH |
| Isin: | IOJ6CC7L5ZVA |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Model: Three In Twelve Out Lever Terminal Block (3-in-12-out)
Configuration: Triple Input(s), Twelve Output(s)
Quantity: 8 Sets (Connectors, DIN Brackets, Screws)
Rated current: 32A
Rated voltage: 600V
Wire Range: Solid 0.08-4mm² (28-12AWG); Stranded 0.08-2.5mm² (28-14AWG)
Strip Length: 10mm
Housing: Flame Retardant PA66
Spring: Stainless Steel
Contact: Purple Copper

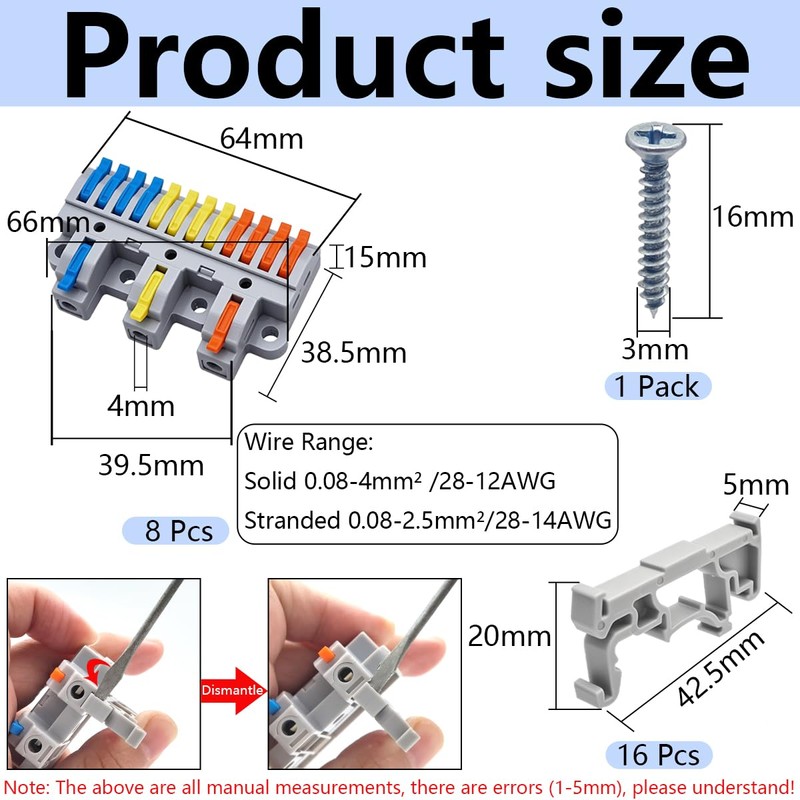

Dimensions after installing the guide rail bracket: 40x66x33mm
Dimensions after screw installation: 38.5x66x15mm
Key Selling Points:
⭐This 8-set pack of 3-in-12-out lever terminal blocks allows for sophisticated wiring, distributing three inputs to twelve outputs.
⭐The tool-free lever system offers rapid and secure wire connections. Flexible installation is ensured with included DIN rail brackets and screws.
⭐Constructed from high-quality flame-retardant material, robust stainless steel springs, and conductive purple copper contacts, these blocks are rated for 32A/600V, prioritizing safety and durability.
Note:
Dry use only, Not designed for humid or wet conditions.

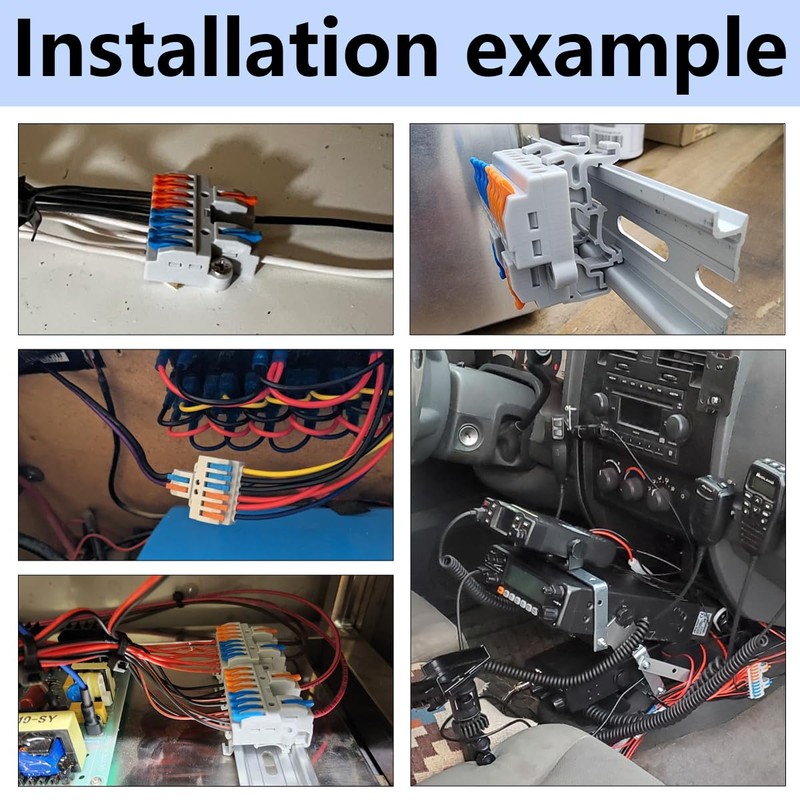

Usage Scenarios:
The 3-in-12-out configuration is ideal for complex electrical distribution where multiple input sources feed numerous circuits.
Perfect for professional electricians managing multi-phase distribution in control panels, or for advanced DIYers creating zoned lighting or power systems.
Also useful in workshops for test benches or machinery requiring segregated power/signal distribution to twelve points from three distinct inputs, in dry locations.
