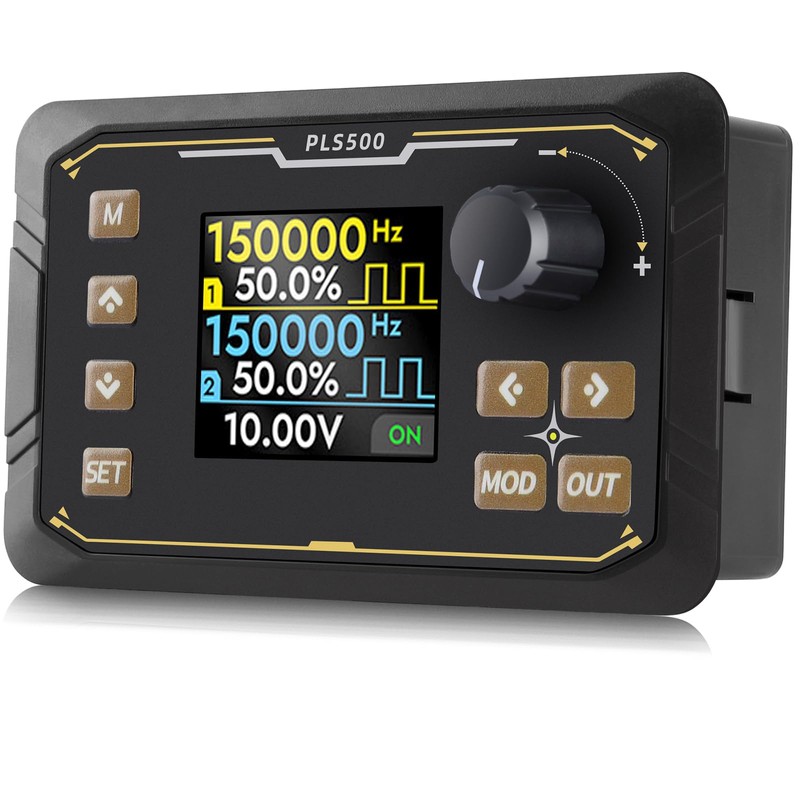

Dual-Channel Pulse Signal Generator with Adjustable servo Motor Drive
$79.99
- $5.99 shipping from United States View details
-
Arrives

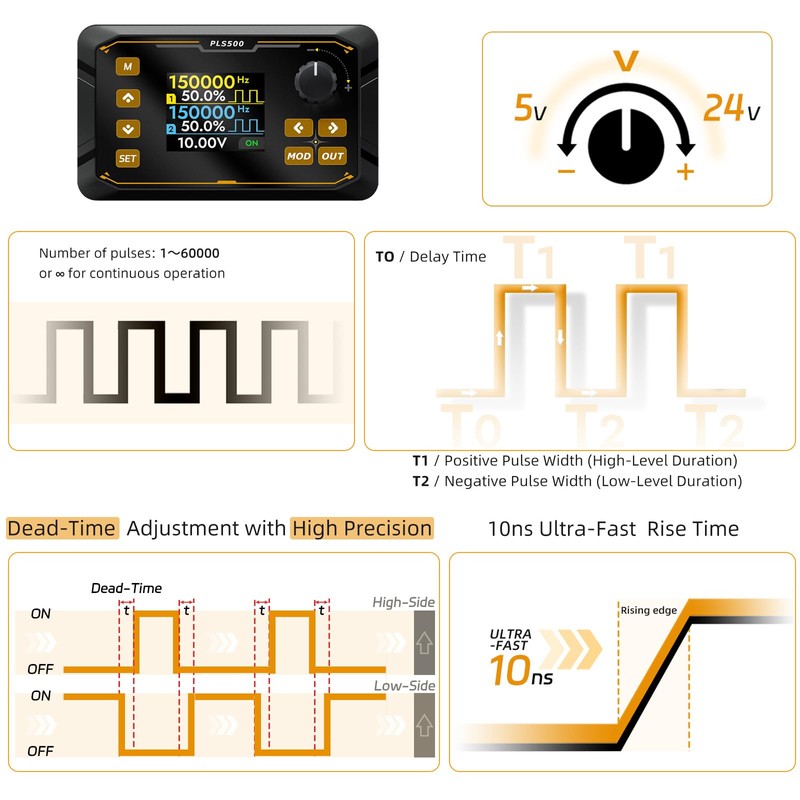

- Powerful pulse control function: It can output pulse waves and PWM waves, supports precise pulse sequences, and allows setting the number of pulses from 1 to 60,000 or infinity, as well as setting the delay output time. Positive pulse width, negative pulse width, and complementary mode can also set the dead time

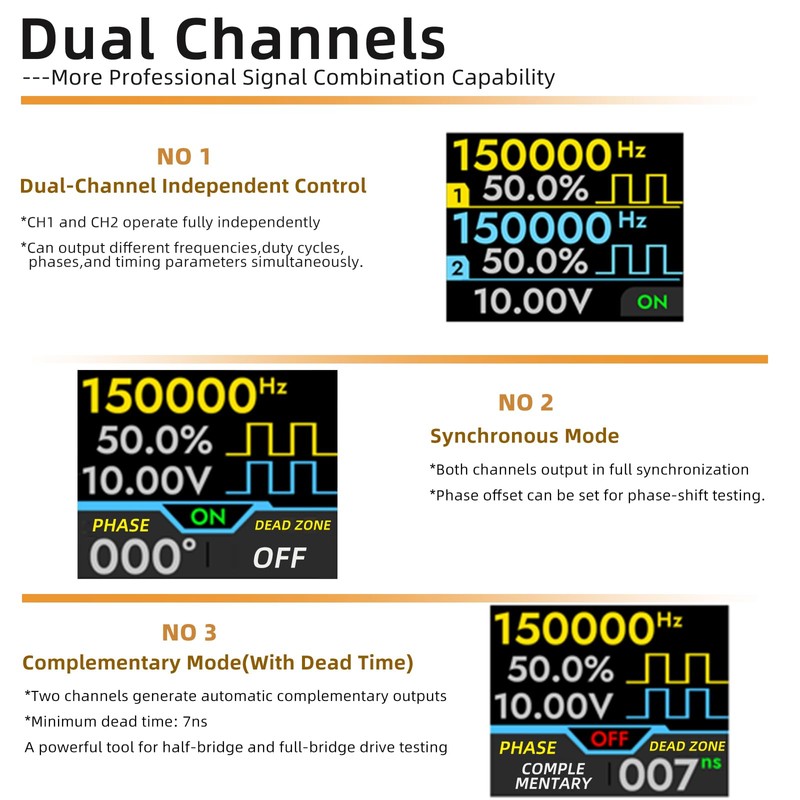

- Rich dual-channel modes: ① Dual-channel independent adjustment: CH1/CH2 are completely independent and can simultaneously output different frequencies/duty ratios/phases/waveform times; ② Dual-channel fully synchronized: Phase offset can be set to achieve phase testing; ③ Dual-channel automatic complementary output: Minimum dead time is 7ns, a powerful tool for half-bridge/full-bridge drive testing

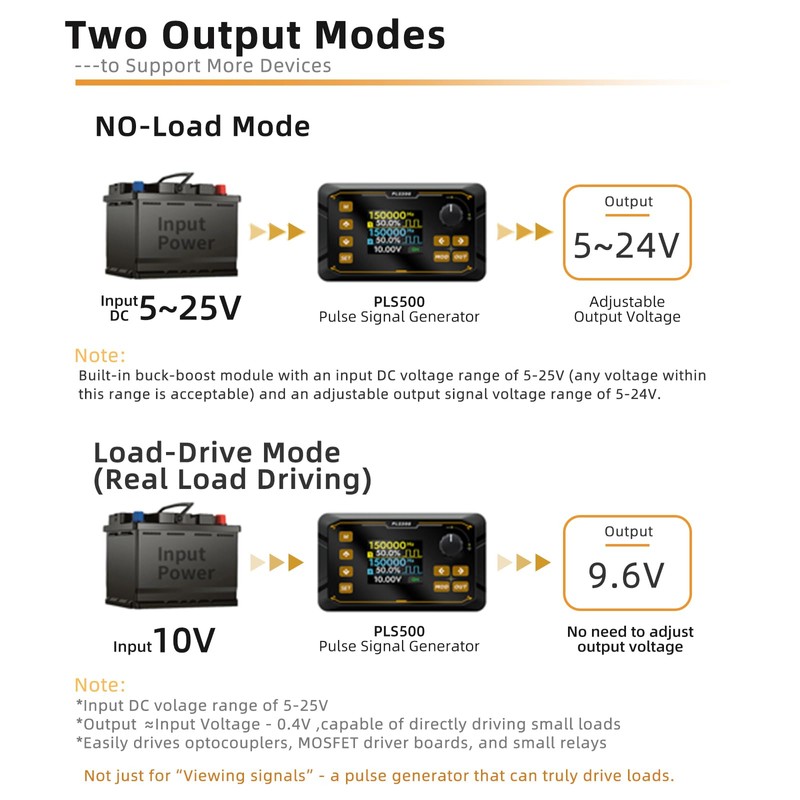

- Two output capabilities: ① No-load mode: Input DC voltage is 5-25V, and the output voltage can be continuously adjusted from 5-24V; ② Loaded mode: Input DC voltage range is 5-25V, and the output voltage can be 4.6-24.6V without adjustment, directly driving small load devices such as optocouplers/MOS driver boards/small relays to easily drive.
- High-frequency precise control from 1Hz to 500kHz: Low frequency is stable, high frequency is square, with a step of 1Hz, suitable for sweep frequency and fine adjustment.
- Application scenarios: Suitable for precise testing, motor control, pulse modulation, and scenarios requiring complex pulse parameters
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Powerful pulse control function: It can output pulse waves and PWM waves, supports precise pulse sequences, and allows setting the number of pulses from 1 to 60,000 or infinity, as well as setting the delay output time. Positive pulse width, negative pulse width, and complementary mode can also set the dead time
- Rich dual-channel modes: ① Dual-channel independent adjustment: CH1/CH2 are completely independent and can simultaneously output different frequencies/duty ratios/phases/waveform times; ② Dual-channel fully synchronized: Phase offset can be set to achieve phase testing; ③ Dual-channel automatic complementary output: Minimum dead time is 7ns, a powerful tool for half-bridge/full-bridge drive testing
- Two output capabilities: ① No-load mode: Input DC voltage is 5-25V, and the output voltage can be continuously adjusted from 5-24V; ② Loaded mode: Input DC voltage range is 5-25V, and the output voltage can be 4.6-24.6V without adjustment, directly driving small load devices such as optocouplers/MOS driver boards/small relays to easily drive.
- High-frequency precise control from 1Hz to 500kHz: Low frequency is stable, high frequency is square, with a step of 1Hz, suitable for sweep frequency and fine adjustment.
- Application scenarios: Suitable for precise testing, motor control, pulse modulation, and scenarios requiring complex pulse parameters
Output channel: CH1 + CH2
Frequency range: 1Hz to 500kHz
Step size: 1Hz
On-off ratio: 0 to 100%, 0.1% step
Rise time: 10ns
Phase: 0° to 359°
T0 delay time: 0 to 60s (0.001s step)
T1 positive pulse width: 0 to 60s (0.001s step)
T2 negative pulse width: 0 to 60s (0.001s step)
Pulse count: 1 to 60000 or ∞
PWM mode: Normal / Inversion (with dead time)
Output voltage: DC5 to 24V adjustable (supports load)
Display: 1.8-inch color screen

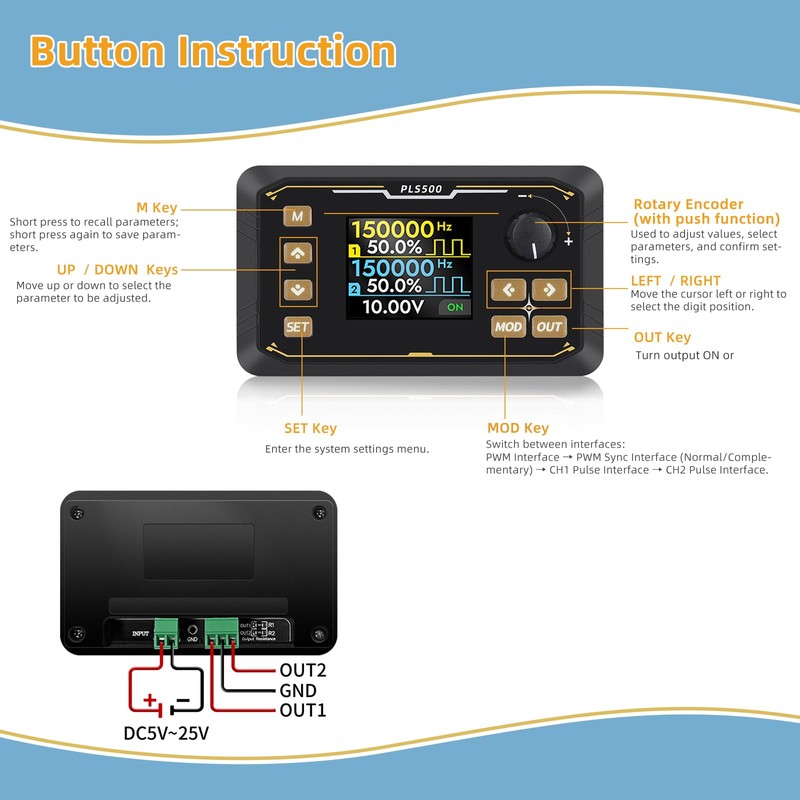

Operation mode: Encoder + buttons
List:
1* Signaler
1* Instruction Manual
1* 2-Pin Green Connector
1* 3-Pin Green Connector
