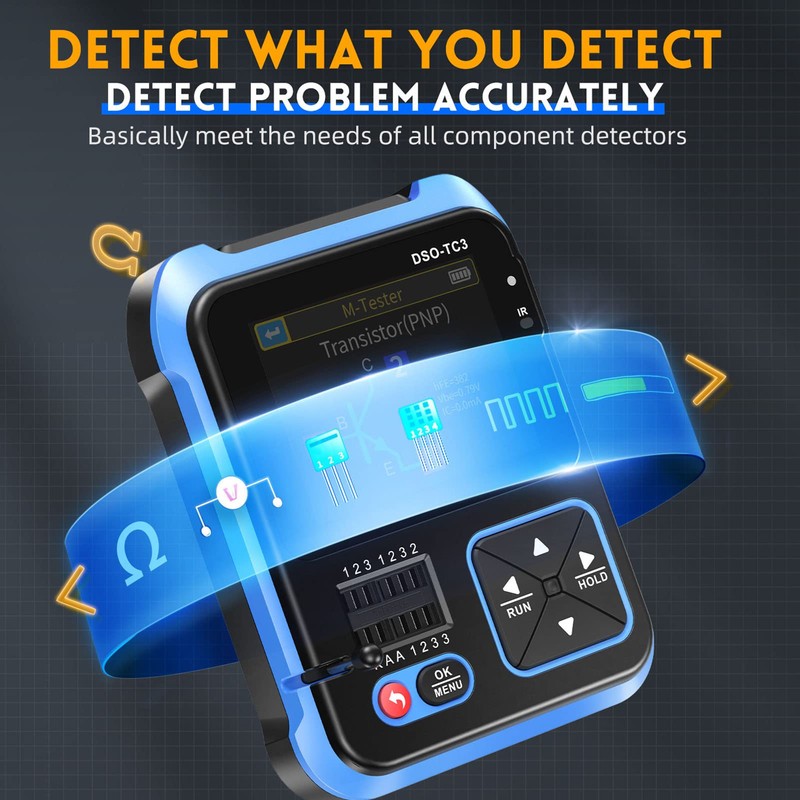

DSO TC3 Osciloscopio Digital Transistor Tester Medidor LCR 3 en 1 Mini Osciloscopio Digital Portátil de Mano (Configuración alta)
$162.30
- $9.99 shipping from Mexico View details
-
Arrives
- PANTALLA DE PANTALLA DE INTERFAZ MÚLTIPLE: El osciloscopio puede probar diferentes funciones y admitir la visualización de pantalla de interfaz múltiple. Con el diseño del teclado, es más conveniente operar y seleccionar diferentes modos de función de prueba

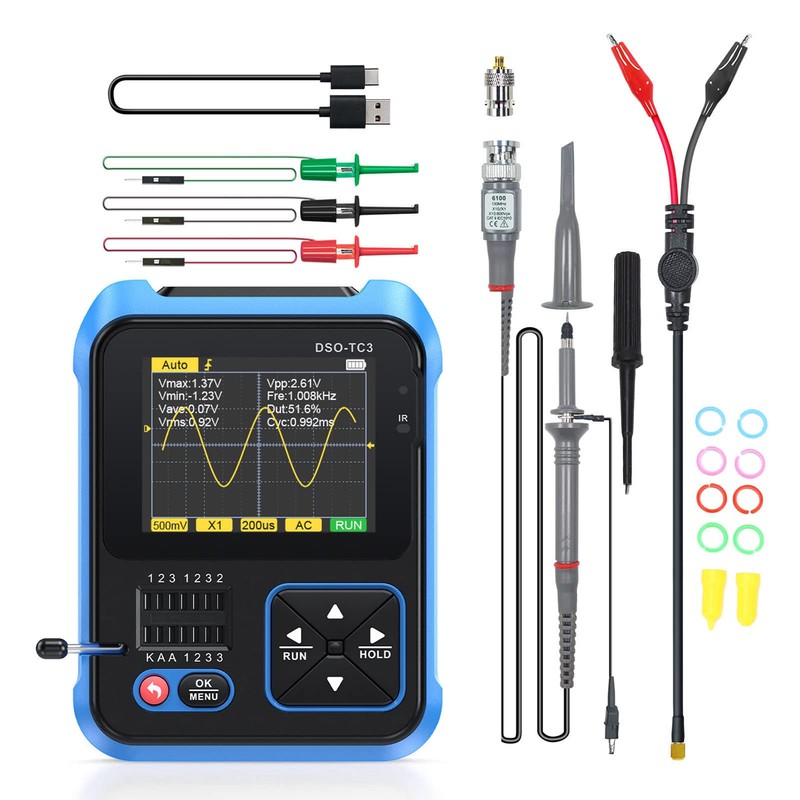

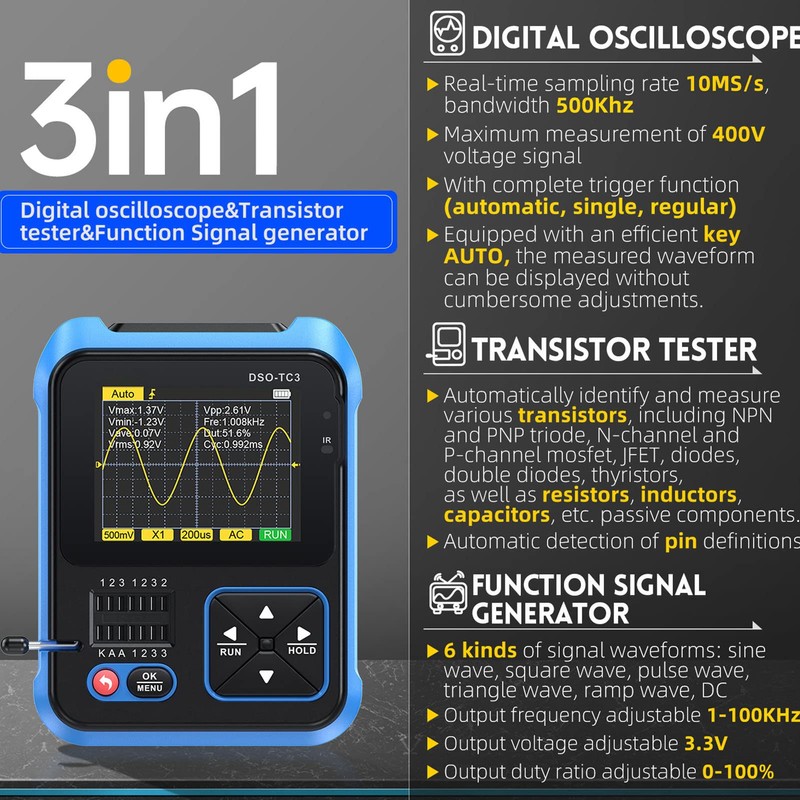

- Práctico y 3 en 1: este osciloscopio digital, probador de componentes electrónicos y función de generador de señal PWM, combinados en . El osciloscopio tiene una frecuencia de muestreo en tiempo real y un ancho de banda de 500 kHz. Se pueden medir señales de voltaje de hasta 400 V.

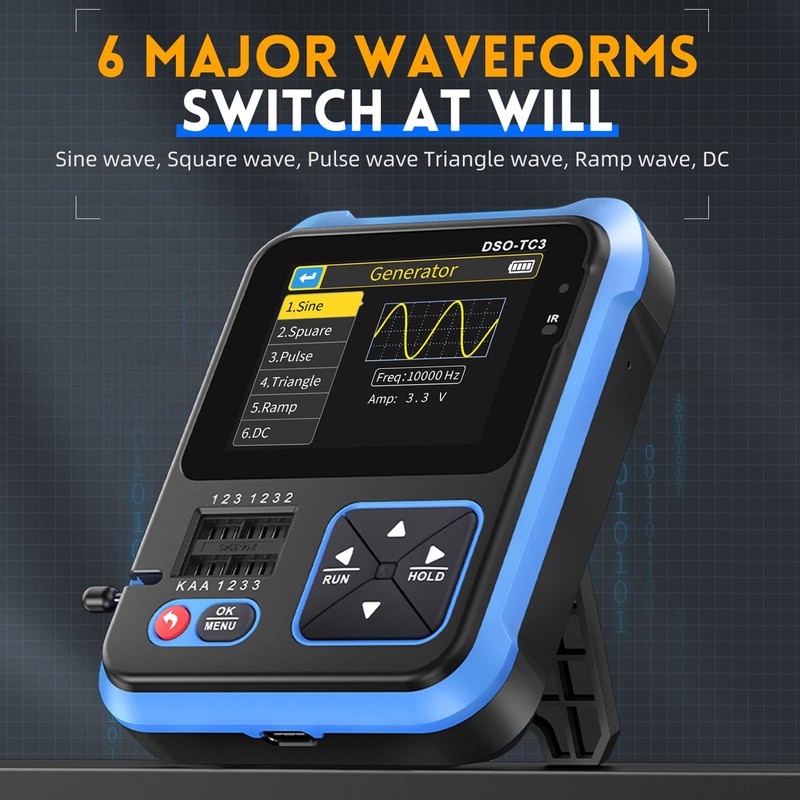

- SALIDA DE FRECUENCIA DE FORMA DE ONDA SINusoidal: El generador de señal tiene 5 formas de onda básicas incorporadas, salida de frecuencia de forma de onda sinusoidal 1-10KHz 0-3.3V 50%, sensibilidad vertical de 10mV a 10V, rango de base de tiempo horizontal 1us-10s, se pueden obtener más datos de forma de onda por unidad de tiempo, lo que hace que la forma de onda sea más precisa
- ARTÍCULOS APLICABLES: El osciloscopio es compatible con la operación en línea de la PC, que es especialmente adecuada para el emparejamiento rápido de transistores, la identificación de componentes mixtos de montaje frontal y sin palabras, y la detección inicial de componentes de lotes pequeños. Puede identificar y medir automáticamente varios transistores, incluidos transistores NPN y PNP, diodos, diodos dobles, etc.
- CON PANTALLA TFT: El osciloscopio funciona con una batería integrada de 1500 mA, que se cargará por completo en 1‑2 horas a través de un adaptador de 5 V 2 A y puede funcionar durante 4 horas (indicador verde de finalización/indicador rojo de carga). El osciloscopio portátil de bolsillo y probador de transistores está diseñado con una pantalla TFT de alta resolución de 2,4 pulgadas con retroiluminación ajustable. Mejor experiencia de lectura y fácil de usar.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- PANTALLA DE PANTALLA DE INTERFAZ MÚLTIPLE: El osciloscopio puede probar diferentes funciones y admitir la visualización de pantalla de interfaz múltiple. Con el diseño del teclado, es más conveniente operar y seleccionar diferentes modos de función de prueba
- Práctico y 3 en 1: este osciloscopio digital, probador de componentes electrónicos y función de generador de señal PWM, combinados en . El osciloscopio tiene una frecuencia de muestreo en tiempo real y un ancho de banda de 500 kHz. Se pueden medir señales de voltaje de hasta 400 V.
- SALIDA DE FRECUENCIA DE FORMA DE ONDA SINusoidal: El generador de señal tiene 5 formas de onda básicas incorporadas, salida de frecuencia de forma de onda sinusoidal 1-10KHz 0-3.3V 50%, sensibilidad vertical de 10mV a 10V, rango de base de tiempo horizontal 1us-10s, se pueden obtener más datos de forma de onda por unidad de tiempo, lo que hace que la forma de onda sea más precisa
- ARTÍCULOS APLICABLES: El osciloscopio es compatible con la operación en línea de la PC, que es especialmente adecuada para el emparejamiento rápido de transistores, la identificación de componentes mixtos de montaje frontal y sin palabras, y la detección inicial de componentes de lotes pequeños. Puede identificar y medir automáticamente varios transistores, incluidos transistores NPN y PNP, diodos, diodos dobles, etc.
- CON PANTALLA TFT: El osciloscopio funciona con una batería integrada de 1500 mA, que se cargará por completo en 1‑2 horas a través de un adaptador de 5 V 2 A y puede funcionar durante 4 horas (indicador verde de finalización/indicador rojo de carga). El osciloscopio portátil de bolsillo y probador de transistores está diseñado con una pantalla TFT de alta resolución de 2,4 pulgadas con retroiluminación ajustable. Mejor experiencia de lectura y fácil de usar.
Tipo de artículo: Osciloscopio digital

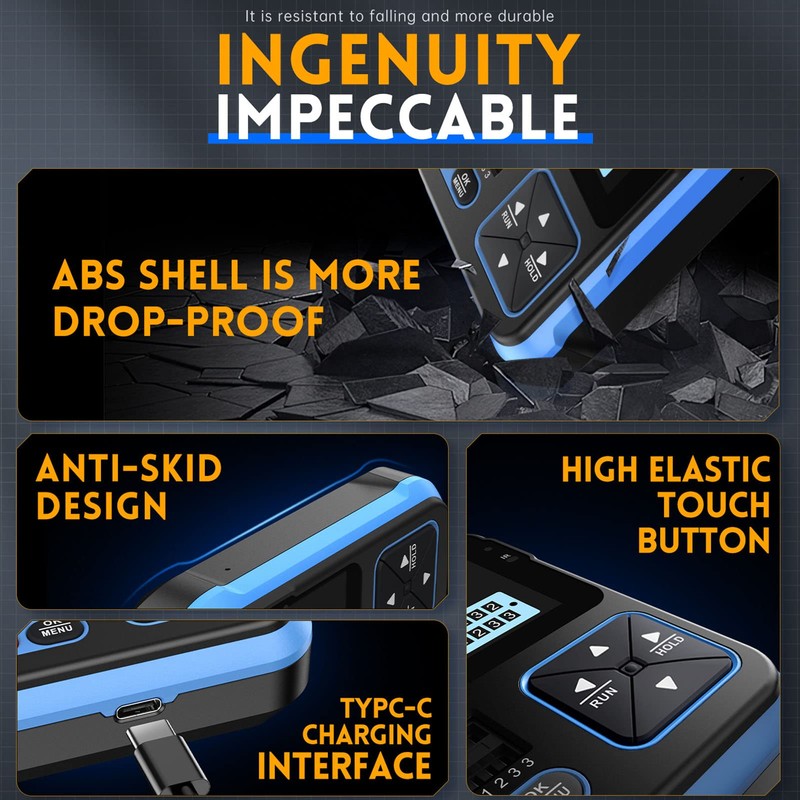

Material: ABS
Parámetros principales de la máquina

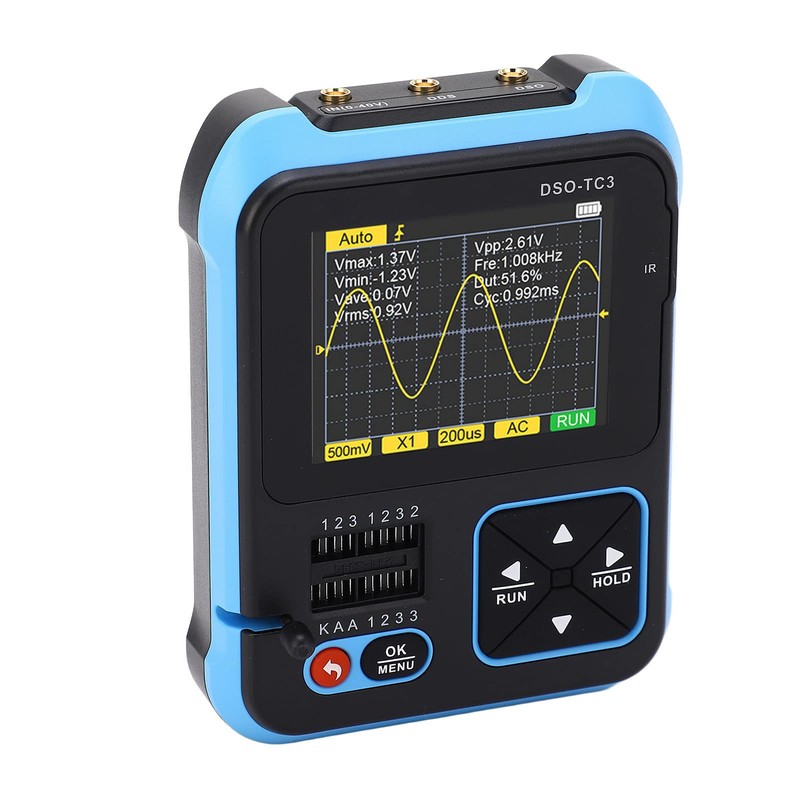

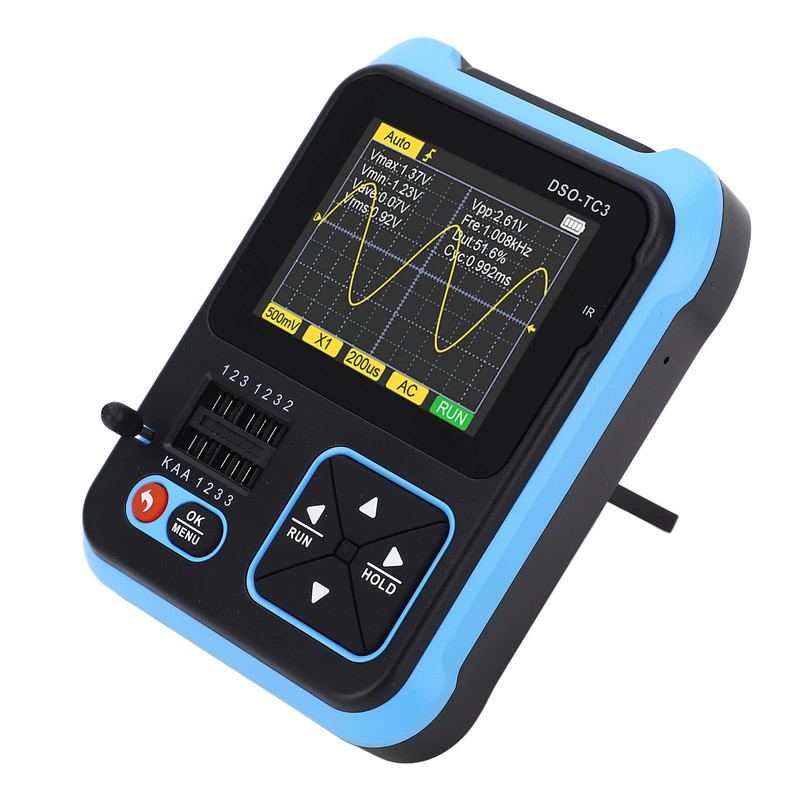

Modelo DSO TC3
Pantalla Pantalla a color TFT de 2,4 pulgadas, retroiluminación LED
Voltaje de la fuente de alimentación1 batería de polímeros de litio 803450 de 1500 mah (se envía con batería integrada)
Especificaciones de cargaUSB tipo C
Especificaciones del soporteSoporte plegable de una pieza
Parámetros del modo de osciloscopio digital
Tiempo real Tasa de muestreo 10MSa/s
Ancho de banda analógico 500Khz
Impedancia de entrada 1MO
Método de acoplamiento CA o CC
Rango de voltaje de prueba ±400V
Sensibilidad vertical 10mV-10V
Rango de base de tiempo horizontal 1us-10s
Modo de disparo Automático, Normal, Único
Tipo de disparo Flanco ascendente o flanco descendente
Congelación de forma de onda Sí
Medición automática Sí
Modo de prueba de componentes Parámetros
Clase Rango Descripción
Triodo β mayor que 10 menor que 600 Ampliación hfe, voltaje del emisor base Ube, lc/le, corriente de corte inverso del emisor del colector lceo, lces, caída de voltaje directo del diodo de protección Uf
Diodo Caída de tensión directa Caída de tensión directa, capacitancia de unión, corriente de fuga inversa
Diodo regulador de tensión 0,01-4,5 V (área de prueba 1 2 3) Caída de tensión directa, tensión disruptiva inversa
0,01-32 V (prueba K A A área) tensión de ruptura inversa
Tubo de efecto de campo JFET Capacitancia de compuerta Cg, corriente de drenaje ld en Vgs, caída de tensión directa del diodo de protección Uf
IGBT Corriente de drenaje ld en Vgs, caída de tensión directa del diodo de protección Uf
MIOSTET Voltaje de encendido Vt, capacitor de compuerta Cg, resistencia de drenaje Rds, diodo de protección caída de voltaje directo Uf
Tiristor unidireccional Voltaje de encendido Voltaje de
