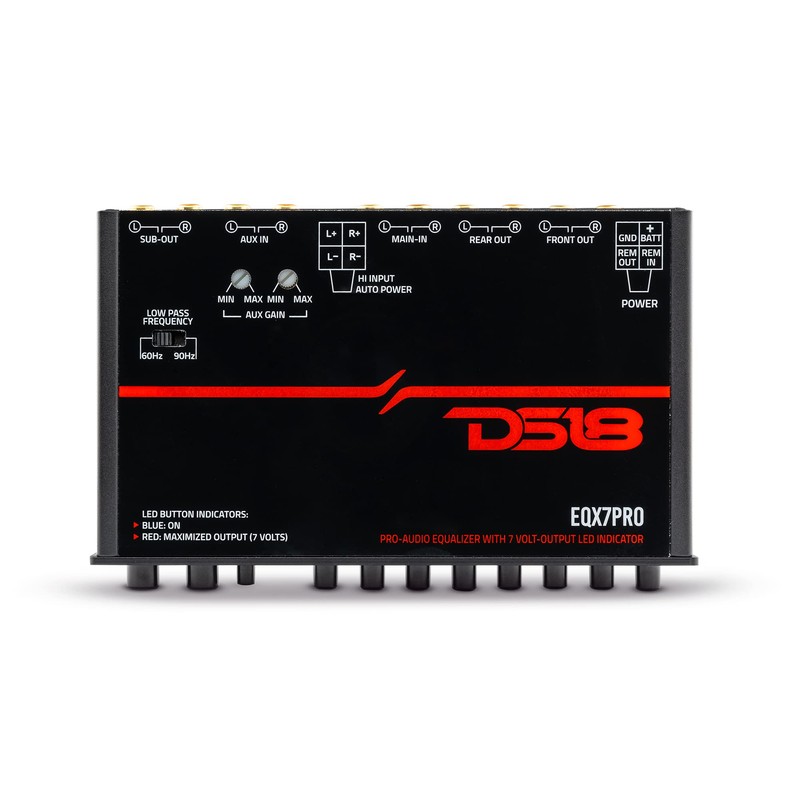

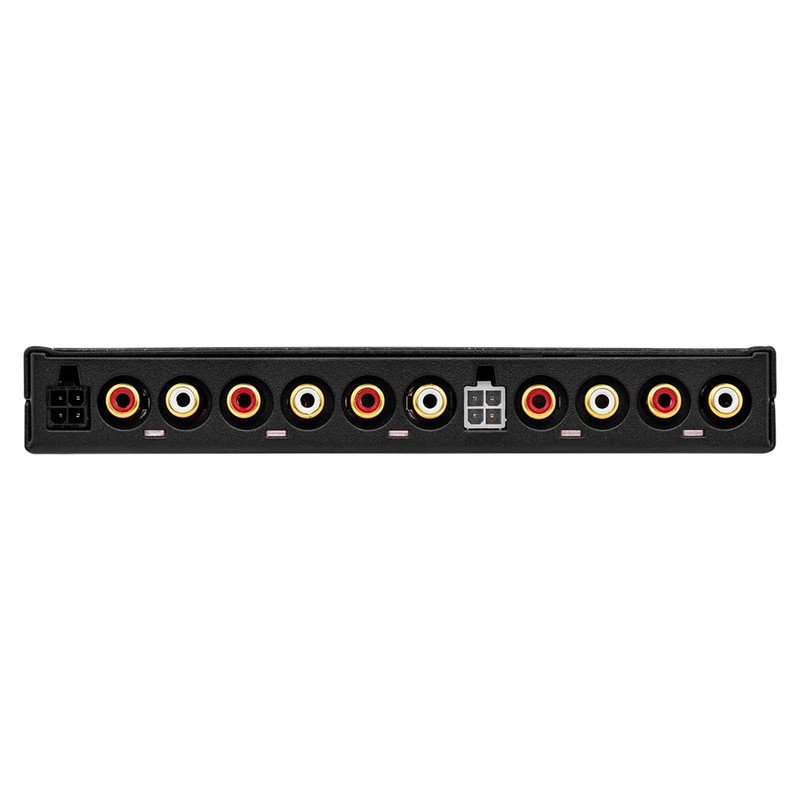

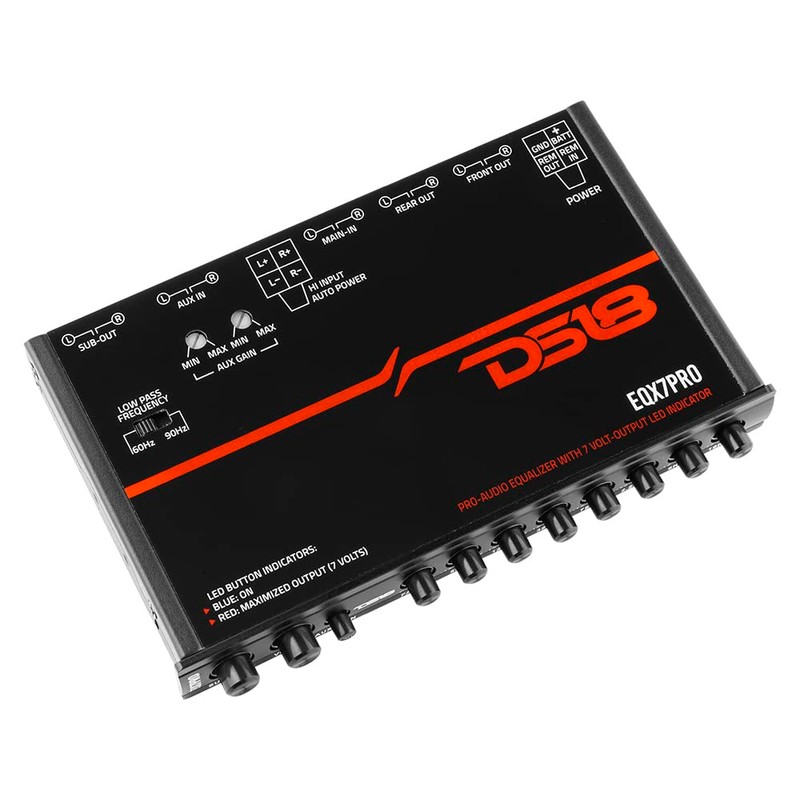

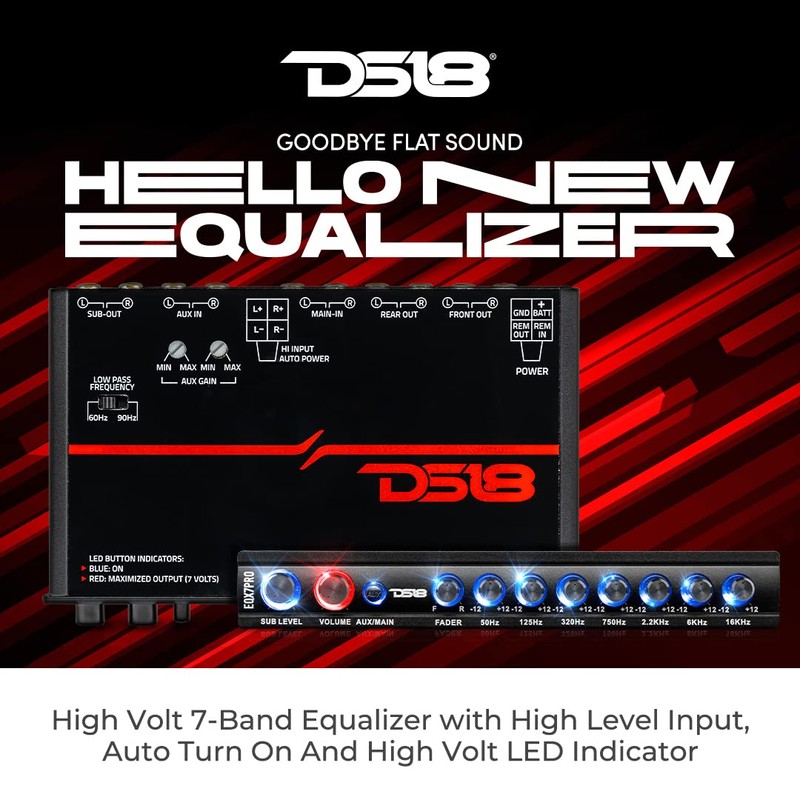

DS18 EQX7PRO Audio Equalizer/Crossover High Level Input 7-Band Auto Turn On, Subwoofer Output, Adjustable Filters, High Volt Led Indicator, RCA Input - Great for Finely Adjusting Amplifiers Ranges

$254.75

  • $5.95 shipping from United States
  • Arrives

  • STEREO EQUALIZER / CROSSOVER - Take complete control of your audio with the best high-strength 7-band stereo equalizer / crossover available in aftermarket audio: DS18’s EQX7PRO! The EQX7PRO pushes your system past its limits by strengthening its signal and clearing distortion!
  • FREQUENCIES ADJUSTABLE - All 7 Bands (50Hz, 125Hz, 320Hz, 750Hz, 2.2KHz, 6KHz, and 16KHz) are designed to deliver the most precise audio with frequencies adjustable between -12 to +12dB (-15 to +15dB for subwoofer frequencies) and 7v output LED indicators on each Band and Output!
  • INDEPENDENT CONTROLS - The EQX7PRO has 3 stereo RCA outputs to drive front, rear, and subwoofer audio amplifiers with separate controls for master volume, subwoofer volume (sub level), front/rear fade, and selection of main or auxiliary inputs!
  • PRECISION ADJUSTMENT - EQX7PRO to fine-adjust your amplifier's DB ranges with precision, bringing out the exact loudness level exactly where you want it!

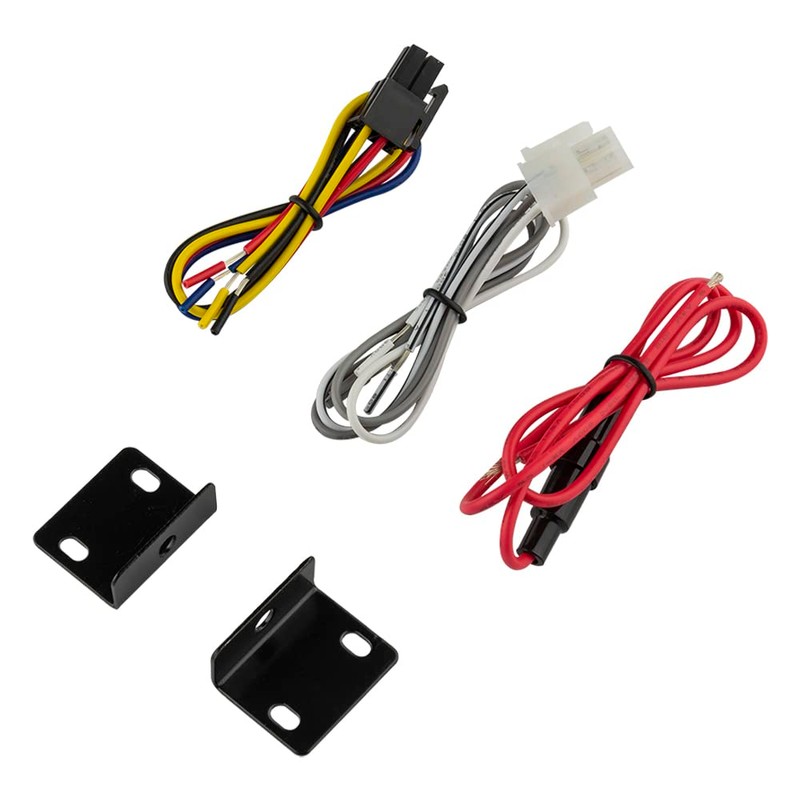

  • SIMPLE INSTALLATION - Mount the EQX7PRO next to your source unit or underneath your dash using the included mounting brackets for easy access to your front panels controls directly from your drivers seat!

Manufacturer:
DS18
Part Number:
WSJ77DH
Isin:
I3HEVTE5AUGT

$254.75

  • $5.95 shipping from United States
  • Arrives

In Stock

Sold by , Fulfilled by IBSPOT • Ships from US

IBSPOT Buyer Protection
  • Free 30-Day Returns
  • Full Refund for Damaged or Incorrect Items
  • Guaranteed Delivery or Money Back
  • Secure Checkout & Fast Support
scroll to top arrow
DS18 EQX7PRO Audio Equalizer/Crossover High Level Input 7-Band Auto Turn On, Subwoofer Output, Adjustable Filters, High Volt Led Indicator, RCA Input - Great for Finely Adjusting Amplifiers Ranges

DS18 EQX7PRO Audio Equalizer/Crossover High Level Input 7-Band Auto Turn On, ...

$254.75

  • STEREO EQUALIZER / CROSSOVER - Take complete control of your audio with the best high-strength 7-band stereo equalizer / crossover available in aftermarket audio: DS18’s EQX7PRO! The EQX7PRO pushes your system past its limits by strengthening its signal and clearing distortion!
  • FREQUENCIES ADJUSTABLE - All 7 Bands (50Hz, 125Hz, 320Hz, 750Hz, 2.2KHz, 6KHz, and 16KHz) are designed to deliver the most precise audio with frequencies adjustable between -12 to +12dB (-15 to +15dB for subwoofer frequencies) and 7v output LED indicators on each Band and Output!
  • INDEPENDENT CONTROLS - The EQX7PRO has 3 stereo RCA outputs to drive front, rear, and subwoofer audio amplifiers with separate controls for master volume, subwoofer volume (sub level), front/rear fade, and selection of main or auxiliary inputs!
  • PRECISION ADJUSTMENT - EQX7PRO to fine-adjust your amplifier's DB ranges with precision, bringing out the exact loudness level exactly where you want it!
  • SIMPLE INSTALLATION - Mount the EQX7PRO next to your source unit or underneath your dash using the included mounting brackets for easy access to your front panels controls directly from your drivers seat!

Manufacturer:
DS18
Part Number:
WSJ77DH
Isin:
I3HEVTE5AUGT

Equalizer Section

Type of Equalizer / Graphic
Number of bands / 7
Frequency Point / Hz : 50, 125, 320, 750, 2.2k, 6k, 16k
Boost Cut / 12dB (15dB Subwoofer Frequency

Crossover Section

Passive Crossover Ways / 1 (LPF) Subwoofer Ch
Frequency Crossover point / 60/120Hz Selectable
Cut-Off Slope / 12dB/Oct

Audio Specifications

S/N Ratio / 100dB
THD / 0.005%
Input Sensitivity / 50mV-3V
Input Impedance / 20Kohm
Output Voltage / 8V
Output Impedance / 2Kohm
Head Room / 20dB
Stereo Separation / 82dB @ 1Khz
Frequency Response / 10Hz-30Khz

Features

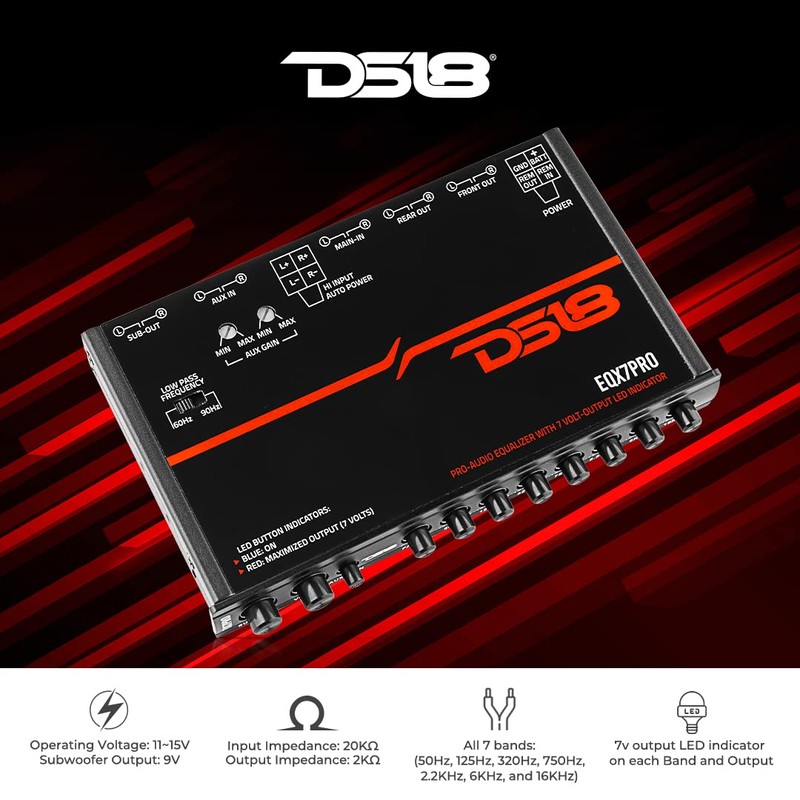

Operating Voltage / 11-15V
Subwoofer Output / Yes / Sí (9V)
Audio Controls / Subwoofer Level, Master Volume, Fader
Audio Inputs / Main (RCA) , Auxiliar (RCA)
RCA Type / Gold-plated / Chapeado en oro
Housing Material / Metal / Aluminum
Adjustments / Aux Input Gain

Extra Features

Knobs / Blue Backlit with Red 7V output indicator
Hi-Level Speaker Input / Yes
Auto Turn-on / Yes (Hi-Level input)
Remote Turn-on Input/Output / Yes Input and Output

Measurements

Overall Length / 7"
Overall Depth / 4.4"
Overall Height / 1.18"
