Driver Module, DC 5V-36V 15A (Max.30A) 400W PWM Adjustment Switch Control Board Motor Control Board MOSFET Trigger Switch PWM Controller Control Board Dual High Performance Switching Driver Module
Driver Module, DC 5V-36V 15A (Max.30A) 400W PWM Adjustment Switch Control Board Motor Control Board MOSFET Trigger Switch PWM Controller Control Board Dual High Performance Switching Driver Module
Driver Module, DC 5V-36V 15A (Max.30A) 400W PWM Adjustment Switch Control Board Motor Control Board MOSFET Trigger Switch PWM Controller Control Board Dual High Performance Switching Driver Module
- 【High Performance Control】: The trigger switch drive module is designed to provide exceptional control of high-performance equipment and devices. With its imported parallel active dual MOS output, it offers lower internal resistance and greater current capacity, delivering a strong output of 15A at room temperature and a remarkable power capacity of 400W. This module is designed to meet the needs of various device applications.
- 【Versatile Compatibility】: With wide voltage support and perfect compatibility with PWM signals, this module is highly adaptable to different signal sources. It can be easily connected to a variety of devices such as single chip IO ports, PLC interfaces, DC power supplies and more. In addition, it supports a wide frequency range from 0 to 20 kHz, allowing precise control and modulation.
- 【Advanced Control Functions】: The trigger switch drive module provides exceptional control options, allowing you to easily control high-performance devices. Its output port can control motors, light bulbs, LED light strips, DC motors, micro pumps, solenoid valves and more. By using the PWM input, you can easily adjust the motor speed and lighting brightness to suit your specific needs.
- 【Reliable and Durable】: Made with great attention to detail, this module guarantees a long service life with unlimited switching cycles. It works flawlessly in a wide temperature range from -40°C to 85°C, ensuring reliable performance even in harsh environments. You can rely on this module to ensure consistent and efficient operation.
- 【Compact and Efficient】: The trigger switch drive module has a compact size of 3.7 x 1.5 x 1.7 cm, making it convenient to integrate into your setup. It weighs only 65g and allows for easy installation and mobility. Its exceptional efficiency and resilience make it a valuable tool for various applications.
| Brand: | Roseyan |
|---|---|
| Manufacturer: | Roseyan |
| Part Number: | BK7D1GD |
| Isin: | IH4UFRA99NON |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Please enjoy your shopping here!
About the trigger switch drive module:

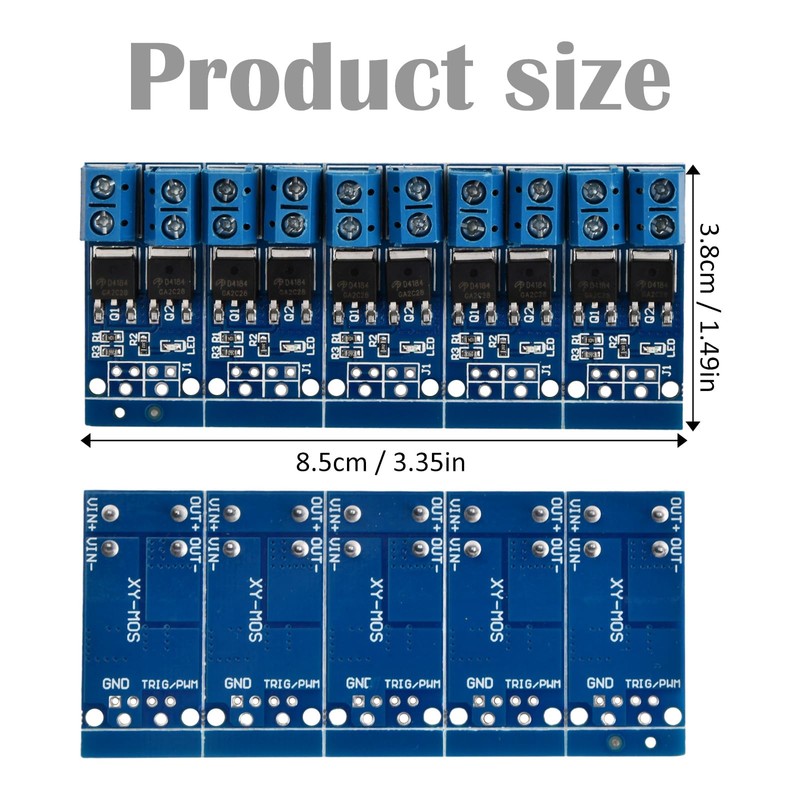

Size:8.5*3.5*1.5
Colour: multicoloured.
Material: polyester.
Weight: 65 g.
Specifications:

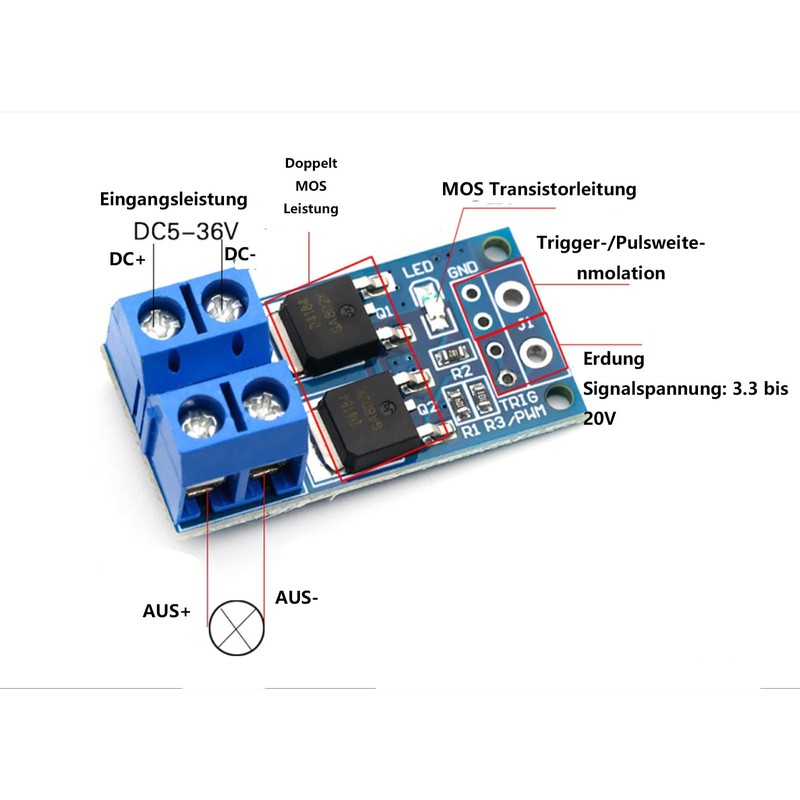

Operating voltage: DC 5 V - 36 V.
Trigger signal source: digital high and low level (DC3.3V--20V).
Output capacity: DC 5 V - 36 V, continuous current 15 A at room temperature, power 400 W (maximum current 30 A with additional heat dissipation).
Application: control high performance equipment such as motors, light bulbs, LED light bars, DC motors, micro pumps and solenoid valves
Control functions: support PWM input to control motor speed and brightness adjustment of lights
Lifespan: Unlimited number of switches
Operating temperature: -40 - 85 °C.
Note:
Please make sure the size of the module meets your requirements before purchasing.
Please allow a measurement error of 1-3 mm due to manual measurement.
CUSTOMER CARE If you have any questions or concerns about our Trigger Switch Drive Module, please feel free to contact us. We strive to provide excellent customer service and will reply within 24 hours.
In case of damage or problems, please contact us for a replacement.
