Dr. LED 12V 24V 2NM White LED Bulb BA15D for anchor lights GE #68 #90 #94 #1004

$120.15

  • Free US shipping

  • Arrives

GE #68 #90 #94 #1004 Marine Navigation Lights LED Replacement Bulbs

12V 24V 2nm Visibility 15mm Bayonet Non-Polarized Navigation Lights LED Replacement Bulbs for #68 #90 #94 #1004 Bulbs

GE90 Star

HEX GE90

H2492 Star


2nm Visibility LED Replacement Bulbs for #68 #90 #94 #1004 Bulbs

HEX GE90 After-Market LED Replacement Bulbs.

One-to-one 2NM LED replacement bulbs for Perko Bulb Fig. 337 and Trade #68, #90, #94, #1004 etc. bulbs for navigation and interior lights.


(Use our Dome Lights LED Conversion Kits for dome lights.)

  • 2nm Visibility, 12VDC and 12/24 VDC, High-Power LED Bulbs
  • Replaces Single Color BA15D #68, #90, #94, & #1004 Bulbs
  • Single Color (Warm White, Red , and Green)
  • Replaces Perko Bulb 0337
  • Low Power Draw: ~1W (Non-Polarized Connection)
  • Built-In Energy Management Circuit

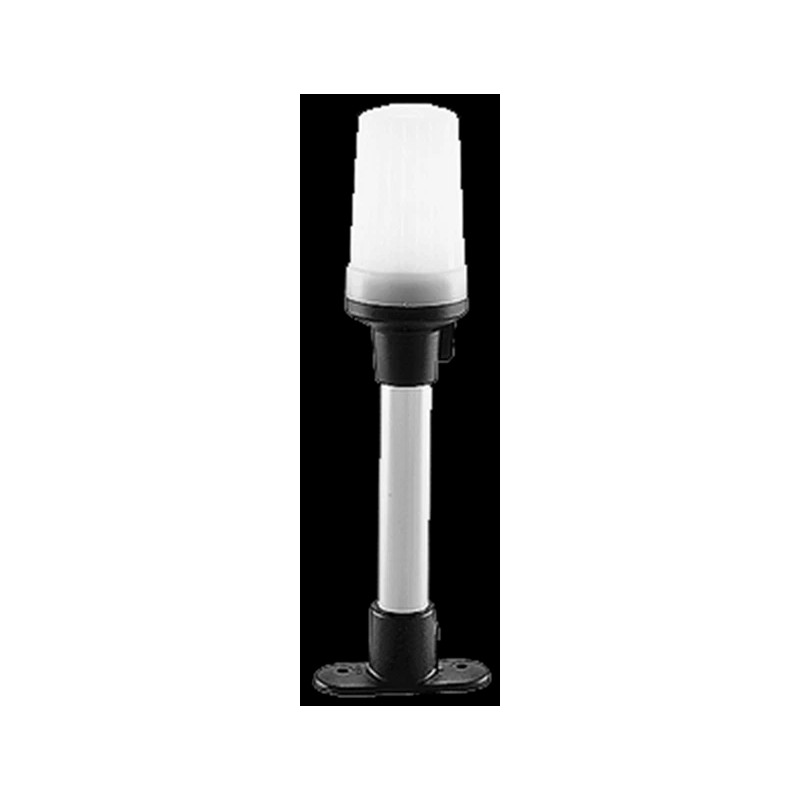

  • Direct Bulb LED Replacements for Many Anchor Lights
  • Long Service Life
  • Ultra-Rugged with No Filament to Burn-Out or Break

Descriptions:

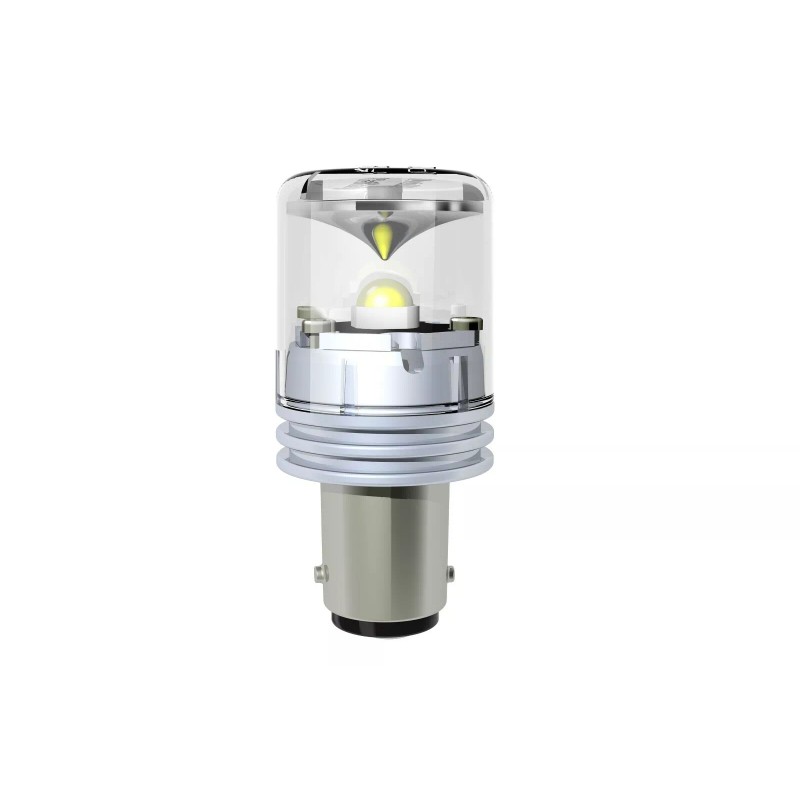

      12V HEX GE90 Star



These HEX GE90 marine LED bulbs are specially designed as direct one-to-one LED bulb replacements for the incandescent navigation lights available on the market, such as  those from Perko and other manufacturers.

These high-quality marine LED bulbs are the perfect way to reduce energy consumption on your boat with a current draw of only about 0.12A.  They are especially well-suited for mast mounted lights, as their incredible reliability will mean an end to frequent climbs up the mast to replace navigation light bulbs.


Features:
•    Bayonet 15mm double contact non-index (non-offset) configuration
•    #1004, #90, #68, #94 etc. bulb LED replacements (one-to-one replacement)
•    For 2NM navigation lights
•    High-Power LED Bulb      2 NM visibility     12VDC and 24VDC
•    Conformal coated & use of long life components: e.g. ceramic capacitor (not low hour electrolytic capacitor).
•    Internal circuitry provides for constant energy consumption, regardless of voltage fluctuations from the source, meaning no flickering and longer LED life
•    Long service life, shockproof, ultra-rugged with no filament to burn out or break
•    Very low power consumption (approximately 1.5 W)
•    Dimmable with PWM dimmers


Compatible with Perko fixture series 0362, 0371, 0455, 0466, 1134, 1137, 1209, 1311, 1330, 1400, 1401, etc.



Compatible with Scotty fixture series 802C, 803C, 802R, 803R.


12/24V GE90 Star    12/24V H2492 Star


The GE90 Star is specially designed as as direct incandescent bulb LED replacement for the very popular #90 incandescent bulb used in many Perko fixtures (Bulb Fig. 0337) and other anchor lights. This marine LED bulb is fabricated from the highest quality components to assure long life and trouble-free functioning. Their patented internal circuitry provides consistent brightness and makes them immune to life-shortening voltage fluctuations. Their incredibly low power draw (~1W) makes them the perfect way to reduce energy consumption. H2492 Star is the single contact model that works in a Hella series 2492 anchor light.



ABYC A-16 and USCG COLREG 1972 (IMO) Standards Certificate: Certified for correct Chromaticity, Luminous Intensity, and Cut-off Angles.

12V White  HEX GE90 Star PN:9000425
12V Red     HEX GE90 Star PN:9000517
12V Green  HEX GE90 Star PN:9000524
12V Blue    HEX GE90 Star PN:9000531
12/24V White   GE90 Star PN:8001627



Compatible with Perko fixture series 120, 170, 1301, 337, 362, 371, 455, 466, 1134, 1137, 1209, 1311, 1330, 1400, 1401, etc.

12/24V White H2492 Star PN:8000067





Single contact model for Hella series 2492 anchor light.

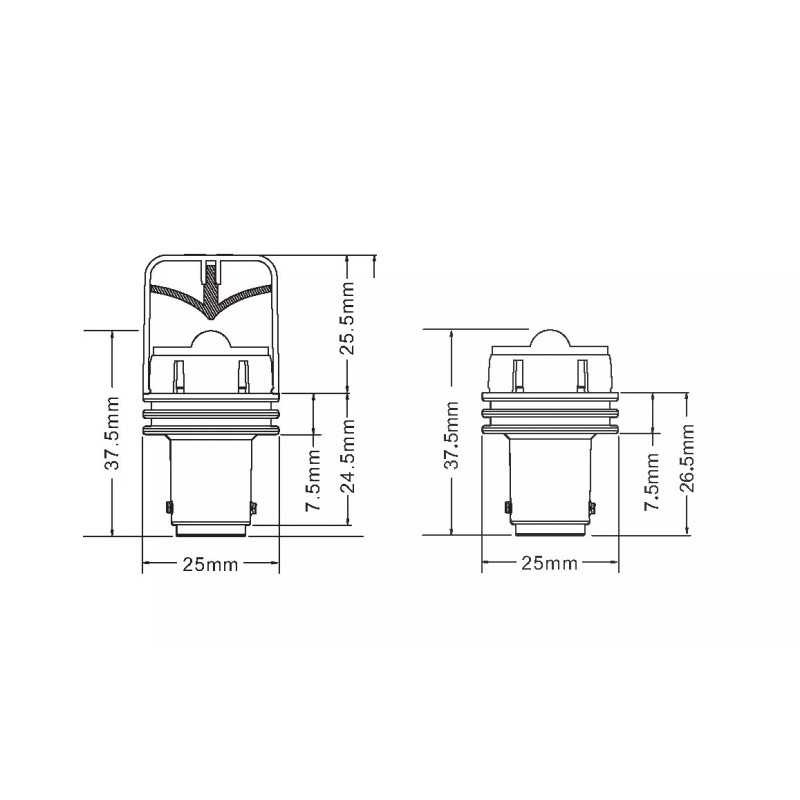

HEX GE90 Dimensions Drawing


GE90 & H2492 Dimensions Drawing





Isin:
IYQLTGXUJES7

$120.15

  • Free US shipping

  • Arrives

In Stock

Sold by , Fulfilled by IBSPOT • Ships from US

IBSPOT Buyer Protection
  • Free 30-Day Returns
  • Full Refund for Damaged or Incorrect Items
  • Guaranteed Delivery or Money Back
  • Secure Checkout & Fast Support
