DollaTek T48 Mini Pro Universal USB Programmer with 10 Adapters Supports 31000 ICs for SPI/Nor/NAND Flash/EMMC/IC Tester TL866CS TL866II Plus Replacement BIOS MCU EEPROM AVR PIC
$180.47
- $9.99 shipping from Germany View details
-
Arrives

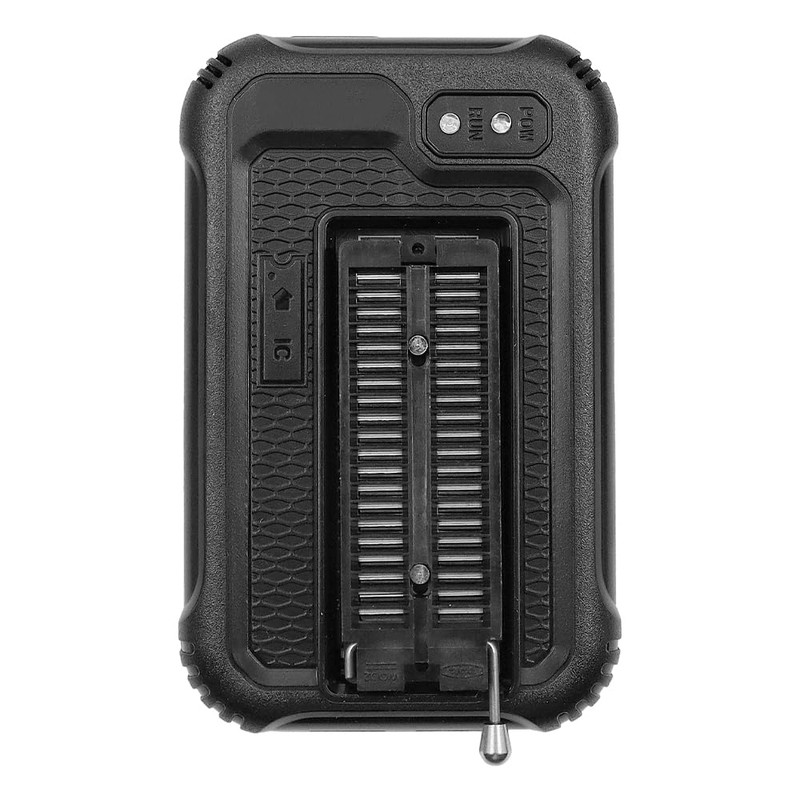

- With 40-pin industrial ZIF socket (pluggable/replaceable), the programmer model T48 (TL866-3G) is the improvement of the programmer TL866II Plus. Based on a 32-bit MCU with 120 MHz and a 4-layer PCB design, this professional T48 programmer supports NAND EMMC with high capacity up to to 256 GB and the programming speed is much higher. Supports high voltage chips such as the 27Cxxx series, VPP maximum up to 25 V, which the TL866II cannot achieve.

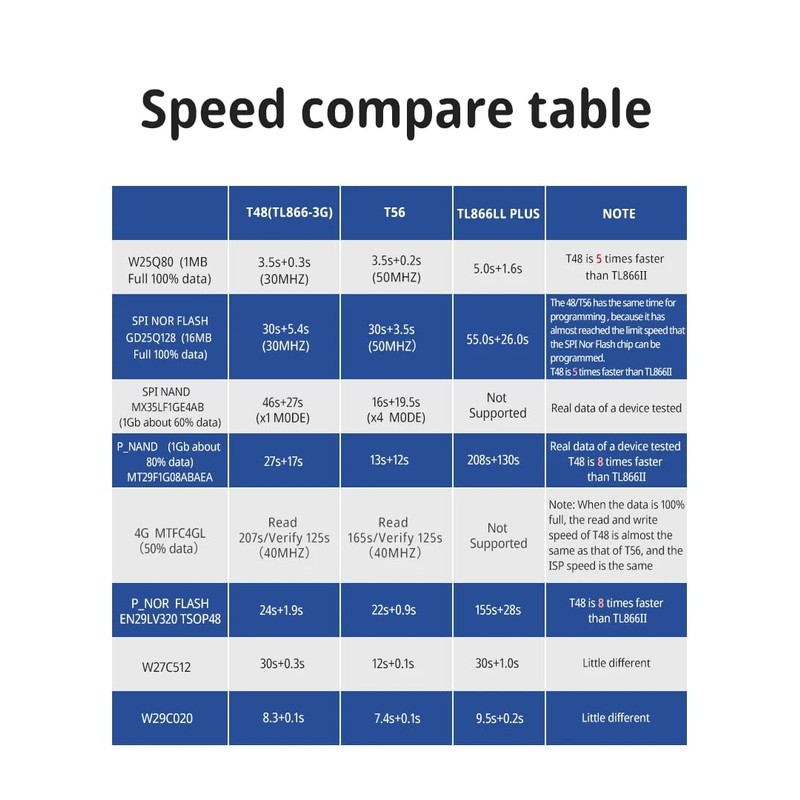

- Programming speed much faster. For example, for W25Q80: 3.5 s + 0.3 s (programming + check) (30 MHz); for SPI NOR FLASH 25Q128.30s+5.4s(P+V) (30MHZ); for P_NAND 29F1G08AB,27s+17s(P+) VVV); for P_NOR FLASH EN29LV320 TSOP48,24s+1.9s(P+V).Support EMMC/EMCP; P-NAND; SPI NAND FLASH; GAL PLD; MCU: 51/PIC/AVR; 27/28/29/39/49/50; 24.25.45. .93.9 5; 74 Series Visual Logic IC Test
- Production of high density SMD technology, a uniform user interface, easy to use, fully functional, reliable program execution of the application software, ultra-small code runs much faster, supports multilingual menu (English, China, Russian, Polish, German, Spanish, Portuguese, Turkish, Czech, Italian) can automatically identify the operating system running Windows XP,200 3.2008, Vista Win7 WIN8 WIN10 WIN11 should be installed and run.

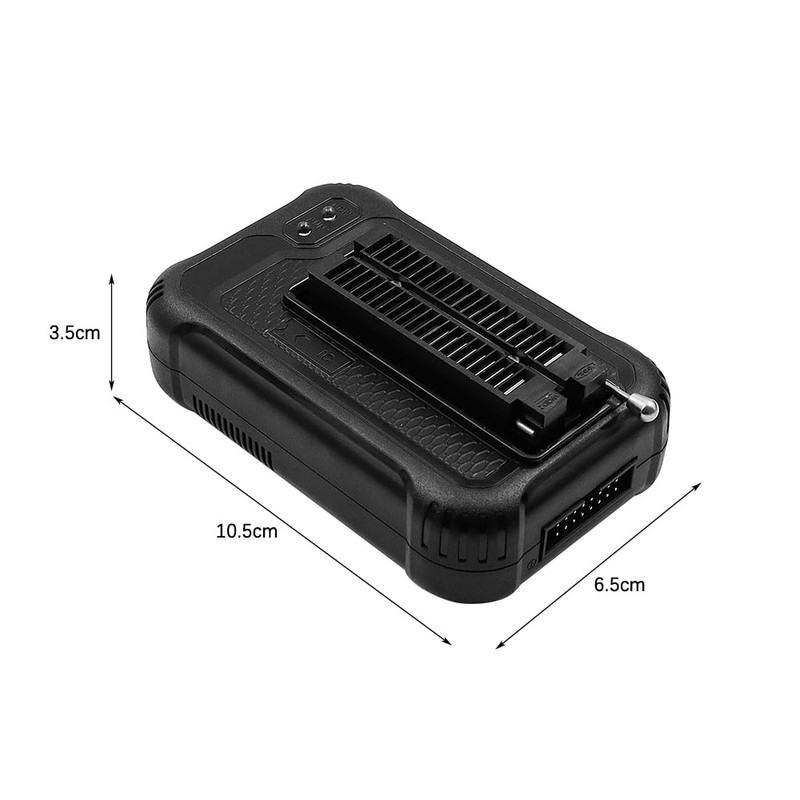

- T48 (TL866-3G) Hardware Parameters: 32-bit MCU with 120MHz, 4-layer PCB design, USB2.0 HS 480MHz; Volume: 10 x 6.5 x 2.8 cm (almost the same as TL866II); 16-channel ISP, total 56 dedicated E 56-channel high-speed high voltage insulation; VCC voltage 1.8-6.5V, 64 levels adjustable, VPP voltage 9V-25V, 64 levels adjustable, power consumption: 5V <500MA.
- Stable and extremely fast, high cost performance, super cool appearance, ultra-portable. Automatically detects bad chip pin contact or incorrect insertions to avoid damage to the device.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- With 40-pin industrial ZIF socket (pluggable/replaceable), the programmer model T48 (TL866-3G) is the improvement of the programmer TL866II Plus. Based on a 32-bit MCU with 120 MHz and a 4-layer PCB design, this professional T48 programmer supports NAND EMMC with high capacity up to to 256 GB and the programming speed is much higher. Supports high voltage chips such as the 27Cxxx series, VPP maximum up to 25 V, which the TL866II cannot achieve.
- Programming speed much faster. For example, for W25Q80: 3.5 s + 0.3 s (programming + check) (30 MHz); for SPI NOR FLASH 25Q128.30s+5.4s(P+V) (30MHZ); for P_NAND 29F1G08AB,27s+17s(P+) VVV); for P_NOR FLASH EN29LV320 TSOP48,24s+1.9s(P+V).Support EMMC/EMCP; P-NAND; SPI NAND FLASH; GAL PLD; MCU: 51/PIC/AVR; 27/28/29/39/49/50; 24.25.45. .93.9 5; 74 Series Visual Logic IC Test
- Production of high density SMD technology, a uniform user interface, easy to use, fully functional, reliable program execution of the application software, ultra-small code runs much faster, supports multilingual menu (English, China, Russian, Polish, German, Spanish, Portuguese, Turkish, Czech, Italian) can automatically identify the operating system running Windows XP,200 3.2008, Vista Win7 WIN8 WIN10 WIN11 should be installed and run.
- T48 (TL866-3G) Hardware Parameters: 32-bit MCU with 120MHz, 4-layer PCB design, USB2.0 HS 480MHz; Volume: 10 x 6.5 x 2.8 cm (almost the same as TL866II); 16-channel ISP, total 56 dedicated E 56-channel high-speed high voltage insulation; VCC voltage 1.8-6.5V, 64 levels adjustable, VPP voltage 9V-25V, 64 levels adjustable, power consumption: 5V <500MA.
- Stable and extremely fast, high cost performance, super cool appearance, ultra-portable. Automatically detects bad chip pin contact or incorrect insertions to avoid damage to the device.
The latest model of the T48 programmer (TL866-3G) is the improvement of the TL866II Plus programmer. Based on a 32-bit 120MHz MCU and 4-layer PCB design, this professional T48 programmer supports high capacity NAND EMMC up to 256GB and the programming speed is much higher. Supports high voltage chips, VPP maximum up to 25V, which the TL866II cannot achieve.

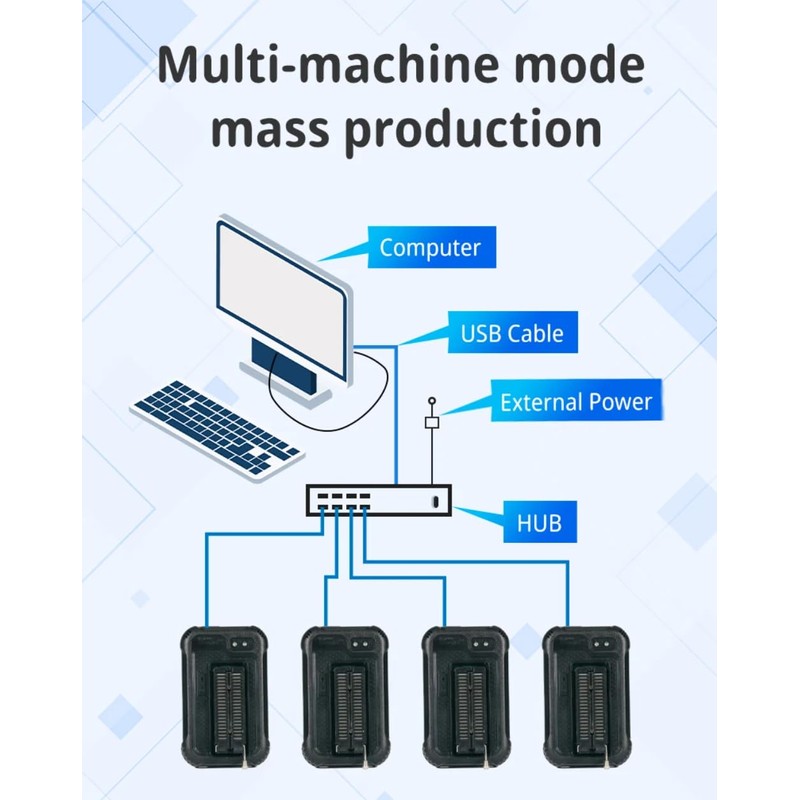

1. Supports a computer with 4 programmers at the same time. Small size, high density, low power consumption, high performance, a comprehensive programmer that really does not generate heat.
3. All chips do not require an external power supply and their low power consumption ensures that the USB port can provide sufficient power.
4. The best internal 40-pin surge protection, the strongest VPP, VCC four-stage overcurrent protection. A short circuit will not reset the PC or programmer
5. Supports a wide range of chips 31000+, supports serial series, parallel series 40/44/48pin flash with large capacity.

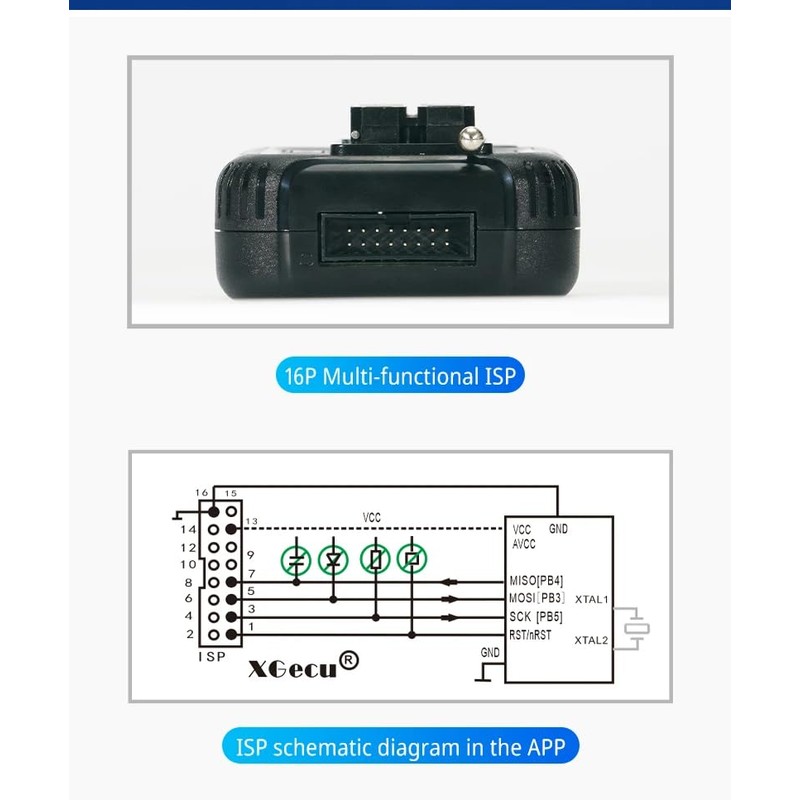

Unique serial programming ICSP interface supports serial downloading and high-speed parallel high voltage programming.
7. Truly testable integrated circuits of the 74/54 series CMOS4000. Gate circuit errors can be located.
8. The chip serial number function is the most comprehensive and practical.

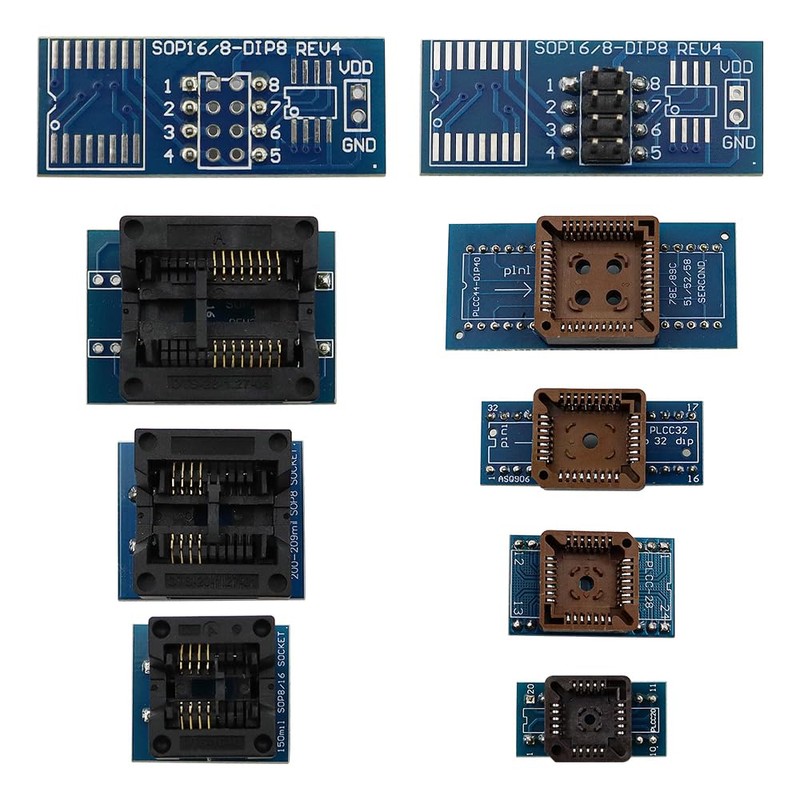

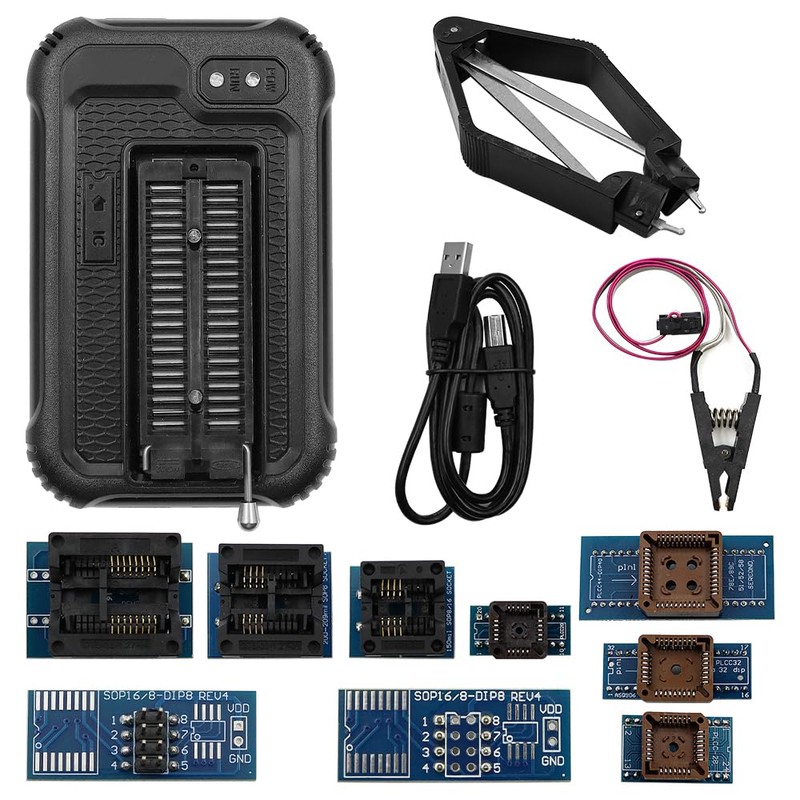

Includes:

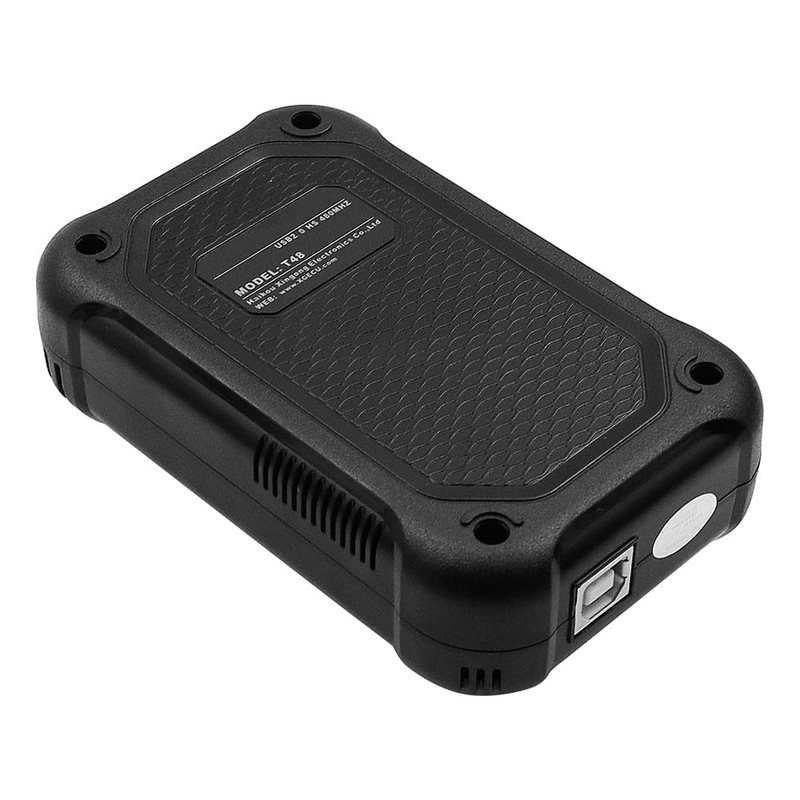

1 x T48 programmer.
1 x USB cable.
1 x SOP8 test clip.
1 x SOP8-DIP8 (150 ml).
1 x SOP8-DIP8 (200-209 ml).
1 x SOP16-DIP16.
1 x PLCC20.
1 x PLCC28.
1 x PLCC32.
1 x PLCC44.
1 x SOP16/8 -DIP8.
1 x SOP16/8-DIP8
