Product Overview

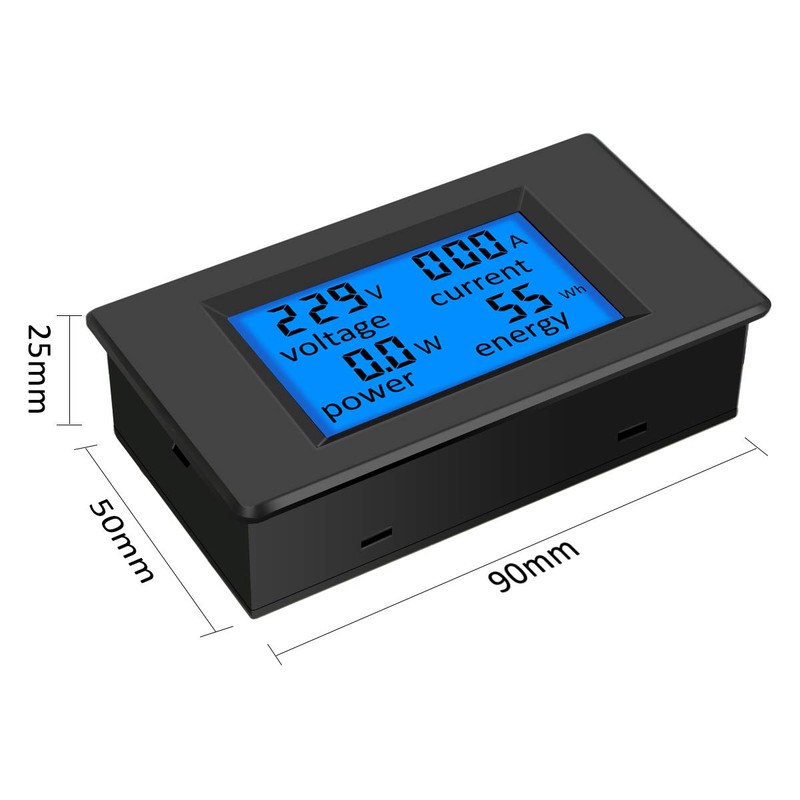

- Small Size , can be mounted to different place. Made from high quality ABS, small size with 8×5.5×6.5 cm, about 150g, only your palm size and suitable for all kind of place.

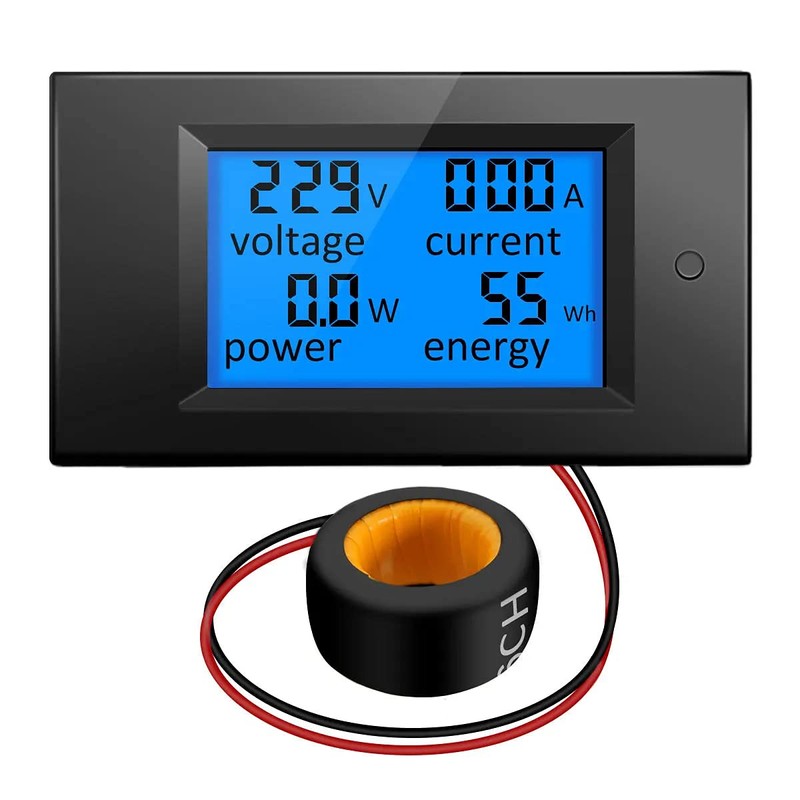

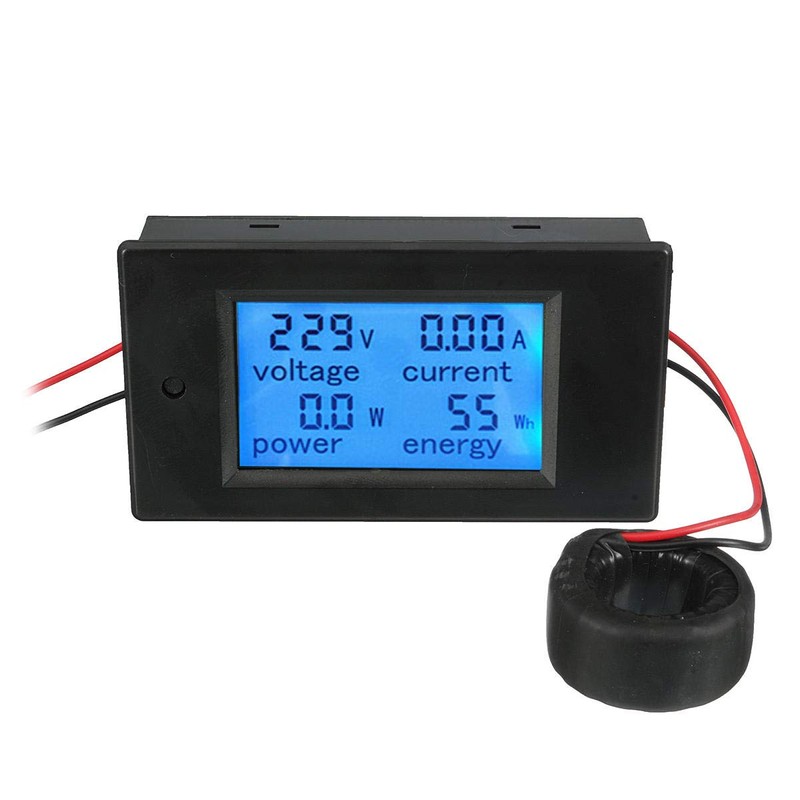

- Display Current Voltage Active Power Energy at the same time, with LCD blue backlight, Can be turned on/off manually.
- AC voltmeter 80-260V, AC meter 0-100A, Active power 0-22 kW, electric energy 0-9999kwh, please do not exceed the rated parameters.
- Multi Functions: Reset energy; Power overload alarm setting function; Power-down data storage function; Backlight on/off function.
- This product is not suitable for inverter, unless you have tested that the waveform and frequency of the inverter are exactly the same as the mains, and there is no excessive glitch interference. This voltmeter cannot be used in autotransformer, thyristor circuit or load.
| Brand: | DollaTek |
|---|---|
| Color: | Blue |
| Manufacturer: | DollaTek |
| Part Number: | 2VXQHQJ |
| Material Type: | Abs |
| Isin: | IL5XAFBSPUDF |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Product Overview
- Small Size , can be mounted to different place. Made from high quality ABS, small size with 8×5.5×6.5 cm, about 150g, only your palm size and suitable for all kind of place.
- Display Current Voltage Active Power Energy at the same time, with LCD blue backlight, Can be turned on/off manually.
- AC voltmeter 80-260V, AC meter 0-100A, Active power 0-22 kW, electric energy 0-9999kwh, please do not exceed the rated parameters.
- Multi Functions: Reset energy; Power overload alarm setting function; Power-down data storage function; Backlight on/off function.
- This product is not suitable for inverter, unless you have tested that the waveform and frequency of the inverter are exactly the same as the mains, and there is no excessive glitch interference. This voltmeter cannot be used in autotransformer, thyristor circuit or load.
| Brand: | DollaTek |
|---|---|
| Color: | Blue |
| Manufacturer: | DollaTek |
| Part Number: | 2VXQHQJ |
| Material Type: | Abs |
| Isin: | IL5XAFBSPUDF |
1. Working voltage: 80 ~ 260VAC
2. Test voltage: 80 ~ 260VAC
2. Rated power: 100A / 22000W
3. Working Frequency: 45-65Hz
4. Measurement accuracy: 1.0
Button Description
1. The backlight control
By short press the button to turn on or off the backlight, the backlight status automatic storage.
2. The power cleared
Step 1: Press the power button 5 seconds until the digital display window flashes, then release the button;
Step 2: If you press the button again, the consumption data is cleared and cleared quit flashing;
Step 3: If you press the button again 5 seconds long until no flashing, the charge data is not cleared and exit cleared.
3. The power to set the alarm value
Step 1: Press the button, when the LCD screen display "SET CLr" after the release button, set the value into the power status report;
Step 2: Power area displays the current value of the power alarm and the lowest digit starts blinking, then you can press the button of the digital +1, when there is no key operation more than three seconds, automatically switches by short digital set as above;
Step 3: After setting, press the button more than five seconds to automatically save and exit, the scope of active power threshold set for the 0.0 ~ 22.0kW.
Note:
1. Please make sure the AC input is Pure Sine Wave.(Municipal electric power is pure sine wave). Please don't use the meter to measure AC power converterd from a DC-AC inverter UNLESS you can make sure the output from your DC-AC inverter is Pure Sine Wave. This is very importatnt.
2. Applied load should not exceed the rated power.

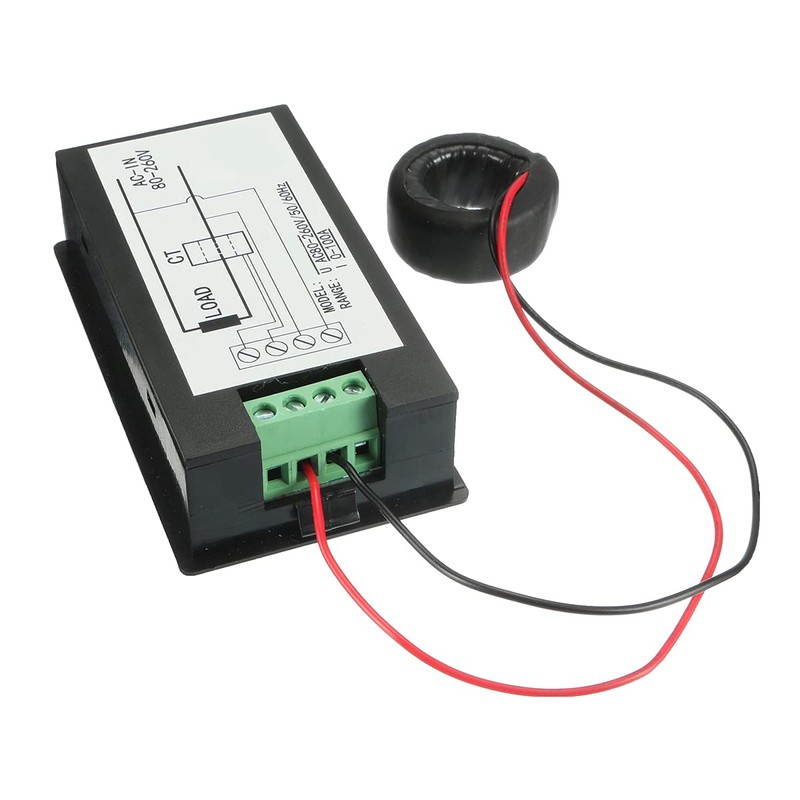

3. Wiring order can not be wrong.
4. This module is suitable for indoor applications, please do not use outdoors.
Package includes:
1x AC Power Multimeter
