DollaTek DC Buck Boost Spannungswandler 0.6-36V einstellbare Spannung Stromversorgungsmodul Stromwandler digitales LCD-Display
$51.15
- $14.50 shipping from Germany View details
-
Arrives
- Multiple Protection Functions This CNC voltage regulator module is equipped with various protection mechanisms, including reverse polarity protection, backflow prevention, under voltage protection, over voltage protection, over current protection, overload protection, overheating protection, timeout protection and over capacity protection.
- CNC Regulation: This voltage regulator module is a programmable automatic buck boost module, providing precise and fast voltage regulation.It allows for adjustable output voltage from 0.6V to 36V and current limitation from 0A to 5A.By default, the module can be set to operate in on/off mode.

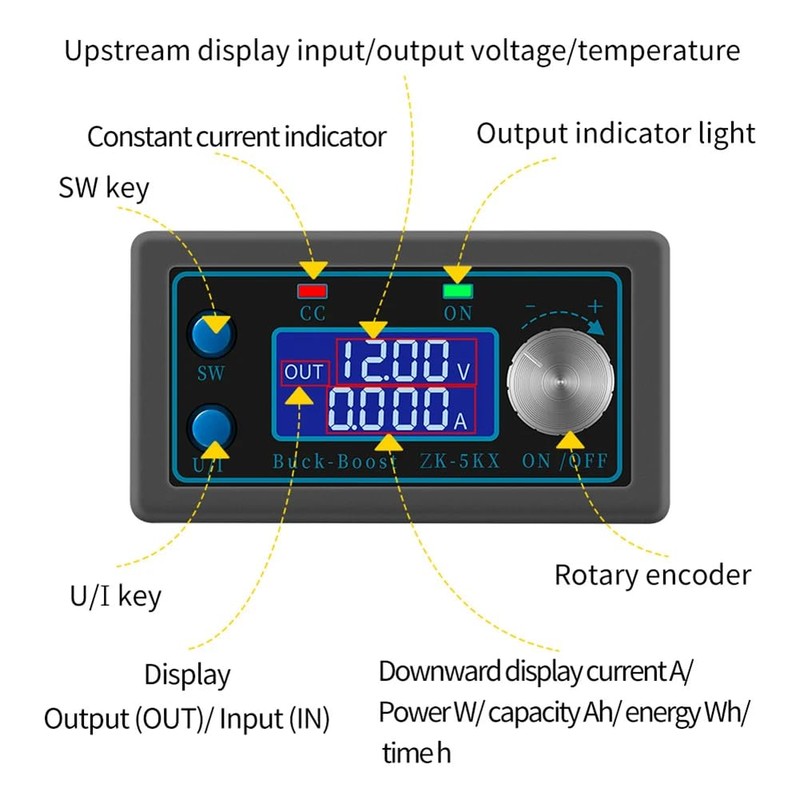

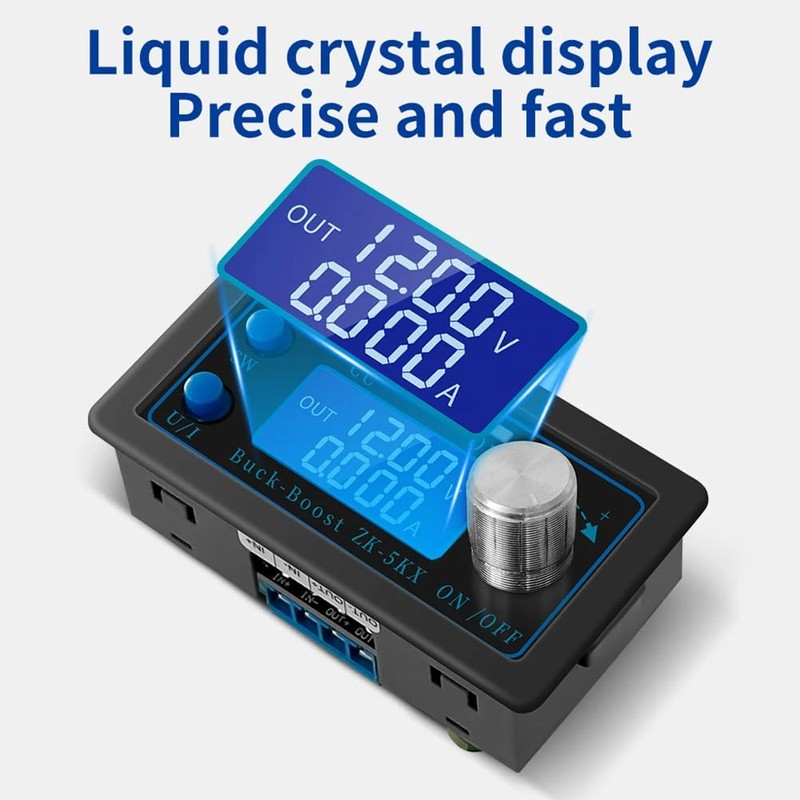

- LCD DISPLAY The automatic voltage regulator module has LCD display, which displays input voltage, output voltage, output current, output power, output capacity, output time and temperature. This allows convenient and intuitive monitoring of module operation.

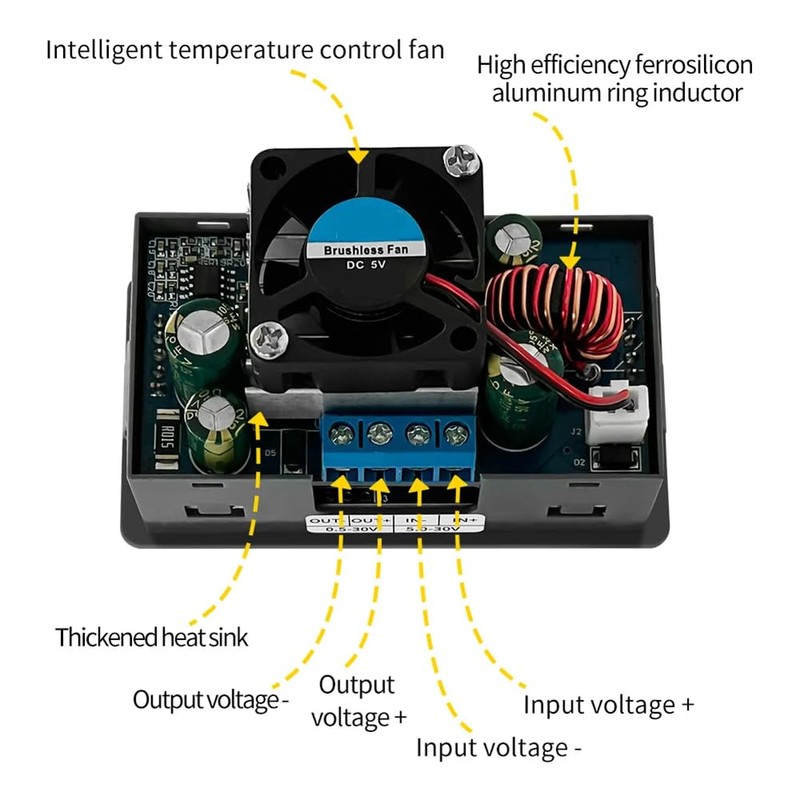

- Excellent Heat Dissipation This automatic voltage regulator module is equipped with an upgraded heatsink and intelligent temperature controlled fan. The fan starts and stops automatically depending on temperature and current conditions. It will be activated when the temperature exceeds 50°C or the current exceeds 1A.
- Wide Application This module is a 80W high performance buck boost module with low output ripple and filter circuit. It can be used as a laboratory power supply and is used in a variety of scenarios. In addition, it can be used for DIY projects, making it versatile for various creative activities.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Multiple Protection Functions This CNC voltage regulator module is equipped with various protection mechanisms, including reverse polarity protection, backflow prevention, under voltage protection, over voltage protection, over current protection, overload protection, overheating protection, timeout protection and over capacity protection.
- CNC Regulation: This voltage regulator module is a programmable automatic buck boost module, providing precise and fast voltage regulation.It allows for adjustable output voltage from 0.6V to 36V and current limitation from 0A to 5A.By default, the module can be set to operate in on/off mode.
- LCD DISPLAY The automatic voltage regulator module has LCD display, which displays input voltage, output voltage, output current, output power, output capacity, output time and temperature. This allows convenient and intuitive monitoring of module operation.
- Excellent Heat Dissipation This automatic voltage regulator module is equipped with an upgraded heatsink and intelligent temperature controlled fan. The fan starts and stops automatically depending on temperature and current conditions. It will be activated when the temperature exceeds 50°C or the current exceeds 1A.
- Wide Application This module is a 80W high performance buck boost module with low output ripple and filter circuit. It can be used as a laboratory power supply and is used in a variety of scenarios. In addition, it can be used for DIY projects, making it versatile for various creative activities.

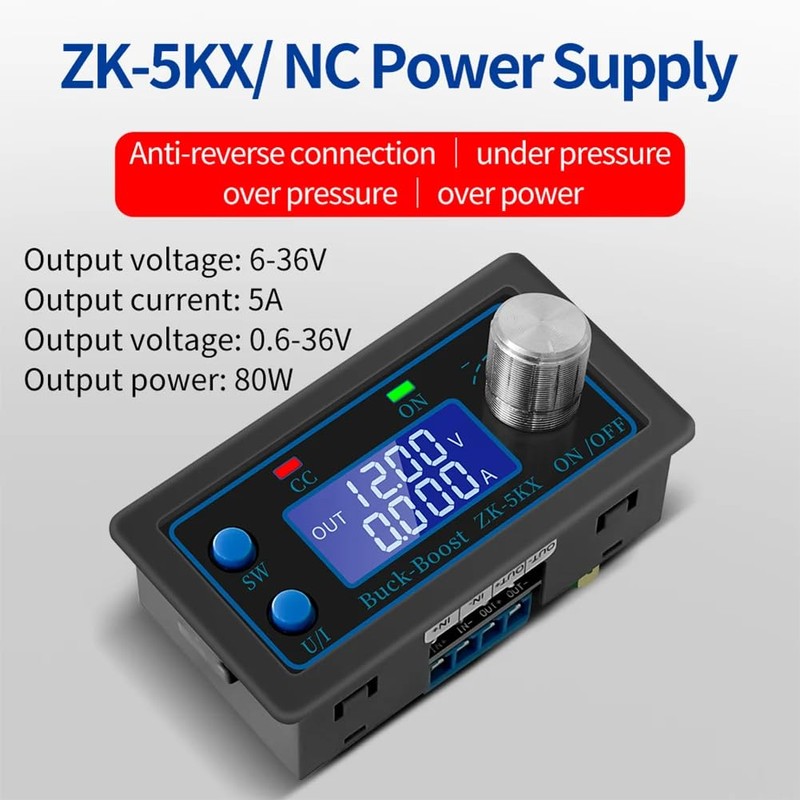

Supply voltage: 6-36 V.
Model Number:Voltage Regulation Module
Input Voltage: 6.0-36V
Output voltage: 0.6-36V
Output current: maximum 5 A.
Output power: 80 W.
Voltage display resolution: 0.01V
Current display resolution: 0.001A
Conversion efficiency: approx. 88%
Soft start: Yes (may fail when starting high power load modules)
Protection mechanism:
1. Input reverse connection;
2. Prevent output backflow;
3. Input low voltage protection (5.8-36V adjustable, standard 5.8V)
4. Output surge protection (0.6-36V adjustable, standard 36V)
5. Output overcurrent protection (0-5A adjustable, standard 5A)
6. Output overload protection (0-80W adjustable, standard 80W)
7. Over temperature protection (80-110°C adjustable, standard 110°C).
8. Timeout protection (0-100 hours adjustable, disabled by default)
9. Overcapacity protection (0-60 Ah adjustable, switched off by default).
Package includes:
1 x DC-DC Buck Boost Regulator
