Dixon Coupling D3S4 850611 3/8 Ind QC x 1/2" Hose Quick Coupler Nipple Barb Plug
Dixon Coupling D3S4 850611 3/8 Ind QC x 1/2" Hose Quick Coupler Nipple Barb Plug
Dixon Coupling D3S4 850611 3/8 Ind QC x 1/2" Hose Quick Coupler Nipple Barb Plug

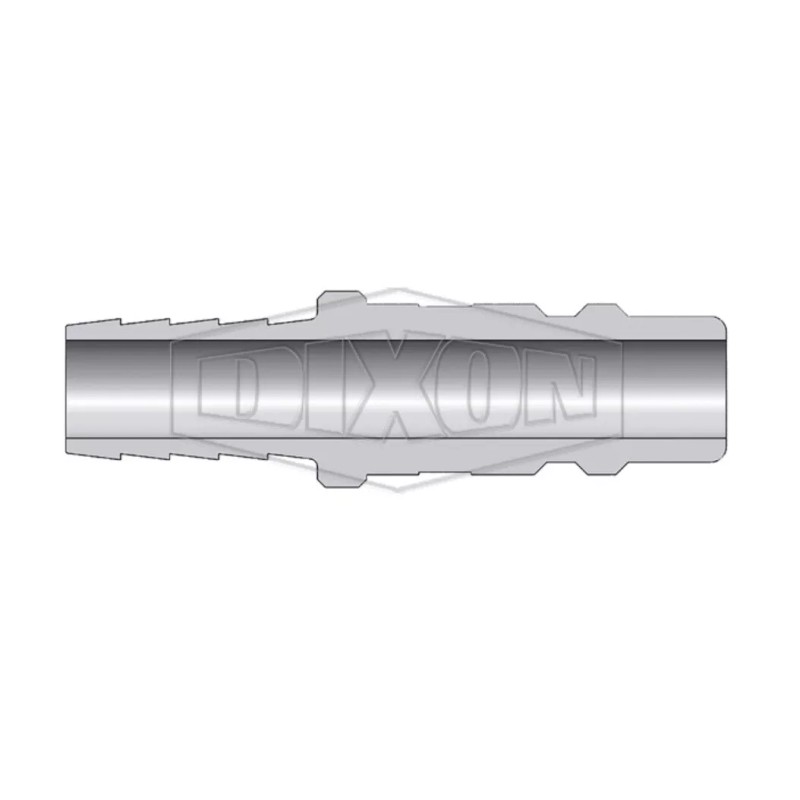

Dixon Coupling D3S4 850611 3/8 Ind QC x 1/2" Hose Quick Connect Coupler Nipple Barbed Plug 1-Pc. (each)
ConsrvCo assumes no responsibility for the safe use of this item.
One modest ($2.30) shipping charge regardless of the number of fittings you purchase. Sold as 1-piece (each).
This is a 1-piece connector with a barbed end for 1/2" Inside Diameter (ID) hose and a 3/8" Industrial Male Quick connection on the other end (see below for compatible QC fittings). The fitting is plated steel. The pressure rating is for the fitting and not the hose or hose connection which can dramatically reduce the safe operating pressure.
This listing is for ONE (1) Dixon Coupling D3S4 (850611) 3/8 Industrial Quick Connect x 1/2" Barbed Hose connection. Sold as 1-piece (each).
Thanks for looking!!
From the manufacturer:
Specifications:
Rated pressure when connected with Brass D-Series Automatic Couplers: 500 PSI (35 bar) Maximum Working
Rated pressure when connected with Brass F-Series Manual Couplers: 500 PSI (35 bar) Maximum Working
Rated pressure when connected with Steel F-Series Manual Couplers: 500 PSI (35 bar) Maximum Working
Construction:
Machined components are manufactured using solid bar stock.
Steel componentry is plated using ROHS Compliant Trivalent Chrome.
Compatibility & Interchange Data
Foster 3, 4, 5 and 6 Series
Parker 30- Series Automatic Interchange & Parker 20-Series Manual Interchange
Hansen 3000, 4000, 5000 and 6000 & Hansen 1000, 400 and 500
How It Works:
To disconnect, begin by holding the hose on the nipple side with three of your fingers, leaving your thumb and index finger free.
Grab the sleeve with your thumb and index finger and begin to pull the sleeve towards the palm of your hand.
After pulling the sleeve, the nipple will move out of the coupler slightly. Continue to hold the hose and coupler sleeve until all air is fully exhausted.
After the line is fully exhausted, you are able to safely separate the nipple from the coupler.
Safety Notes:
It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application.
Dixon or ConsrvCo cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death.
| Part Number | D3S4 |
|---|---|
| Material | Steel |
| Hose ID | 1/2" |
| Maximum OD | 0.75" (19.1mm) |
| Body Size | 3/8" |
| Length | 2.21" (56.1mm) |
| Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Brand: | Dixon Coupling - Perfecting |
|---|---|
| Isin: | IBFJ1S98T9DM |
