DIHOOL AC/DC Miniature Circuit Breakers, 2 Pack, Single Pole 10 Amp, 12V 24V 48V 400V, Non Polarized, Solar Disconnect Switch, DIN Rail Mount, RV Battery Isolator, PV Array MCB, Thermal Magnetic Trip

Brand: DIHOOL

Product Overview

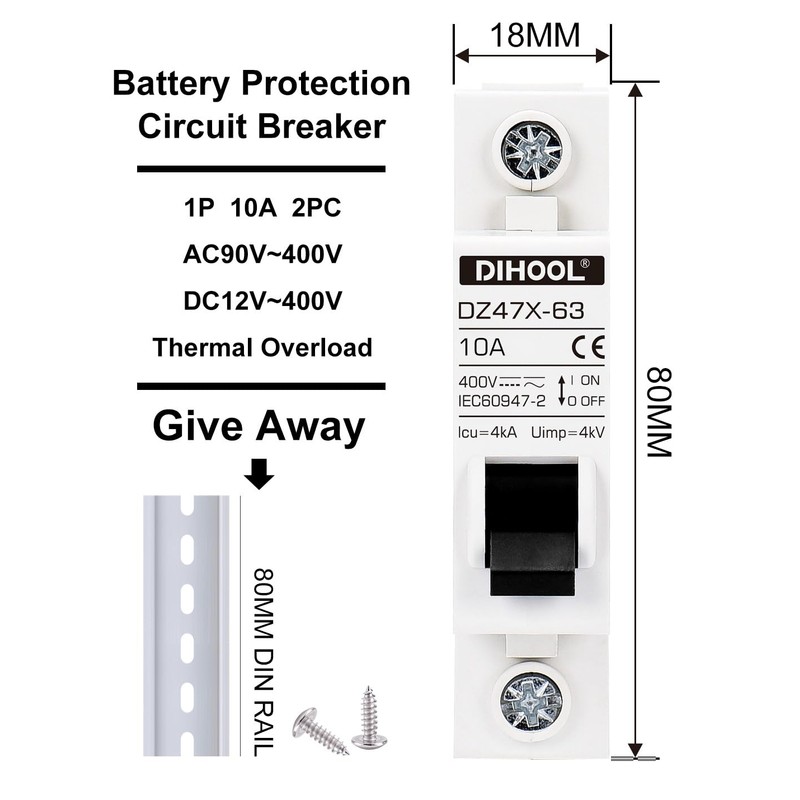

  • FUNCTIONS: Used to protect 12~400VDC OR 90~400VAC circuit from overload and short circuit damage, and can also be used for control and isolation. Size: 18MM x 80MM x 72MM, Fit for 35mm DIN rail.
  • Breaker Switch has built-in arc squelching magnet which enables the high arc extinguisher,flame-retardant enclosure, silver alloy contacts, and sufficient pure copper coils to ensure its high quality.

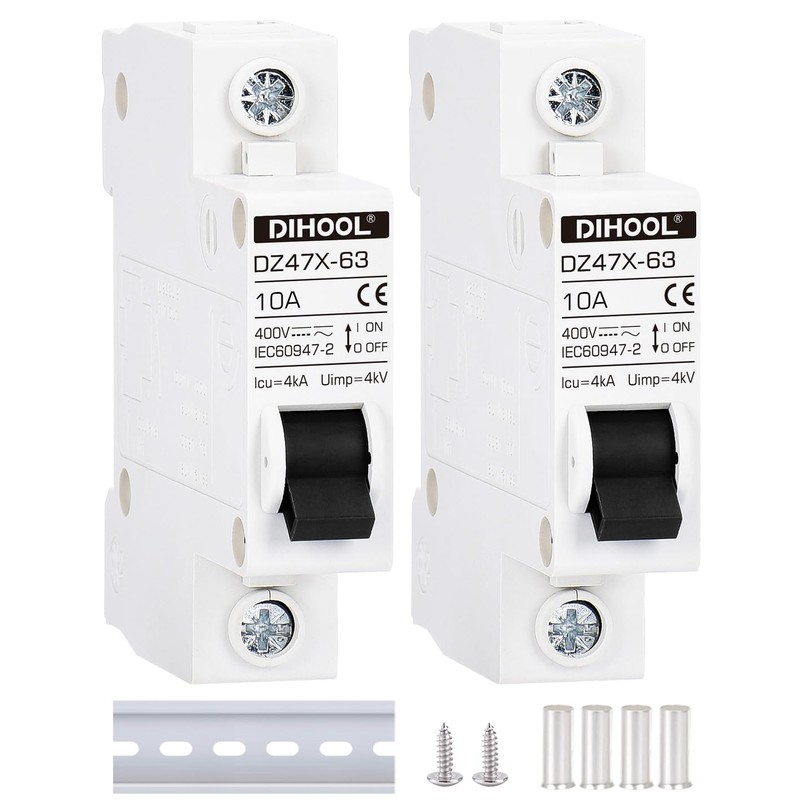

  • Come with 1 x DIN rail, 2 x screws for easy mounting and 4 x copper crimp terminal for wiring to make sure that the wires are tightly connected.

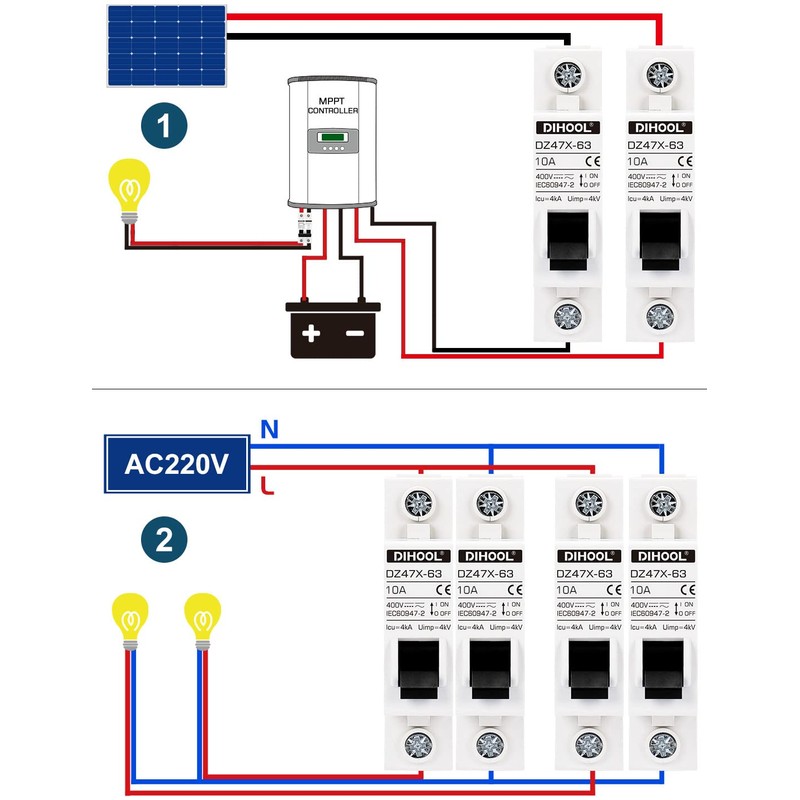

  • This Solar Disconnect Switch is suitable for photovoltaic solar panel array,Solar Charge Controller,Batteries,Power inverter,DC motor protect and also suitable for ac systems, RV, home circuits, or other 50/60Hz AC systems.
  • FAST TRIP: The electromagnetic trip system can trip immediately when the circuit is short-circuited to protect the safety of the circuit.

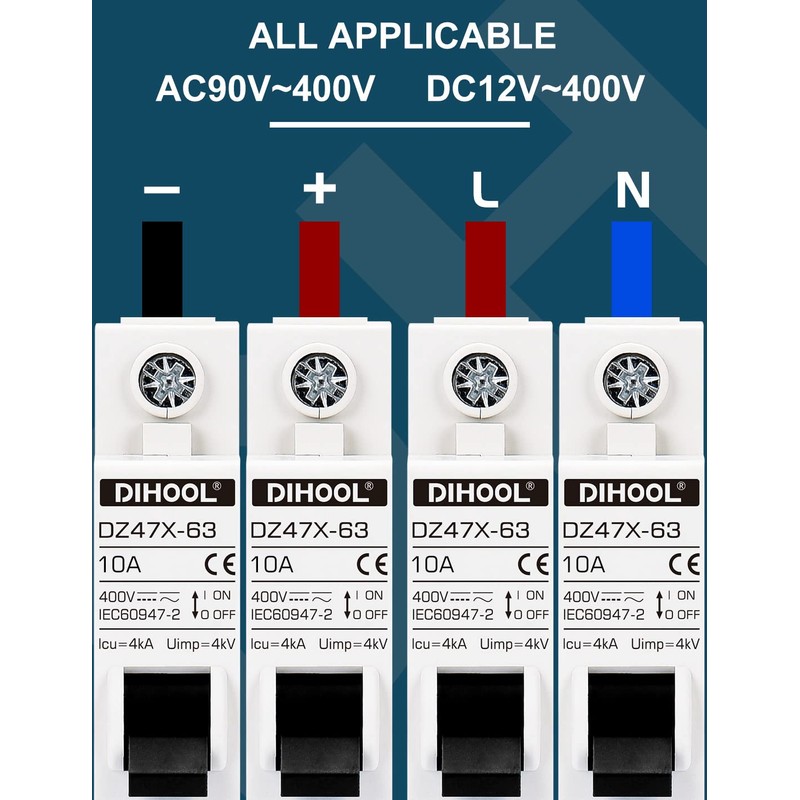

  • Non-polarized circuit breakers do not require polarity distinction and can be connected in either direction, simplifying installation and reducing wiring errors. They are particularly suitable for applications where polarity may reverse, such as:Reversible motors,Battery charge/discharge switching,Bidirectional current protection including:EV charging/discharging circuits,Solar power systems (where battery current direction reverses),Industrial reversible drive systems.
Brand: DIHOOL
Color: White
Manufacturer: DIHOOL ELECTRIC
Part Number: FFDBL6B
Material Type: iron

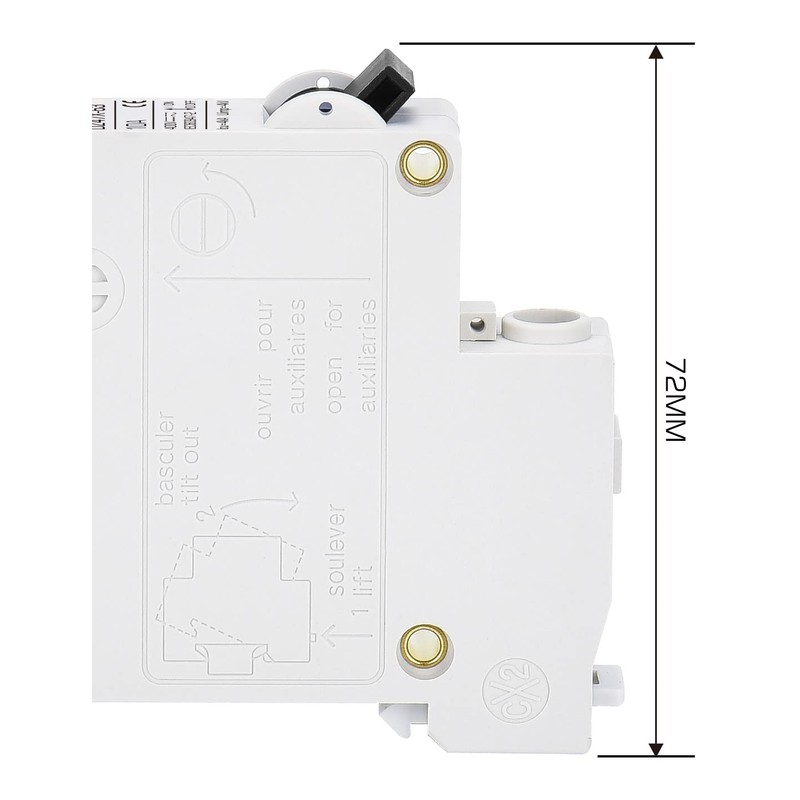

Product Dimensions: 1.54 x 3.23 x 3.5 inches; 6.72 ounces
Isin: IGGYFSMVTLSM

$34.44

  • Free shipping in US
  • $5.95 Standard Shipping from United States
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

More seller options

Starting from

Compare all sellers
scroll to top arrow
DIHOOL AC/DC Miniature Circuit Breakers, 2 Pack, Single Pole 10 Amp, 12V 24V 48V 400V, Non Polarized, Solar Disconnect Switch, DIN Rail Mount, RV Battery Isolator, PV Array MCB, Thermal Magnetic Trip

DIHOOL AC/DC Miniature Circuit Breakers, 2 Pack, Single Pole 10 Amp, 12V 24V ...

$34.44

Product Overview

  • FUNCTIONS: Used to protect 12~400VDC OR 90~400VAC circuit from overload and short circuit damage, and can also be used for control and isolation. Size: 18MM x 80MM x 72MM, Fit for 35mm DIN rail.
  • Breaker Switch has built-in arc squelching magnet which enables the high arc extinguisher,flame-retardant enclosure, silver alloy contacts, and sufficient pure copper coils to ensure its high quality.
  • Come with 1 x DIN rail, 2 x screws for easy mounting and 4 x copper crimp terminal for wiring to make sure that the wires are tightly connected.
  • This Solar Disconnect Switch is suitable for photovoltaic solar panel array,Solar Charge Controller,Batteries,Power inverter,DC motor protect and also suitable for ac systems, RV, home circuits, or other 50/60Hz AC systems.
  • FAST TRIP: The electromagnetic trip system can trip immediately when the circuit is short-circuited to protect the safety of the circuit.
  • Non-polarized circuit breakers do not require polarity distinction and can be connected in either direction, simplifying installation and reducing wiring errors. They are particularly suitable for applications where polarity may reverse, such as:Reversible motors,Battery charge/discharge switching,Bidirectional current protection including:EV charging/discharging circuits,Solar power systems (where battery current direction reverses),Industrial reversible drive systems.
Brand: DIHOOL
Color: White
Manufacturer: DIHOOL ELECTRIC
Part Number: FFDBL6B
Material Type: iron
Product Dimensions: 1.54 x 3.23 x 3.5 inches; 6.72 ounces
Isin: IGGYFSMVTLSM

Product Specifications
Model: DZ47X 1P 10A
Rated Operating Voltage : DC 12V-400V And AC 90-400V
Poles: 1P
Rated Current: 10A
breaking capacity: 4 kA Ics=Icu
Trip Curve: B
Mechanical Life: 10,000 times
Electrical Life: 4,000 times

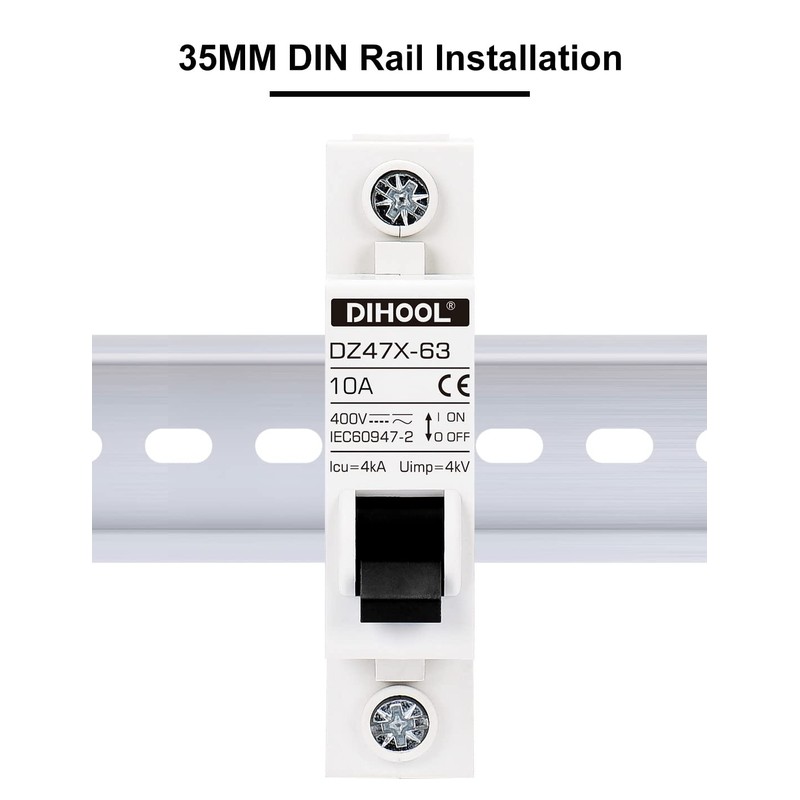

Installation Method: 35MM DIN Rail
Standard: IEC60898 / GB10936
Operating Temperature: -30°C to +70°C
Operating Altitude: 2000 Meter

Circuit Breaker Purchase Instructions

The cause of the circuit breaker fire
1. The current is high and the cable is thin, and the cable heats up and causes a fire
2. Poor contact, the screws of the circuit breaker are not tightened, causing the screw part of the circuit breaker to heat up and catch fire (90% of the fire causes)
Note: Be sure to tighten the screws -- important!!!
3. The quality of circuit breakers is poor. Our company selects A-level standard materials and flame-retardant shells for production. Each product is tested, and the quality pass rate reaches 99.5%.
4. Dust enters, humid environment; the circuit breaker is not waterproof and dustproof, try to use it in a waterproof box.
Note:If you find that the screw part of the circuit breaker is burned, 99% of it is because the screw is not tightened
——————————————————————
How to choose the current of the circuit breaker
The current of the circuit breaker needs to be 20% larger than the working current. If the working current is 20A, Please choose 25A circuit breaker. If choose 20A, the circuit will trip and power off
——————————————————————
