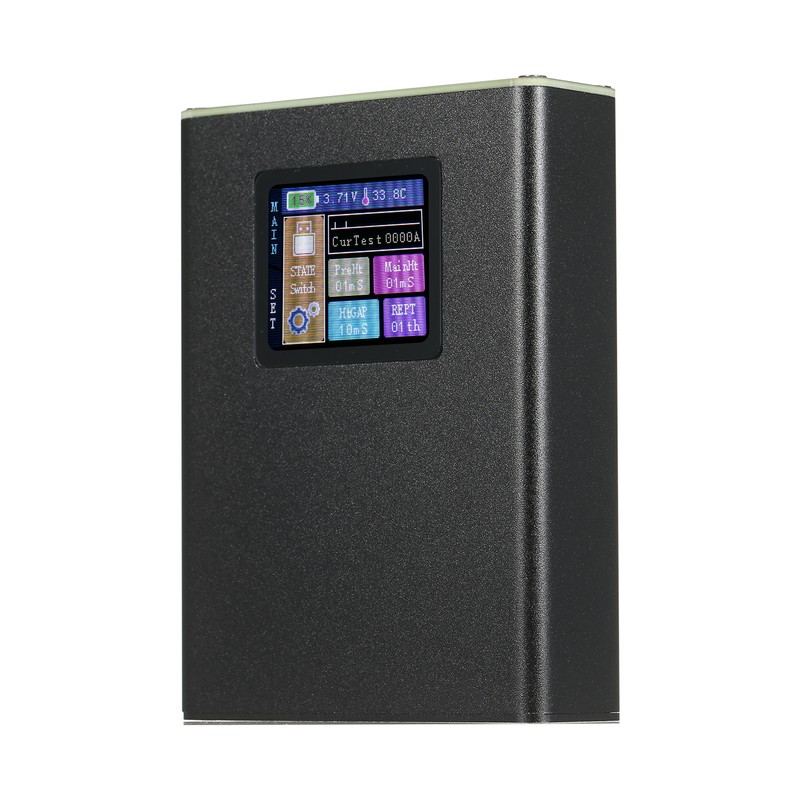

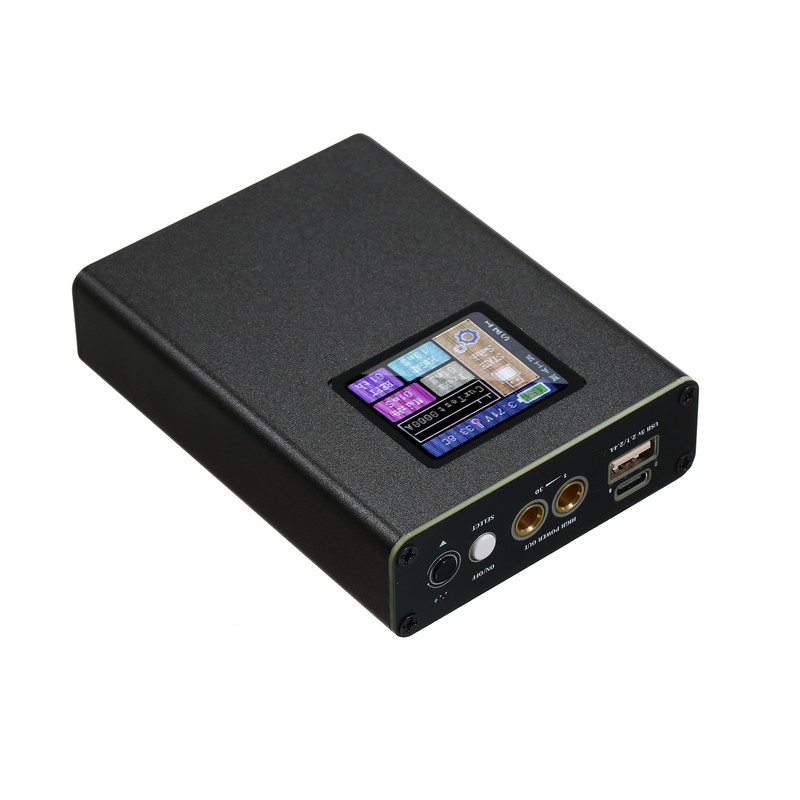

Digital Spot Welding Machine Lithium Battery Welding Device Built-in Welding Ammeter DIY Complete Kit
Digital Spot Welding Machine Lithium Battery Welding Device Built-in Welding Ammeter DIY Complete Kit
Digital Spot Welding Machine Lithium Battery Welding Device Built-in Welding Ammeter DIY Complete Kit
Product Overview
1、Working Principle: It controls the high-rate lithium batteries through a program in the built-in microcontroller, and precisely outputs the pulsed energy to generate the high temperatures in a very short time. After rapid cooling, the nickel-plated sheet and the battery are fused together to complete the welding process. 2、Digital Display: Equipped with a digital display, the welding current, pulse time, pulse interval, number of continuous spots welding times and other parameters can be clearly displayed, and you can read it at a glance. The backlight brightness of 5-100.0% can be adjusted depending on the environment. 3、Parameters Adjustable: The three parameters of preheating time, pulse interval and pulse rate can be adjusted to cover a wide ranges of welding situations, from thin aluminum sheets of mobilephone battery lugs to 0.25mm thick sheets, and lots of users\u0027 functional requirements can be met at the main interface. 4、Strong Welding Capacity: The spots welding machine has two built-in high-rate power lithium batteries, and the single-chip CNC outputs a powerful pulse current for spots welding. It can firmly welds 0.25mm nickel-plated steel sheets and 0.15mm pure nickel sheets at full-charged. The welding process is more accurate and the welding spots are more solid and beautiful. 5、Multiple Protections: over-current protections, short-circuit protections, low battery protections, over-temperature protections, over-temperature alarms, and with automatic shutdown function.
| Isin: | IQM9KIA596TG |
|---|
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
Product Overview
1、Working Principle: It controls the high-rate lithium batteries through a program in the built-in microcontroller, and precisely outputs the pulsed energy to generate the high temperatures in a very short time. After rapid cooling, the nickel-plated sheet and the battery are fused together to complete the welding process. 2、Digital Display: Equipped with a digital display, the welding current, pulse time, pulse interval, number of continuous spots welding times and other parameters can be clearly displayed, and you can read it at a glance. The backlight brightness of 5-100.0% can be adjusted depending on the environment. 3、Parameters Adjustable: The three parameters of preheating time, pulse interval and pulse rate can be adjusted to cover a wide ranges of welding situations, from thin aluminum sheets of mobilephone battery lugs to 0.25mm thick sheets, and lots of users\u0027 functional requirements can be met at the main interface. 4、Strong Welding Capacity: The spots welding machine has two built-in high-rate power lithium batteries, and the single-chip CNC outputs a powerful pulse current for spots welding. It can firmly welds 0.25mm nickel-plated steel sheets and 0.15mm pure nickel sheets at full-charged. The welding process is more accurate and the welding spots are more solid and beautiful. 5、Multiple Protections: over-current protections, short-circuit protections, low battery protections, over-temperature protections, over-temperature alarms, and with automatic shutdown function.
| Isin: | IQM9KIA596TG |
|---|
1、Working Principle: It controls the high-rate lithium batteries through a program in the built-in microcontroller, and precisely outputs the pulsed energy to generate the high temperatures in a very short time. After rapid cooling, the nickel-plated sheet and the battery are fused together to complete the welding process. 2、Digital Display: Equipped with a digital display, the welding current, pulse time, pulse interval, number of continuous spots welding times and other parameters can be clearly displayed, and you can read it at a glance. The backlight brightness of 5-100.0% can be adjusted depending on the environment. 3、Parameters Adjustable: The three parameters of preheating time, pulse interval and pulse rate can be adjusted to cover a wide ranges of welding situations, from thin aluminum sheets of mobilephone battery lugs to 0.25mm thick sheets, and lots of users\u0027 functional requirements can be met at the main interface. 4、Strong Welding Capacity: The spots welding machine has two built-in high-rate power lithium batteries, and the single-chip CNC outputs a powerful pulse current for spots welding. It can firmly welds 0.25mm nickel-plated steel sheets and 0.15mm pure nickel sheets at full-charged. The welding process is more accurate and the welding spots are more solid and beautiful. 5、Multiple Protections: over-current protections, short-circuit protections, low battery protections, over-temperature protections, over-temperature alarms, and with automatic shutdown function.
More Information
Features:
Working Principle: It controls the high-rate lithium batteries through a program in the built-in microcontroller, and precisely outputs the pulsed energy to generate the high temperatures in a very short time. After cooling, the nickel-plated sheet and the battery are fused together to complete the welding process.

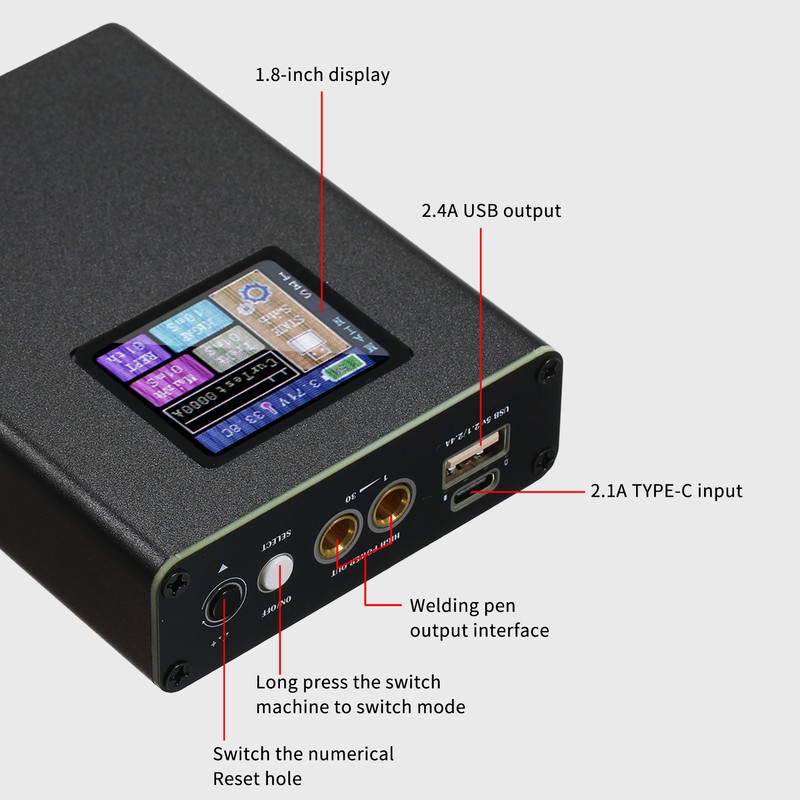

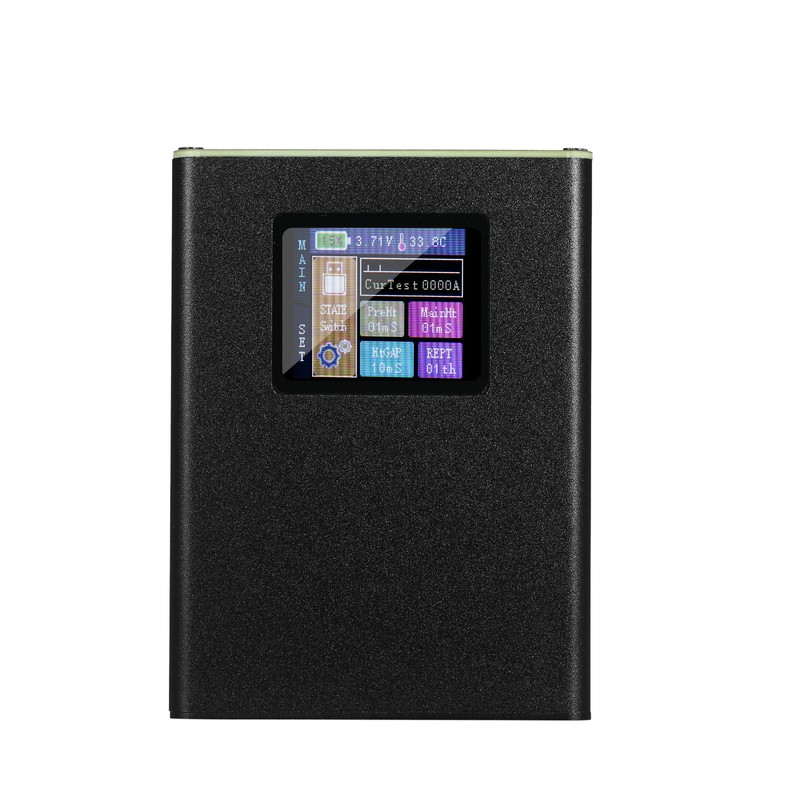

Digital Display: Equipped with a digital display, the welding current, pulse time, pulse interval, number of continuous spots welding times and other parameters can be clearly displayed, and you can read it at a glance. The backlight brightness of 5-100.0% can be adjusted depending on the environment.
Parameters Adjustable: The three parameters of preheating time, pulse interval and pulse rate can be adjusted to cover a wide ranges of welding situations, from thin aluminum sheets of mobilephone battery lugs to 0.25mm thick sheets, and lots of users' functional requirements can be met at the main interface. You can adjust the screen brightness, automatic shutdown time and other options, including using the record to view the number of leave factory times. The battery can be kept at a standby voltage for a long time without being used.
Strong Welding Capacity: The spots welding machine has two built-in high-rate power lithium batteries, and the single-chip CNC outputs a powerful pulse current for spots welding. It can firmly welds 0.25mm nickel-plated steel sheets and 0.15mm pure nickel sheets at full-charged. The welding process is more accurate and the welding spots are more solid and beautiful.
Multiple Protections: over-current protections, short-circuit protections, low battery protections, over-temperature protections, over-temperature alarms, and with automatic shutdown function.
Specifications:
Item Name: Digital Spot Welding Machine
Color: Black
Material: Printed Circuit Board, Metal Shell
Battery: 3.7V 5000mAh Battery (Included)
Input: 4.2V±0.05V
Welding Current: 6-800A
Over Current Protections: 1.12KA
Input Voltage: 5V 2.1A
Output Voltage: 5V 2.4A
Welding Delay: 0.5-2S
Continuous Point Interval: 0.8-1.2S
Save Voltage: 4.0-4.15V
Shutdown Voltage: 3.3-3.7V
Screen Brightness: 5-100.0%
Active Shutdown: 5-120min
Alarm Temperature: 50-75℃
Language: Chinese and English Switch
Storage Temperature: 55℃
Storage Humidity: 50%RH
Welding Thickness: 0.1-0.25mm

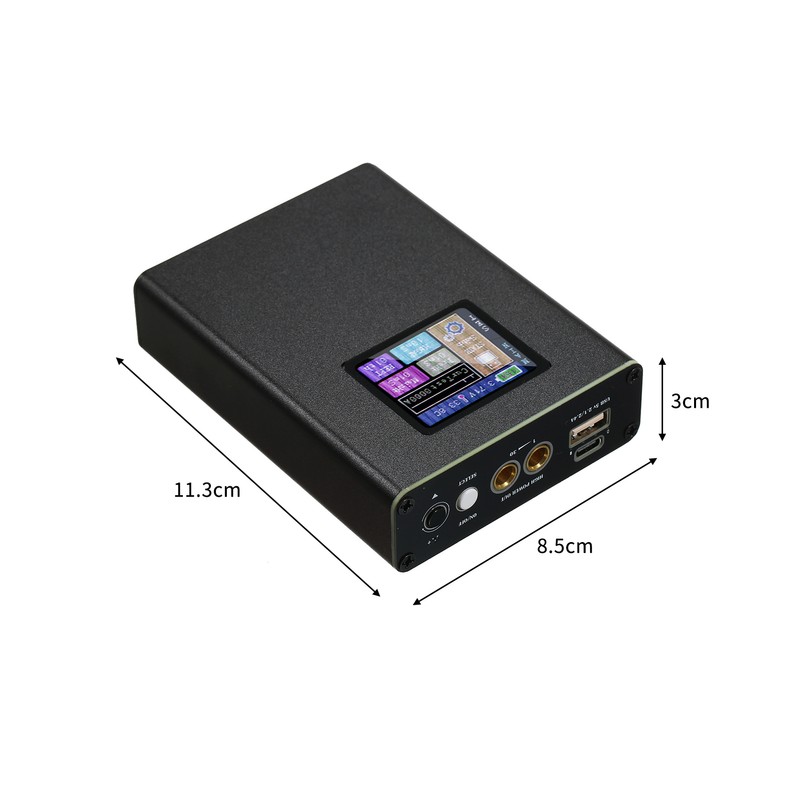

Size: 11.3*8.5*3cm
Package Size: 18*11.3*5cm
Package Weight: 518g

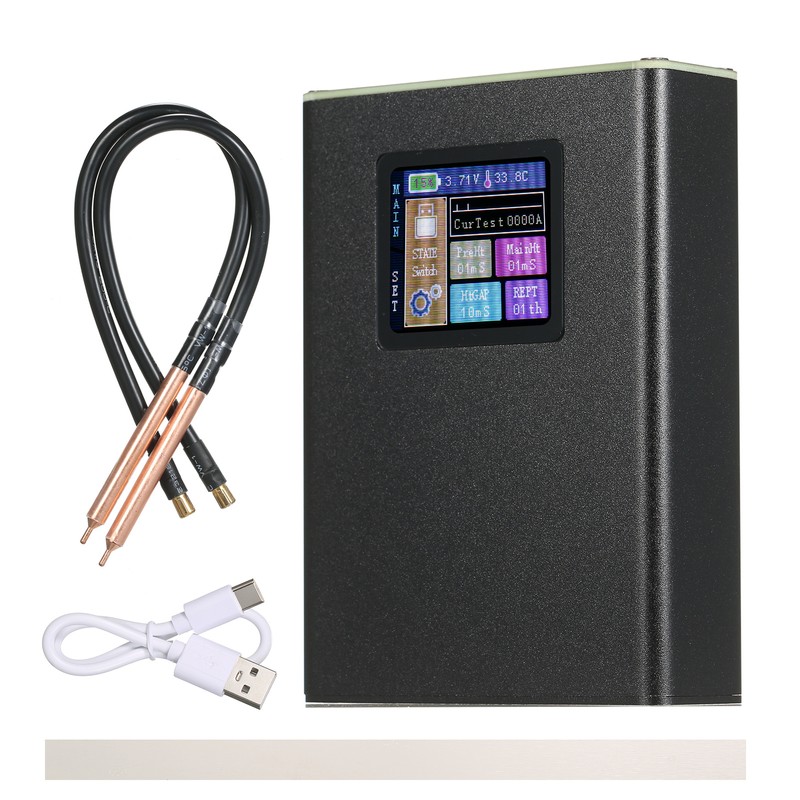

Packing List:
1* Digital Spot Welding Machine
1 * Type-C Cable
2 * Welding Pen
1 * Some Nickel Sheet
Working Principle: It controls the high-rate lithium batteries through a program in the built-in microcontroller, and precisely outputs the pulsed energy to generate the high temperatures in a very short time. After cooling, the nickel-plated sheet and the battery are fused together to complete the welding process.
Digital Display: Equipped with a digital display, the welding current, pulse time, pulse interval, number of continuous spots welding times and other parameters can be clearly displayed, and you can read it at a glance. The backlight brightness of 5-100.0% can be adjusted depending on the environment.
Parameters Adjustable: The three parameters of preheating time, pulse interval and pulse rate can be adjusted to cover a wide ranges of welding situations, from thin aluminum sheets of mobilephone battery lugs to 0.25mm thick sheets, and lots of users' functional requirements can be met at the main interface. You can adjust the screen brightness, automatic shutdown time and other options, including using the record to view the number of leave factory times. The battery can be kept at a standby voltage for a long time without being used.
Strong Welding Capacity: The spots welding machine has two built-in high-rate power lithium batteries, and the single-chip CNC outputs a powerful pulse current for spots welding. It can firmly welds 0.25mm nickel-plated steel sheets and 0.15mm pure nickel sheets at full-charged. The welding process is more accurate and the welding spots are more solid and beautiful.
Multiple Protections: over-current protections, short-circuit protections, low battery protections, over-temperature protections, over-temperature alarms, and with automatic shutdown function.
Specifications:
Item Name: Digital Spot Welding Machine
Color: Black
Material: Printed Circuit Board, Metal Shell
Battery: 3.7V 5000mAh Battery (Included)
Input: 4.2V±0.05V
Welding Current: 6-800A
Over Current Protections: 1.12KA
Input Voltage: 5V 2.1A
Output Voltage: 5V 2.4A
Welding Delay: 0.5-2S
Continuous Point Interval: 0.8-1.2S
Save Voltage: 4.0-4.15V
Shutdown Voltage: 3.3-3.7V
Screen Brightness: 5-100.0%
Active Shutdown: 5-120min
Alarm Temperature: 50-75℃
Language: Chinese and English Switch
Storage Temperature: 55℃
Storage Humidity: 50%RH
Welding Thickness: 0.1-0.25mm
Size: 11.3*8.5*3cm
Package Size: 18*11.3*5cm
Package Weight: 518g
Packing List:
1* Digital Spot Welding Machine
1 * Type-C Cable
2 * Welding Pen
1 * Some Nickel Sheet
