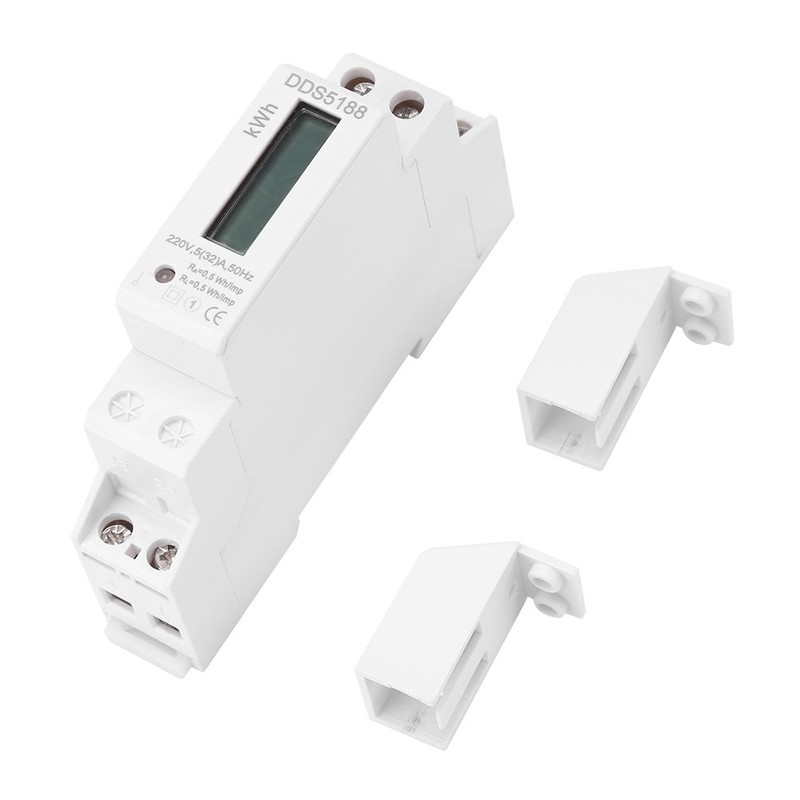

Digital Electricity Meter, 220 V Single-Phase DIN Rail Electricity Meter, with LCD Display, AC Meter, 5-32 A Electronic KWh Meter
$54.76
- $9.99 shipping from Germany View details
-
Arrives
- Compliant with national and international standards: the meter fully complies with the relevant technical requirements of the national standard GB / T17215.321-2008 and the international standard IEC62053 for grade 1 or level 2 single-phase energy meters, which can work directly and accurately measure effective energy of energy consumption.
- Compact size with LCD display: the LCD display is 7 + 1 or 6 + 1 meters, showing the total power consumption. It features high reliability, low volume, light weight, beautiful appearance, advanced technology and 35mm DIN standard guide rail installation, etc.

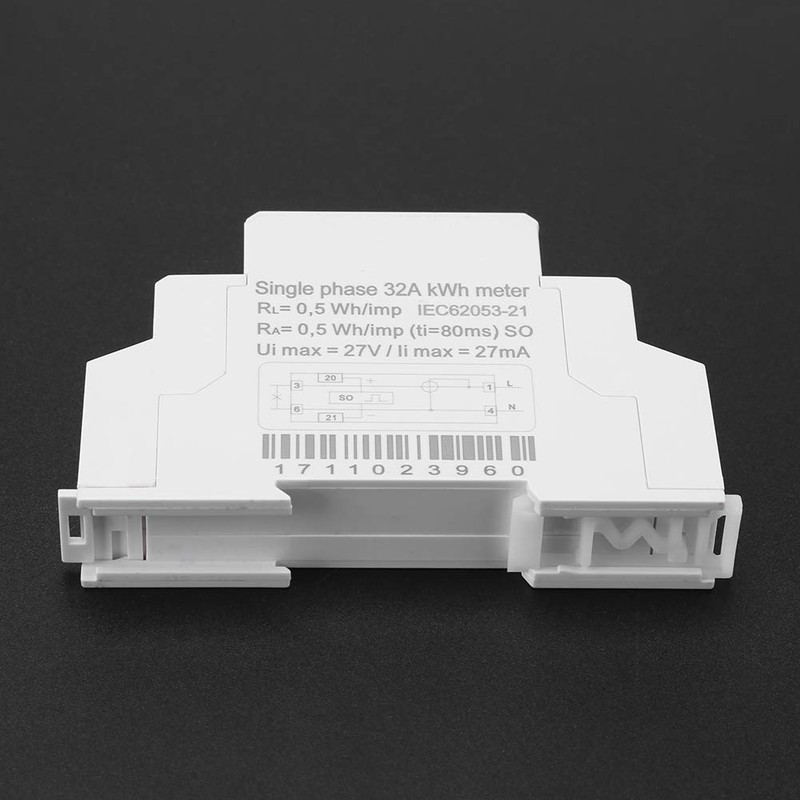

- Test: The meter has a photoelectric coupling type pulse test output located in the connection button box (as shown in figure 2), + 5VDC of the test equipment connected to 20"+" connection, signal S to 21"-" terminal.
- Excellent performance: It has good electromagnetic compatibility, low power consumption, high precision, high overload, high stability, anti-theft and long service life.
- Application and Note This table is suitable for measuring the rated frequency of 50Hz or 60Hz single-phase AC current, which is used for fixed indoor installation % and does not contain corrosive gases in the air, avoiding dust, mold, salt fog, condensation, insects, etc.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Compliant with national and international standards: the meter fully complies with the relevant technical requirements of the national standard GB / T17215.321-2008 and the international standard IEC62053 for grade 1 or level 2 single-phase energy meters, which can work directly and accurately measure effective energy of energy consumption.
- Compact size with LCD display: the LCD display is 7 + 1 or 6 + 1 meters, showing the total power consumption. It features high reliability, low volume, light weight, beautiful appearance, advanced technology and 35mm DIN standard guide rail installation, etc.
- Test: The meter has a photoelectric coupling type pulse test output located in the connection button box (as shown in figure 2), + 5VDC of the test equipment connected to 20"+" connection, signal S to 21"-" terminal.
- Excellent performance: It has good electromagnetic compatibility, low power consumption, high precision, high overload, high stability, anti-theft and long service life.
- Application and Note This table is suitable for measuring the rated frequency of 50Hz or 60Hz single-phase AC current, which is used for fixed indoor installation % and does not contain corrosive gases in the air, avoiding dust, mold, salt fog, condensation, insects, etc.
Phase number: single phase.
Type: Guide Type
Display mode: LCD.
Nominal voltage: 220 V.
Rated current: 5-32A.
Working temperature: -25 ~ 55 °C.
Rated frequency: 50-60Hz +/- 10%.
Accuracy level: level 1 (corresponds to measurement error <1%)
Including S0 port 2000 Imp / kWh (ti = 80ms).
Relative humidity: 95%.

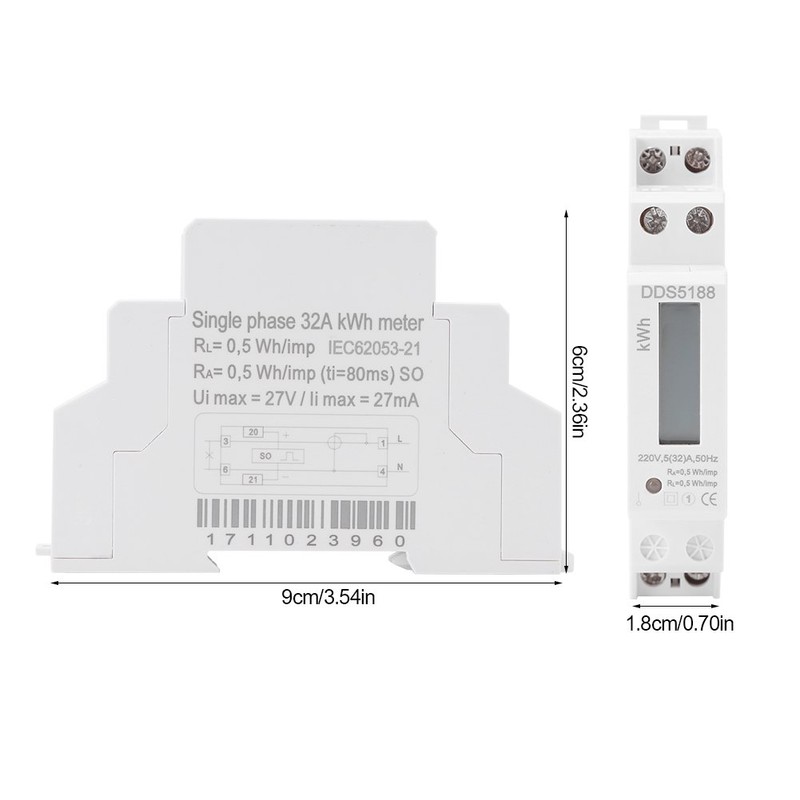

Size: as shown in the picture.
Weight: 98 g
Installation Notes:
1. An experienced electrician or professional is required to install the electricity meter.
2. Electric meter should be installed in ventilated interiors and in a dry place. Adopt a 35mm DIN standard guide. The base plate of the electricity meter must be attached to the rigid fireproof, non-vibrating wall.
3. The base plate of the electricity meter is attached to the non-vibrating, stiff fireproof wall.
4. Electricity meters should be installed in protective cabinets in places where dirt and possible damage may occur.

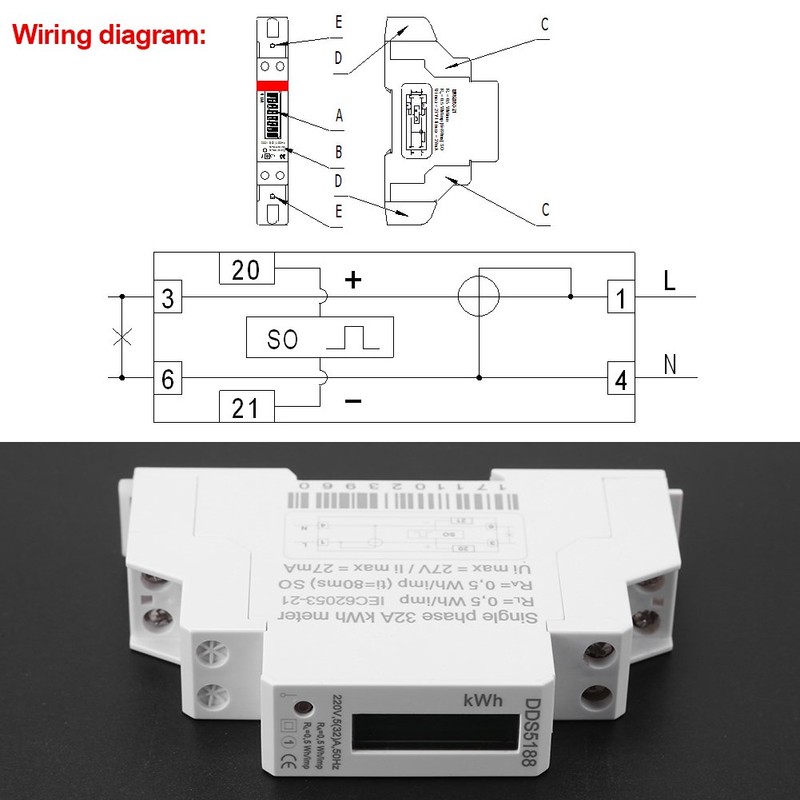

5. Installation should be done according to the wiring diagram, preferably with a multi-core copper wire to avoid abnormal or burning behaviour of the electricity meter due to poor contact.
6. When the electricity meter is correctly connected to the mains supply, the power indicator of the meter lights up.
7. The electricity meter should take the lightning protection measures when used in an area with more flashes to avoid damage to the electricity meter by flashes.
The load capacity of the electricity meter is 0.05 ib ~ Imax (direct access).
Power indicator: when the green light is on, the power supply is normal
Pulse indicator: when the red light is on, the current pulse is detected
With a sampling signal, the pulse duration is approx. 80 ms.
Box contents:
1 x DIN rail energy meter.
