DEWIN Frequency Inverter 1.5 kW, 3 Phase Input 3 Phase Output Frequency Converter VFD Motor Speed Controller 380 V
$196.13
- $14.50 shipping from Germany View details
-
Arrives
- 【Multiple Control Algorithms】The frequency converter supports VF control for asynchronous motors, open current vector control, standard open control for synchronous motors with permanent magnets and open vector control. It offers 150% starting torque at 0.5Hz (vector control without speed sensor), achieving high torque, high precision, wide speed range and high power output.
- 【Fast Current Limiting Function】:When the current exceeds the protection point, the fast current limiting function can quickly limit the current to the protection point, avoiding frequent over-current alarms of the frequency converter, protecting the safety of equipment, and preventing overcurrent problems due to sudden loads or interference.
- 【Torque Limitation to Protect Machine】: The frequency converter is equipped with a torque limiting function, which can limit the torque to the set maximum value when the torque command exceeds the mechanical tolerance limit, and better protects the safety of the equipment while ensuring mechanical efficiency.

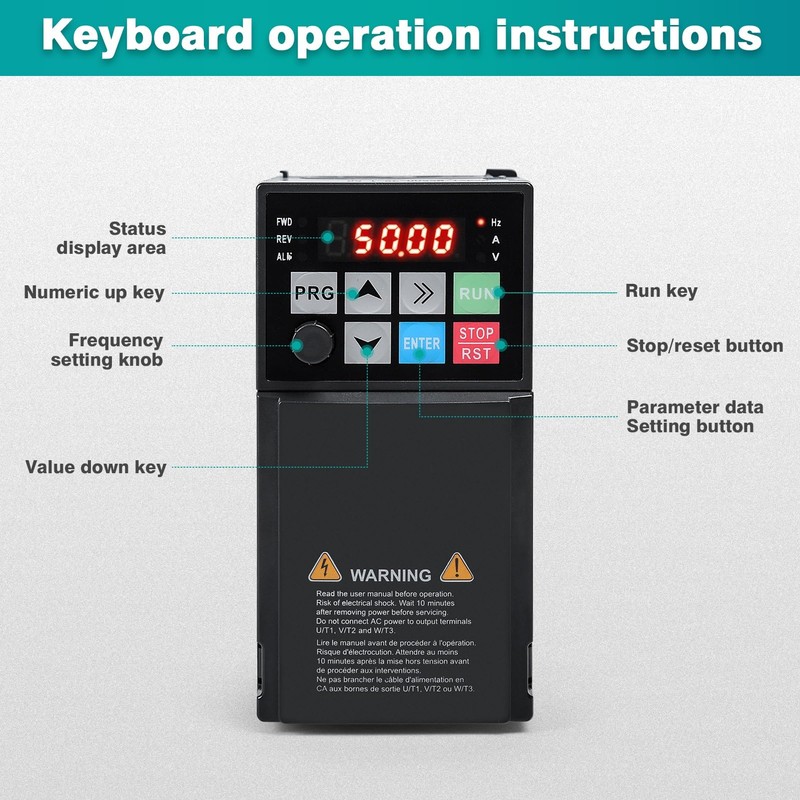

- 【High quality double layer board】: intelligent double layer board design, built-in power supply board and motherboard, with high-speed processing function. Large button design for easy operation, digital display of real-time data on the screen, intuitive and clear. Compact size of the inverter, the panel is removable, easy to install, connect the cable via the screw terminal, more convenient operation and wiring.

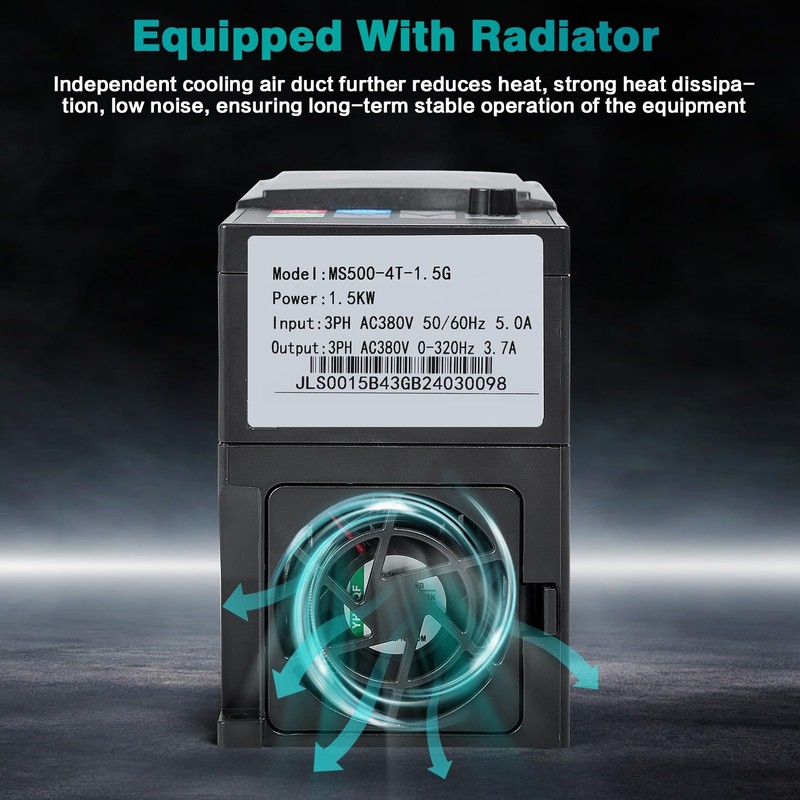

- 【High Speed Fan】: Equipped with independent cooling channels, which effectively reduce heat, provide strong cooling and low noise, ensuring long-term stable operation of the device.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- 【Multiple Control Algorithms】The frequency converter supports VF control for asynchronous motors, open current vector control, standard open control for synchronous motors with permanent magnets and open vector control. It offers 150% starting torque at 0.5Hz (vector control without speed sensor), achieving high torque, high precision, wide speed range and high power output.
- 【Fast Current Limiting Function】:When the current exceeds the protection point, the fast current limiting function can quickly limit the current to the protection point, avoiding frequent over-current alarms of the frequency converter, protecting the safety of equipment, and preventing overcurrent problems due to sudden loads or interference.
- 【Torque Limitation to Protect Machine】: The frequency converter is equipped with a torque limiting function, which can limit the torque to the set maximum value when the torque command exceeds the mechanical tolerance limit, and better protects the safety of the equipment while ensuring mechanical efficiency.
- 【High quality double layer board】: intelligent double layer board design, built-in power supply board and motherboard, with high-speed processing function. Large button design for easy operation, digital display of real-time data on the screen, intuitive and clear. Compact size of the inverter, the panel is removable, easy to install, connect the cable via the screw terminal, more convenient operation and wiring.
- 【High Speed Fan】: Equipped with independent cooling channels, which effectively reduce heat, provide strong cooling and low noise, ensuring long-term stable operation of the device.
Feature:
1. The frequency converter supports VF control for asynchronous motors, open current vector control, standard open control for synchronous motors with permanent magnets and open vector control. It offers 150% starting torque at 0.5Hz (vector control without speed sensor), achieving high torque, high precision, wide speed range and high power output.
2. When the current exceeds the protection point, the fast current limiting function can quickly limit the current to the protection point, avoiding frequent overcurrent alarms of the frequency converter, protecting the safety of the equipment and preventing overcurrent problems due to sudden loads or interference.
3. The frequency converter is equipped with a torque limiting function that can limit the torque to the set maximum value when the torque command exceeds the mechanical tolerance limit, and better protects the safety of the equipment while ensuring mechanical efficiency.
Specifications:
Colour: black.
Input rated voltage: three-phase 380 V.
Input rated frequency: 50/60 Hz.
Input rated current: 5.0 A.
Output rated voltage: three-phase 380 V.
Output rated current: 3.7 A.
Output Frequency: Low Frequency Mode: 0-320Hz
Applicable motor: 1.5 kW.
Installation method: wall mounting.

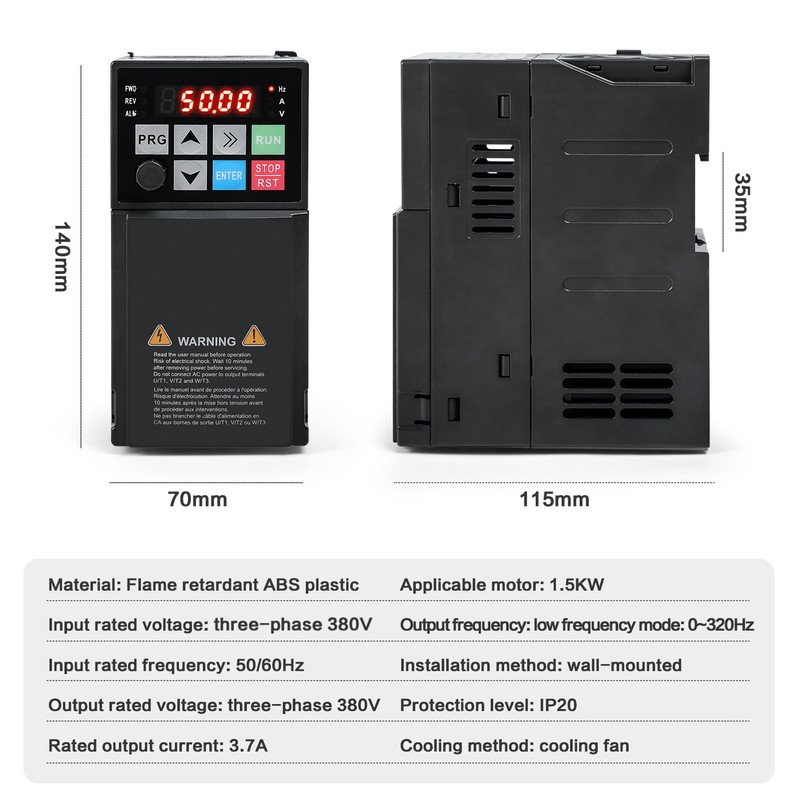

Size: 11.5 x 14.2 x 7.3 cm
Protection level: IP20.
Cooling method: cooling fan
Packing list:
1 x frequency converter.
