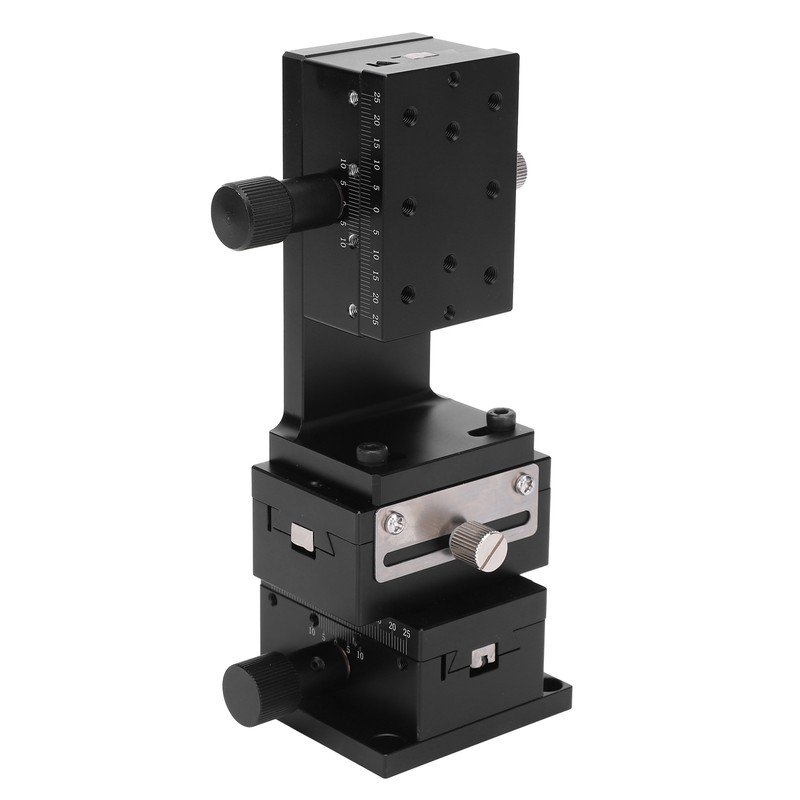

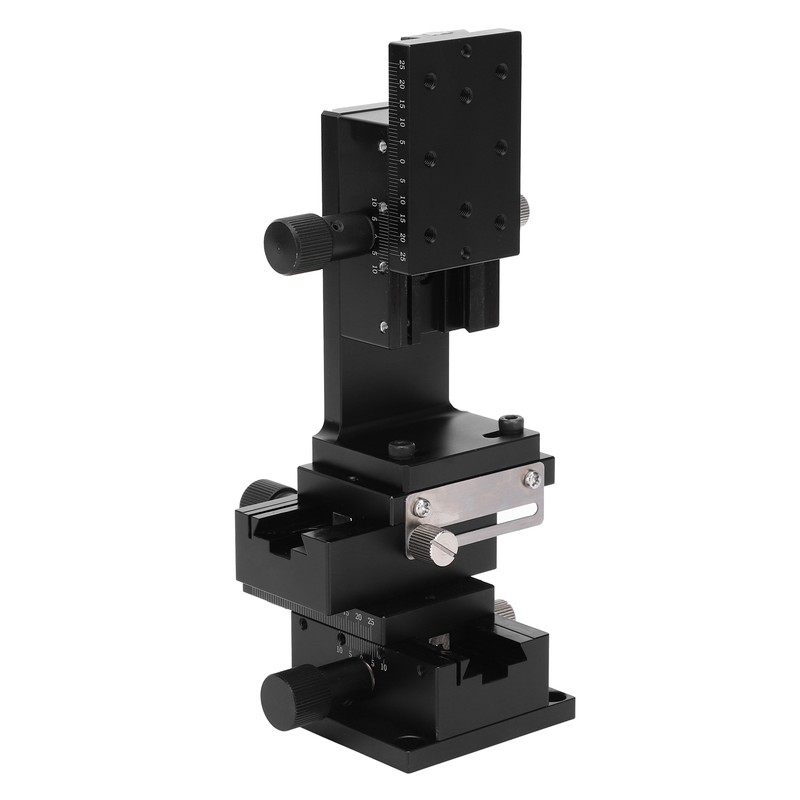

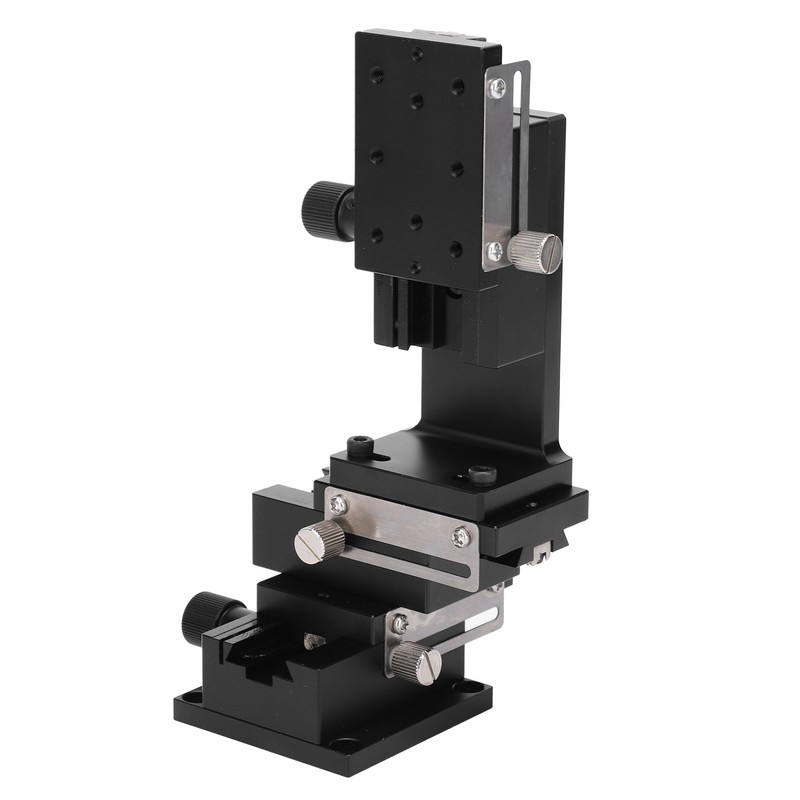

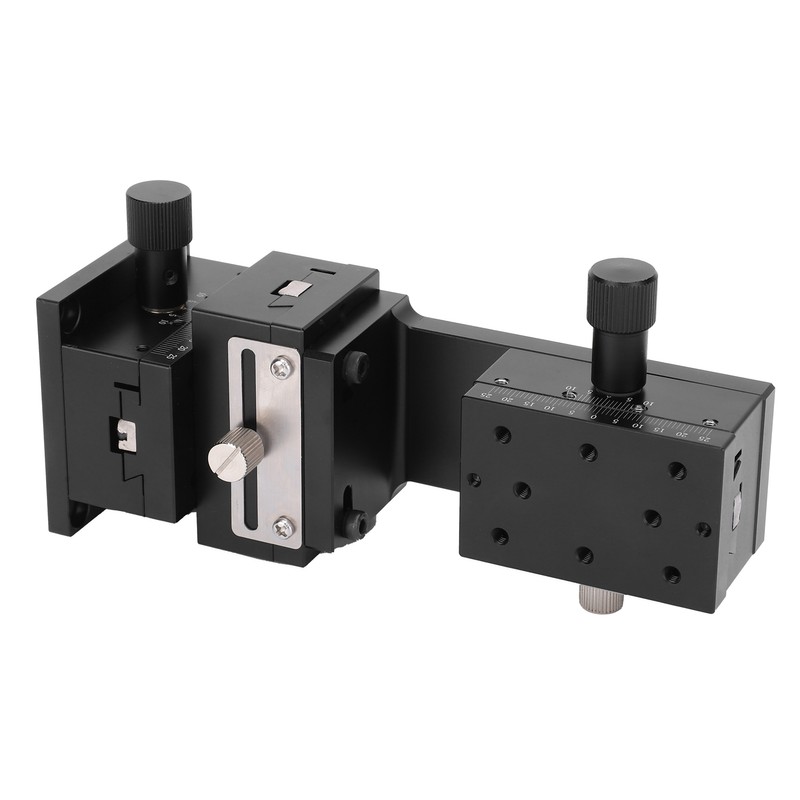

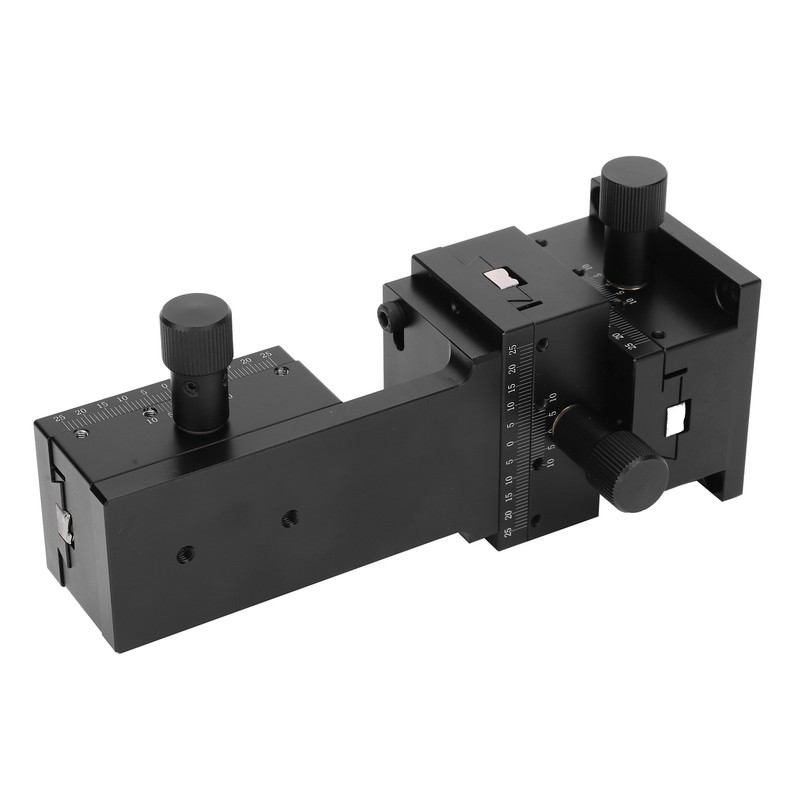

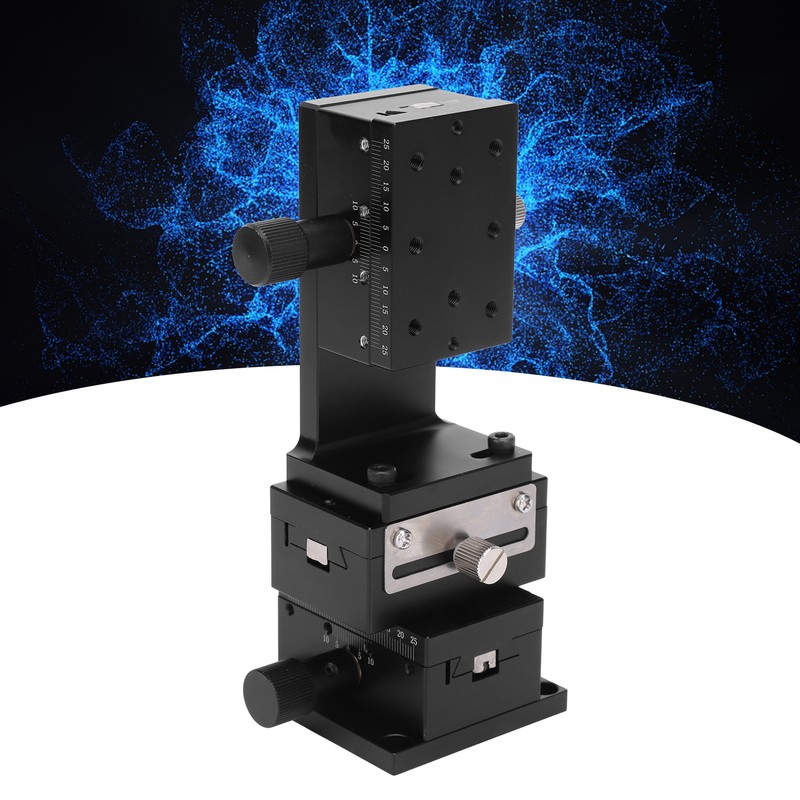

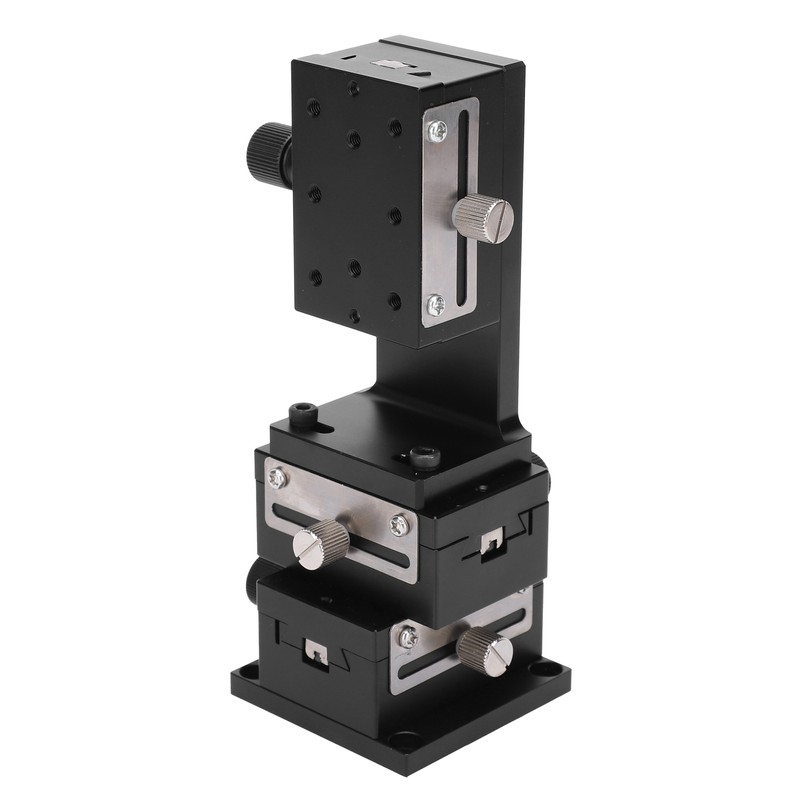

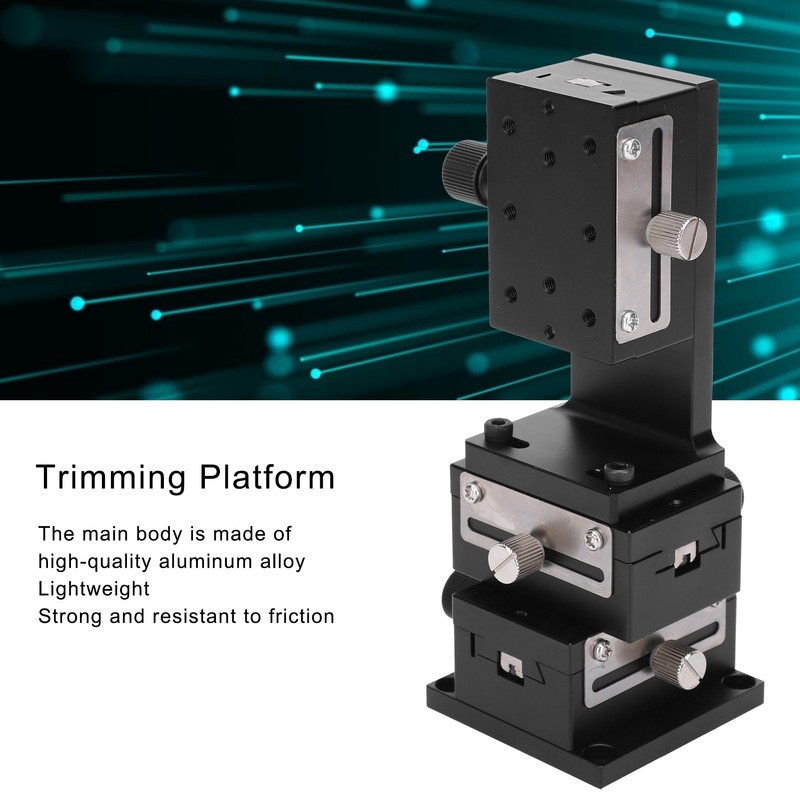

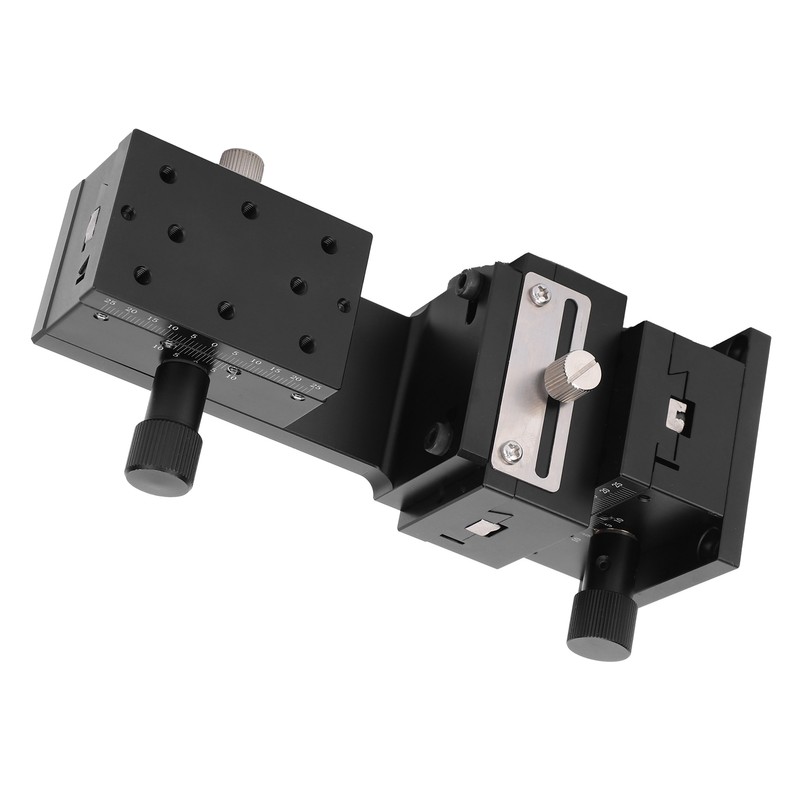

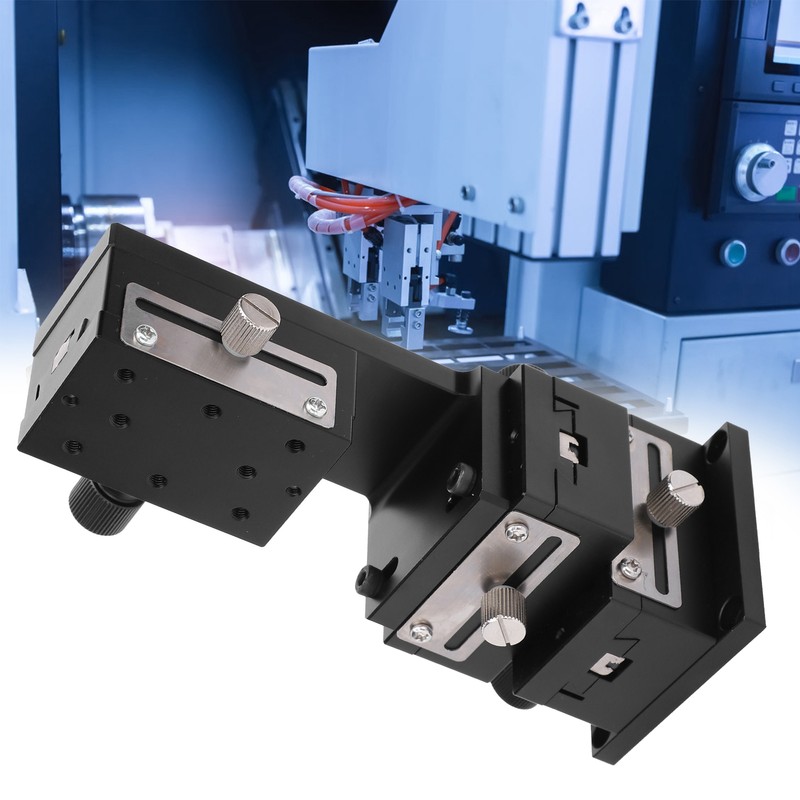

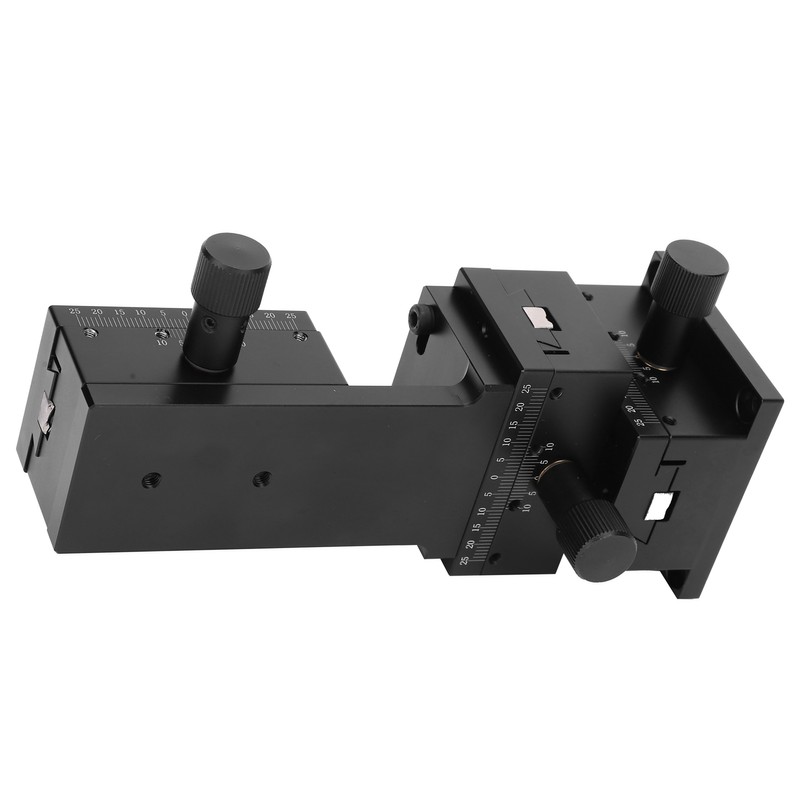

Detachable XYZ Axis Trimming Platform High Accuracy Manual Dovetail Groove FineTune 40x60mm/1.6x2.4in
$229.88
- $9.99 shipping from United States View details
-
Arrives
1、The main body is made of high‑quality aluminum alloy, which is light, strong and resistant to friction. Mute when working, scratch‑proof, drop‑proof and corrosion‑proof. 2、Gear rotation handle control, dovetail groove guidance, to ensure high accuracy, stability, high load resistance and stable movement. 3、R angle safety protection, which makes it have strong practicability and high reliability. 4、Suitable for optical equipment, measuring instruments, semiconductor manufacturing equipment, microscopes, photographic equipment, etc. 5、The surface is treated with black anodic oxidation, which is not easy to rust and can be used for a long time.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
1、The main body is made of high‑quality aluminum alloy, which is light, strong and resistant to friction. Mute when working, scratch‑proof, drop‑proof and corrosion‑proof. 2、Gear rotation handle control, dovetail groove guidance, to ensure high accuracy, stability, high load resistance and stable movement. 3、R angle safety protection, which makes it have strong practicability and high reliability. 4、Suitable for optical equipment, measuring instruments, semiconductor manufacturing equipment, microscopes, photographic equipment, etc. 5、The surface is treated with black anodic oxidation, which is not easy to rust and can be used for a long time.
1、The main body is made of high‑quality aluminum alloy, which is light, strong and resistant to friction. Mute when working, scratch‑proof, drop‑proof and corrosion‑proof. 2、Gear rotation handle control, dovetail groove guidance, to ensure high accuracy, stability, high load resistance and stable movement. 3、R angle safety protection, which makes it have strong practicability and high reliability. 4、Suitable for optical equipment, measuring instruments, semiconductor manufacturing equipment, microscopes, photographic equipment, etc. 5、The surface is treated with black anodic oxidation, which is not easy to rust and can be used for a long time.
More Information
Item Type: XYZ Axis Trimming Platform
Body Material: Aluminum Alloy (black anodized)
Color: Black
Model: HBLX-A60

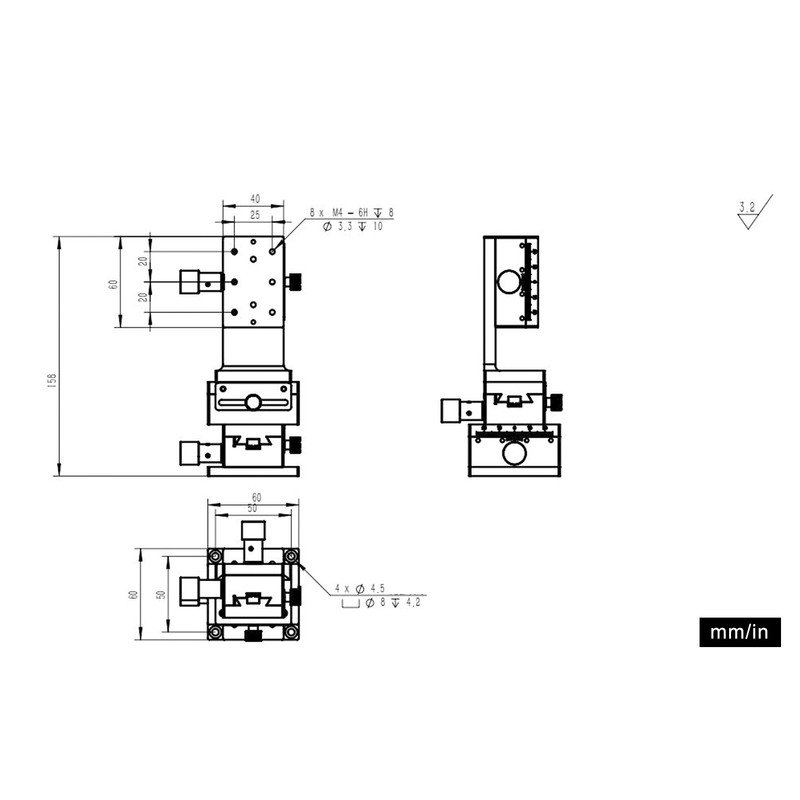

Table Surface Size: Approx. 40x60mm/1.6x2.4in
Moving Direction: XYZ Axis, 3 directions
Movement Method: Rotating gears and rotating handles to advance
Sliding Track: Gear guide
Rail Type: Dovetail groove type
Number Of Countertop Threaded Holes: 8pcs
Threaded Hole Diameter: Approx. 4mm/0.2in
Threaded Hole Depth: Approx. 6mm/0.2in
Withstand Load: 49N (5Kgf)
Up and Down Movement Stroke: ±25mm
Minimum Scale: Approx. 0.01mm/0.0004in
Parallelism: 80μm
Moving Parallelism: ≤0.08mm/30mmStructure: Detachable
Application: Optical equipment, measuring devices, semiconductor manufacturing equipment, testing machines, microscopes, photographic equipment, transporting machines, processing machines, medical equipment, printing machines and others.
How to Use:
1. The mechanical sliding table is a general component that completes the feed movement. The complete mechanical sliding table is composed of the sliding table part and its moving common parts, the complete mechanical sliding table part and other moving device brakes and other auxiliary parts. According to the process requirements of the machined parts, a power box (with multi-axis box) drilling head, boring head, milling head, boring head, turning head, etc. are installed on it to form various combined machine tools to complete drilling and expansion. , Reaming, scraping end face, chamfering, turning end face, milling, drilling and tapping, etc. Deep hole processing can be completed by configuring a graded feed mechanism on the sliding table (the graded feed mechanism is only used for specifications below HJ32)
2. The sliding table can be installed on the side base or column, and can also be installed on the inclined base to form a horizontal, vertical or inclined combined machine tool.
