Delay Turn Off Time Relay, 16A GRT8-B2 Adjustable Single Function Electronic Timer Relay in Din Rail, 0.1s-10 Days Wide Range Delay Automation Time Universal Voltage GRT8-B2 AC/DC 12V to 240V
$61.93
- $5.95 shipping from United States View details
-
Arrives

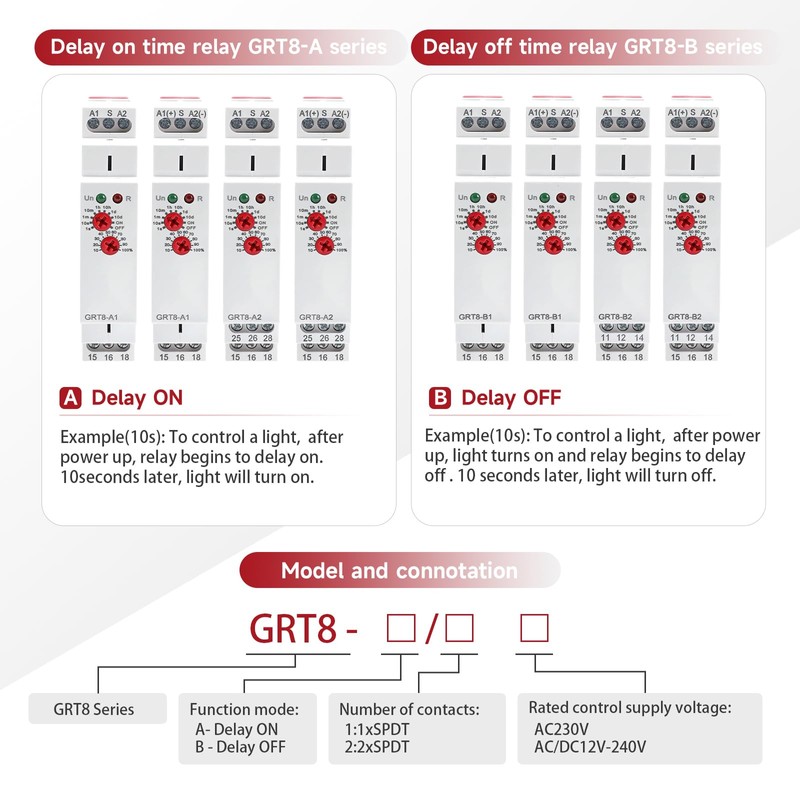

- FUNCTION MODE: control the closing or opening of the circuit through the time delay function of the relay, GRT8-A series, Delay On device, GRT8-B series, Delay Off device

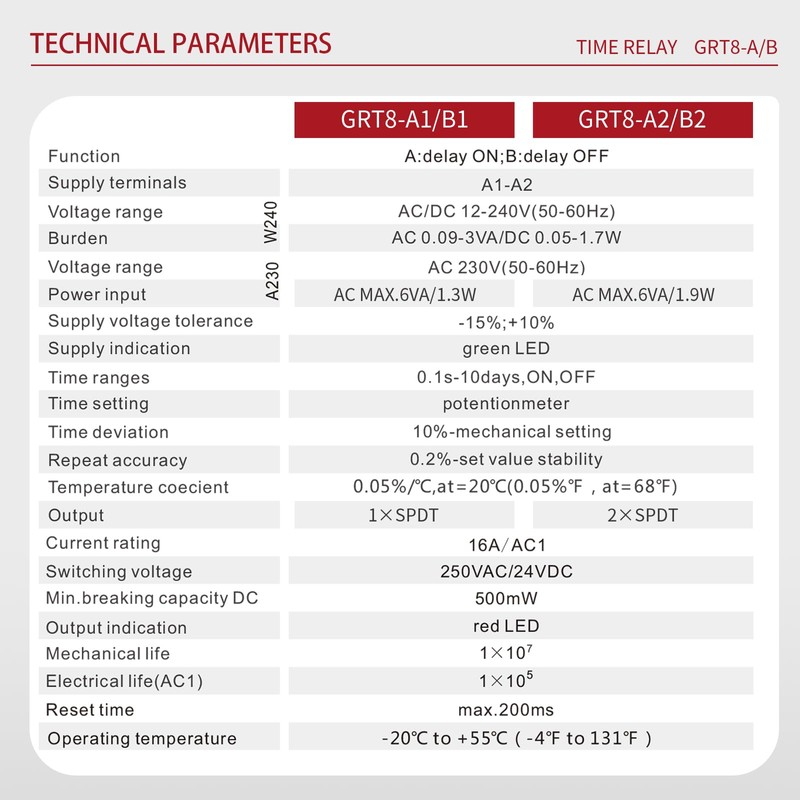

- PARAMETER RANGE: number of outputs：2SPDT（2NO 2NC） rated current: 16A rated voltage: AC DC 12V to 240V (50-60Hz) (power supply allowable range: -15%; +16%) timer delay off range: 0.1s-1s/1s-10s/6s-60s/1min-10min/6min-60min/1h-10h/0.1d-1d/1d-10d

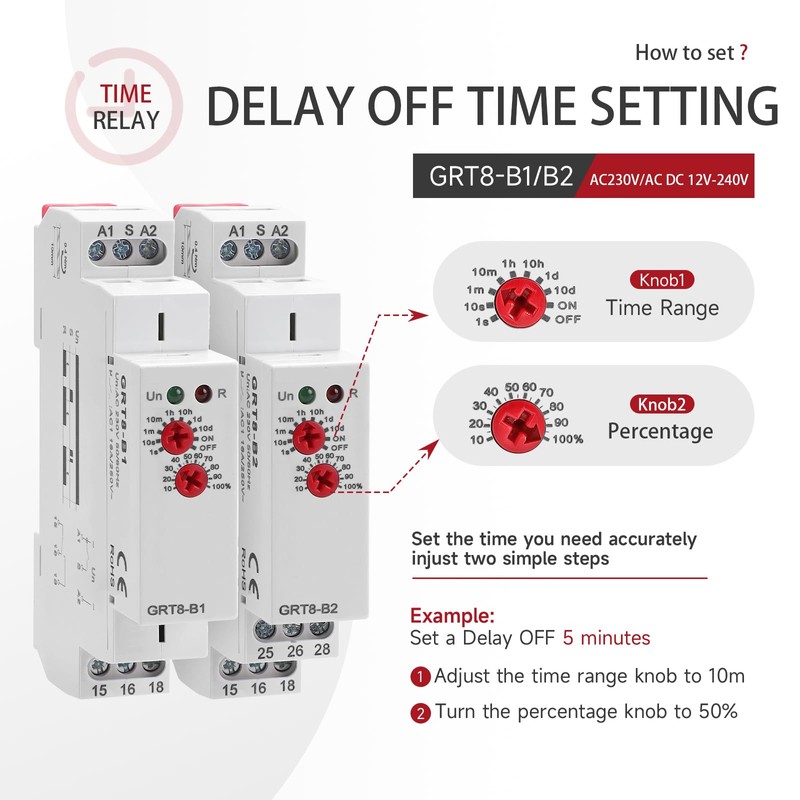

- USE & STATUS: ac dc 12v time delay relay first knob is for delay time gear selection, and the second knob is for time percentage multiples, delay off timer relay dc 24v green indicator light indicates the relay power supply, and the red indicator light indicates the delay and contact status

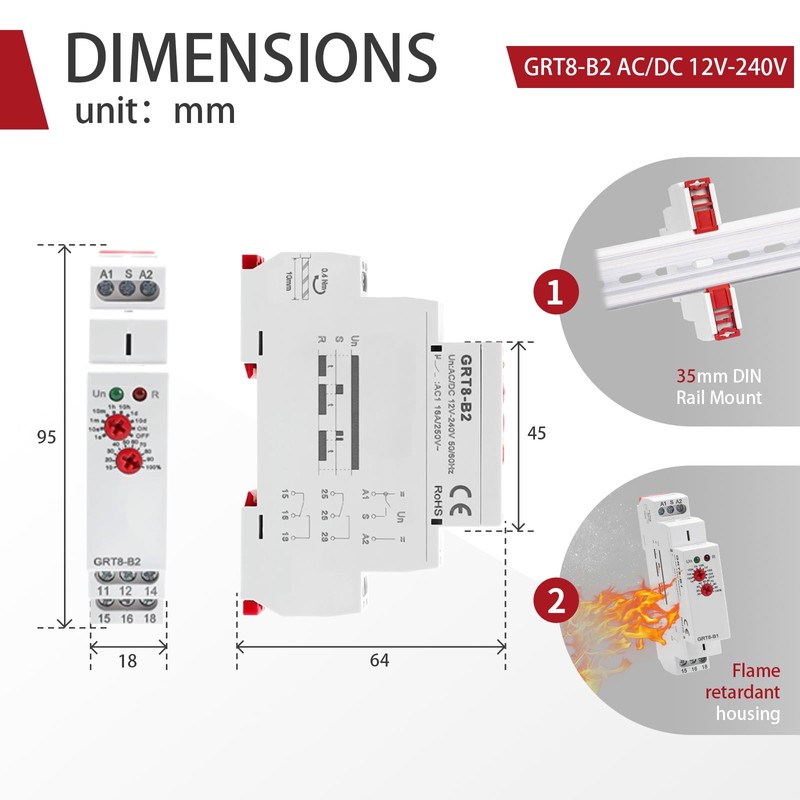

- MATERIAL & SIZE: din rail timer relay uses an ABS plastic sealed housing and complies with CE, CB, and RoHS, timer relay 120v measures 2.88 inches x 3.68 inches x 0.9 inches, weighs approximately 3 ounces, and is mounted on a 35 mm Din rail.
- WORRY FREE AFTER-SALES SERVICE: IGEYAPA provides a 30 day no reason return and a 3-year warranty for this product. If you have any questions about installation or use, or if you encounter any problems during use, please feel free to reach up to IGEYAPA at any time
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- FUNCTION MODE: control the closing or opening of the circuit through the time delay function of the relay, GRT8-A series, Delay On device, GRT8-B series, Delay Off device
- PARAMETER RANGE: number of outputs：2SPDT（2NO 2NC） rated current: 16A rated voltage: AC DC 12V to 240V (50-60Hz) (power supply allowable range: -15%; +16%) timer delay off range: 0.1s-1s/1s-10s/6s-60s/1min-10min/6min-60min/1h-10h/0.1d-1d/1d-10d
- USE & STATUS: ac dc 12v time delay relay first knob is for delay time gear selection, and the second knob is for time percentage multiples, delay off timer relay dc 24v green indicator light indicates the relay power supply, and the red indicator light indicates the delay and contact status
- MATERIAL & SIZE: din rail timer relay uses an ABS plastic sealed housing and complies with CE, CB, and RoHS, timer relay 120v measures 2.88 inches x 3.68 inches x 0.9 inches, weighs approximately 3 ounces, and is mounted on a 35 mm Din rail.
- WORRY FREE AFTER-SALES SERVICE: IGEYAPA provides a 30 day no reason return and a 3-year warranty for this product. If you have any questions about installation or use, or if you encounter any problems during use, please feel free to reach up to IGEYAPA at any time
Time Relay Delay Turn Off 16A Adjustable Smart Relay Electronic Timer in Din Rail, 0.1s-10 Days Wide Range Delay Factory Automation Time Universal Voltage GRT8 AC DC 12-240V (GRT8-B2-240)
Delay Off Time Relay Electronic 16A AC12V with CE Certificate
Delay Single Function Time Relay 2 Output 16A Electronic Adjustable Power ON Timer Delay Relay Rail Modular
Delay OFF Time Relay Electronic 16A 1SPDT Adjustable Timer Delay Relay Din Rail Modular with CE CB Certificate
GRT8-B1 Delay Timer Switch, AC DC 12-2400V Mini Power OFF Delay
Time Relay DIN Rail 35mm Cycle Delay Timer Relay Switch for Industrial Control
Delay OFF Timer Relay 1 Output 16A Electronic Power DFF Timer Delay Relay Din Rail
GRT8-B Electronic 16A SPDT OFF Delay Timer Relay Time Relay AC230V DIN Rail Delay OFF Relay 12V
FUNCTION& APPLICATION: 12v timer relay, preset the machine to work for a predetermined time and then turn off the time. It has a wide delay setting range of 0.1 seconds to 10 days, a wide working voltage of AC230v (50-60Hz), output contact: 2SPDT (2NO 2NC), rated current is 16A. This ac240V timer delay relay can be used in industrial equipment, lighting, manufacturing industries to accurately control the delay time of changing lighting, heating, motors, machines, etc

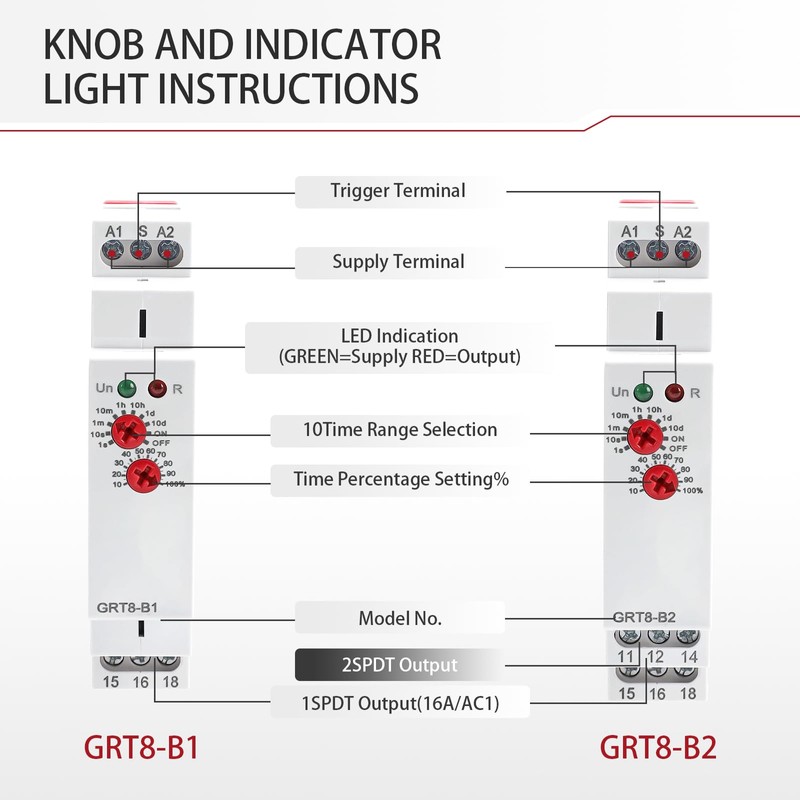

INDICATOR BUTTON: The working status of the delay relay is indicated by the LED indicator: the green LED indicator is always on (power on), the green LED indicator is off (power abnormality); the red LED indicator is on (indicating the start of work), the red LED indicator is off (indicating the stop of work). If you want to set the device to shut down after working for 5 days, please adjust the first knob of this delay relay to 10 days and the second knob to 50%. Then the terminal will disconnect the circuit and stop working after working for 5 days
COMPACT AND EASY TO INSTALL: Din rail ac12V delay timer relay is 2.88 inches x 3.68 inches x 0.9 inches, installed on a 35mm din rail, easy to install, portable and compact
CHOICE MATERIALS: GRT8 Series delay on time relay made of industrial grade plastic , compliant with UL, CE, CB, RoHS standards, flame retardant, relay switch has a sealing ring that can isolate dust and oxygen, and can work stably in humid environments to protect your expensive equipment
WORRY FREE AFTER-SALES SERVICE: IGEYAPA provides a 30 day no reason return and a 3-year warranty for this product. If you have any questions about installation or use, or if you encounter any problems during use, please feel free to reach up to IGEYAPA at any time
Delay Off Time Relay GRT8-B2 Delay Timer Switch And Relay Module,Time Delay Off Relay 16A Electronic Adjustable Timer Relay Din Rail
Function:Relay Control Module Sets The Delay Directly Through The Panel Knob, and The Time Delay Relay to Work.
Circuit Structure: Single-Function Delay Time Relay, Time Relay Supports A Broad Time Scale from 0.1s to 10 Days and Suitable for Industrial Equipment, Output Contact: 1SPDT(1NO1NC),Delay Control Switch.
High Precision: Time Delay Relays Are Suitable for Applications Requiring Precise Timing and Control, RoHS Compliant.LED Indicator Shows The Working Status of The Relay for Easy Monitoring.
Mini Size:Time Delay Relay, While Only 18mm Width, 35mm Din Rail Mount. 1-MODULE, DIN rail mounting.
