DC12V 6 Inch Stroke Electric Linear Motion Actuator with Momentery Switch 900N(200lbs) IP66 High Speed Motor 12mm/s with Mounting Brackets(150mm)
$110.79
-
Arrives
- 12VDC Linear Actuator: Stroke Length= 6inch(150mm); Travel speed= 0.47 inch/sec (12 mm/s), 900N(200lbs), IP66 waterproof for outdoors. Special low noise as designed level under 45dB, it has been carefully considered for the ears of your family and neighbours.

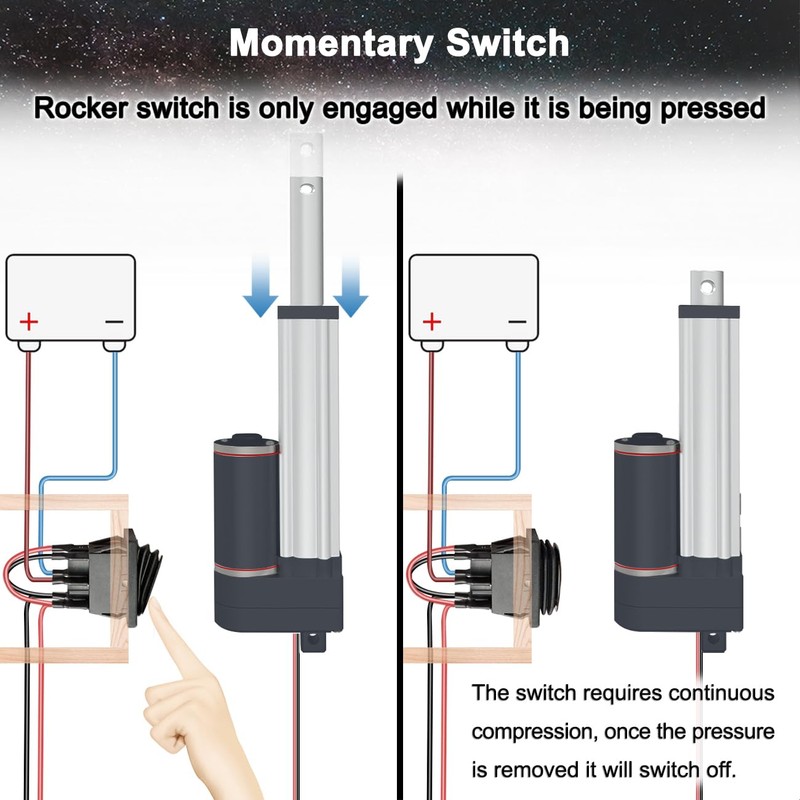

- Momentary Switch: Reverse polarity rocker push switch with ON/ON operation press button, only move when the UP or DOWN rocker switch is being actively pressed with your finger. The DC load will stop when the switch is not being pressed with your finger. The 25amp, max 250V switch to accommodate larger DC loads.
- Easy install: linear actuator solutions are able to fit in almost any industrial machine or piece of automated machinery. Easy to install and integrate into most control systems, like Arduino, control boxes or any other Microcontroller kit.
- Widely used: In DIY pet feeder,Marine,Automotive, Medical Devices and Engineering Industry, massage sofa, recliner, TV lifter, lifting table, electric window opener etc.
- Easy set up & Safe: Quick mounted by using brackets, and easy connect the actuator to your 12-volt safe power supply. Package included 1 linear actuator, 1 momentary switch and 2 bracket sets.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- 12VDC Linear Actuator: Stroke Length= 6inch(150mm); Travel speed= 0.47 inch/sec (12 mm/s), 900N(200lbs), IP66 waterproof for outdoors. Special low noise as designed level under 45dB, it has been carefully considered for the ears of your family and neighbours.
- Momentary Switch: Reverse polarity rocker push switch with ON/ON operation press button, only move when the UP or DOWN rocker switch is being actively pressed with your finger. The DC load will stop when the switch is not being pressed with your finger. The 25amp, max 250V switch to accommodate larger DC loads.
- Easy install: linear actuator solutions are able to fit in almost any industrial machine or piece of automated machinery. Easy to install and integrate into most control systems, like Arduino, control boxes or any other Microcontroller kit.
- Widely used: In DIY pet feeder,Marine,Automotive, Medical Devices and Engineering Industry, massage sofa, recliner, TV lifter, lifting table, electric window opener etc.
- Easy set up & Safe: Quick mounted by using brackets, and easy connect the actuator to your 12-volt safe power supply. Package included 1 linear actuator, 1 momentary switch and 2 bracket sets.

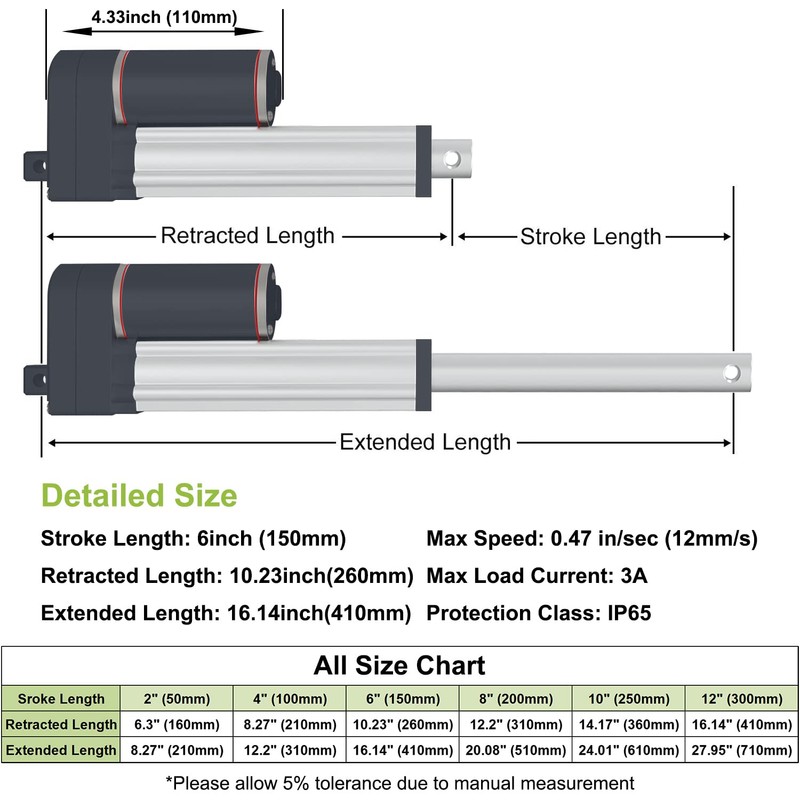

Spec
Stroke length = 150mm(6inch)
Rated Load: 900N (200lbs)
Rated voltage:12V
Rated current: 1.2Amp

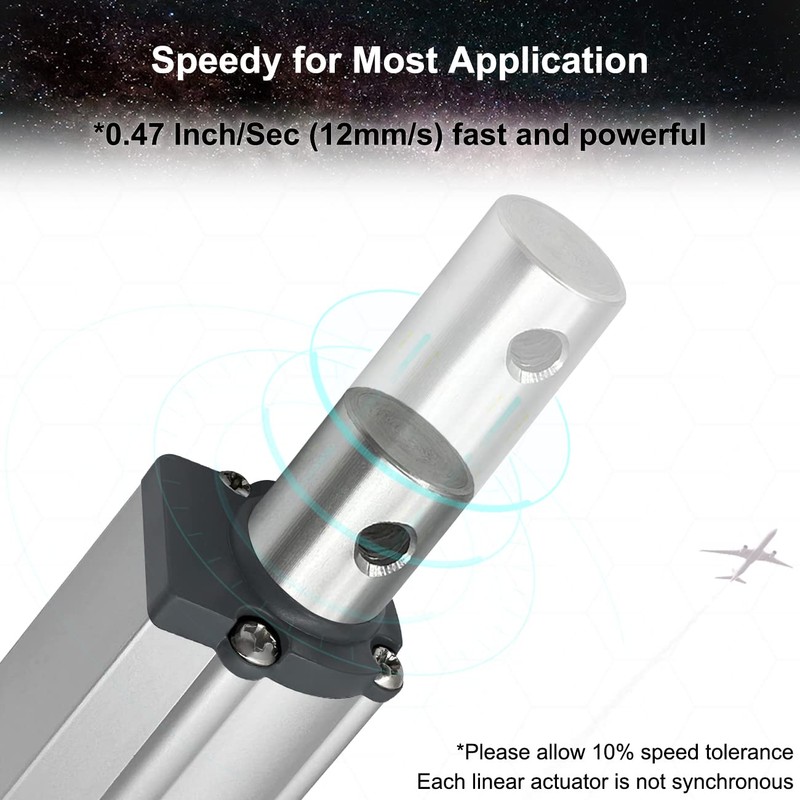

Max Travel Speed: 0.47inch/sec (12mm/s)
Limit Switch: Built-in
Working Temperature: -20ºC to 65ºC / (-14.8ºF to 149ºF)
Duty Circle: 20%
Sound:low-noise(under 45dB)
Protection Class: IP66

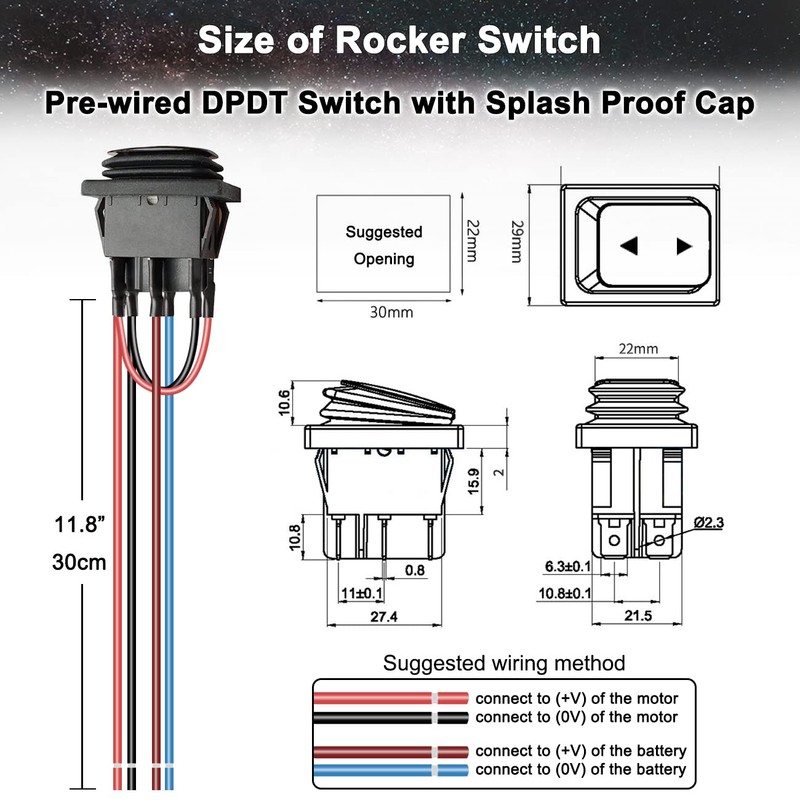

Momentary Switch
PIN: 6 pin
Type:DPDT.
Position: ON-ON .
How To Install
1.Prepare a 12 volt battery, connect and test, linear actuator's wire doesn't distinguish positive or neigative
2.Use UYGALAXY rocker switch or to a reverse polarity relay or switch (not included), test the extending and retracting.
3.The actuator will hold its position when the power is off. It will automatically stop when hit the limit.
4.The actuator has pre-installed inner limit switch, it cannot be adjustable.

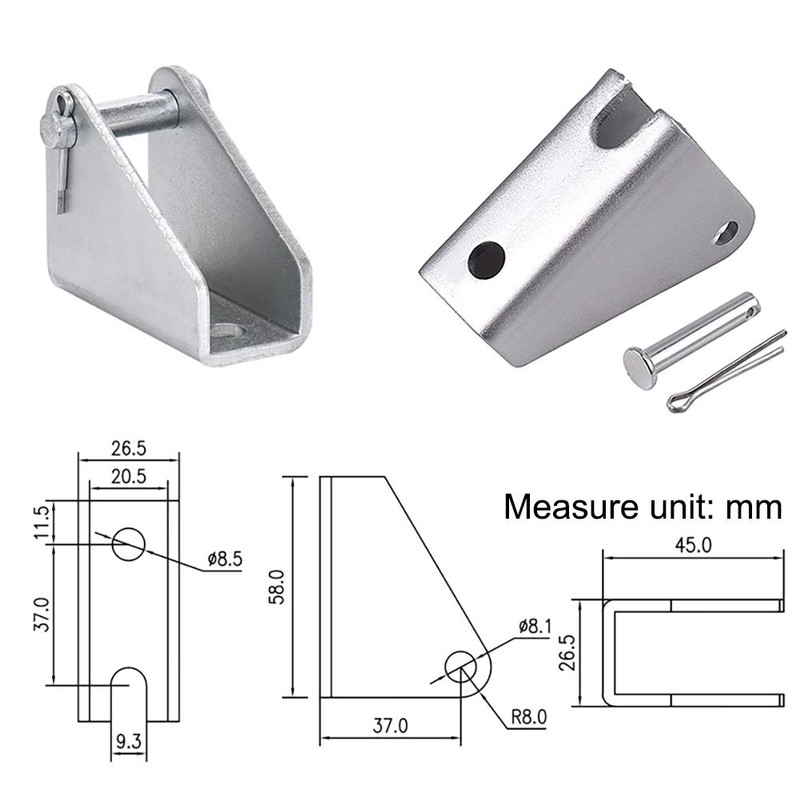

5.The package comes with mounting brackets.
How to protect your actuator:
1.Please use the 12V DC power adaptor
2.Please do not exceed the rated load
3.All the actuators have duty cycle, they are unable to work all the time without stop. The duty cycle of this actuator is 20%. it means that your actuator needs 4 minutes to rest for every 1 minute of work. If the actuator keeps working for long time, the motor is easily burnt out.

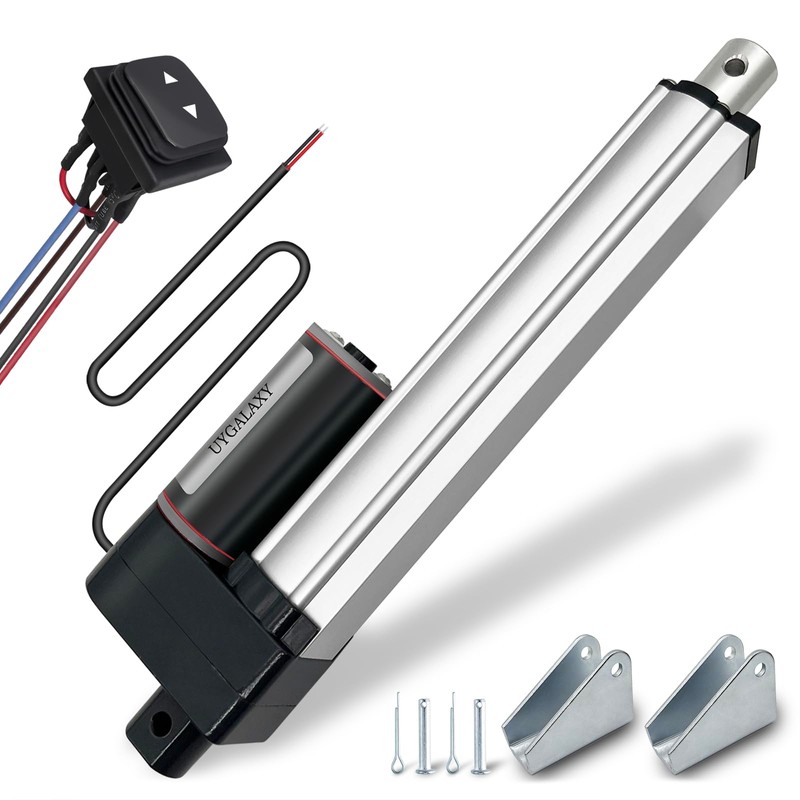

Package Included:
1 x 6" Linear Actuator
1 x rocker switch
2 x Mounting Bracket
