DC Current Sensing Switch, D360 0-50A DIN Rail DC Current Sensing Switch with Overload Protection Linkage Control Hall Sensor, 1NO+1NC Overload Protection Auto Reset Linkage Control Hall Sensor

Brand: Risegun

Product Overview

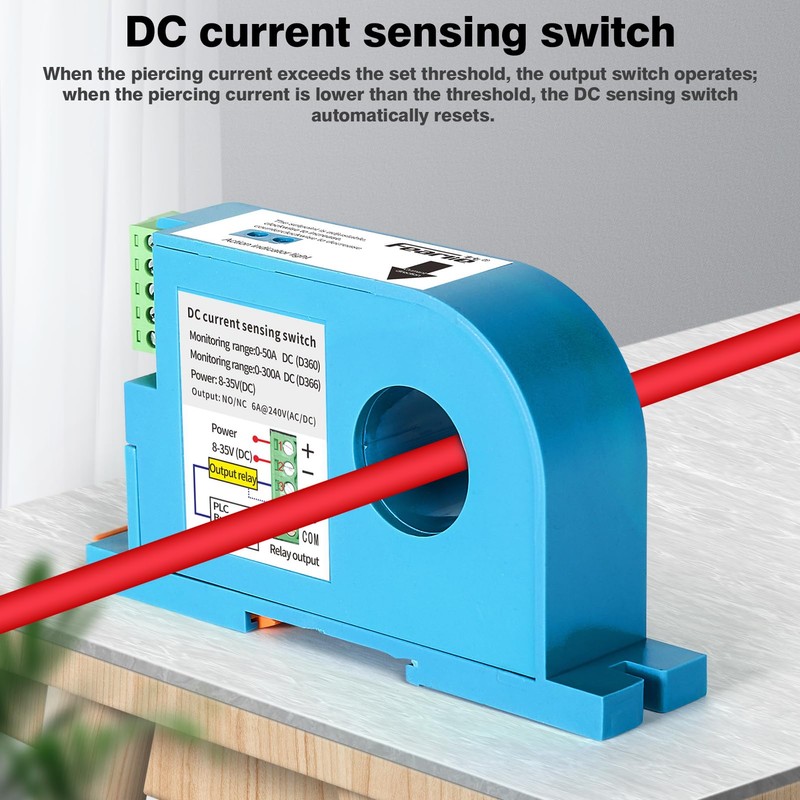

  • BASIC FUNCTIONS: When the perforation current exceeds the set threshold, the output switch operates; when the piercing current is lower than the threshold, the DC sensing switch automatically resets.
  • ACTION INDICATOR LIGHT: The indicator light is off when there is no current, the green light is on when the current is lower than the threshold, and the red light is on when the current is higher than the threshold.

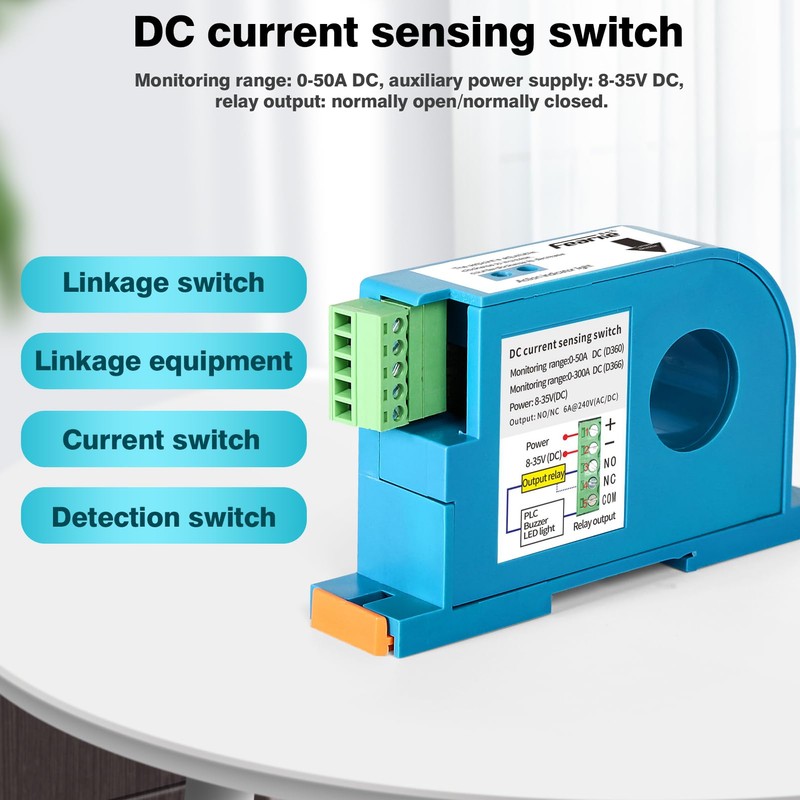

  • DC CURRENT SENSING SWITCH: The monitoring range of DC influenza switch: 0-50A DC, auxiliary power: 8-35V DC, relay output: normally open/normally closed.
  • INSTALLATION METHOD: This DC sensor switch is small in size and can be installed on the rail, making it easy to use.This DC sensor switch is small in size and can be installed on a guide rail for easy use.
  • ACTION INDICATOR LIGHT: The indicator light goes out when there is no current, the green light turns on when the current is lower than the threshold, and the red light turns on when the current is higher than the threshold.

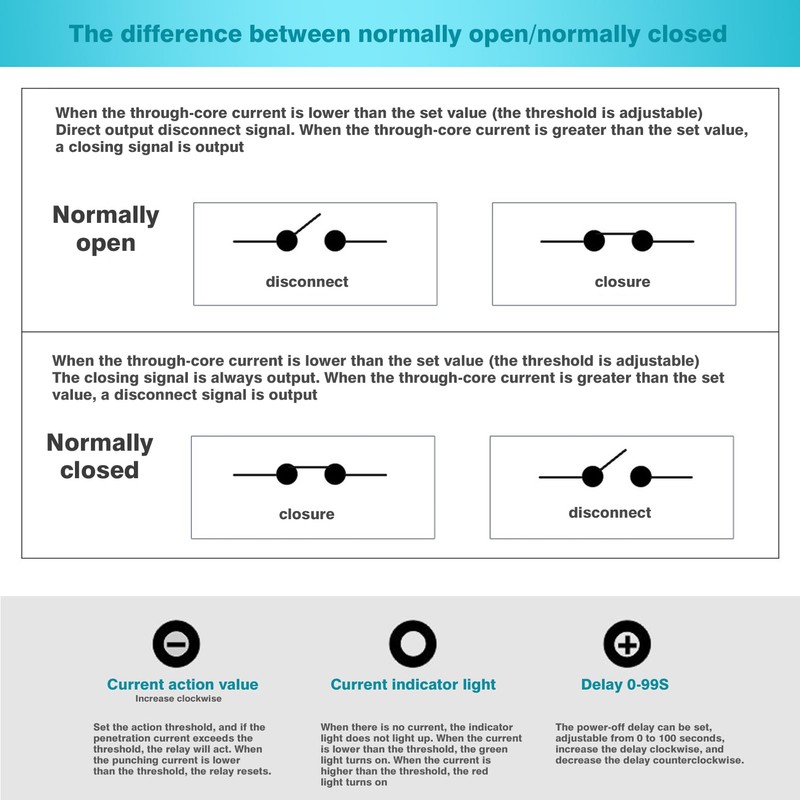

  • NORMALLY OPEN/NORMALLY CLOSED: Normally open: When the current is lower than the set value (the threshold is adjustable), the disconnect signal is always output. When the current is greater than the set value, the closing signal is output; Normally closed: When the current is lower than the set value (the threshold is adjustable), the closing signal is always output. When the current is greater than the set value, a disconnect signal is output.
Brand: Risegun
Manufacturer: Risegun
Part Number: LKXYKQF
Material Type: Plastic
Isin: I7XXNOTFLSBA

$46.07

  • Free shipping in US
  • $14.5 Extended Delivery from United Kingdom
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

More seller options

Starting from

Compare all sellers
scroll to top arrow
DC Current Sensing Switch, D360 0-50A DIN Rail DC Current Sensing Switch with Overload Protection Linkage Control Hall Sensor, 1NO+1NC Overload Protection Auto Reset Linkage Control Hall Sensor

DC Current Sensing Switch, D360 0-50A DIN Rail DC Current Sensing Switch with...

$46.07

Product Overview

  • BASIC FUNCTIONS: When the perforation current exceeds the set threshold, the output switch operates; when the piercing current is lower than the threshold, the DC sensing switch automatically resets.
  • ACTION INDICATOR LIGHT: The indicator light is off when there is no current, the green light is on when the current is lower than the threshold, and the red light is on when the current is higher than the threshold.
  • DC CURRENT SENSING SWITCH: The monitoring range of DC influenza switch: 0-50A DC, auxiliary power: 8-35V DC, relay output: normally open/normally closed.
  • INSTALLATION METHOD: This DC sensor switch is small in size and can be installed on the rail, making it easy to use.This DC sensor switch is small in size and can be installed on a guide rail for easy use.
  • ACTION INDICATOR LIGHT: The indicator light goes out when there is no current, the green light turns on when the current is lower than the threshold, and the red light turns on when the current is higher than the threshold.
  • NORMALLY OPEN/NORMALLY CLOSED: Normally open: When the current is lower than the set value (the threshold is adjustable), the disconnect signal is always output. When the current is greater than the set value, the closing signal is output; Normally closed: When the current is lower than the set value (the threshold is adjustable), the closing signal is always output. When the current is greater than the set value, a disconnect signal is output.
Brand: Risegun
Manufacturer: Risegun
Part Number: LKXYKQF
Material Type: Plastic
Isin: I7XXNOTFLSBA

Specifications:

Product name: DC current sensing switch

Material: ABS flame retardant

Monitoring range: 0-50A DC

Auxiliary power supply: 8-35V DC

Relay output: normally open/normally closed

Installation method: guide rail installation

Aperture: 22mm

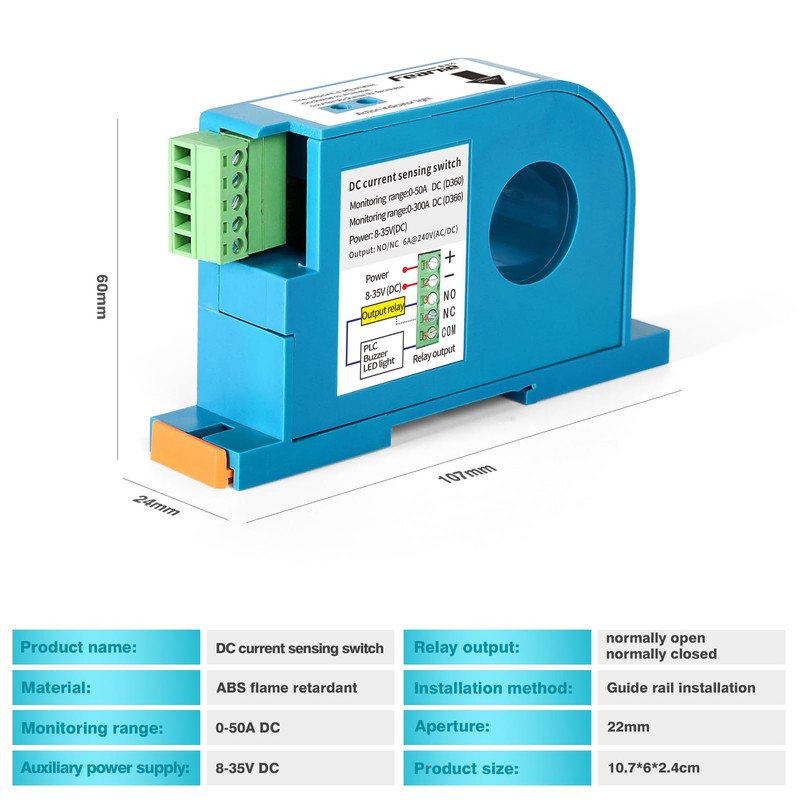

Product size: 10.8*6*2.4cm

Notes:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Please allow 1-3cm measuring deviation due to manual measurement. Thank you for your understanding!

Packing List:

1*DC current sensing switch

1*Instruction manual
