DC 8V 12V 24V 36V Motor Remote Control Switch for Control Linear Actuator, 433Mhz 10A Motor Forward Reverse Relay Switch（Momentary Mode）
$36.76
- $5.95 shipping from United States
-
Arrives
- Working voltage：DC8-36V；Quiescent condition：Less than 8mA；Working frequency：433mhz； Max load：10A （suggest motor load less than 5A）
- Main applications: This remote control switch can control electronic locks, motors (mainly used to control the forward and reverse rotation of DC motors), linear actuators, and so on
- Remote control distance：the remote control adopts RF technology, stable signal. Signal of the wireless remote switch can pass through walls, floors and doors, steadily control receiver from any place within a reliable distance, Max range is up to 10--30 meters with no obstacle
- Working mode: We send Momentary mode（ that is, press and hold the transmitter button “ up ”,motor forward；Release the button,motor stop. press and hold the transmitter button “ down ” ,motor Reverse. Release the button, motor stop )
- Manual control：Limit and Wire External Button（If travel switch is needed, please use normally open type switch）
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Working voltage：DC8-36V；Quiescent condition：Less than 8mA；Working frequency：433mhz； Max load：10A （suggest motor load less than 5A）
- Main applications: This remote control switch can control electronic locks, motors (mainly used to control the forward and reverse rotation of DC motors), linear actuators, and so on
- Remote control distance：the remote control adopts RF technology, stable signal. Signal of the wireless remote switch can pass through walls, floors and doors, steadily control receiver from any place within a reliable distance, Max range is up to 10--30 meters with no obstacle
- Working mode: We send Momentary mode（ that is, press and hold the transmitter button “ up ”,motor forward；Release the button,motor stop. press and hold the transmitter button “ down ” ,motor Reverse. Release the button, motor stop )
- Manual control：Limit and Wire External Button（If travel switch is needed, please use normally open type switch）
Model ： WJZH-M01
Working voltage：DC8-36V
Quiescent condition：Less than 8mA
Working temperature：-40 Degree +80 Degree
Receiver sensitivity：more than -105dBm
Working frequency：433mhz

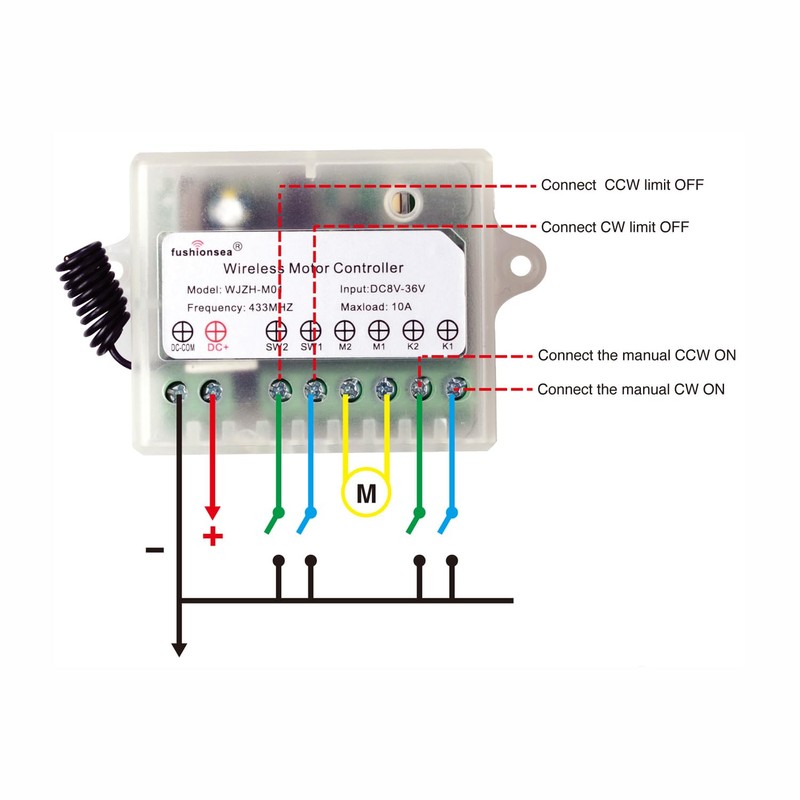

Function：Limit & Wire External Button
Max load ：10A （suggest motor load less than 5A）

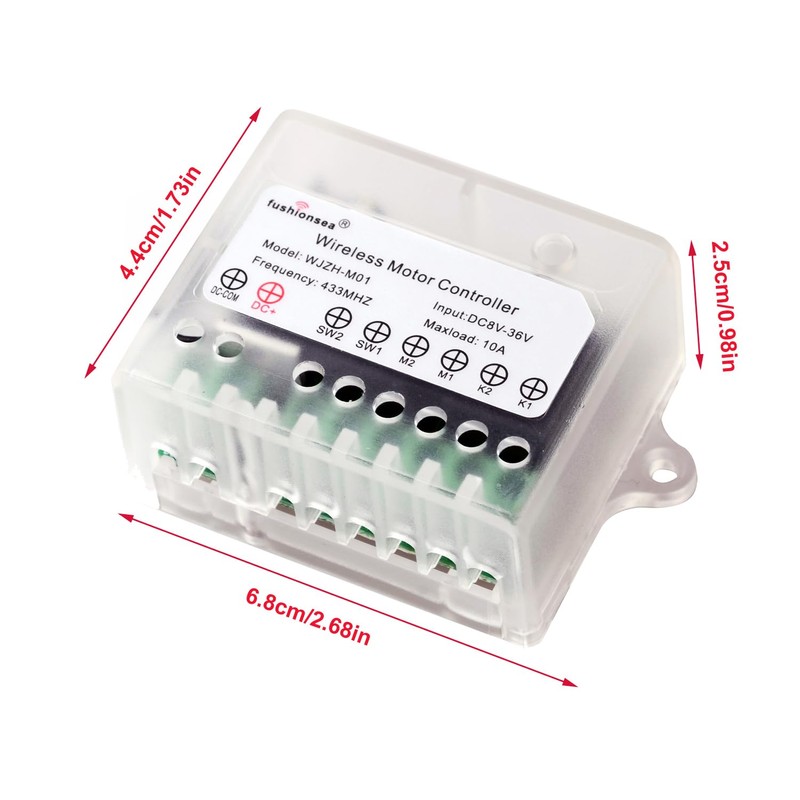

Size：68 x 44 x 25mm
Working Model：Working way changed by learning button on the Receiver
Momentary ： press and hold the transmitter button up,motor forward.Release the button,motor stop. press and hold the transmitter button down ,motor Reverse.Release the button,motor stop.

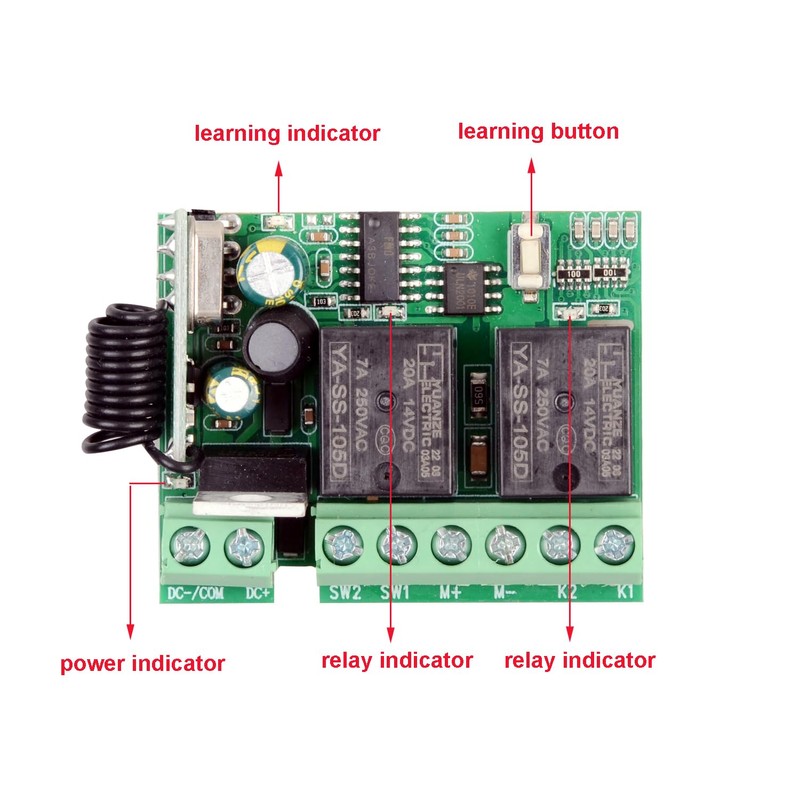

Learning and clearing
Learning method：
Momentary: Press learning button once, the indicator flash once and ON , Then press the transmitter button up ,the learning indicator flash 3 times and ON,Then press the transmitter button down, the learning indicator flash 3 times and OFF, It mean the Momentary model learning Successfully
Clearning method: Press learning button 3 times, the learning indicator will flash 5 times and OFF , It mean all the transmitter code in the receiver have been cleared.
Features
Manual control (default momentary)
Momentary: The MD soldered dot on the receiver don't need to be connected. Press and hold the external K1 button motor will forward. and the motor stops after Release the button. Press and hold the external K2 button, the motor reverses, and the motor stops after Release the button.

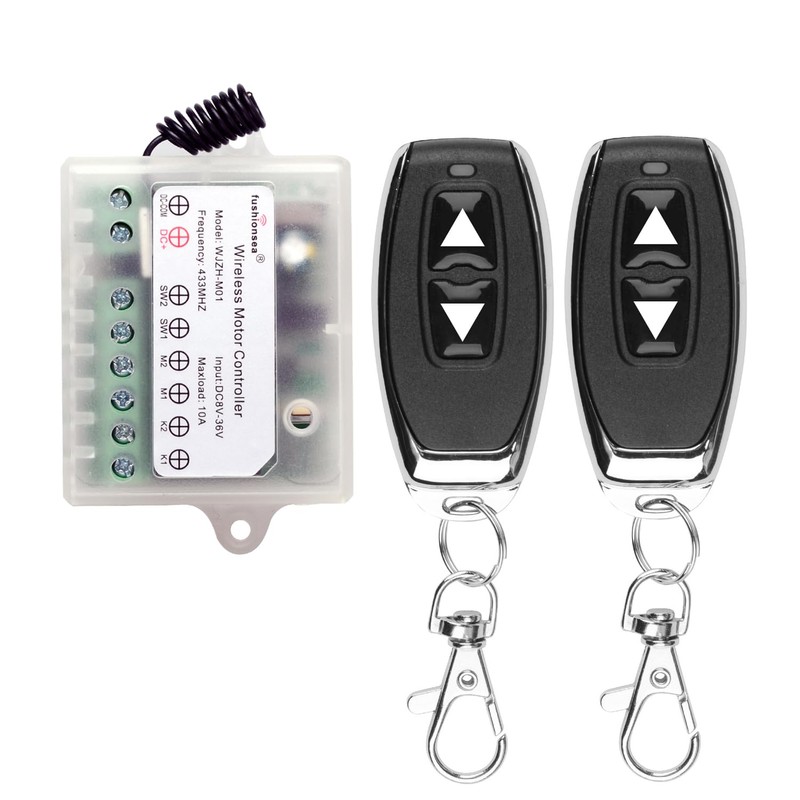

Package Includes
2 x Transmitters
1 x Receiver
