DAOKAI SCT-013-000 Non-Invasive Split Core Current Transformer AC 100A/1V + ADS1115 ADC Conversion Board (Male/Female Connection Cable, Audio Female Cable Included)
$31.92
- $12.99 shipping from Japan View details
-
Arrives

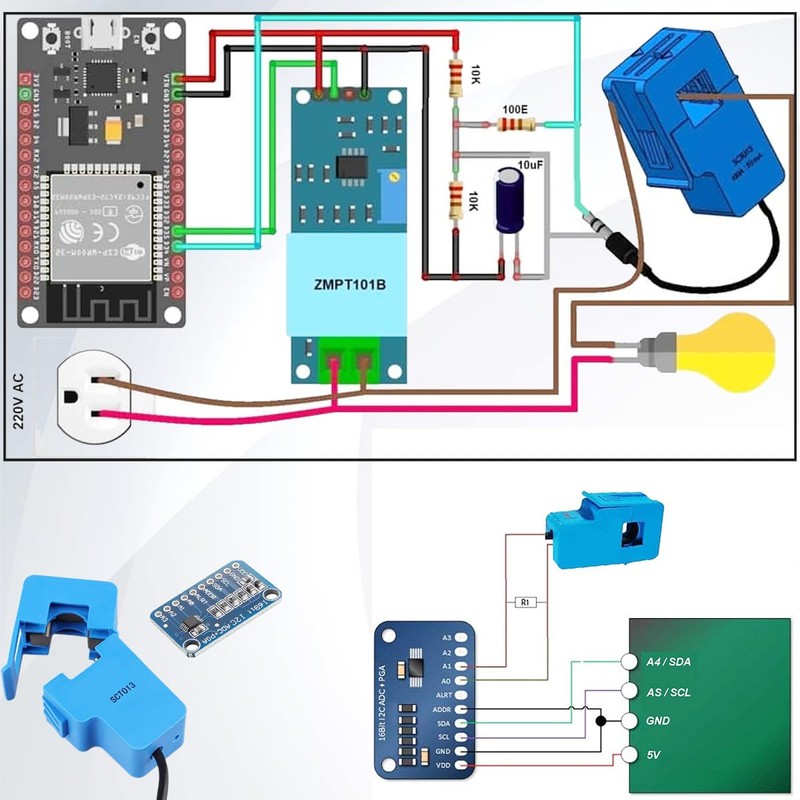

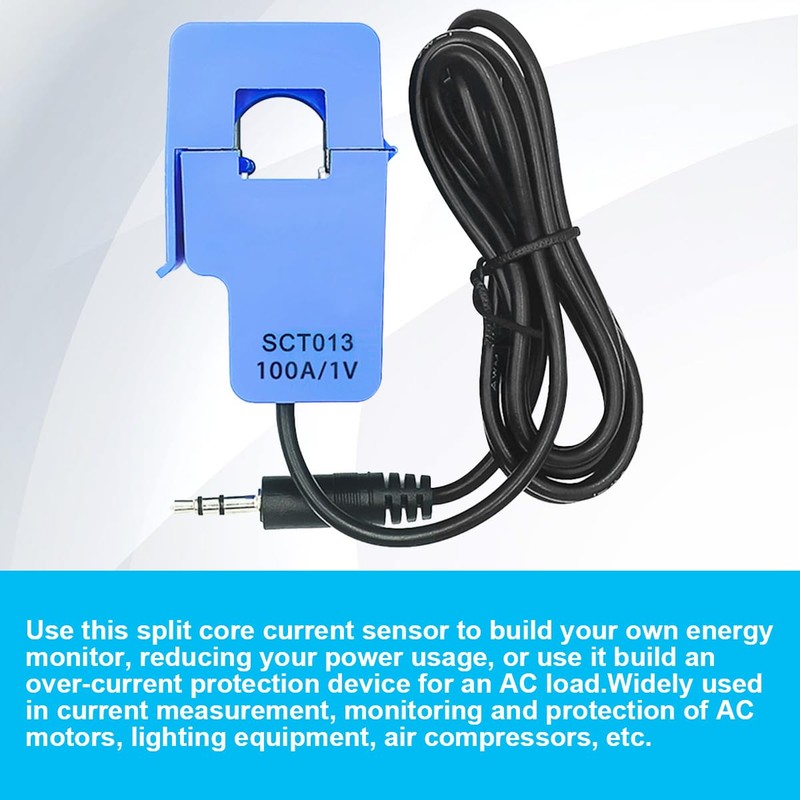

- Function: Use this split core current sensor to build your own energy monitor to reduce power consumption or build overcurrent protection for AC load

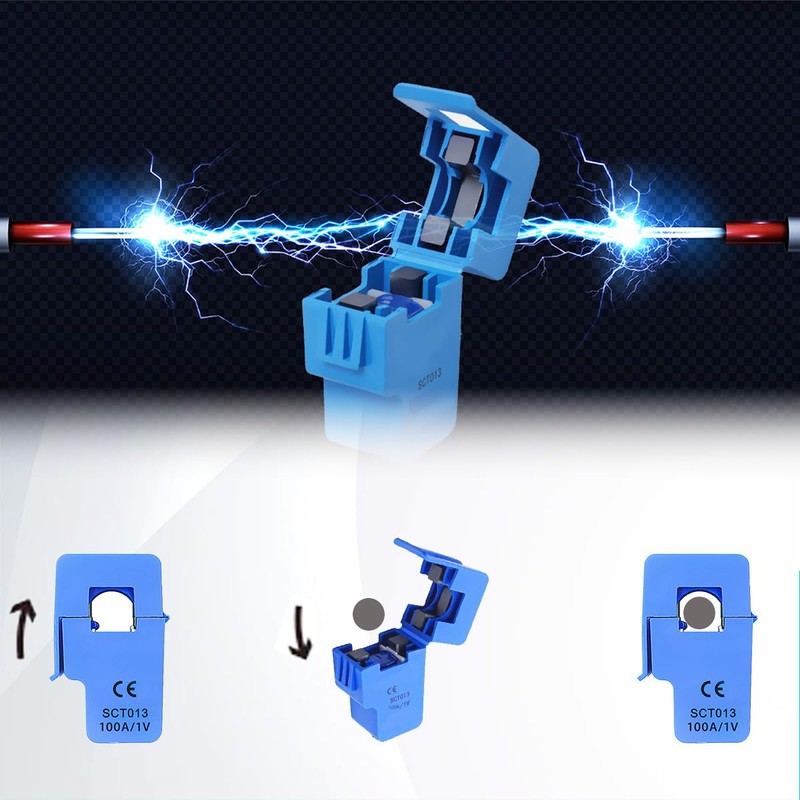

- NON-INVASIVE MEASUREMENT: Clamp-on design allows you to directly clamp the conductor to measure AC current without disconnecting the circuit. Dramatically Improve Installation Convenience & Safety
- Safety Standards: Dielectric strength (between case and outlet): 6000 V AC/1 minute, flame-retardant properties conform to UL94-V0

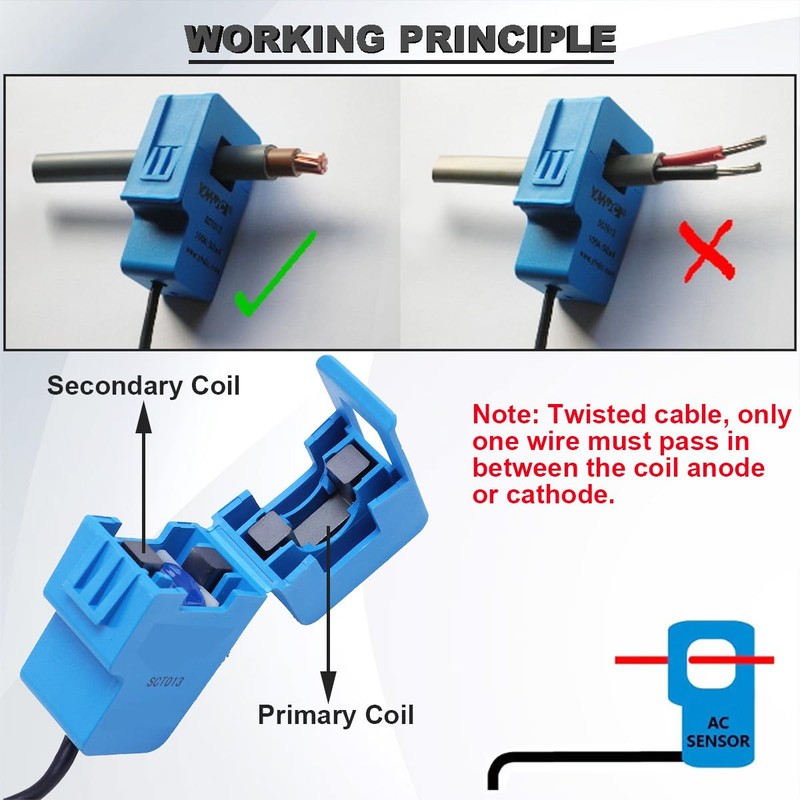

- Electromagnetic Induction Technology: Adopts electromagnetic induction principle based on 1800:1 winding ratio to ensure strong anti-interference performance and data reliability

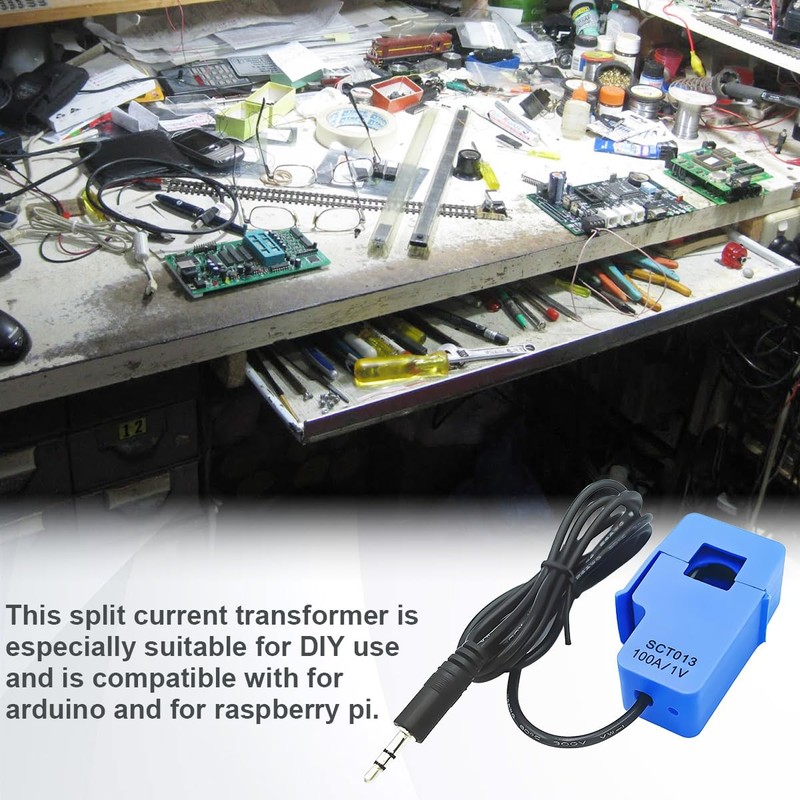

- DIY APPLICATION: This split current transformer is especially suitable for DIY applications, compatible with Arduino and for Raspberry Pi
- Specifications: Input Current: 0-100A AC, Voltage: 1V. Lead Wire Length: 1m. Output Format: Current Output or Voltage Output (Need to add load resistance); Cable Jack: 3.5mm (similar to headphone jack)
- Product Contents: 1 x SCT-013-000 100A/50mA Current Transformer; 1 x ADS1115 ADC Module; 1 x 10-Pin Header; 10 x Male/Female Connection Cable; 1 x 3-Core Audio Female Cable
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Function: Use this split core current sensor to build your own energy monitor to reduce power consumption or build overcurrent protection for AC load
- NON-INVASIVE MEASUREMENT: Clamp-on design allows you to directly clamp the conductor to measure AC current without disconnecting the circuit. Dramatically Improve Installation Convenience & Safety
- Safety Standards: Dielectric strength (between case and outlet): 6000 V AC/1 minute, flame-retardant properties conform to UL94-V0
- Electromagnetic Induction Technology: Adopts electromagnetic induction principle based on 1800:1 winding ratio to ensure strong anti-interference performance and data reliability
- DIY APPLICATION: This split current transformer is especially suitable for DIY applications, compatible with Arduino and for Raspberry Pi
- Specifications: Input Current: 0-100A AC, Voltage: 1V. Lead Wire Length: 1m. Output Format: Current Output or Voltage Output (Need to add load resistance); Cable Jack: 3.5mm (similar to headphone jack)
- Product Contents: 1 x SCT-013-000 100A/50mA Current Transformer; 1 x ADS1115 ADC Module; 1 x 10-Pin Header; 10 x Male/Female Connection Cable; 1 x 3-Core Audio Female Cable
Current transformer specification:
Model: SCT013-000
Material: Ferrite

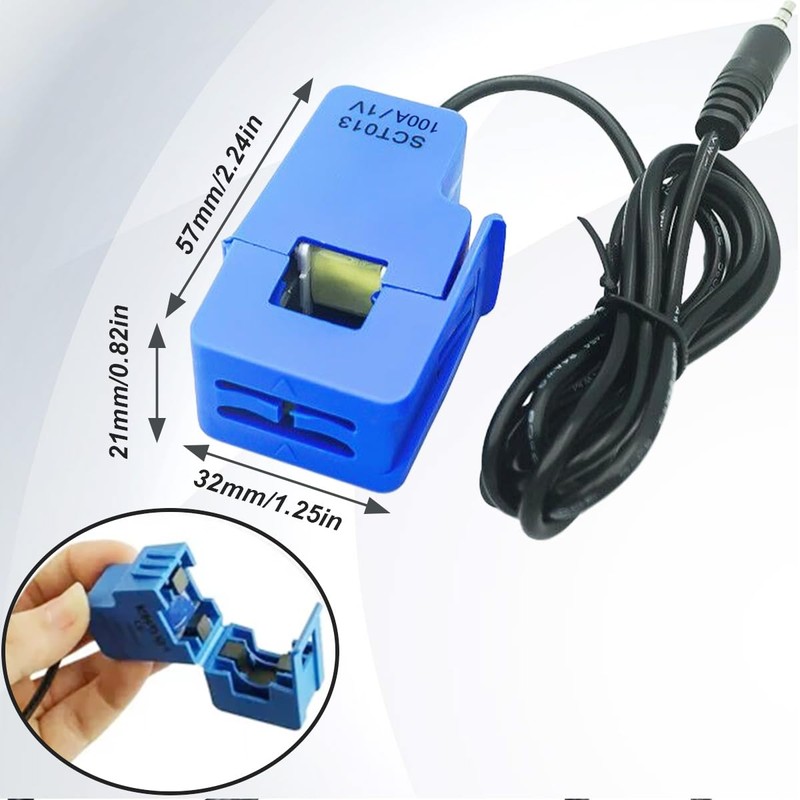

Lead Wire Length: Approx. 3.3 ft (1 m)
Opening Size: 0.51 x 0.51 inch / 13 x 13mm
Operating Temperature: -25℃~+60℃
Storage Temperature: -30℃~+90℃
Operating Voltage: Below 660V
Frequency Range: 50Hz-1kHz
Dielectric strength: 3.5kV 50Hz 1 minute
Fire Rating: UL94-V0
Standard: GB1208-2006
Ratio: 1:2000
Maximum Sampling Resistance: 10Ω
Linear degree: less than 0.2%
Accuracy: ±1%
Dielectric strength: AC 6000V/1min
Mechanical strength: open and close times, more than 1000 times at 20 degrees Celsius
ADS1115 ADC Module Specifications:
Resolution: 16 bit
Programmable Sampling Rate: 8-860 samples per second
Power supply voltage / logic level: 2.0V-5.5V
Low Current Consumption: Continuous Mode: 150µA Single Shot Mode: Automatic Shutdown
Internal low drift voltage standard
Internal oscillator
Internal PGA: maxx16
I2C interface: 4-pin selectable address
Four single ended or two differential inputs
Programmable comparator

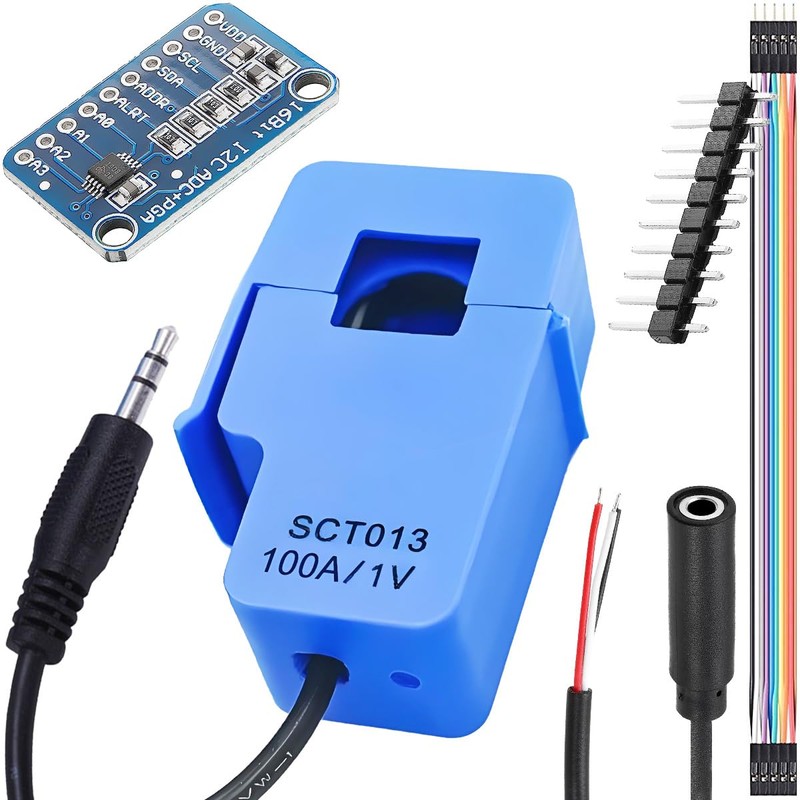

Package Includes:
1 x SCT-013-000 100A/1V Current Transformer
1 x ADS1115 ADC Module
1 x 10-pin header
1 x 3-core audio female cable
10 x Female to Female Connection Cable
