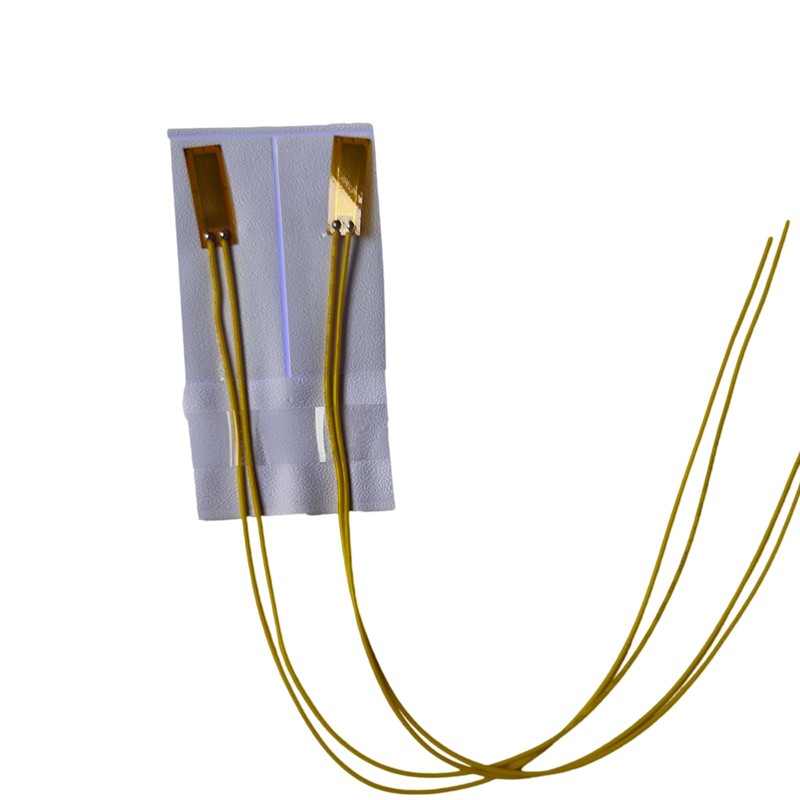

Cuidr Strain Gauges, 120ohm Foil Strain Gauge Sensor, Load Cell Pressure Resistance Strain Gauge, Linear Strain Gages (BX120-20AA, 2Pack)
$35.68
- $5.95 shipping from United States View details
-
Arrives
- 0.2-meter PVC leads and 120 ohm resistance, 20mm Grid Length, 3mm Grid Width, compatible with any dynamic or static strain gauge

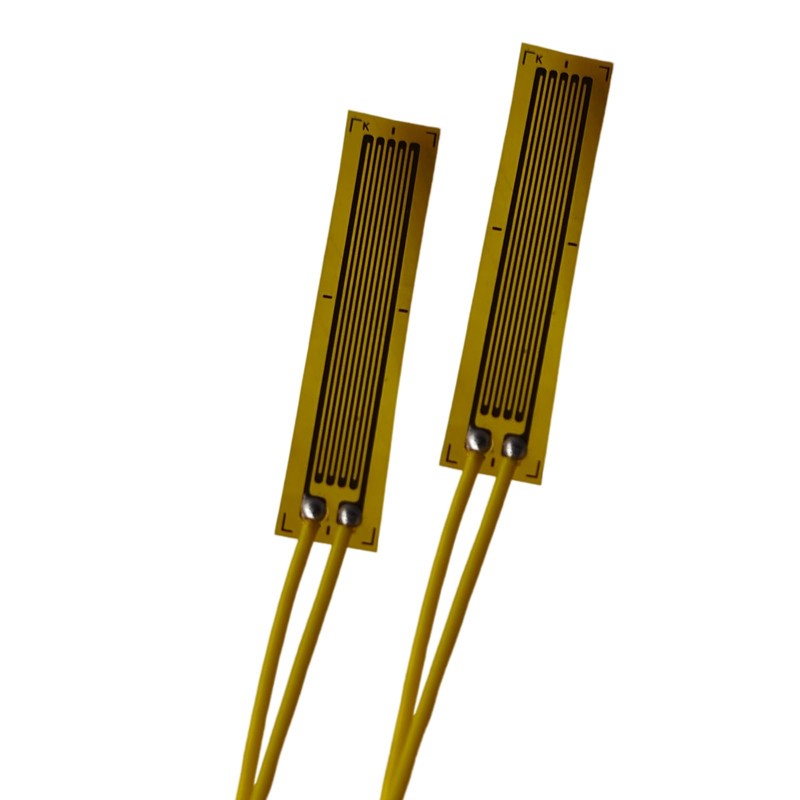

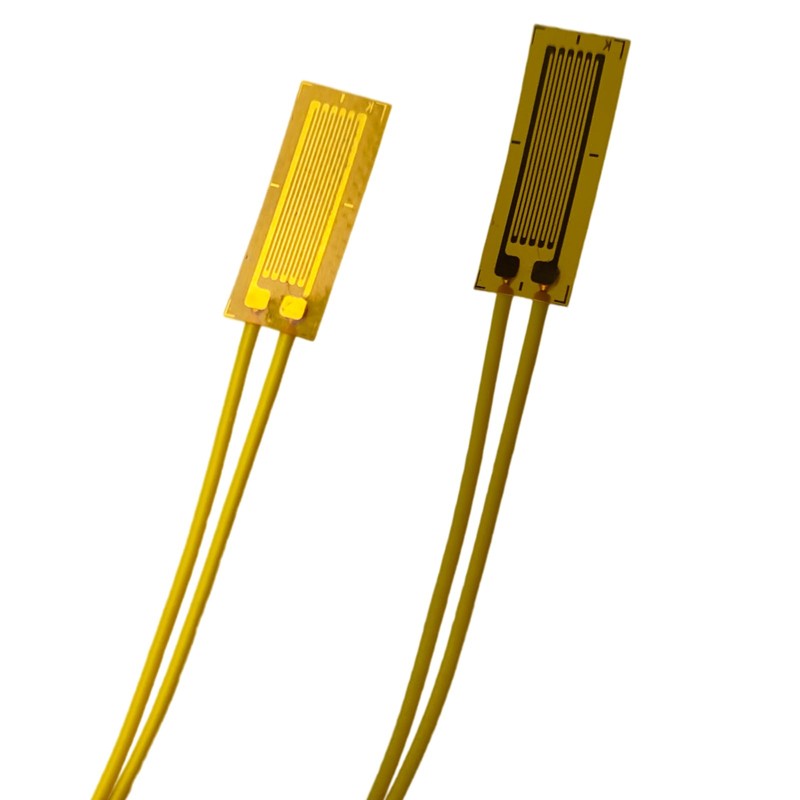

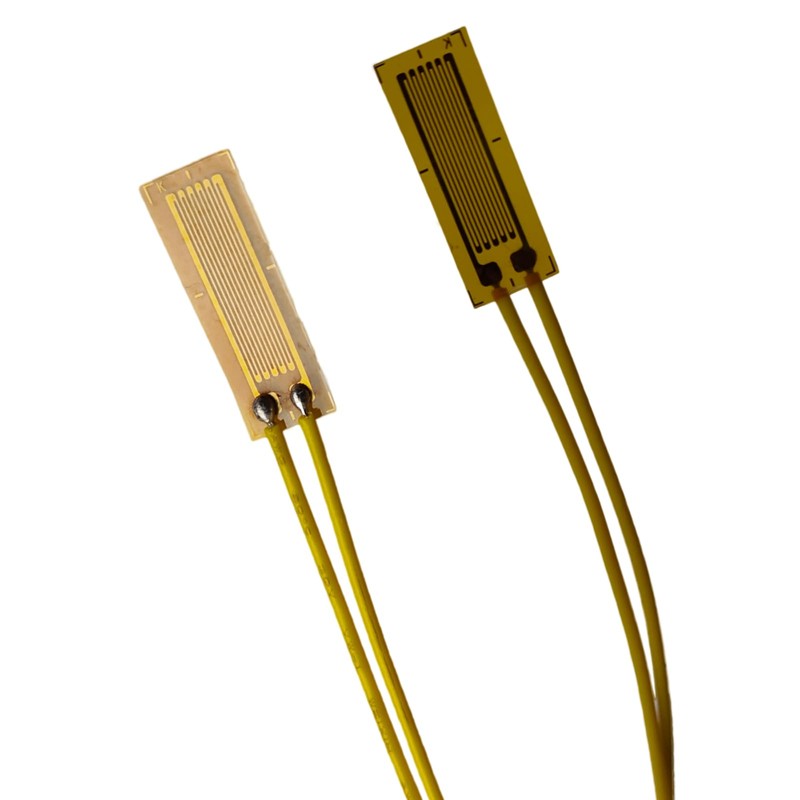

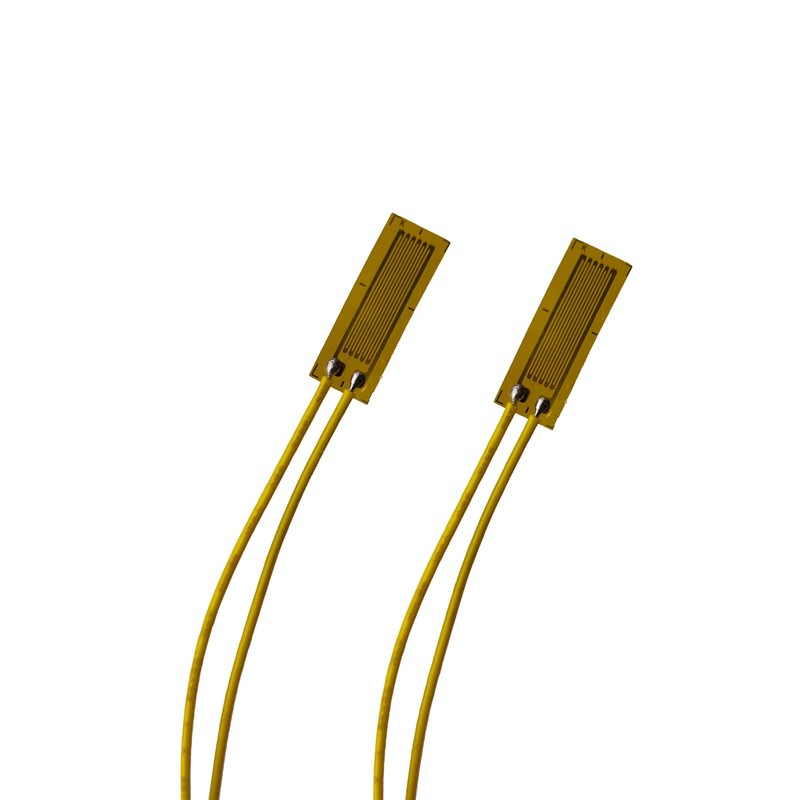

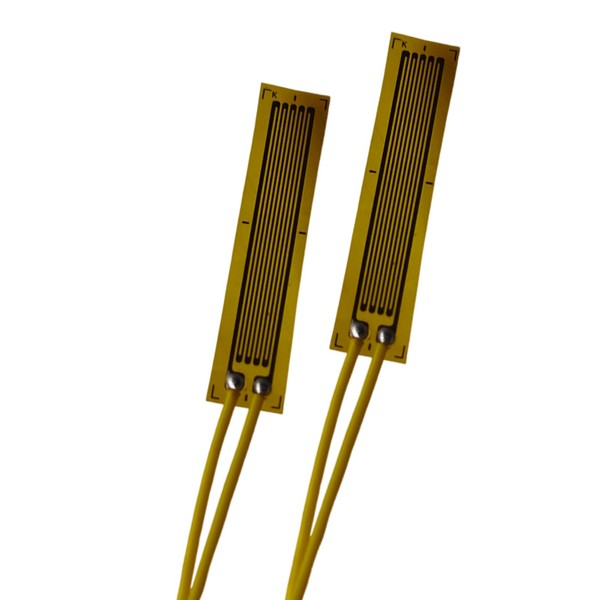

- The strain gage is made up of 3 layers: a protective laminate top layer, a thin metallic sensing element, plastic film base layer
- Clear alignment marks outside the active area help align the gauge during installation. The gauge is far more sensitive to strain in the vertical direction than in the horizontal direction
- 26X5.7mm size makes it easy to dissipate heat, consumes less power per unit area, the pre-wired strain gauge can be used in measurement directly without pasting and soldering
- Strain gauges is widely applied for scientific, industrial and experimental stress analysis, can be used for experimental stress analysis monitoring industrial equipment or various scientific applications
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- 0.2-meter PVC leads and 120 ohm resistance, 20mm Grid Length, 3mm Grid Width, compatible with any dynamic or static strain gauge
- The strain gage is made up of 3 layers: a protective laminate top layer, a thin metallic sensing element, plastic film base layer
- Clear alignment marks outside the active area help align the gauge during installation. The gauge is far more sensitive to strain in the vertical direction than in the horizontal direction
- 26X5.7mm size makes it easy to dissipate heat, consumes less power per unit area, the pre-wired strain gauge can be used in measurement directly without pasting and soldering
- Strain gauges is widely applied for scientific, industrial and experimental stress analysis, can be used for experimental stress analysis monitoring industrial equipment or various scientific applications
● For monitoring structures such as bridges and buildings
● In load cells for weighbridges, scales, vehicles and in medical and educational applications
● They can be bonded to the railway lines themselves to monitor and measure the stress the lines are under
● Strain gauge technology is used within passenger occupancy detection systems to indicate when passenger airbags should be engaged
Features of Strain Gauge
● Clear alignment marks
● Ribbon leads termination
● Broad temperature range
● Good over-range capability
● Pre-wired for fast Installation
● Stable devices with fast response
● It's precise and safe, durable and efficient
● It requires low maintenance and inexpensive
Technical Parameters
Type: BX120-20AA metal foil resistance strain gauge
Grid Style: Linear
Shape: Rectangular
Gauge resistance: 120±0.2Ω
Strain limit: 20000um/m
Dimensions: 26mm*5.7mm
Sensitive to grid size: 20mm*3mm
Sensitivity coefficient: 2.08 ± 1%
Temperature range of use: -20~+80℃
Lead specification: 20cm PVC lead

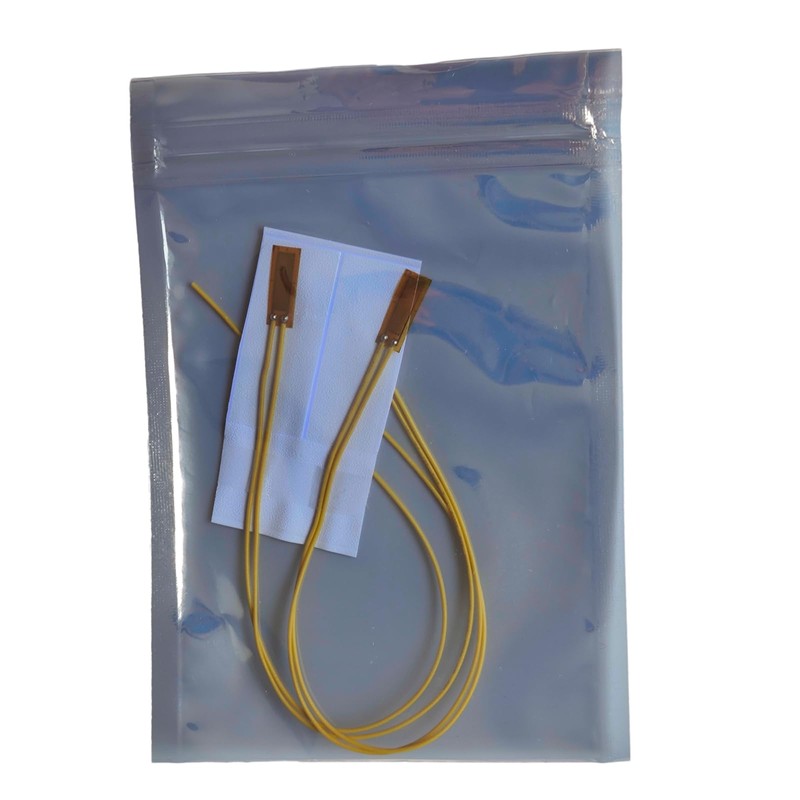

Package Included:
2 x BX120-20AA Strain Gauges
