CQRobot 10.525GHz Doppler Effect Microwave Motion Sensor Compatible with Raspberry Pi and Arduino Motherboard. for Industrial, Measurement, Automatic Doors, Smart Lights, Reversing Radar, etc.
$38.56
- $5.95 shipping from United States View details
-
Arrives

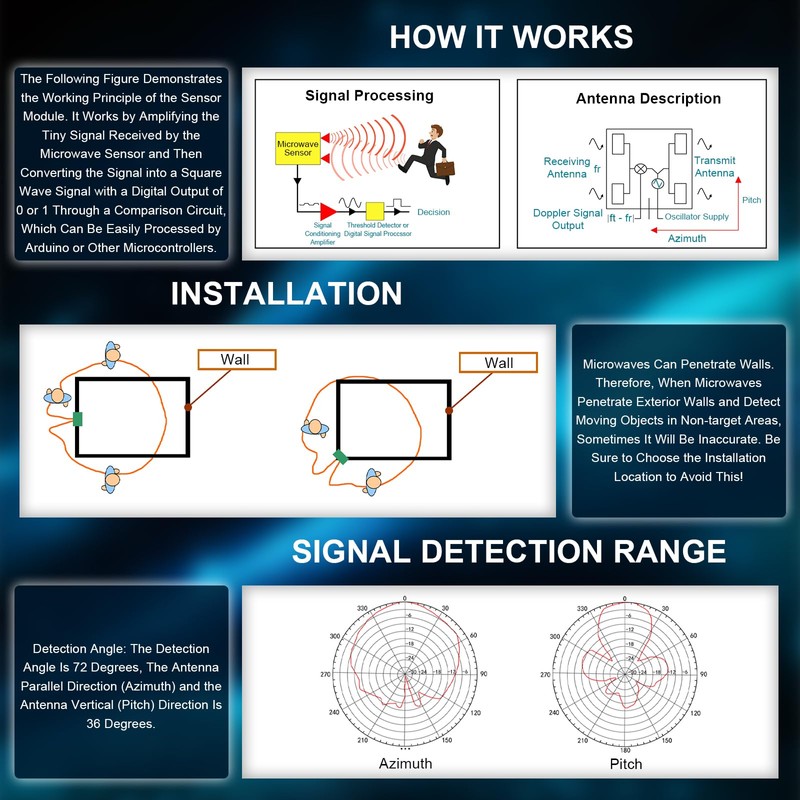

- The microwave motion sensor is a microwave moving object detector designed by the principle of Doppler radar. Unlike ordinary infrared detectors, microwave sensors detect the movement of objects by detecting the microwaves reflected by the object. The detection object will not be limited to the human body, but there are many other things.
- Non-contact detection; Adapts to harsh environments without affecting by temperature, humidity, noise, airflow, dust, light, etc. Powerful anti-RF interference capability; Low output power, no harm to human body; Long detection distance.
- Can detects of non-living objects; The microwave moves at the speed of light with great directionality. Compatible with Raspberry Pi and Arduino Board.
- Used in industrial, transportation and civil applications such as measuring, liquid levels, automatic door motion detection, automatic washing, production line material detection and car reversing sensors etc.
- Note: There are ultra-high frequency MOS devices inside the microwave motion sensor. If you try to use battery power to test during the test, this can avoid the breakdown caused by the static pressure difference between the power supply and the test device, such as the oscilloscope; in addition, when the product is in use, Please try to choose battery power supply to ensure the best detection effect.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- The microwave motion sensor is a microwave moving object detector designed by the principle of Doppler radar. Unlike ordinary infrared detectors, microwave sensors detect the movement of objects by detecting the microwaves reflected by the object. The detection object will not be limited to the human body, but there are many other things.
- Non-contact detection; Adapts to harsh environments without affecting by temperature, humidity, noise, airflow, dust, light, etc. Powerful anti-RF interference capability; Low output power, no harm to human body; Long detection distance.
- Can detects of non-living objects; The microwave moves at the speed of light with great directionality. Compatible with Raspberry Pi and Arduino Board.
- Used in industrial, transportation and civil applications such as measuring, liquid levels, automatic door motion detection, automatic washing, production line material detection and car reversing sensors etc.
- Note: There are ultra-high frequency MOS devices inside the microwave motion sensor. If you try to use battery power to test during the test, this can avoid the breakdown caused by the static pressure difference between the power supply and the test device, such as the oscilloscope; in addition, when the product is in use, Please try to choose battery power supply to ensure the best detection effect.
**SPECIFICATION**

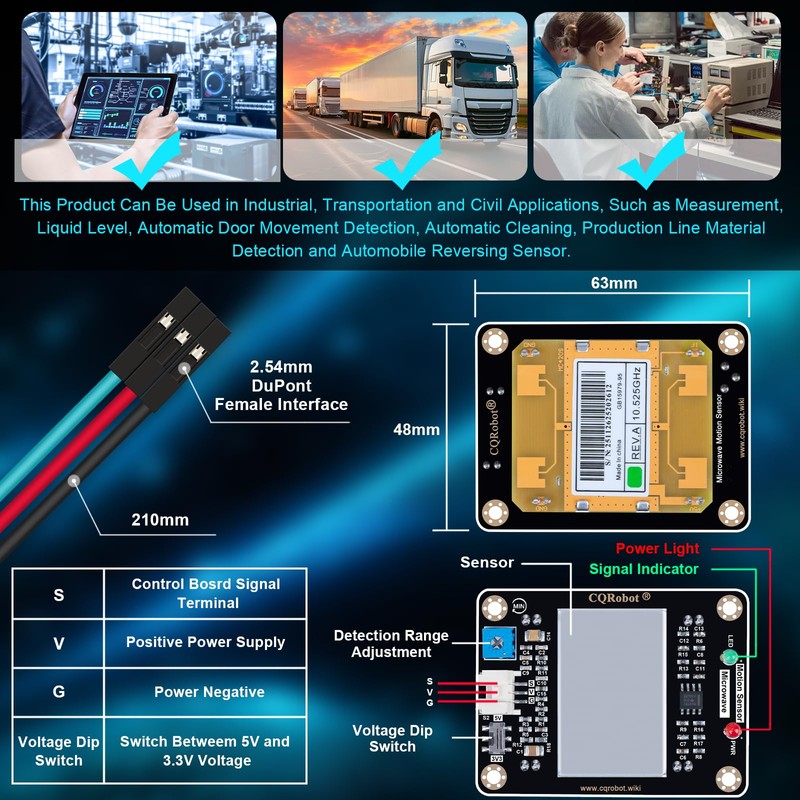

\- Working Pressure : 5V Plus/Minus 0.25V \- Working Current (CW): 60mA max., 37mA typical \- Dimension: 75mm * 50mm \- Mounting hole size: 3.0mm **Emission Parameter:** \- Detection Range: 2m to 16m continuously adjustable (min: 2m, max: 16m) \- Emission Frequency: 10.525 GHz \- Frequency Accuracy: 3MHz \- Output Rate (Min): 13dBm EIRP \- Harmonic Emission: Less Than -10dBm \- Average Current (5% DC): 2mA typ. \- Pulse Width (Min): 5uSec \- Load Cycle (Min): 1% **Receiver Parameter:** \- Sensitivity(10dB S/N ratio) 3Hz-80Hz Broadband: -86dBm; 3Hz-80Hz Bandwidth Clutter: 10uV. \- Antenna Gain: 8dBi \- Vertical Level: 3dB Beam-width: 36 degrees \- Horizontal Level: 3dB Beam-width: 72 degrees
**DISTRIBUTION LIST**
1 * Microwave Motion Sensor 1 * PH2.0 3-Pin Wire
