CODYTAVAREZ Esp32 Wifi + Bluetooth 4.2 Ble Nodemcu - Mejor Que Esp8266

Brand: CODYTAVAREZ

Product Overview

=====================================================
Puede ver todos nuestros productos a la venta sobre placas base arduino, sensores, cables, amplificadores, módulos de potencia, luces LED e interruptores aquí:

https://listado.mercadolibre.com.mx/_CustId_608985903

Si los artículos comprados suman más de US $ 299, la tarifa de envío no aumentará.
Esperamos su compra, gracias!
=====================================================

ESP32 WiFi + Bluetooth / BLE4.2 Internet tarjeta de desarrollo.

El chip ESP32 WiFi + Bluetooth es la última generación de productos Espressif. Tiene un MCU dual core de 32 bits que integra WiFi y Bluetooth/BLE 4.2.7

Comparado con el arduino ESP8266 (la generación anterior), el ESP32 ha mejorado significativamente su desempeño. Está equipado con un MCU de alto desempeño de doble núcleo LX6 MCU. Un núcleo maneja la conexión de alta velocidad y el otro controla las aplicaciones.

Soporta programación Arduino.

Desarrollado para aplicaciones móviles, electrónicos wearable e Internet de las Cosas (IoT), el ESP32 ofrece un consumo ultrabajo de corriente.

Caracteristicas:
• CPU and Memory
• Xtensa® Dual-Core 32-bit LX6 microprocessors, up to 600 MIPS
• 448 KByte ROM
• 520 KByte SRAM
• 16 KByte SRAM in RTC
• QSPI Flash/SRAM, up to 4 x 16 MBytes
• Power supply: 2.2 V to 3.6 V
Clocks and Timers
• Internal 8 MHz oscillator with calibration
• Internal RC oscillator with calibration
• External 2 MHz to 40 MHz crystal oscillator
• External 32 kHz crystal oscillator for RTC with calibration
• Two timer groups, including 2 x 64-bit timers and 1 x main watchdog in each group
• RTC timer with sub-second accuracy
• RTC watchdog
Advanced Peripheral Interfaces
• 12-bit SAR ADC up to 18 channels
• 2 × 8-bit D/A converters
• 10 × touch sensors
• Temperature sensor
• 4 × SPI
• 2 × I2S
• 2 × I2C
• 3 × UART
• 1 host (SD/eMMC/SDIO)
• 1 slave (SDIO/SPI)
• Ethernet MAC interface with dedicated DMA and IEEE 1588 support
• CAN 2.0
• IR (TX/RX)
• Motor PWM
• LED PWM up to 16 channels
• Hall sensor
• Ultra low power analog pre-amplifier
Development Support
• SDK Firmware for fast on-line programming
• Open source toolchains based on GCC
• Operating Temperature Range: -40 ° C to + 85 ° C

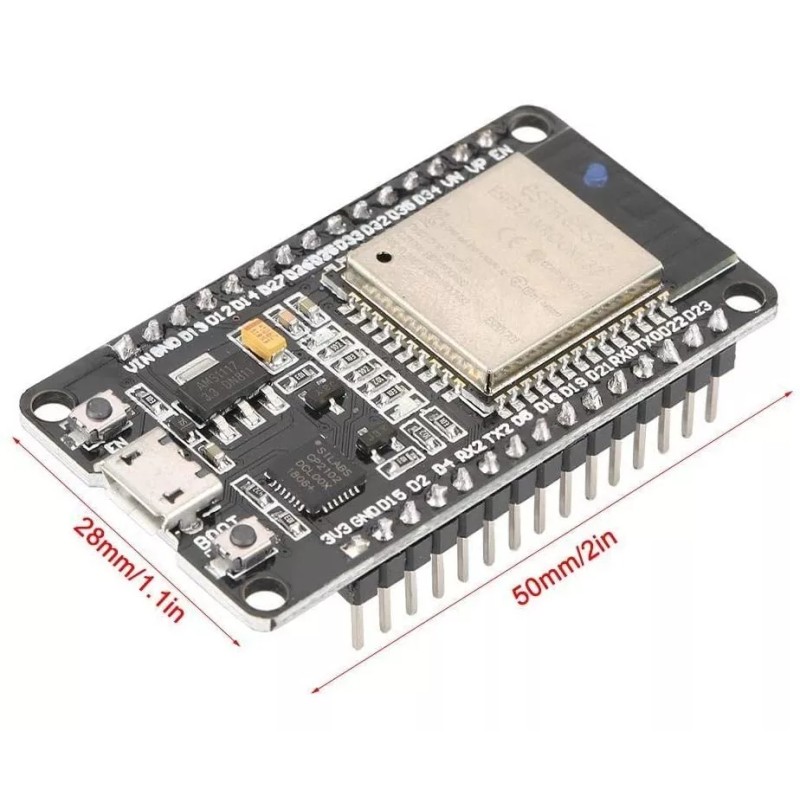

• Tamaño: 51.5x28.3 mm.

Garantía del vendedor: 3 días

Brand: CODYTAVAREZ
Isin: IPQWU1UEGHRF

$26.65

  • Free shipping in US
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

More seller options

Starting from

Compare all sellers
scroll to top arrow
CODYTAVAREZ Esp32 Wifi + Bluetooth 4.2 Ble Nodemcu - Mejor Que Esp8266

CODYTAVAREZ Esp32 Wifi + Bluetooth 4.2 Ble Nodemcu - Mejor Que Esp8266

$26.65

Product Overview

=====================================================
Puede ver todos nuestros productos a la venta sobre placas base arduino, sensores, cables, amplificadores, módulos de potencia, luces LED e interruptores aquí:

https://listado.mercadolibre.com.mx/_CustId_608985903

Si los artículos comprados suman más de US $ 299, la tarifa de envío no aumentará.
Esperamos su compra, gracias!
=====================================================

ESP32 WiFi + Bluetooth / BLE4.2 Internet tarjeta de desarrollo.

El chip ESP32 WiFi + Bluetooth es la última generación de productos Espressif. Tiene un MCU dual core de 32 bits que integra WiFi y Bluetooth/BLE 4.2.7

Comparado con el arduino ESP8266 (la generación anterior), el ESP32 ha mejorado significativamente su desempeño. Está equipado con un MCU de alto desempeño de doble núcleo LX6 MCU. Un núcleo maneja la conexión de alta velocidad y el otro controla las aplicaciones.

Soporta programación Arduino.

Desarrollado para aplicaciones móviles, electrónicos wearable e Internet de las Cosas (IoT), el ESP32 ofrece un consumo ultrabajo de corriente.

Caracteristicas:
• CPU and Memory
• Xtensa® Dual-Core 32-bit LX6 microprocessors, up to 600 MIPS
• 448 KByte ROM
• 520 KByte SRAM
• 16 KByte SRAM in RTC
• QSPI Flash/SRAM, up to 4 x 16 MBytes
• Power supply: 2.2 V to 3.6 V
Clocks and Timers
• Internal 8 MHz oscillator with calibration
• Internal RC oscillator with calibration
• External 2 MHz to 40 MHz crystal oscillator
• External 32 kHz crystal oscillator for RTC with calibration
• Two timer groups, including 2 x 64-bit timers and 1 x main watchdog in each group
• RTC timer with sub-second accuracy
• RTC watchdog
Advanced Peripheral Interfaces
• 12-bit SAR ADC up to 18 channels
• 2 × 8-bit D/A converters
• 10 × touch sensors
• Temperature sensor
• 4 × SPI
• 2 × I2S
• 2 × I2C
• 3 × UART
• 1 host (SD/eMMC/SDIO)
• 1 slave (SDIO/SPI)
• Ethernet MAC interface with dedicated DMA and IEEE 1588 support
• CAN 2.0
• IR (TX/RX)
• Motor PWM
• LED PWM up to 16 channels
• Hall sensor
• Ultra low power analog pre-amplifier
Development Support
• SDK Firmware for fast on-line programming
• Open source toolchains based on GCC
• Operating Temperature Range: -40 ° C to + 85 ° C
• Tamaño: 51.5x28.3 mm.

Garantía del vendedor: 3 días

Brand: CODYTAVAREZ
Isin: IPQWU1UEGHRF

=====================================================
Puede ver todos nuestros productos a la venta sobre placas base arduino, sensores, cables, amplificadores, módulos de potencia, luces LED e interruptores aquí:

https://listado.mercadolibre.com.mx/_CustId_608985903

Si los artículos comprados suman más de US $ 299, la tarifa de envío no aumentará.
Esperamos su compra, gracias!
=====================================================

ESP32 WiFi + Bluetooth / BLE4.2 Internet tarjeta de desarrollo.

El chip ESP32 WiFi + Bluetooth es la última generación de productos Espressif. Tiene un MCU dual core de 32 bits que integra WiFi y Bluetooth/BLE 4.2.7

Comparado con el arduino ESP8266 (la generación anterior), el ESP32 ha mejorado significativamente su desempeño. Está equipado con un MCU de alto desempeño de doble núcleo LX6 MCU. Un núcleo maneja la conexión de alta velocidad y el otro controla las aplicaciones.

Soporta programación Arduino.

Desarrollado para aplicaciones móviles, electrónicos wearable e Internet de las Cosas (IoT), el ESP32 ofrece un consumo ultrabajo de corriente.

Caracteristicas:
• CPU and Memory
• Xtensa® Dual-Core 32-bit LX6 microprocessors, up to 600 MIPS
• 448 KByte ROM
• 520 KByte SRAM
• 16 KByte SRAM in RTC
• QSPI Flash/SRAM, up to 4 x 16 MBytes
• Power supply: 2.2 V to 3.6 V
Clocks and Timers
• Internal 8 MHz oscillator with calibration
• Internal RC oscillator with calibration
• External 2 MHz to 40 MHz crystal oscillator
• External 32 kHz crystal oscillator for RTC with calibration
• Two timer groups, including 2 x 64-bit timers and 1 x main watchdog in each group
• RTC timer with sub-second accuracy
• RTC watchdog
Advanced Peripheral Interfaces
• 12-bit SAR ADC up to 18 channels
• 2 × 8-bit D/A converters
• 10 × touch sensors
• Temperature sensor
• 4 × SPI
• 2 × I2S
• 2 × I2C
• 3 × UART
• 1 host (SD/eMMC/SDIO)
• 1 slave (SDIO/SPI)
• Ethernet MAC interface with dedicated DMA and IEEE 1588 support
• CAN 2.0
• IR (TX/RX)
• Motor PWM
• LED PWM up to 16 channels
• Hall sensor
• Ultra low power analog pre-amplifier
Development Support
• SDK Firmware for fast on-line programming
• Open source toolchains based on GCC
• Operating Temperature Range: -40 ° C to + 85 ° C
• Tamaño: 51.5x28.3 mm.

Garantía del vendedor: 3 días

  • Marca: CODYTAVAREZ
  • Modelo: ESP32 devkit
  • Microcontrolador: ESP32
  • Voltaje de funcionamiento: 5V
  • Voltaje de entrada recomendado: 5
  • Voltaje de entrada límite: 12
  • Frecuencia del reloj: 240 MHz
  • Capacidad de la memoria flash: 4000 KB
  • Capacidad SRAM: 520 KB
  • Peso: 10 g
  • Cantidad de entradas análogas: 15
  • Cantidad de pines digitales de entrada y salida: 25
  • Incluye cable USB: No
