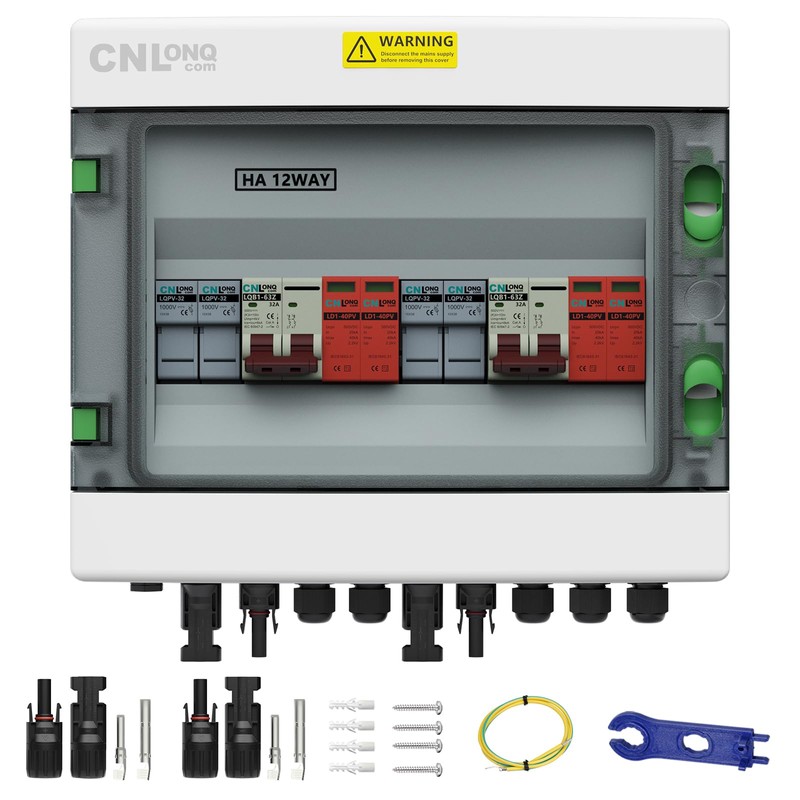

CNLonQcom 2 String Solar PV Combiner Box 2 in 2 Out IP65 DC500V 32A Circuit Breaker with Surge Protector and 15A PV Fuse,Solar Disconnect Switch Outdoor Waterproof for Solar Panels System

$220.39

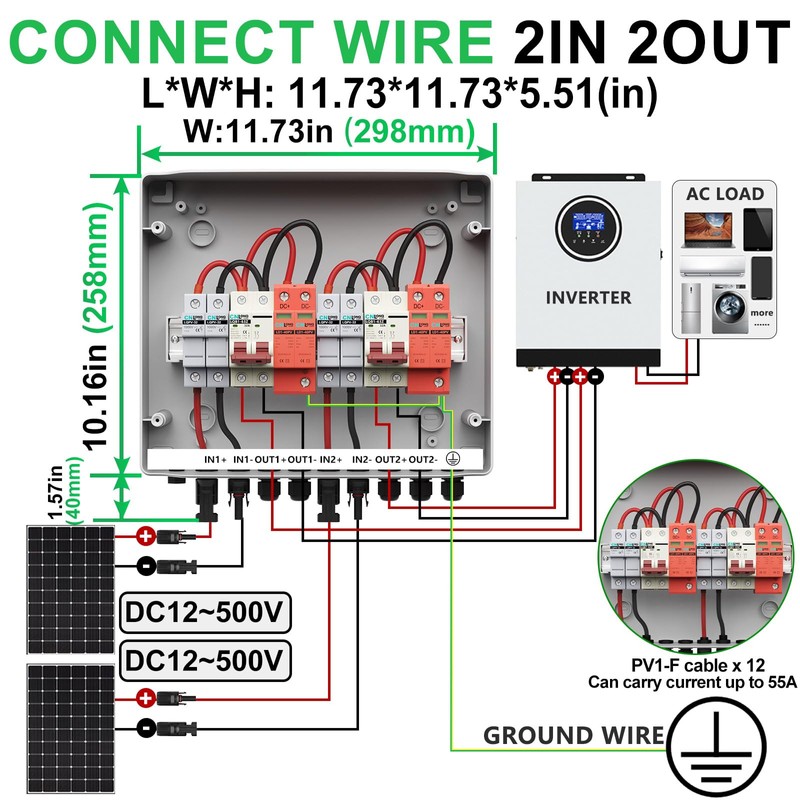

  • [2 Input 2 Output PV Combiner Box]: CNLonQcom's solar combiner box is designed to optimize the connection between the PV array and the inverter. The device supports up to 1,5000W of power in a 500V system. The device has a maximum input current of 15A per string and a maximum output current of 32A per string and provides overvoltage, overload and quick disconnect features to ensure the safety of the PV system

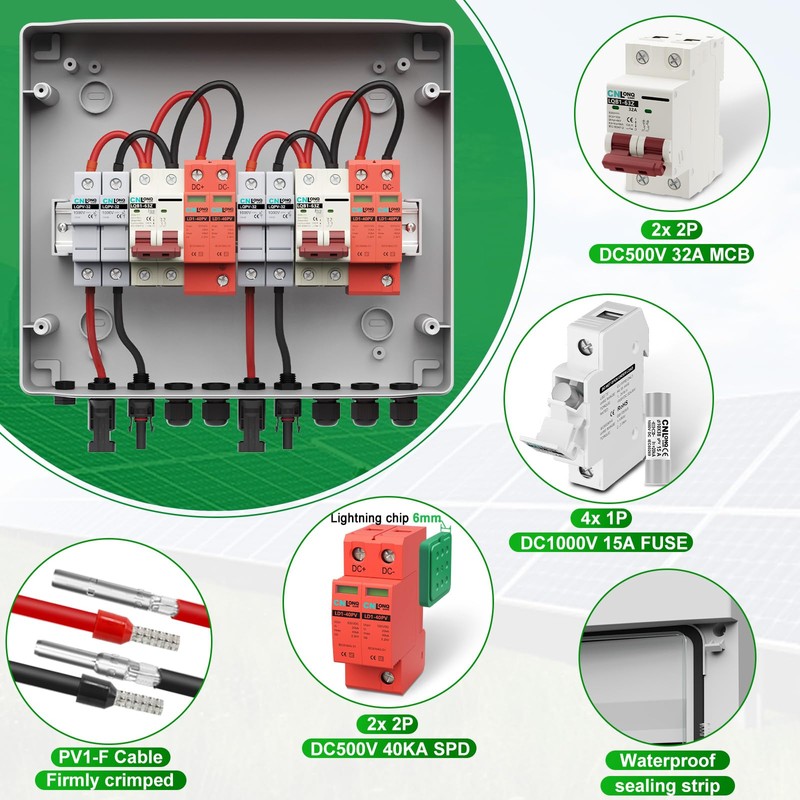

  • [MCB+SPD+FUSE]: CNLonQcom's PV Combiner Boxes are equipped with 32A DC500V circuit breakers, DC500V T2 surge protectors and 15A DC1000V fuses. Capable of switching circuits and providing short circuit, overvoltage, leakage and lightning protection

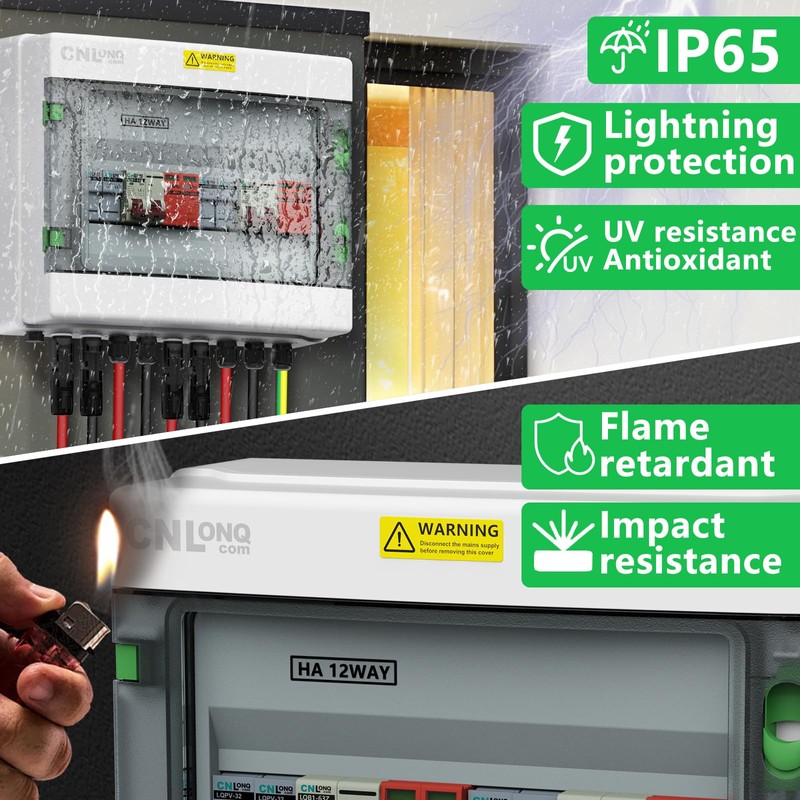

  • [Durable IP65 Waterproof Box]: The junction box is made of high quality PC+ABS material and is IP65 waterproof, flame retardant and UV resistant. It is suitable for both indoor and outdoor use and is resistant to sand, dust and rain

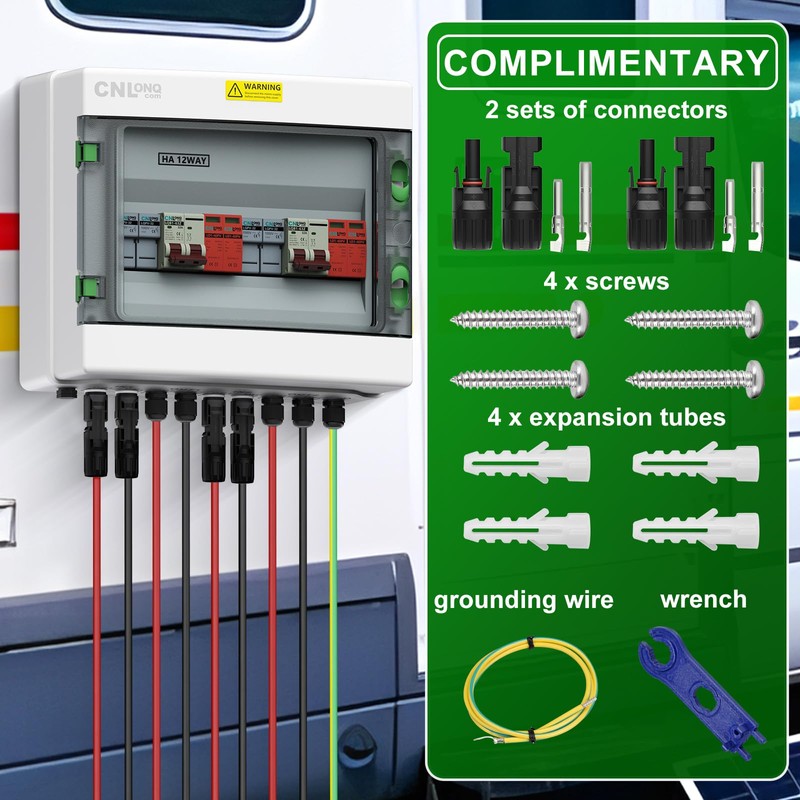

  • [Easy Wiring and Wall Mount]: CNLonQcom's Solar Combiner Box come pre-wired with 10AWG PV1-F cable inputs and jumpers to simplify installation, just connect the outputs and ground wire. A free ground wire is included in the package for use if needed
  • [Application]: Designed for grid-tied or off-grid solar systems, including solar panels, RVs, boats, rooftops, and other wind or solar systems. Supports up to 360W in a 12V system, up to 720W in a 24V system, and up to 1,440W in a 48V system, making it a powerful and reliable solution for small to medium-sized solar projects
  • [Trusted Expertise in PV Solutions]: Trust in the CNLonQcom brand, a dedicated manufacturer and service provider deeply rooted in the photovoltaic industry. Our focus on manufacturing and servicing PV combiner boxes reflects our commitment to quality and reliability in solar energy solutions.

Size:
2in x 15A 2out x 32A 500V
Color:
2in x 15A 2out x 32A 500V
Manufacturer:
CNLonQcom
Part Number:
S5QLR2V
Material Type:
Acrylonitrile Butadiene Styrene (ABS), Polycarbonate (PC)
Product Dimensions:
7.24 x 12.6 x 12.64 inches; 6.67 pounds
Isin:
IMA0QFEIQ0CE

$220.39

In Stock

Sold by , Fulfilled by IBSPOT • Ships from US

IBSPOT Buyer Protection
  • Free 30-Day Returns
  • Full Refund for Damaged or Incorrect Items
  • Guaranteed Delivery or Money Back
  • Secure Checkout & Fast Support
scroll to top arrow
CNLonQcom 2 String Solar PV Combiner Box 2 in 2 Out IP65 DC500V 32A Circuit Breaker with Surge Protector and 15A PV Fuse,Solar Disconnect Switch Outdoor Waterproof for Solar Panels System

CNLonQcom 2 String Solar PV Combiner Box 2 in 2 Out IP65 DC500V 32A Circuit B...

$220.39

  • [2 Input 2 Output PV Combiner Box]: CNLonQcom's solar combiner box is designed to optimize the connection between the PV array and the inverter. The device supports up to 1,5000W of power in a 500V system. The device has a maximum input current of 15A per string and a maximum output current of 32A per string and provides overvoltage, overload and quick disconnect features to ensure the safety of the PV system
  • [MCB+SPD+FUSE]: CNLonQcom's PV Combiner Boxes are equipped with 32A DC500V circuit breakers, DC500V T2 surge protectors and 15A DC1000V fuses. Capable of switching circuits and providing short circuit, overvoltage, leakage and lightning protection
  • [Durable IP65 Waterproof Box]: The junction box is made of high quality PC+ABS material and is IP65 waterproof, flame retardant and UV resistant. It is suitable for both indoor and outdoor use and is resistant to sand, dust and rain
  • [Easy Wiring and Wall Mount]: CNLonQcom's Solar Combiner Box come pre-wired with 10AWG PV1-F cable inputs and jumpers to simplify installation, just connect the outputs and ground wire. A free ground wire is included in the package for use if needed
  • [Application]: Designed for grid-tied or off-grid solar systems, including solar panels, RVs, boats, rooftops, and other wind or solar systems. Supports up to 360W in a 12V system, up to 720W in a 24V system, and up to 1,440W in a 48V system, making it a powerful and reliable solution for small to medium-sized solar projects
  • [Trusted Expertise in PV Solutions]: Trust in the CNLonQcom brand, a dedicated manufacturer and service provider deeply rooted in the photovoltaic industry. Our focus on manufacturing and servicing PV combiner boxes reflects our commitment to quality and reliability in solar energy solutions.

Size:
2in x 15A 2out x 32A 500V
Color:
2in x 15A 2out x 32A 500V
Manufacturer:
CNLonQcom
Part Number:
S5QLR2V
Material Type:
Acrylonitrile Butadiene Styrene (ABS), Polycarbonate (PC)
Product Dimensions:
7.24 x 12.6 x 12.64 inches; 6.67 pounds
Isin:
IMA0QFEIQ0CE

Product Features The LQX-DC500V2-2 DC convergence box is compatible with inverters with a maximum input voltage of DC500V and features 2 PV input channels and 2 output channel. The box is made from PVC engineering material and is tested for flame retardancy, temperature rise, shock resistance and UV resistance. The protection class is IP65. It is designed and configured in strict accordance with the Technical Specification for Photovoltaic Connection Equipment CGC/GF 037:2014. It sits between the solar panel and the solar inverter and is designed and customised with the most reliable DC components for maximum protection. Name LQX-DC500V2-2 Electrical Parameters Maximum system DC voltage 500V Maximum input current per string 15A Maximum number of input strings 2 Maximum output switching current 32A Number of output strings 2 Lightning Protection Test category II protection Rated discharge current 20kA Maximum discharge current 40kA Voltage protection class 2.0kV Maximum continuous working voltage Uc 400V Protection class IP65 Case material PVC Installation method Wall-mounted Working Temperature -25℃ ~+55℃ Temperature Altitude 2km Allowable relative humidity 0-95%, no condensation
